34120 Self-Aligning Pads

Name: 34120.W0313
Brand: WC
SKU: 34120.W0313
Price: 50.31 EUR
Availability: OutOfStock

adjustable - steel, material: Steel, heat-treated

Article properties

Order No.

34120.W0313

Ball type

Flat, Serrated

Ball dia.

8.5

d₁

M 8

d₂

5.8

l₁

36.6

l₂

w₁

14.5

A/F

Static load max. kN

Tightening torque max. Nm

Weight g

See full product selection

£ 50.31 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 50.31	0%
3-4	£ 45.28	10%
5-9	£ 42.76	15%
10-19	£ 40.25	20%
20+	£ 37.73	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: steel, heat-treated, phosphated.
Ball: ball-bearing steel, hardened, bright.

Technical Notes

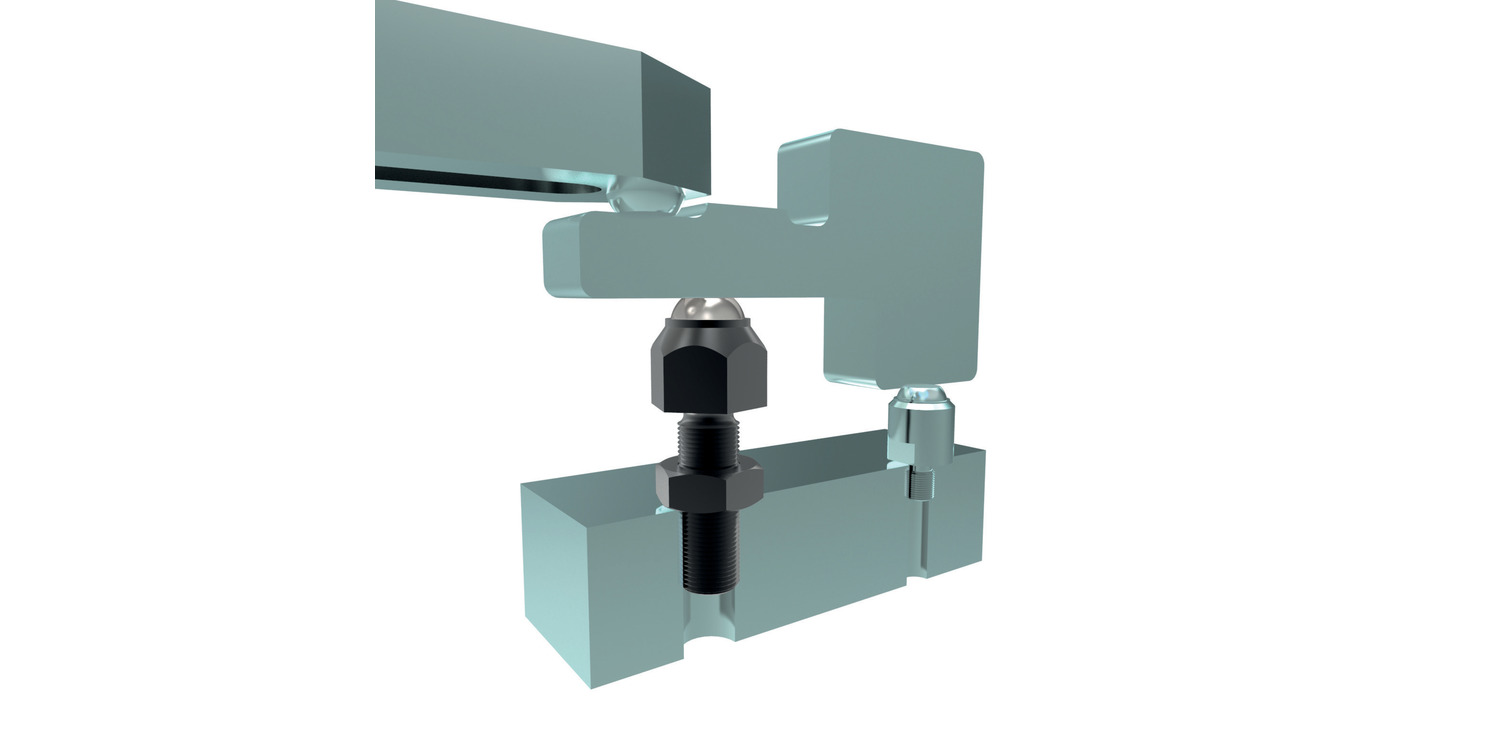

These self-aligning pads serve as stops, supports and thrust elements in jigs and fixtures. They can also be fitted to existing clamping elements.

Tips

Ball secured against turning.
