Self Aligning Pads
Steel

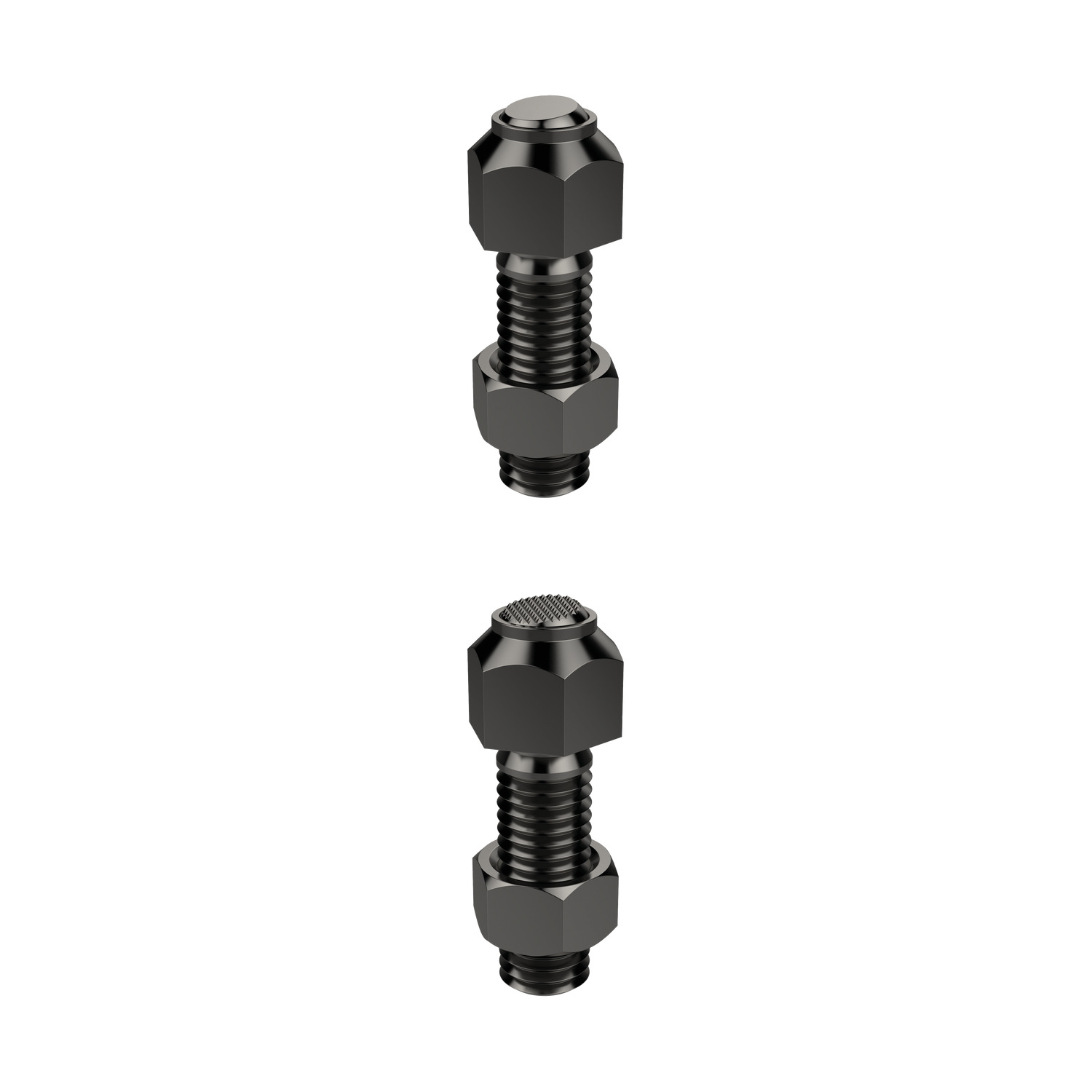

34120 Self-Aligning Pads
adjustable - steel, material: Steel, heat-treated
Alternative products you may wish to consider
Ball type
Flat, Smooth

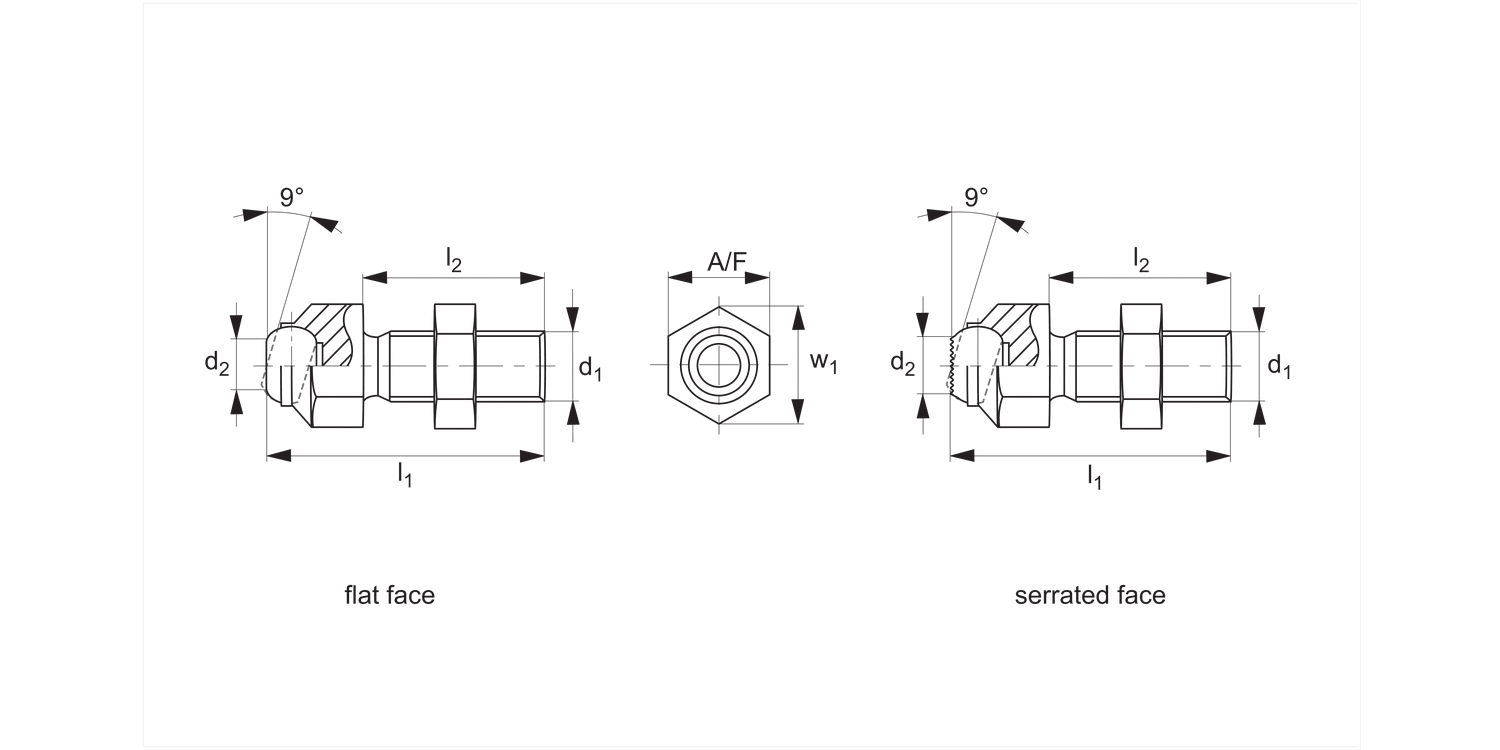

Ball dia.
8.5
d1
M 8
d2
5.8
l1
36.6
l2
25
w1
14.5
A/F
13
Static load
max.
kN
8
Tightening torque
max.
Nm
25
Weight
g
21
£ 37.51 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
12.0
d1
M10
d2
8.6
l1
45.7
l2
30
w1
19.0
A/F
17
Static load
max.
kN
8
Tightening torque
max.
Nm
46
Weight
g
44
£ 50.23 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
12.0
d1
M12
d2
8.6
l1
50.7
l2
35
w1
19.0
A/F
17
Static load
max.
kN
15
Tightening torque
max.
Nm
82
Weight
g
55
£ 50.23 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
16.0
d1
M16
d2
10.5
l1
60.7
l2
40
w1
27.0
A/F
24
Static load
max.
kN
25
Tightening torque
max.
Nm
206
Weight
g
28
£ 69.64 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
25.0
d1
M20
d2
20.0
l1
77.3
l2
50
w1
33.0
A/F
30
Static load
max.
kN
90
Tightening torque
max.
Nm
407
Weight
g
75
£ 119.61 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
25.0
d1
M24
d2
20.0
l1
100.0
l2
70
w1
40.0
A/F
36
Static load
max.
kN
90
Tightening torque
max.
Nm
698
Weight
g
472
£ 137.54 per unit (click for quantity discounts)
Ball type
Flat, Smooth
Ball dia.
40.0
d1
M30x1,5
d2
34.6
l1
100.0
l2
65
w1
51.0
A/F
46
Static load
max.
kN
165
Tightening torque
max.
Nm
1355
Weight
g
772
£ 171.03 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
8.5
d1
M 8
d2
5.8
l1
36.6
l2
25
w1
14.5
A/F
13
Static load
max.
kN
8
Tightening torque
max.
Nm
25
Weight
g
20
£ 50.31 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
12.0
d1
M10
d2
8.6
l1
45.7
l2
30
w1
19.0
A/F
17
Static load
max.
kN
8
Tightening torque
max.
Nm
46
Weight
g
44
£ 64.59 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
12.0
d1
M12
d2
8.6
l1
50.7
l2
35
w1
19.0
A/F
17
Static load
max.
kN
15
Tightening torque
max.
Nm
82
Weight
g
55
£ 64.59 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
16.0
d1
M16
d2
10.5
l1
60.7
l2
40
w1
27.0
A/F
24
Static load
max.
kN
25
Tightening torque
max.
Nm
206
Weight
g
128
£ 91.14 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
25.0
d1
M20
d2
20.0
l1
77.3
l2
50
w1
33.0
A/F
30
Static load
max.
kN
90
Tightening torque
max.
Nm
407
Weight
g
274
£ 143.27 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
25.0
d1
M24
d2
20.0
l1
100.0
l2
70
w1
40.0
A/F
36
Static load
max.
kN
90
Tightening torque
max.
Nm
698
Weight
g
472
£ 161.37 per unit (click for quantity discounts)
Ball type
Flat, Serrated
Ball dia.
40.0
d1
M30x1,5
d2
34.6
l1
100.0
l2
65
w1
51.0
A/F
46
Static load
max.
kN
165
Tightening torque
max.
Nm
1355
Weight
g
772
£ 191.49 per unit (click for quantity discounts)
Ball type
Ball dia.
d1
d2
l1
l2
w1
A/F
Static load
max.
kN
Tightening torque
max.
Nm
Weight
g
| Price & Availability | Article | Ball type | Ball dia. | d1 | d2 | l1 | l2 | w1 | A/F | Static load max. kN | Tightening torque max. Nm | Weight g | ||||||||||||||||||
| 34120.W0013 | Flat, Smooth | 8.5 | M 8 | 5.8 | 36.6 | 25 | 14.5 | 13 | 8 | 25 | 21 | |||||||||||||||||||
£ 37.51 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 8.5 d1 M 8 d2 5.8 l1 36.6 l2 25 w1 14.5 A/F 13 Static load
max.
kN 8 Tightening torque
max.
Nm 25 Weight
g 21 | ||||||||||||||||||||||||||||||
| 34120.W0016 | Flat, Smooth | 12.0 | M10 | 8.6 | 45.7 | 30 | 19.0 | 17 | 8 | 46 | 44 | |||||||||||||||||||
£ 50.23 per unit (click for quantity discounts) Ready to despatch 17 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 12.0 d1 M10 d2 8.6 l1 45.7 l2 30 w1 19.0 A/F 17 Static load
max.
kN 8 Tightening torque
max.
Nm 46 Weight
g 44 | ||||||||||||||||||||||||||||||
| 34120.W0017 | Flat, Smooth | 12.0 | M12 | 8.6 | 50.7 | 35 | 19.0 | 17 | 15 | 82 | 55 | |||||||||||||||||||
£ 50.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 12.0 d1 M12 d2 8.6 l1 50.7 l2 35 w1 19.0 A/F 17 Static load
max.
kN 15 Tightening torque
max.
Nm 82 Weight
g 55 | ||||||||||||||||||||||||||||||
| 34120.W0024 | Flat, Smooth | 16.0 | M16 | 10.5 | 60.7 | 40 | 27.0 | 24 | 25 | 206 | 28 | |||||||||||||||||||
£ 69.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 16.0 d1 M16 d2 10.5 l1 60.7 l2 40 w1 27.0 A/F 24 Static load
max.
kN 25 Tightening torque
max.
Nm 206 Weight
g 28 | ||||||||||||||||||||||||||||||
| 34120.W0030 | Flat, Smooth | 25.0 | M20 | 20.0 | 77.3 | 50 | 33.0 | 30 | 90 | 407 | 75 | |||||||||||||||||||
£ 119.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 25.0 d1 M20 d2 20.0 l1 77.3 l2 50 w1 33.0 A/F 30 Static load
max.
kN 90 Tightening torque
max.
Nm 407 Weight
g 75 | ||||||||||||||||||||||||||||||
| 34120.W0036 | Flat, Smooth | 25.0 | M24 | 20.0 | 100.0 | 70 | 40.0 | 36 | 90 | 698 | 472 | |||||||||||||||||||
£ 137.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 25.0 d1 M24 d2 20.0 l1 100.0 l2 70 w1 40.0 A/F 36 Static load
max.
kN 90 Tightening torque
max.
Nm 698 Weight
g 472 | ||||||||||||||||||||||||||||||
| 34120.W0046 | Flat, Smooth | 40.0 | M30x1,5 | 34.6 | 100.0 | 65 | 51.0 | 46 | 165 | 1355 | 772 | |||||||||||||||||||
£ 171.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Smooth Ball dia. 40.0 d1 M30x1,5 d2 34.6 l1 100.0 l2 65 w1 51.0 A/F 46 Static load
max.
kN 165 Tightening torque
max.
Nm 1355 Weight
g 772 | ||||||||||||||||||||||||||||||
| 34120.W0313 | Flat, Serrated | 8.5 | M 8 | 5.8 | 36.6 | 25 | 14.5 | 13 | 8 | 25 | 20 | |||||||||||||||||||
£ 50.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 8.5 d1 M 8 d2 5.8 l1 36.6 l2 25 w1 14.5 A/F 13 Static load
max.
kN 8 Tightening torque
max.
Nm 25 Weight
g 20 | ||||||||||||||||||||||||||||||
| 34120.W0316 | Flat, Serrated | 12.0 | M10 | 8.6 | 45.7 | 30 | 19.0 | 17 | 8 | 46 | 44 | |||||||||||||||||||
£ 64.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 12.0 d1 M10 d2 8.6 l1 45.7 l2 30 w1 19.0 A/F 17 Static load
max.
kN 8 Tightening torque
max.
Nm 46 Weight
g 44 | ||||||||||||||||||||||||||||||
| 34120.W0317 | Flat, Serrated | 12.0 | M12 | 8.6 | 50.7 | 35 | 19.0 | 17 | 15 | 82 | 55 | |||||||||||||||||||
£ 64.59 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 12.0 d1 M12 d2 8.6 l1 50.7 l2 35 w1 19.0 A/F 17 Static load
max.
kN 15 Tightening torque
max.
Nm 82 Weight
g 55 | ||||||||||||||||||||||||||||||
| 34120.W0324 | Flat, Serrated | 16.0 | M16 | 10.5 | 60.7 | 40 | 27.0 | 24 | 25 | 206 | 128 | |||||||||||||||||||
£ 91.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 16.0 d1 M16 d2 10.5 l1 60.7 l2 40 w1 27.0 A/F 24 Static load
max.
kN 25 Tightening torque
max.
Nm 206 Weight
g 128 | ||||||||||||||||||||||||||||||
| 34120.W0330 | Flat, Serrated | 25.0 | M20 | 20.0 | 77.3 | 50 | 33.0 | 30 | 90 | 407 | 274 | |||||||||||||||||||
£ 143.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 25.0 d1 M20 d2 20.0 l1 77.3 l2 50 w1 33.0 A/F 30 Static load
max.
kN 90 Tightening torque
max.
Nm 407 Weight
g 274 | ||||||||||||||||||||||||||||||
| 34120.W0336 | Flat, Serrated | 25.0 | M24 | 20.0 | 100.0 | 70 | 40.0 | 36 | 90 | 698 | 472 | |||||||||||||||||||
£ 161.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 25.0 d1 M24 d2 20.0 l1 100.0 l2 70 w1 40.0 A/F 36 Static load
max.
kN 90 Tightening torque
max.
Nm 698 Weight
g 472 | ||||||||||||||||||||||||||||||
| 34120.W0346 | Flat, Serrated | 40.0 | M30x1,5 | 34.6 | 100.0 | 65 | 51.0 | 46 | 165 | 1355 | 772 | |||||||||||||||||||
£ 191.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Ball type Flat, Serrated Ball dia. 40.0 d1 M30x1,5 d2 34.6 l1 100.0 l2 65 w1 51.0 A/F 46 Static load
max.
kN 165 Tightening torque
max.
Nm 1355 Weight
g 772 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, heat-treated, phosphated.
Ball: ball-bearing steel, hardened, bright.
Technical Notes
These self-aligning pads serve as stops, supports and thrust elements in jigs and fixtures. They can also be fitted to existing clamping elements.
Tips
Ball secured against turning.
