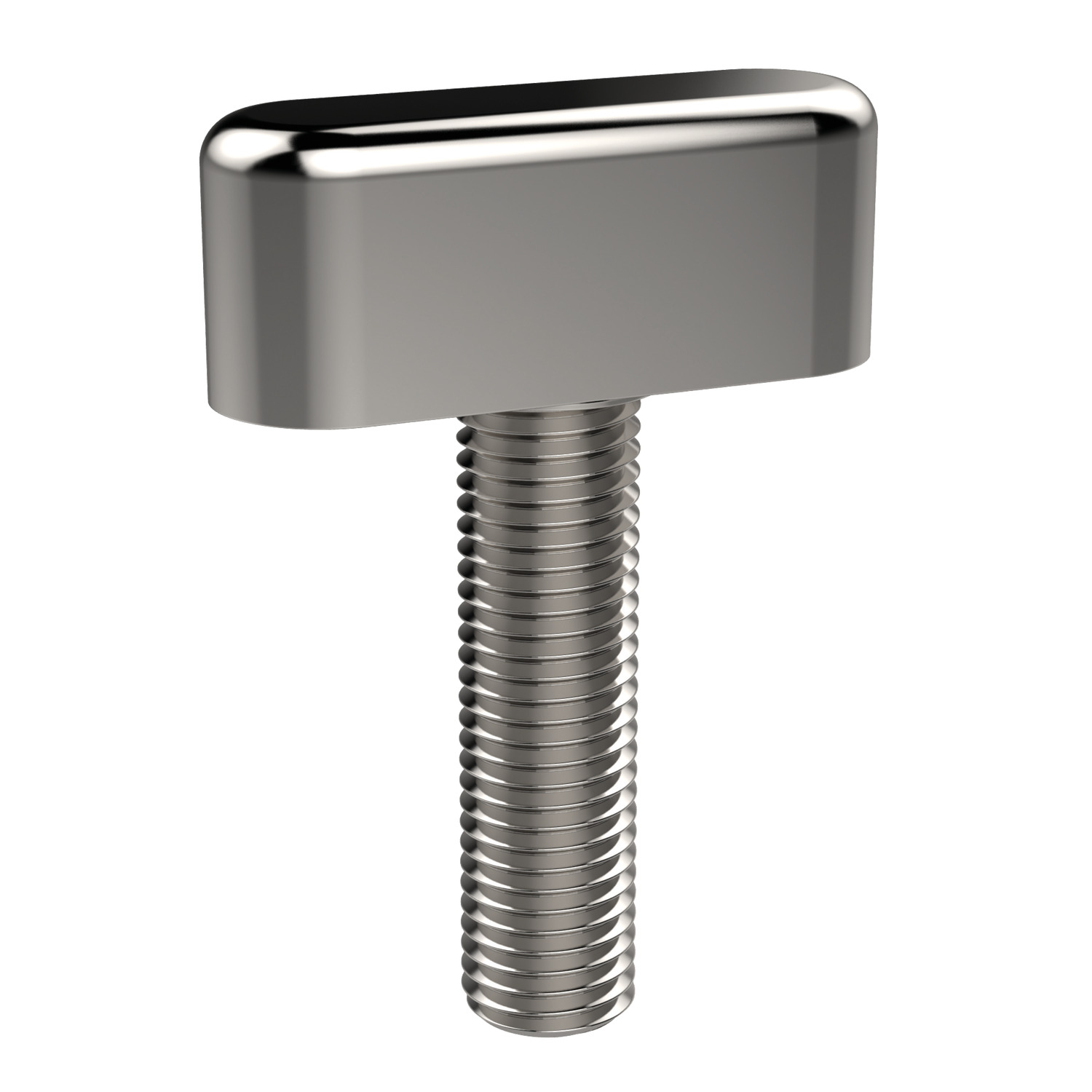

37380 Quarter Turn Screw, Male

Name: 37380.W0086
Brand: WC
SKU: 37380.W0086
Price: 15.16 EUR
Availability: InStock

Article properties

Order No.

37380.W0086

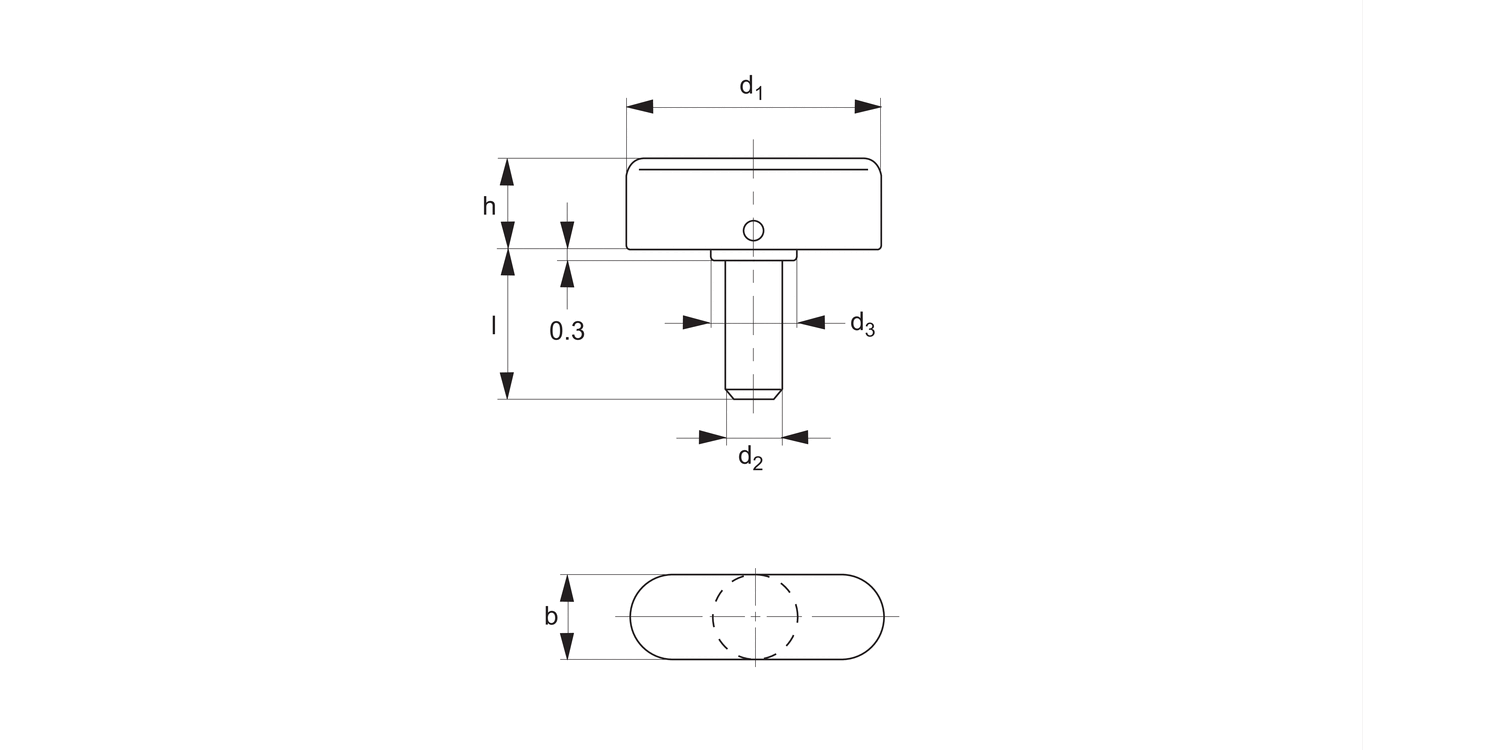

d₁

d₂

M 8

d₃

14.5

Weight g

£ 15.16 per unit (click for quantity discounts)

Ready to despatch 4
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Technical & Application

Stainless steel 1.4404 (AISI 316), body sintered, matte, shot-blasted. Screw: stainless steel, 1.4301 (AISI 304), matte, shot-blasted.

These quarter turn screws are used to develop higher clamping torques than is possible with knurled handles.

37380 Quarter Turn Screw, MaleJune 24, 2025, 3:43 PM / 1.95 MB

Wing NutsJune 24, 2025, 3:34 PM / 3.55 MB

GripsJune 24, 2025, 3:31 PM / 3.47 MB

Grips, Handles & HandwheelsJune 24, 2025, 3:32 PM / 11.95 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

37380 AcisApril 17, 2024, 9:43 AM / 278.36 kB

37380 IGESApril 17, 2024, 9:43 AM / 216.88 kB

37380 ParasolidApril 17, 2024, 9:43 AM / 69.81 kB

37380 ProEApril 17, 2024, 9:43 AM / 200.81 kB

37380 SolidWorksApril 17, 2024, 9:43 AM / 1.31 MB

37380 StepApril 17, 2024, 9:43 AM / 347.81 kB
