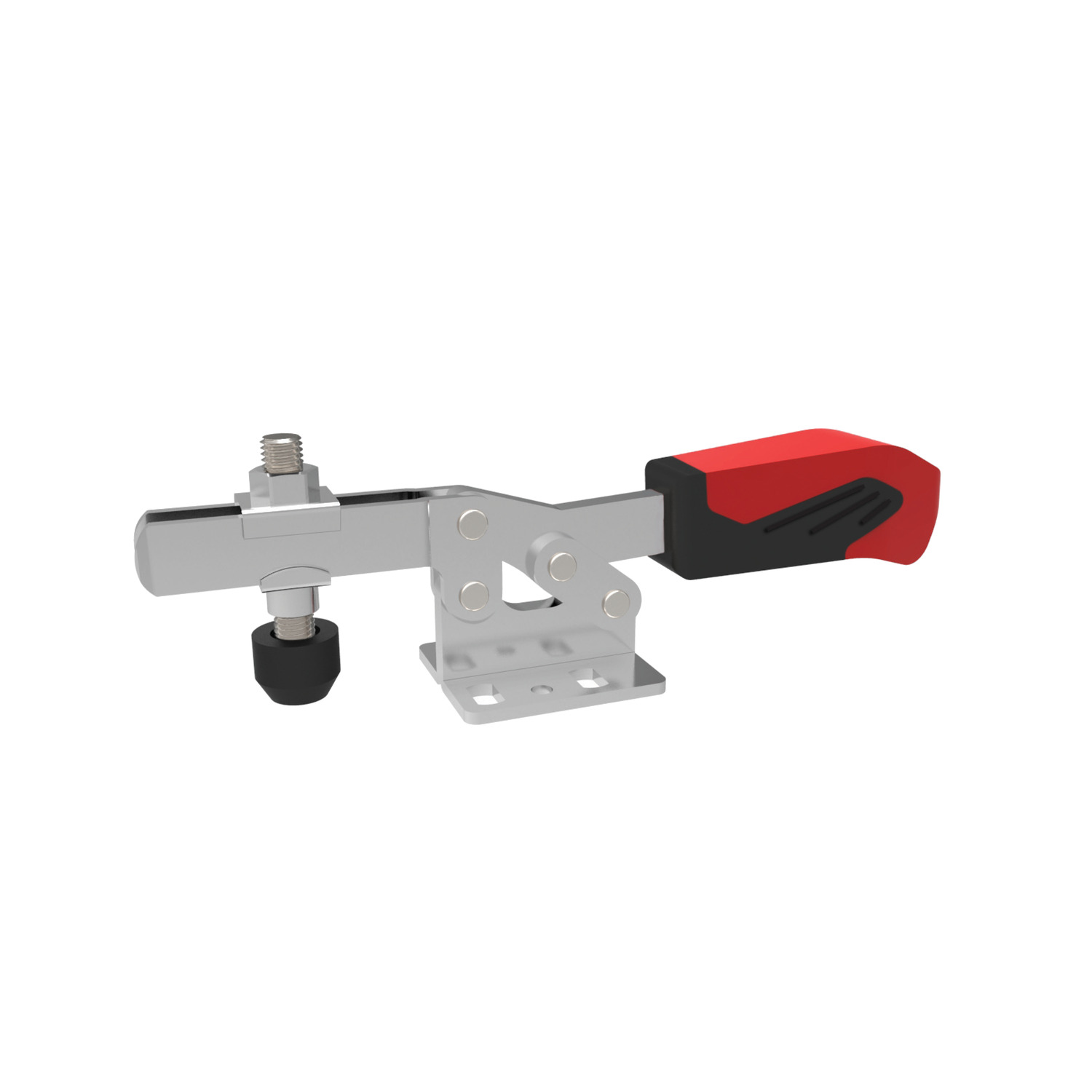

41000.1 Horizontal Acting Toggle Clamps

Name: 41000.W0006
Brand: WC
SKU: 41000.W0006
Price: 150.31 EUR
Availability: OutOfStock

open arm - horizontal base, material: Steel, zinc plated

Article properties

Order No.

41000.W0006

Size

F₁ kN

4.0

F₂ kN

7.0

Clamping screw

M10x116

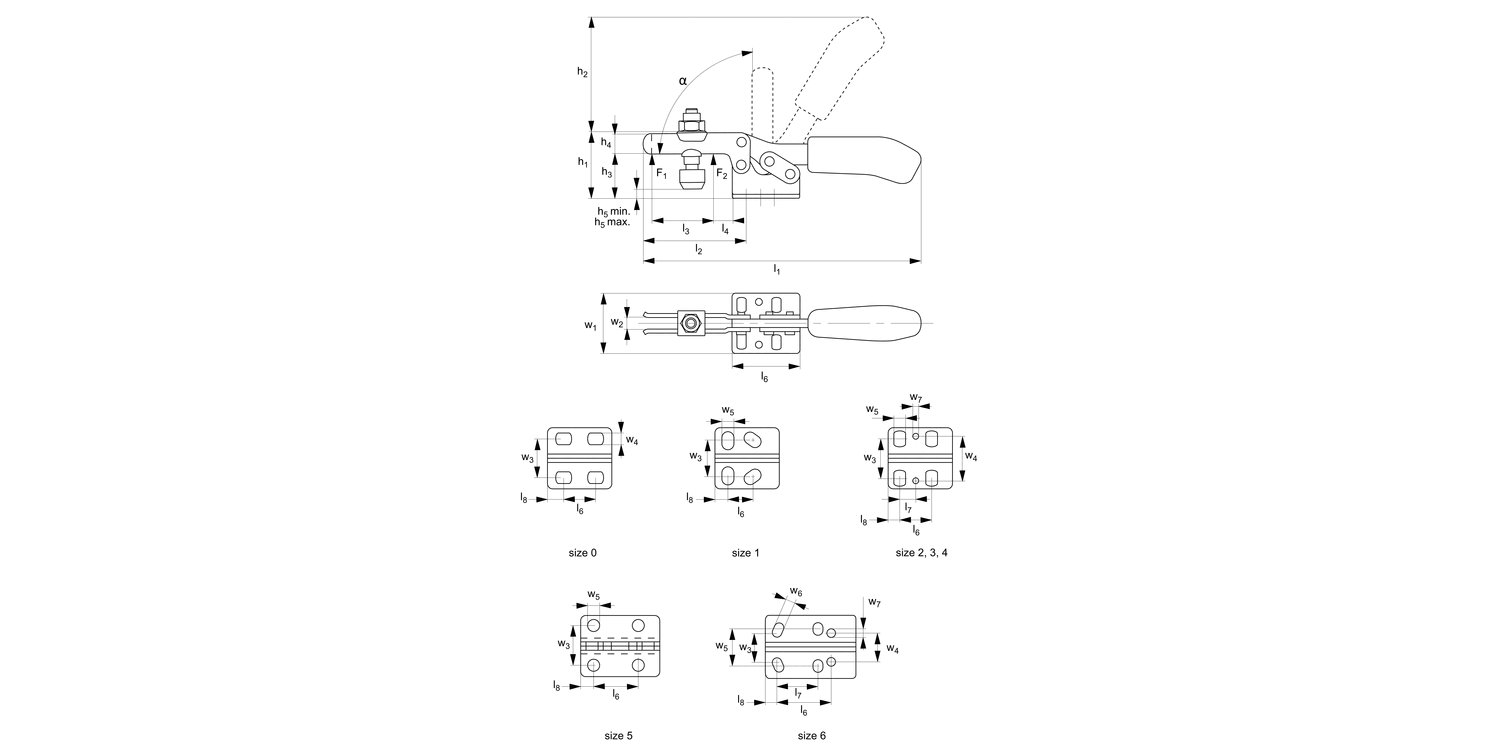

h₁

114.5

h₂

181

h₃

71.5

h₄ min.

30.0

h₅ min.

-6.0

h₅ max.

44.0

l₁

354

l₂

110

Weight g

1925

l₃

59.3

l₄

20.6

l₅

95.0

l₆

57.7

l₇

43.6

l₈

11.5

w₁

66.5

w₂

w₃

32,1-43,8

w₄

31.6

w₅

9.8

w₆

36,0-44,2

w₇

8.7

83°

See full product selection

£ 150.31 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 150.31	0%
10-14	£ 135.28	10%
15-24	£ 127.76	15%
25-49	£ 120.25	20%
50+	£ 105.22	30%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes (sizes 2-6).
Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
