Toggle Clamps
horizontal

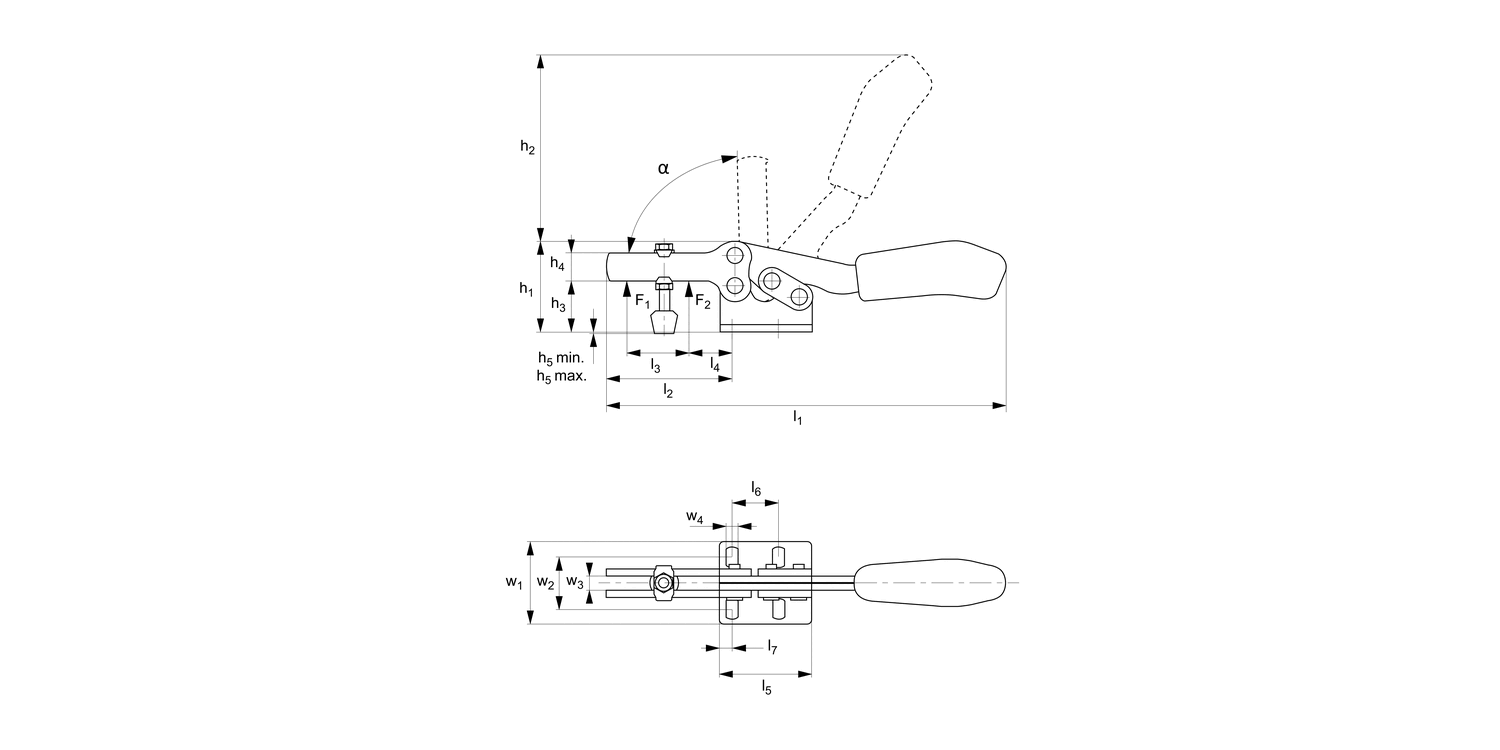

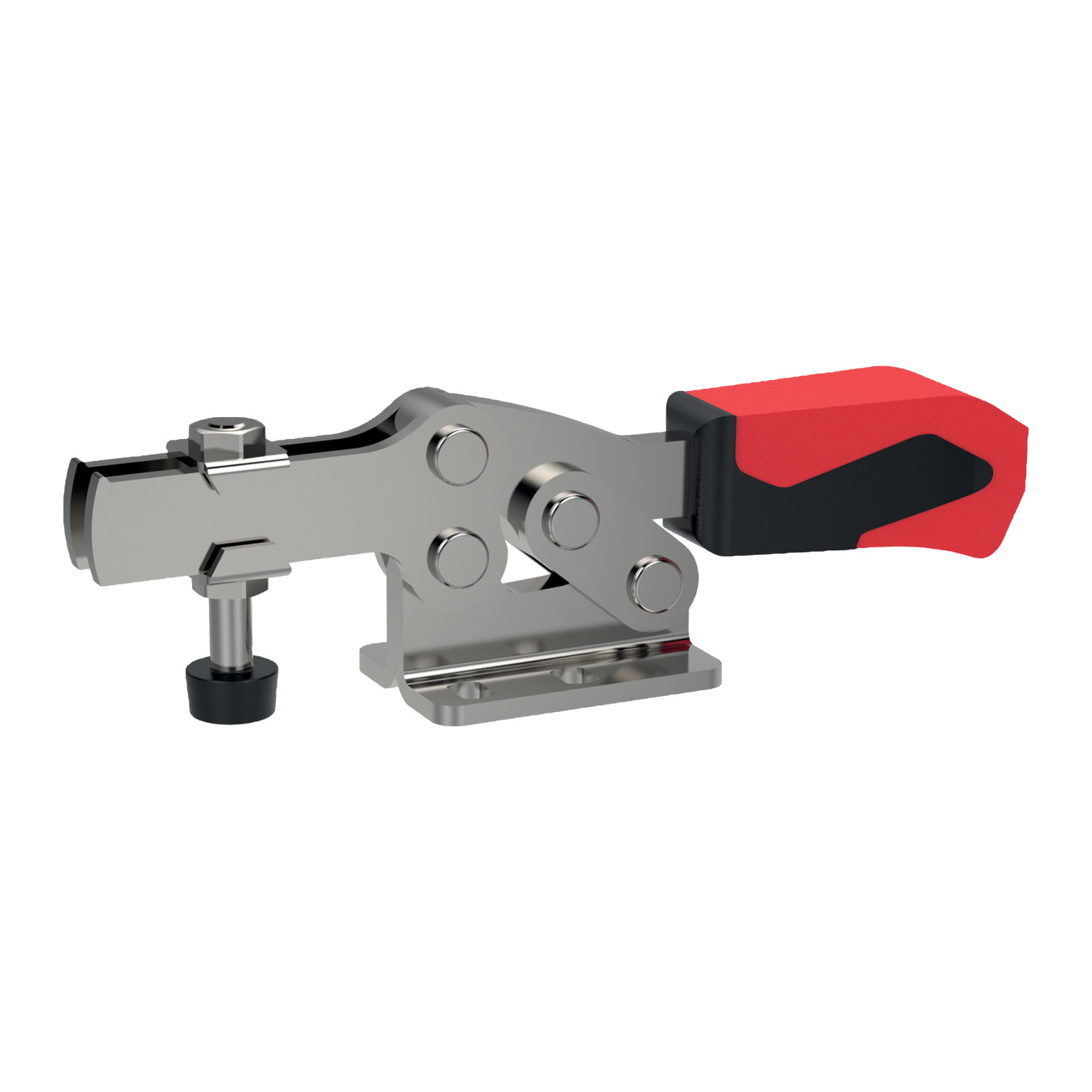

41001.1 Horizontal Toggle Clamp Plus
open arm - horizontal base - increased clamping force, material: Steel, zinc plated
Order No.
41001.W0004
Size
4
F1
kN
3.5
F2
kN
8.0
Clamping screw
M10x76
h1
77
h2
135
h3
41.0
h4
24
h5
min.
-2
h5
max.
16.5
l1
329
Weight
g
1250
l2
120
l3
69
l4
23.0
l5
76.0
l6
41.5
l7
10.5
w1
60.0
w2
34,5 - 45,0
w3
10
w4
8.6
α
90°
£ 90.18 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 90.18 | 0% |
| 10-14 | £ 81.16 | 10% |
| 15-24 | £ 76.65 | 15% |
| 25-49 | £ 72.14 | 20% |
| 50+ | £ 63.13 | 30% |
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes.
Pre-lubricated bearings (grease suitable for food industry use).

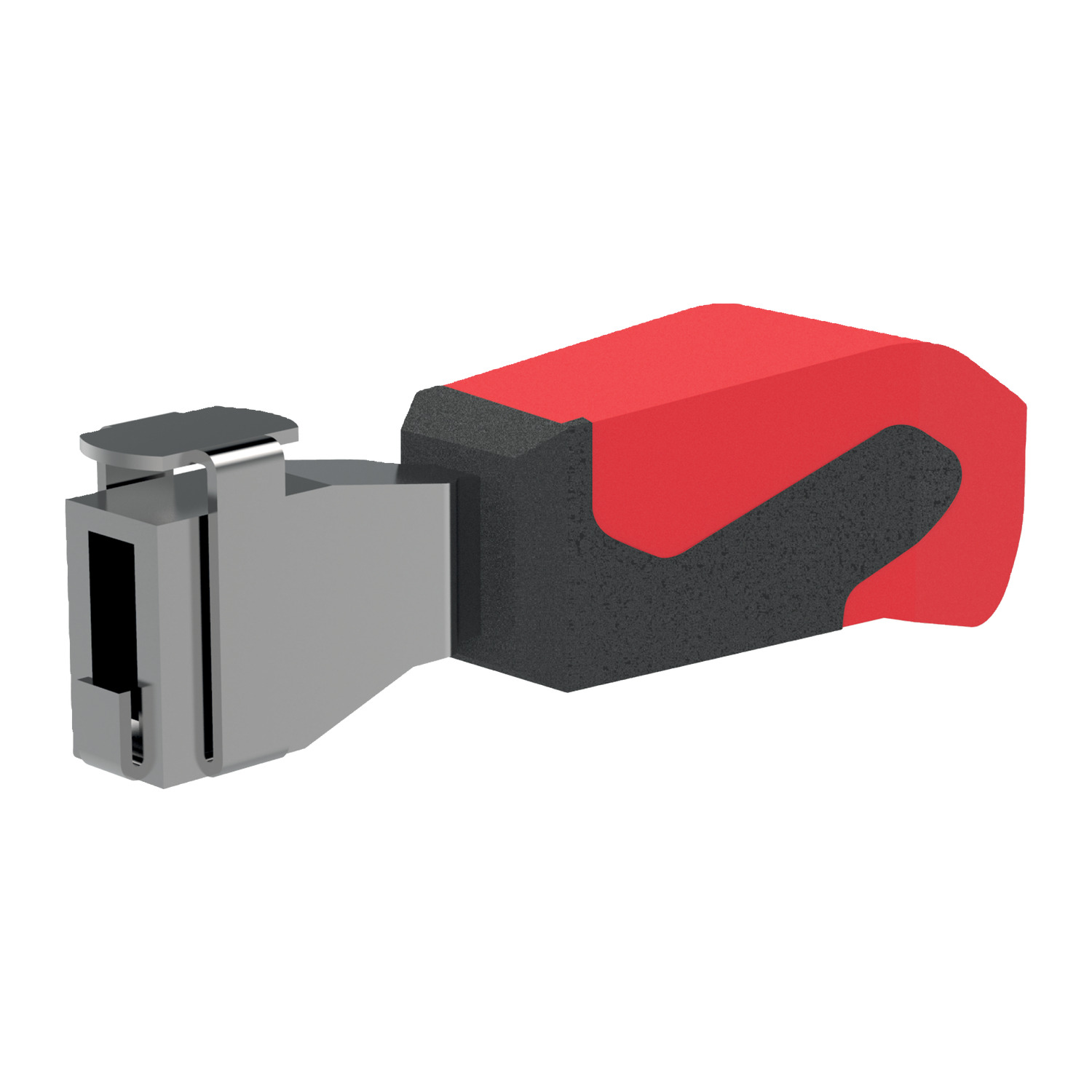

Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
Technical Notes
Temperature range -10°C to +80°C. With increased clamping force.
Also available in stainless steal part no. 41001.W0301 - .W0304.
