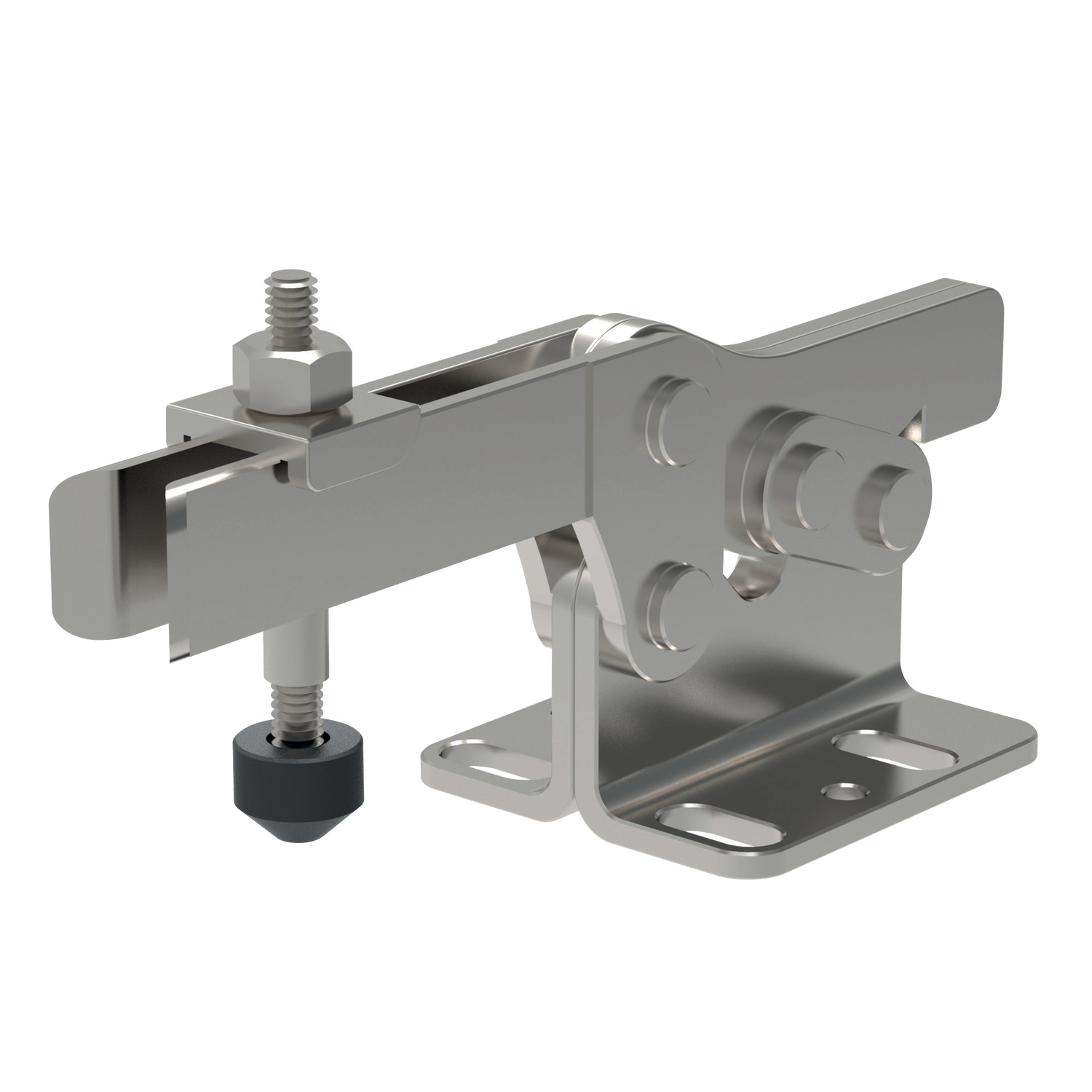

41005.1 Horizontal Acting Toggle Clamps

Name: 41005.W0003
Brand: WC
SKU: 41005.W0003
Price: 36.51 EUR
Availability: OutOfStock

for removable handle, material: Steel, zinc plated

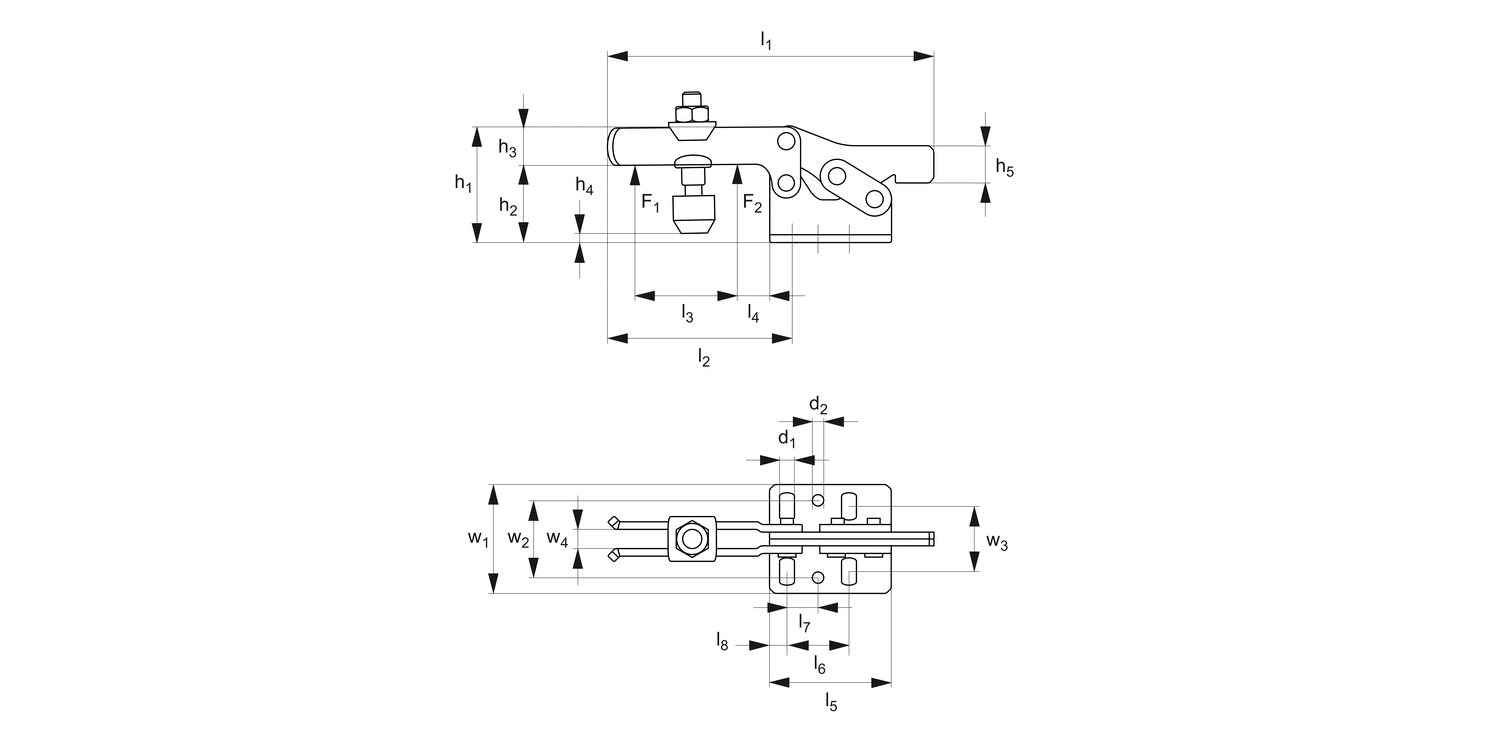

Article properties

Order No.

41005.W0003

Size

F₁ kN

1.8

F₂ kN

2.5

Clamping screw

M 8x45

h₁

48.5

h₂

h₃

15.0

h₄ min.

-2.0

h₄ max.

h₅

Weight g

269

l₁

134

l₂

l₃

l₄

l₅

l₆

25.7

l₇

13.0

l₈

w₁

45.5

w₂

22,0-31,8

w₃

w₄

31.6

d₁

6.5

d₂

5.1

90°

See full product selection

£ 36.51 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 36.51	0%
10-14	£ 32.86	10%
15-24	£ 31.03	15%
25-49	£ 29.21	20%
50+	£ 25.56	30%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes.
Pre-lubricated bearings (grease suitable for food industry use).
Supplied complete with clamping screw (with rubber pad).

Technical Notes

Temperature range -10°C to +80°C.

Tips

Order removable handle separately 41005.W0102- .W0104.
To prevent interference during use the handle can be removed after opening or closing the clamp.
