41100 Horizontal Acting Toggle Clamps

Name: 41100.W0002
Brand: WC
SKU: 41100.W0002
Price: 42.95 EUR
Availability: InStock

open arm - angle base, material: Steel, zinc plated

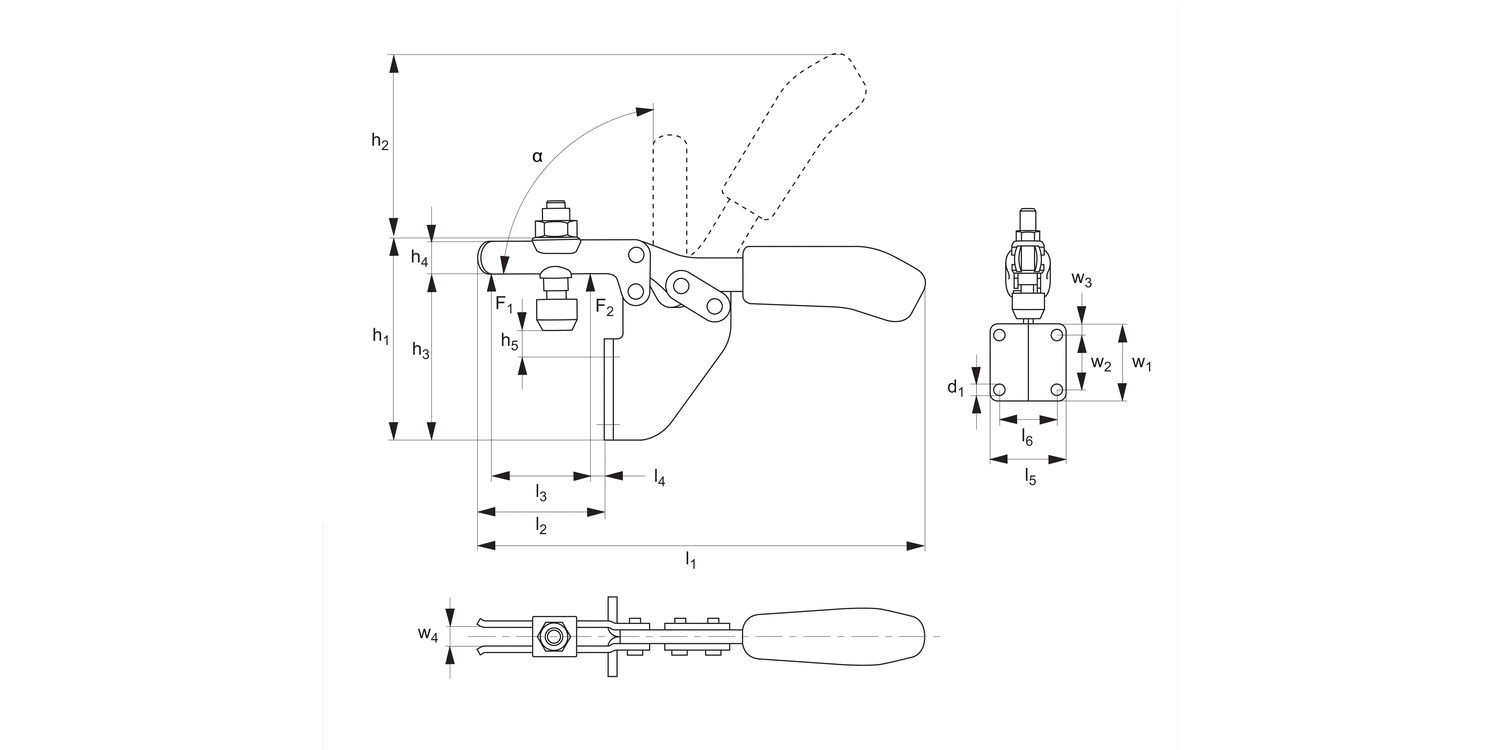

Article properties

Order No.

41100.W0002

Size

F₁ kN

1.0

F₂ kN

1.2

Clamping screw

M 6x35

h₁

94.0

h₂

h₃

h₄

13.2

h₅ min.

h₅ max.

29.5

Weight g

245

l₁

162

l₂

l₃

32.0

l₄

10.5

l₅

37.0

l₆

25.5

w₁

w₂

20.0

w₃

w₄

6.2

d₁

5.6

90°

See full product selection

£ 42.95 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 42.95	0%
5-14	£ 38.66	10%
15-24	£ 36.51	15%
25+	£ 34.36	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes (sizes 2-3).
Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).
