64500 Quick Plug Couplings

Name: 64500.W0012
Brand: WC
SKU: 64500.W0012
Price: 53.15 EUR
Availability: OutOfStock

with radial offset compensation, material: Heat treated steel

Article properties

Order No.

64500.W0012

Coupling Type

Screw

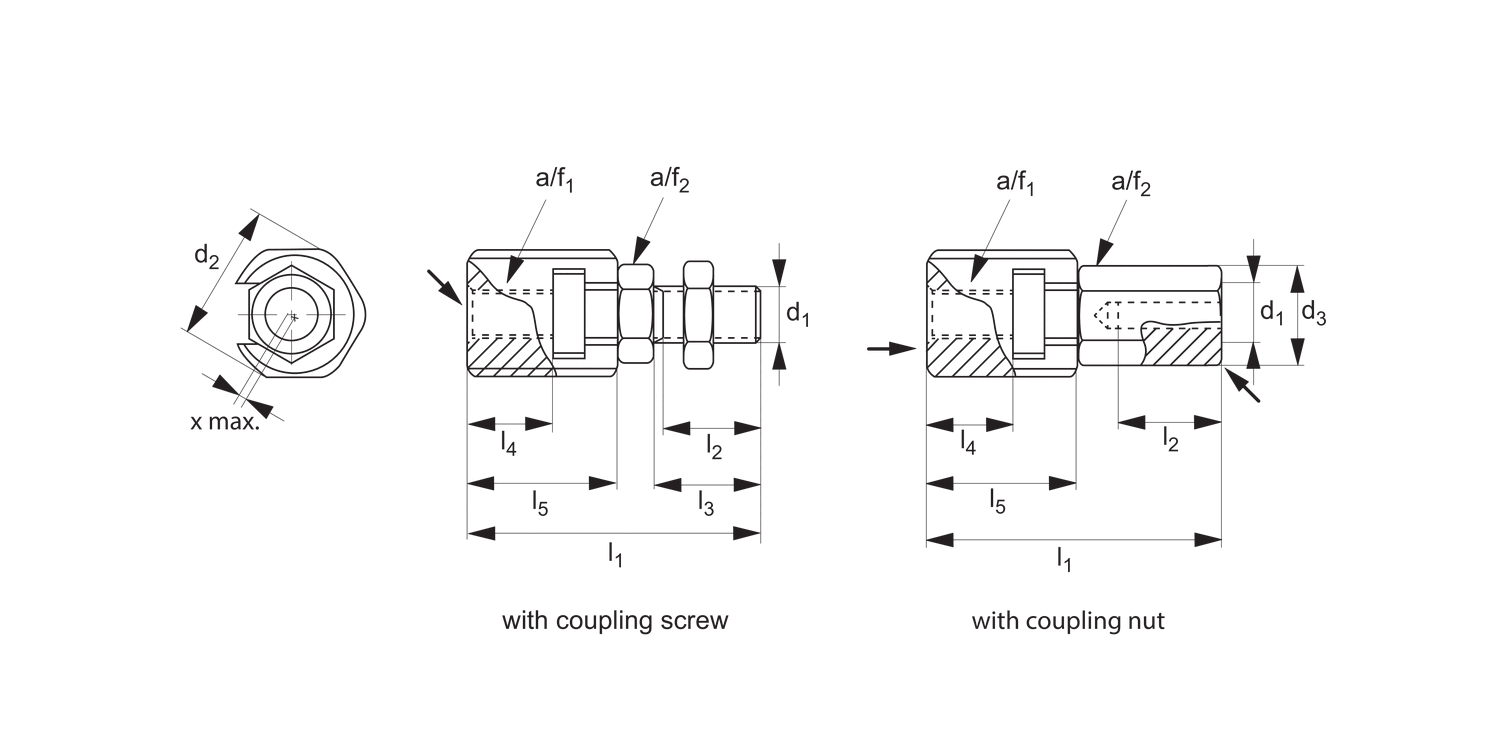

d₁

M12

d₂

32.5

d₃

l₁ ≈

66.7

l₂ min.

21.0

l₃

l₄ min.

17.0

l₅

34.0

Tensile & compression load max. kN

10.0

A/F₁

A/F₂

Axial offset x max.

0.8

Weight g

208

See full product selection

£ 53.15 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 53.15	0%
3-4	£ 47.84	10%
5-9	£ 45.18	15%
10-19	£ 42.52	20%
20+	£ 39.86	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: steel, heat-treated, phosphated. Lock nut: steel, blackened (ISO 4035/8675).

Technical Notes

For quick coupling/uncoupling of components within a linear movement application, with the additional advantage of compensating for radial off-set between the components. In built adjustment feature of the quick plug coupling means manual adjustment of the coupled units is unnecessary. Coupling via means of a t-slot channel within the coupling nut.

Tips

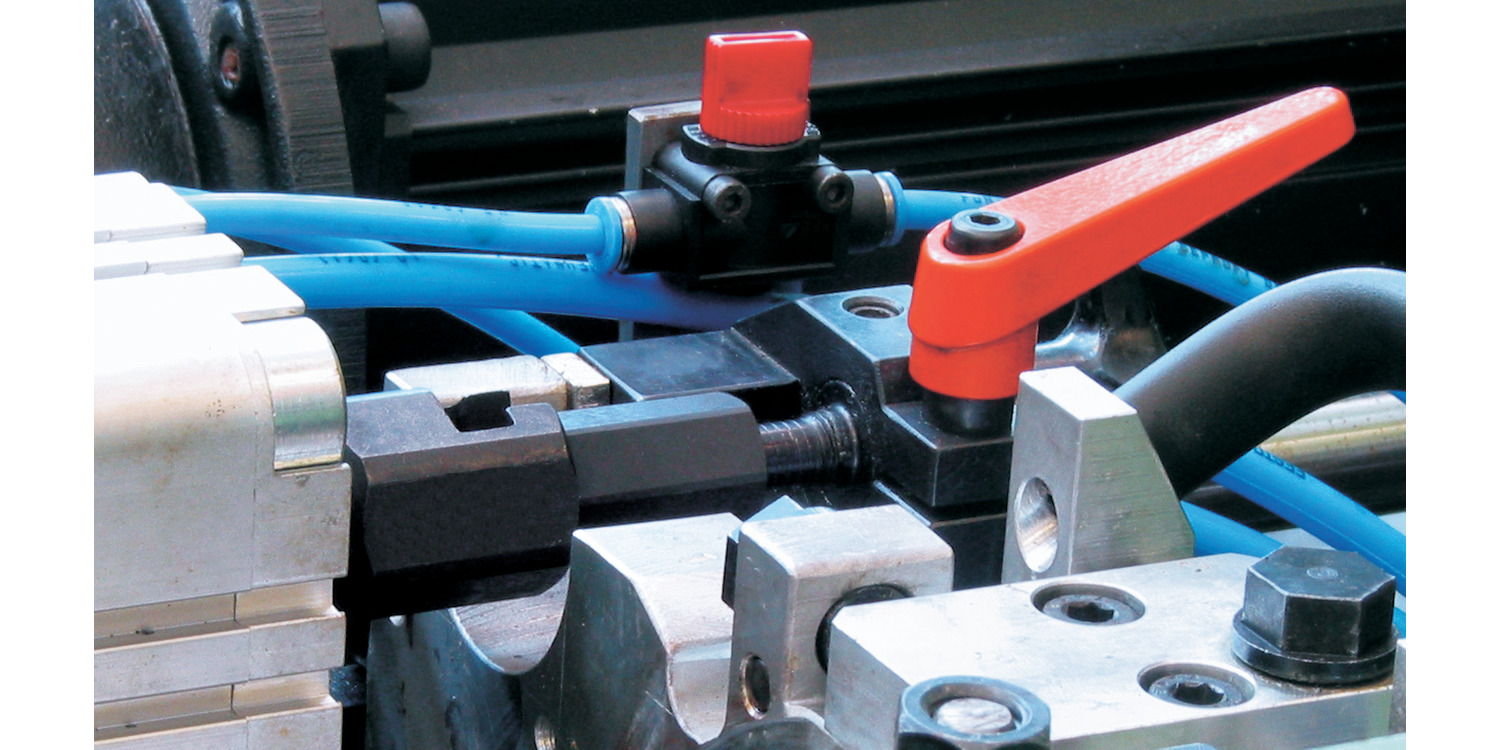

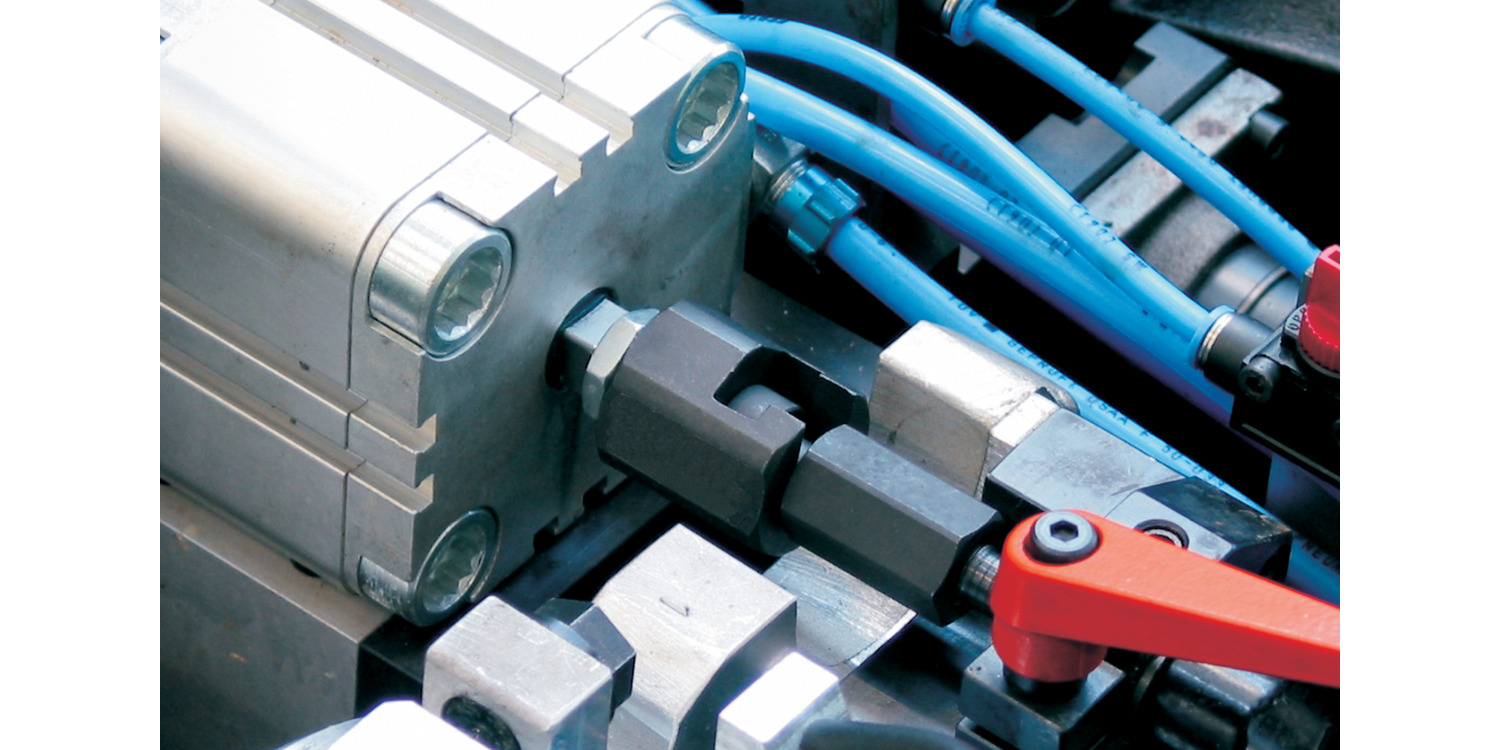

Can be linked to pneumatic and hydraulic lifting cylinders in many different applications.
Important note: suitable for linear movement applications, does not transmit any torque.
