Universal Joint
steel
65172 Single Universal Joint
Steel, material: Steel
Order No.
65172.W0014

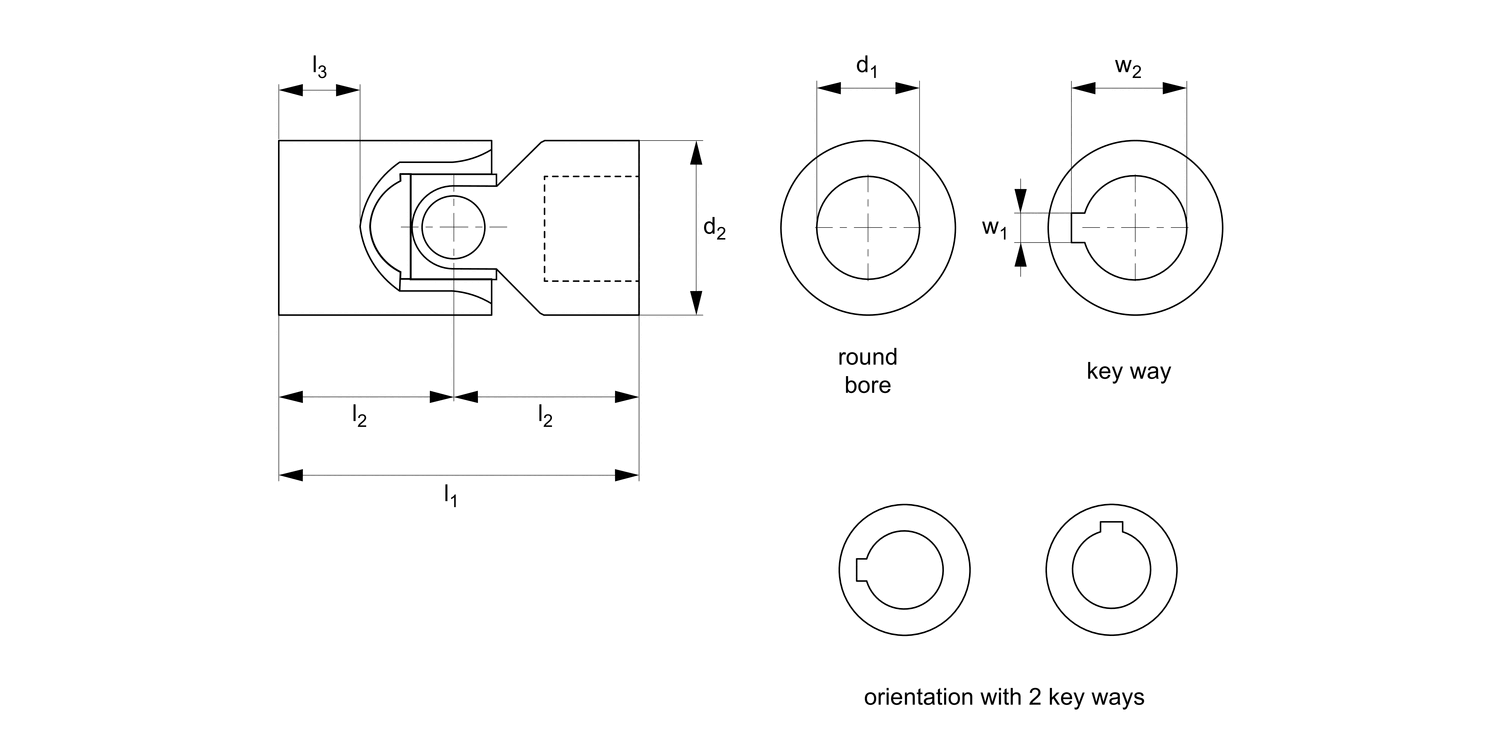

Bore dia.
Round Bore
d1
tol. H7
14
d2
28
l1
60
l2
30
l3
14
w1
tol. JS9
-
w2
-
Weight
g
200
£ 25.31 per unit (click for quantity discounts)
Ready to despatch 9
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 25.31 | 0% |
| 5-9 | £ 22.78 | 10% |
| 10-19 | £ 21.51 | 15% |
| 20-49 | £ 18.98 | 25% |
| 50+ | £ 16.45 | 35% |
Technical & Application
Material
Steel (9SMnPb28k, no. 10718).
Bearing type: plain bearing.
Technical Notes
To DIN 808.
Maximum bending angle 45° per joint.
Max. drive speed of 1000 rpm.
Tips
Single universal joints are used where shafts are off-set towards each other.
Product variations available on request, for square bores change the suffix to SQ for square bores or HX for hex bores.
For stainless steel see 65186.
