Palm Grips
cast iron

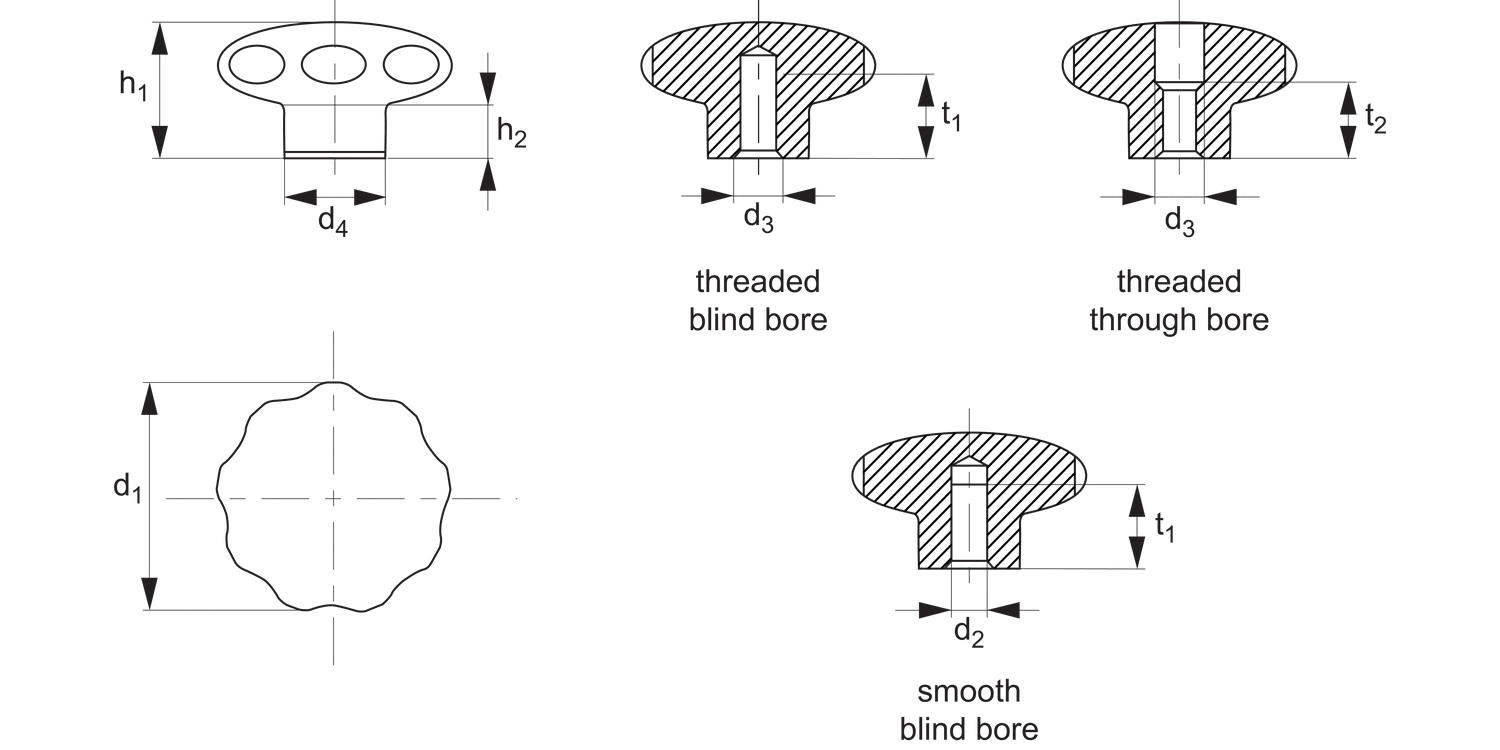

70180 Star Grips
solid stainless steel, material: Stainless steel
Order No.
70180.W0151
Finish
Threaded Through
d1
50
d2
tol. H7
-
d3
M10
d4
21
h1
34.0
h2
17
t1
min.
-
t2
16
Weight
g
216
£ 35.43 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 35.43 | 0% |
| 10-19 | £ 31.89 | 10% |
| 20-49 | £ 30.12 | 15% |
| 50-99 | £ 28.34 | 20% |
| 100+ | £ 24.80 | 30% |
Technical & Application
Material
Stainless steel 1.4305 (AISI 303), matt, dull blasted.
Technical Notes
Stainless steel star grips are a special development intended for the food processing machinery industry. Large radii and smooth surfaces have been introduced to meet the highest hygienic demands.
