Adj. Clamping Levers
with axial bearing - female
74472 Adjustable Clamping Levers
with axial bearing, from stainless steel, with female bearing, material: Die cast zinc
Order No.
74472.W1212
Colour
Black
d1
25
d2
M10
d3
30
h1
46.5
h2
66
h3
4.0
l2
89
t1
min.
18.0
t2
5.4
Weight
g
207
£ 57.92 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 57.92 | 0% |
| 5-9 | £ 55.02 | 5% |
| 10-19 | £ 52.13 | 10% |
| 20+ | £ 49.23 | 15% |
Technical & Application
Material
Lever: zinc die-cast, orange, simialr to RAL 2004. Zinc die-cast, black, similar to RAL 9005.
Threaded part: stainless steel.
Inner part: stainless steel.
Threaded part: stainless steel, hardened.
Technical Notes

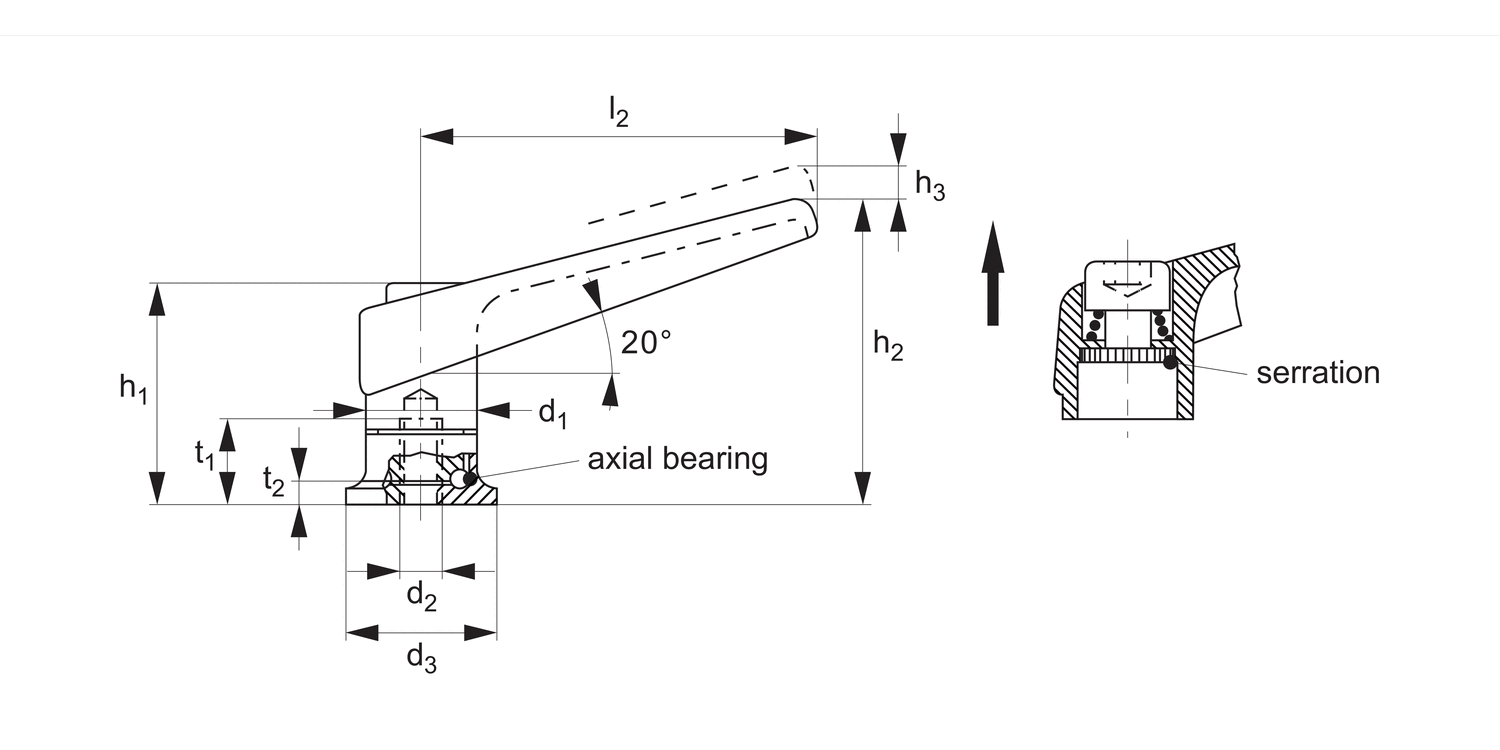

By lifting the lever, the serrations are disengaged. The lever can be positioned by the serrations and the threaded insert can be exchanged. On releasing the lever, the serrations are automatically re-engaged.
Tips
Benefits of axial bearing:
- clamping force is 100% greater than when using standard levers (see graph).
- smaller clamping levers can be used due to the improved clamping force.
- considerably less force loss due to setting.
- no releasing due to vibration.
- no damage to clamped parts, due to axial action.
