78030 Pull Handles - Oval

Name: 78030.W0180-4
Brand: WC
SKU: 78030.W0180-4
Price: 21.17 EUR
Availability: InStock

aluminium, material: Aluminium

Article properties

Order No.

78030.W0180-4

Colour

Black

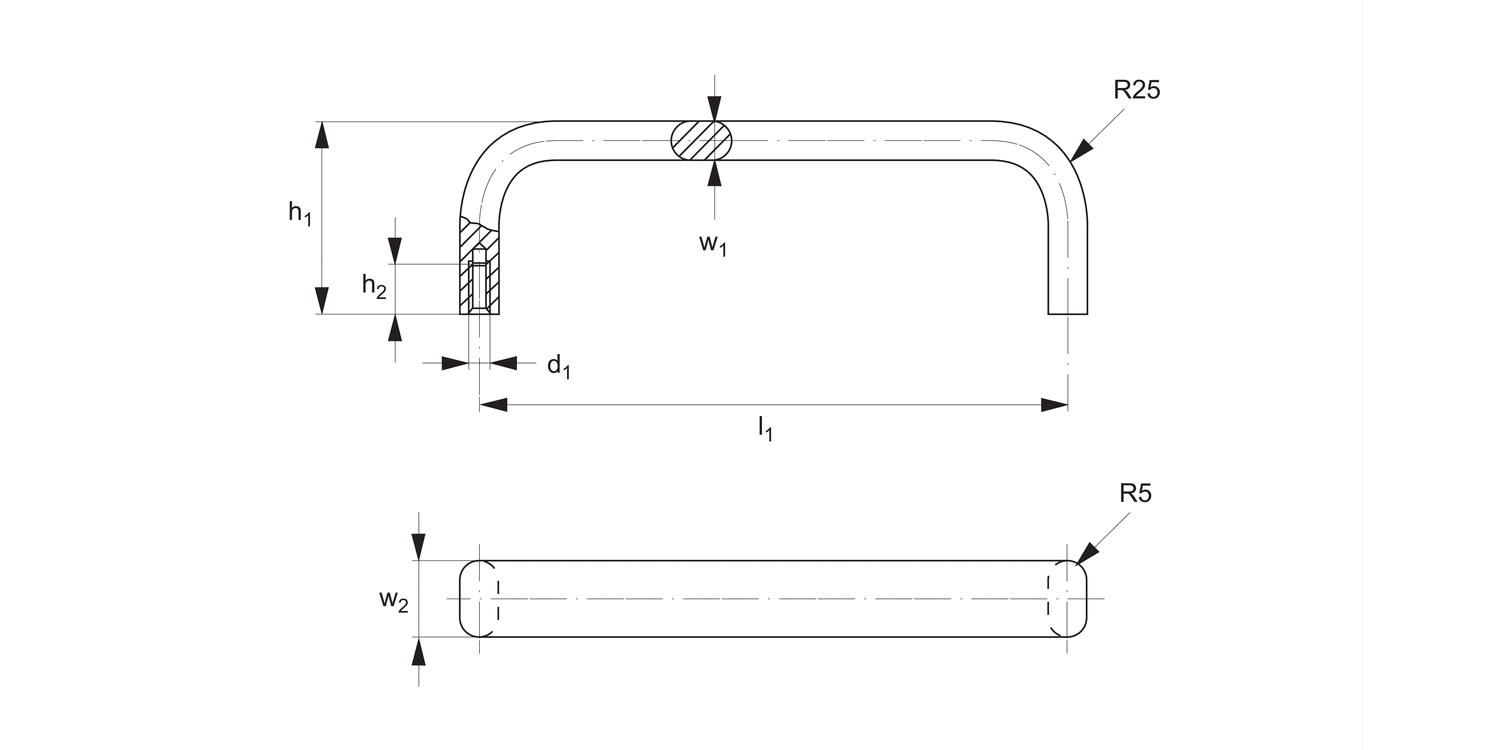

l₁

180

w₁

h₁

d₁

h₂

w₂

See full product selection

£ 21.17 per unit (click for quantity discounts)

Ready to despatch 4
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 21.17	0%
10-19	£ 19.05	10%
20-49	£ 17.99	15%
50-99	£ 16.94	20%
100+	£ 15.88	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Flat-oval profiled aluminium AlMgSi 0.5.
Finish: ground and anodized with a matte finish in natural or black colour.

Technical Notes

Minimum stress resistance 500N. Suitable for engineering, instrument and apparatus building.

Product Datasheets

78030 Pull Handles - OvalJune 24, 2025, 3:39 PM / 193.66 kB

Pull Handles - AluminiumJune 24, 2025, 3:34 PM / 2.87 MB

Pull HandlesJune 24, 2025, 3:31 PM / 4.23 MB

Grips, Handles & HandwheelsJune 24, 2025, 3:32 PM / 11.95 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

CAD files

78030 AcisApril 17, 2024, 10:08 AM / 81.23 kB

78030 IGESApril 17, 2024, 10:08 AM / 288.10 kB

78030 ParasolidApril 17, 2024, 10:08 AM / 89.76 kB

78030 ProEApril 17, 2024, 10:08 AM / 182.74 kB

78030 SolidWorksApril 17, 2024, 10:08 AM / 1.30 MB

78030 StepApril 17, 2024, 10:08 AM / 116.19 kB
