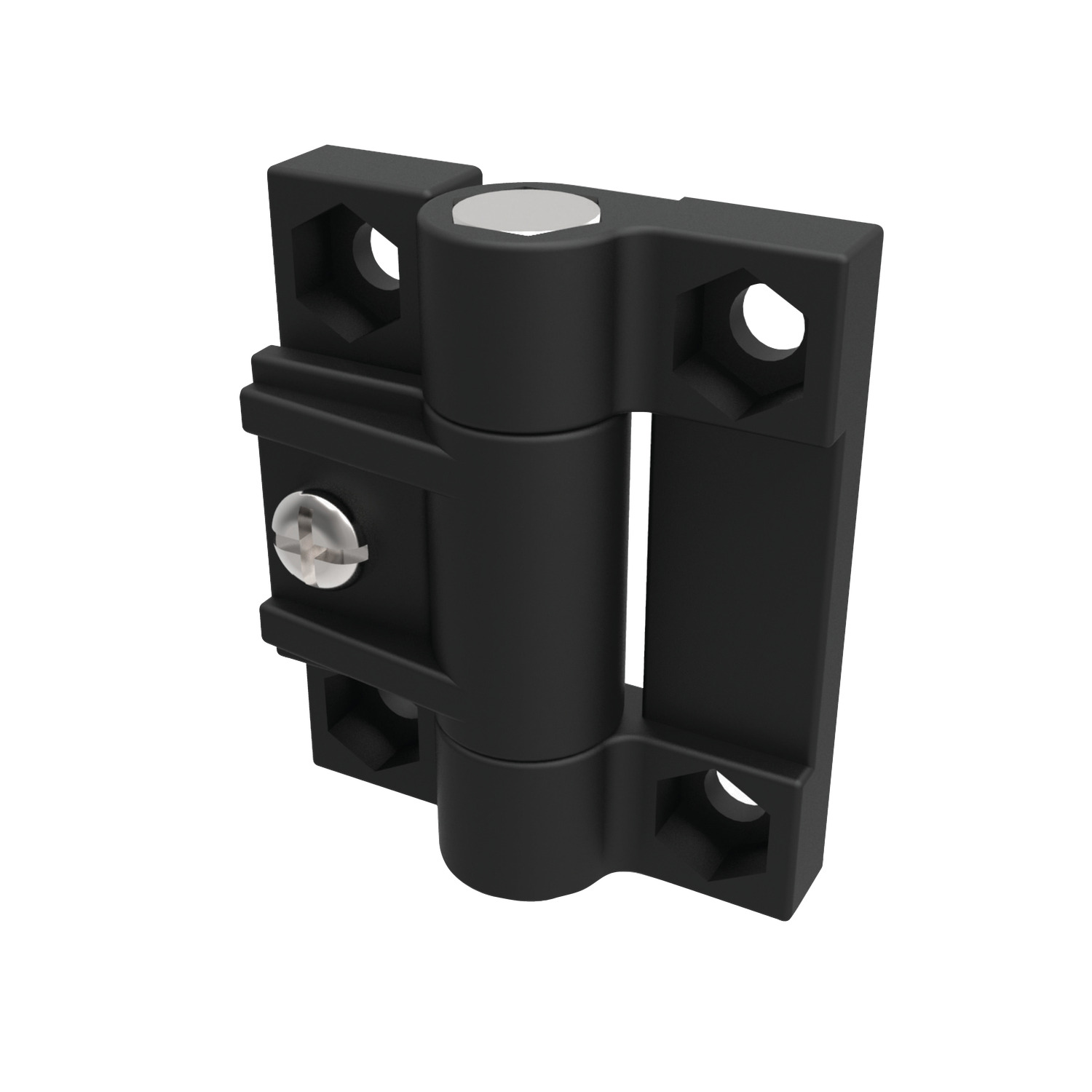

S4002 Adjustable Torque - Friction Hinge

Name: S4002.AW0043
Brand: WC
SKU: S4002.AW0043
Price: 2.22 GBP
Availability: InStock

polyamide - screw mount - plastic, material: Polyamide

Article properties

Order No.

S4002.AW0043

Torque max.|±1 kgf/cm

h₁

12.5

h₂

h₃

6.5

l₁

l₂

13.5

w₁

w₂

w₃

12.5

See full product selection

£ 2.22 per unit (click for quantity discounts)

Ready to despatch 110
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 2.22	0%
20-49	£ 2.00	10%
50-99	£ 1.89	15%
100-499	£ 1.67	25%
500+	£ 1.44	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: polyamide, black finish.
Shaft: PC.

Technical Notes

Opening angle 160°. Hinge torque adjusted by screw. Provides position control. Suitable for left hand and right hand application.

Product Datasheets

S4002 Adjustable Torque - Friction Hinge24 June 2025, 15:37 / 639.74 kB

Torque and Positioning Hinges24 June 2025, 15:36 / 3.82 MB

Hinges24 June 2025, 15:31 / 7.89 MB

Hinges & Dampers24 June 2025, 15:32 / 10.40 MB

Access Components24 June 2025, 15:32 / 32.33 MB

CAD files

S4002 Acis17 April 2024, 10:23 / 230.74 kB

S4002 IGES17 April 2024, 10:23 / 412.37 kB

S4002 Parasolid17 April 2024, 10:23 / 154.20 kB

S4002 ProE17 April 2024, 10:23 / 729.00 kB

S4002 SolidWorks17 April 2024, 10:23 / 614.50 kB

S4002 Step17 April 2024, 10:23 / 227.34 kB
