Friction Torque Hinges
screw mount - s/s

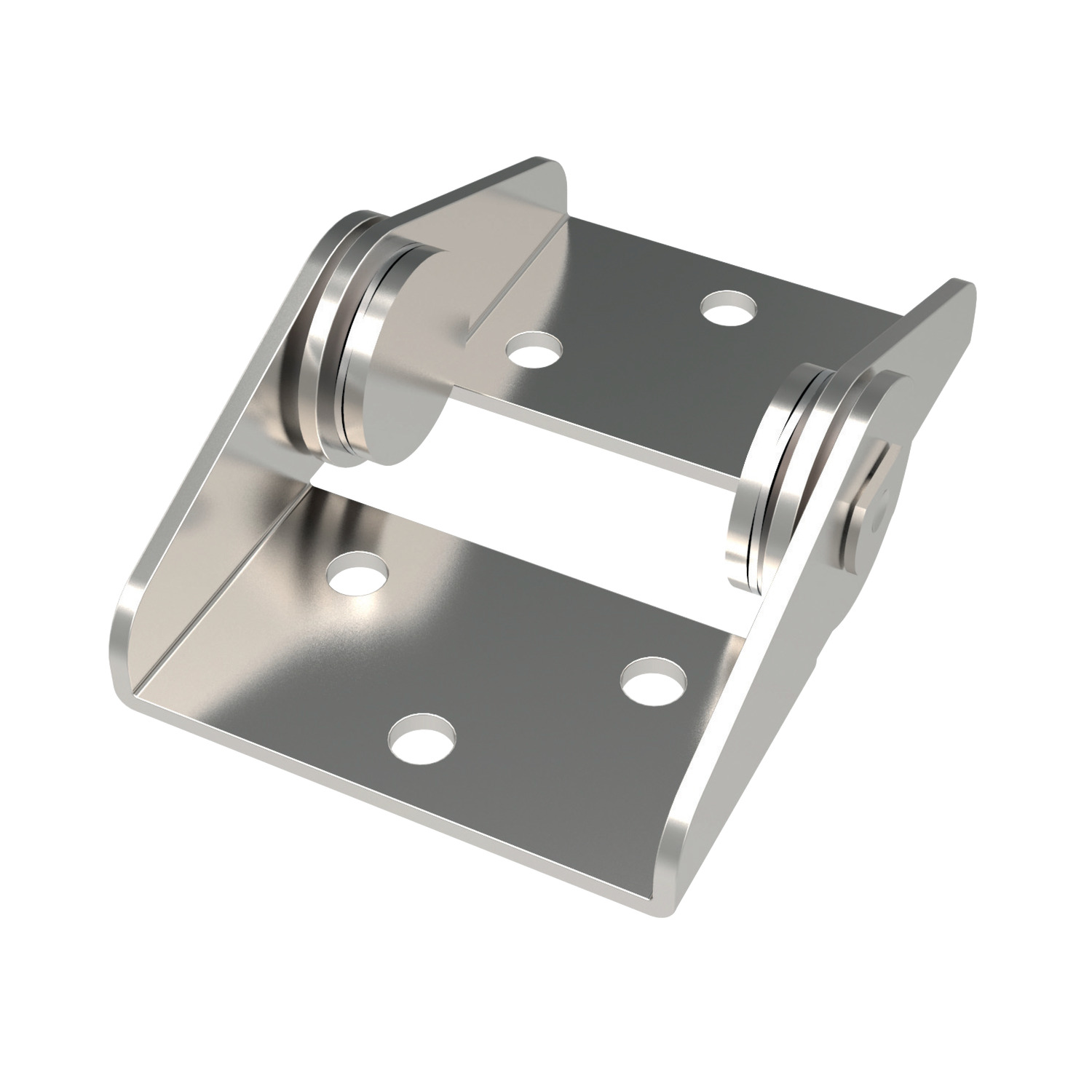

S4016 Constant Torque - Friction Hinges
screw mount - stainless, material: Stainless steel
£ 20.07 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 20.07 | 0% |
| 5-9 | £ 19.07 | 5% |
| 10-19 | £ 18.06 | 10% |
| 20-49 | £ 17.06 | 15% |
| 50+ | £ 15.05 | 25% |
Technical & Application
Material
Body: stainless steel, AISI 304, polished.
Shaft: stainless steel, AISI 303.
Washer: phosphor bronze.
Spring washer: steel.
Technical Notes
Friction torque hinge designed for holding monitors, displays etc in position.
Important Notes
Applicable torque range 180°. Tested to 20,000 cycles, based on movement within a 45° range of movement. Temperature range -10 to +50°C.
