S4030 Constant Torque - Dual Axis Friction Hinges

Name: S4030.AC0030
Brand: WC
SKU: S4030.AC0030
Price: 41.74 GBP
Availability: OutOfStock

screw mount - stainless steel, material: Stainless steel

Article properties

Order No.

S4030.AC0030

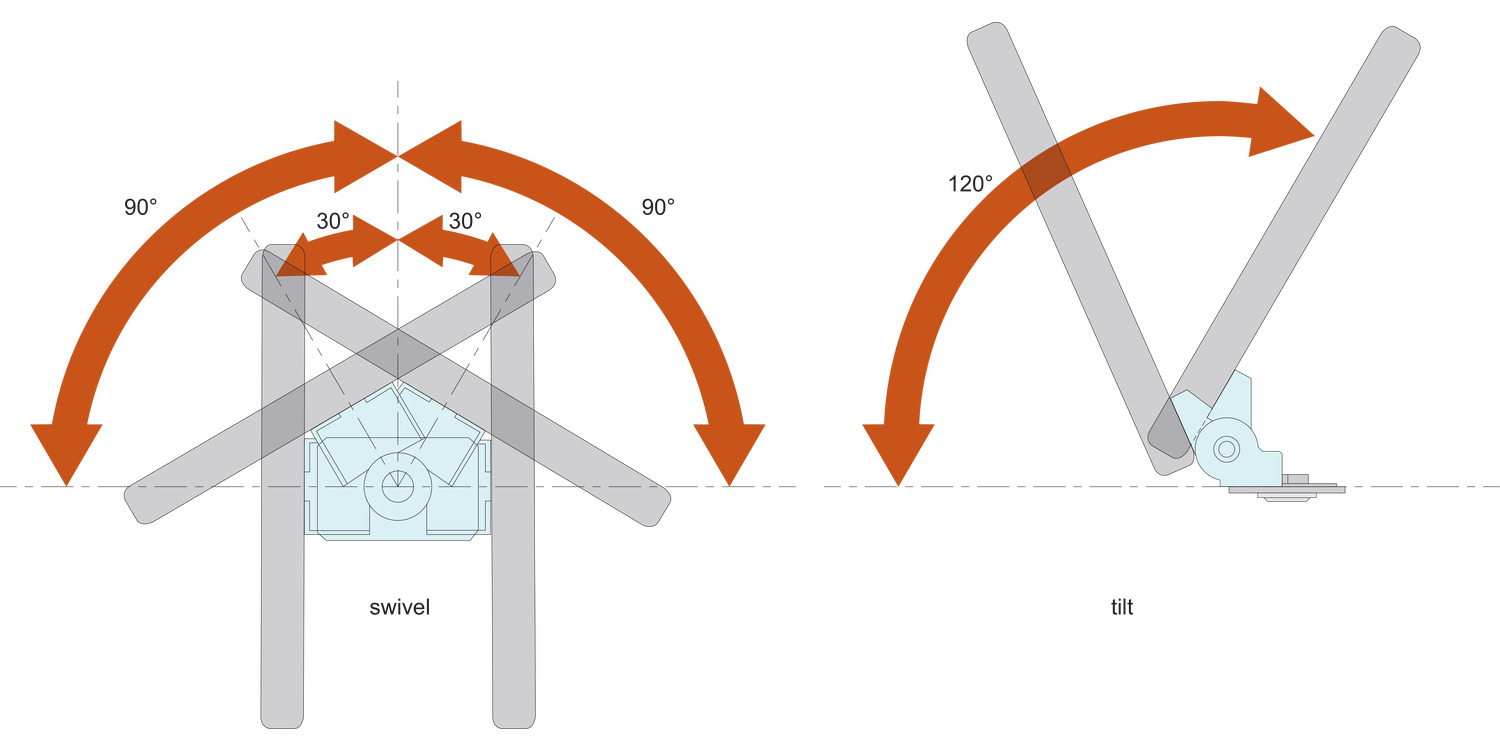

Swivel angle

30°/90°

Swivelling torque ±20% kgf/cm

Tilting angle

120°

Tilting torque ±20% kgf/cm

See full product selection

£ 41.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 41.74	0%
5-9	£ 39.65	5%
10-19	£ 37.57	10%
20-49	£ 35.48	15%
50+	£ 31.31	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body and base: stainless steel, AISI 430.

Technical Notes

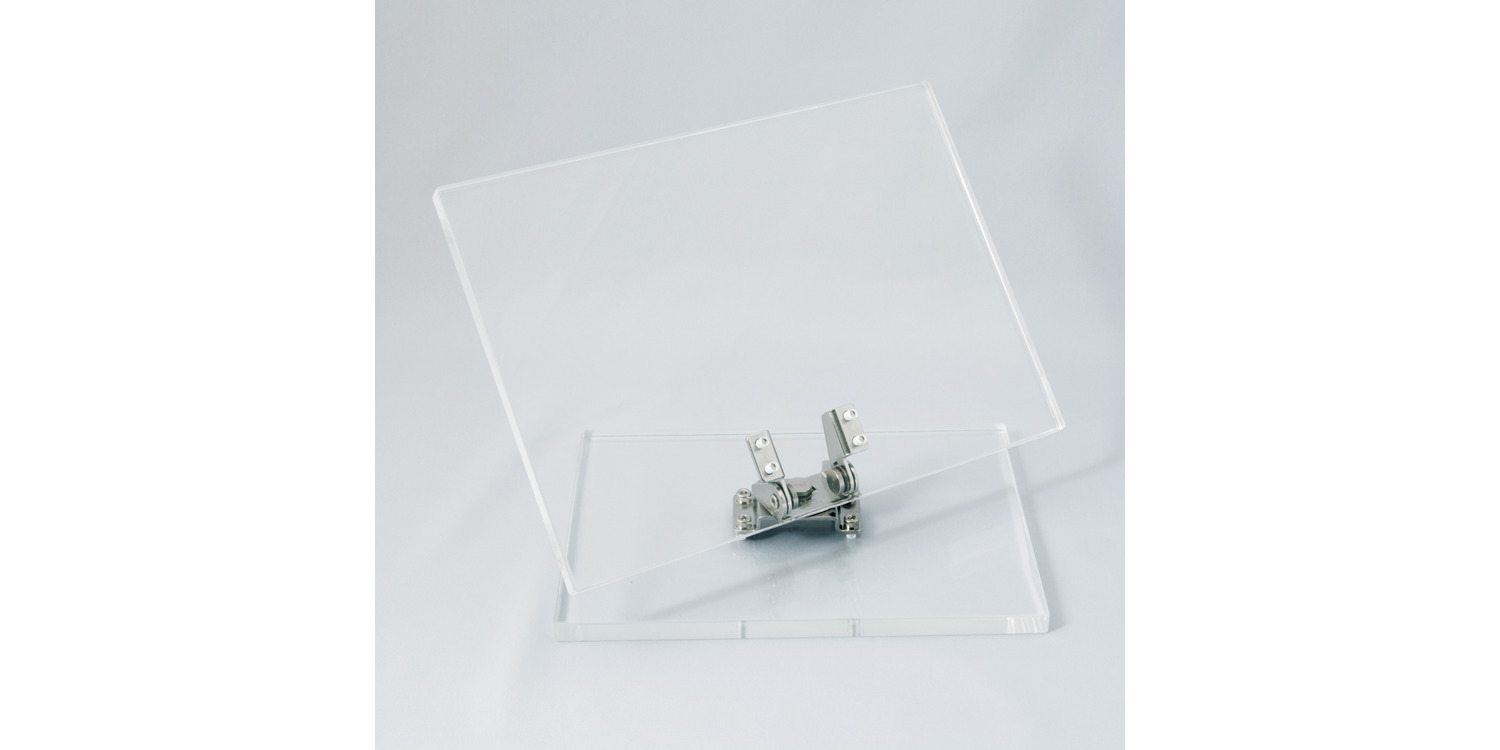

Dual axis torque hinge with stability in both axis. Ideal for mounting of monitor screens. Angle of swivel axis can be limited via use of pin/screw (not supplied).

Product Datasheets

S4030 Constant Torque - Dual Axis Friction Hinges24 June 2025, 15:37 / 728.33 kB

Torque and Positioning Hinges24 June 2025, 15:36 / 3.82 MB

Hinges24 June 2025, 15:31 / 7.89 MB

Hinges & Dampers24 June 2025, 15:32 / 10.40 MB

Access Components24 June 2025, 15:32 / 32.33 MB

CAD files

S4030 Acis17 April 2024, 10:23 / 150.75 kB

S4030 IGES17 April 2024, 10:23 / 276.54 kB

S4030 Parasolid17 April 2024, 10:23 / 100.78 kB

S4030 ProE17 April 2024, 10:23 / 180.12 kB

S4030 SolidWorks17 April 2024, 10:23 / 543.16 kB

S4030 Step17 April 2024, 10:23 / 114.05 kB
