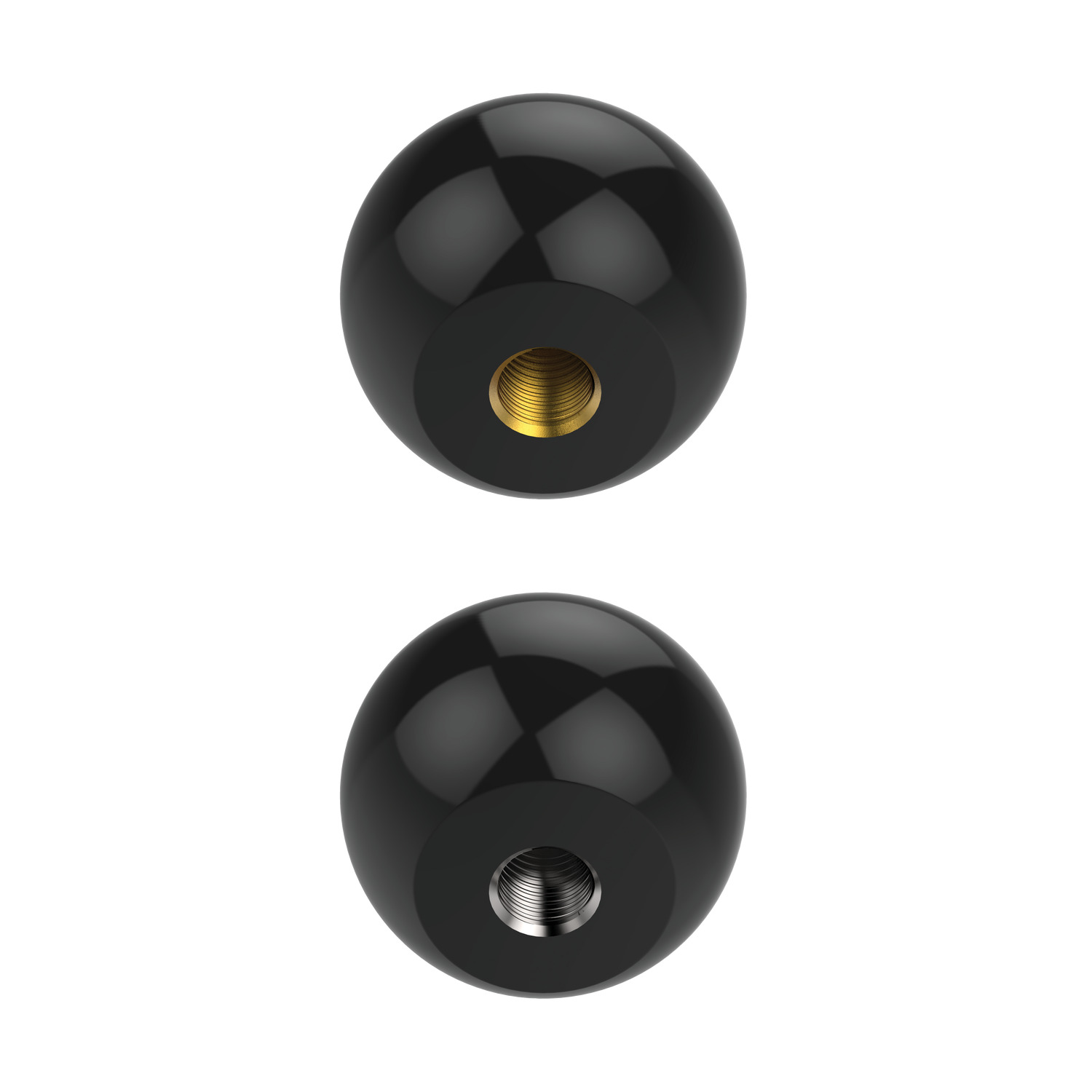

73000 Ball Knobs - Plastic

Name: 73000.W0140
Brand: WC
SKU: 73000.W0140
Price: 3.41 EUR
Availability: OutOfStock

DIN 319, material: Duroplast

Article properties

Order No.

73000.W0140

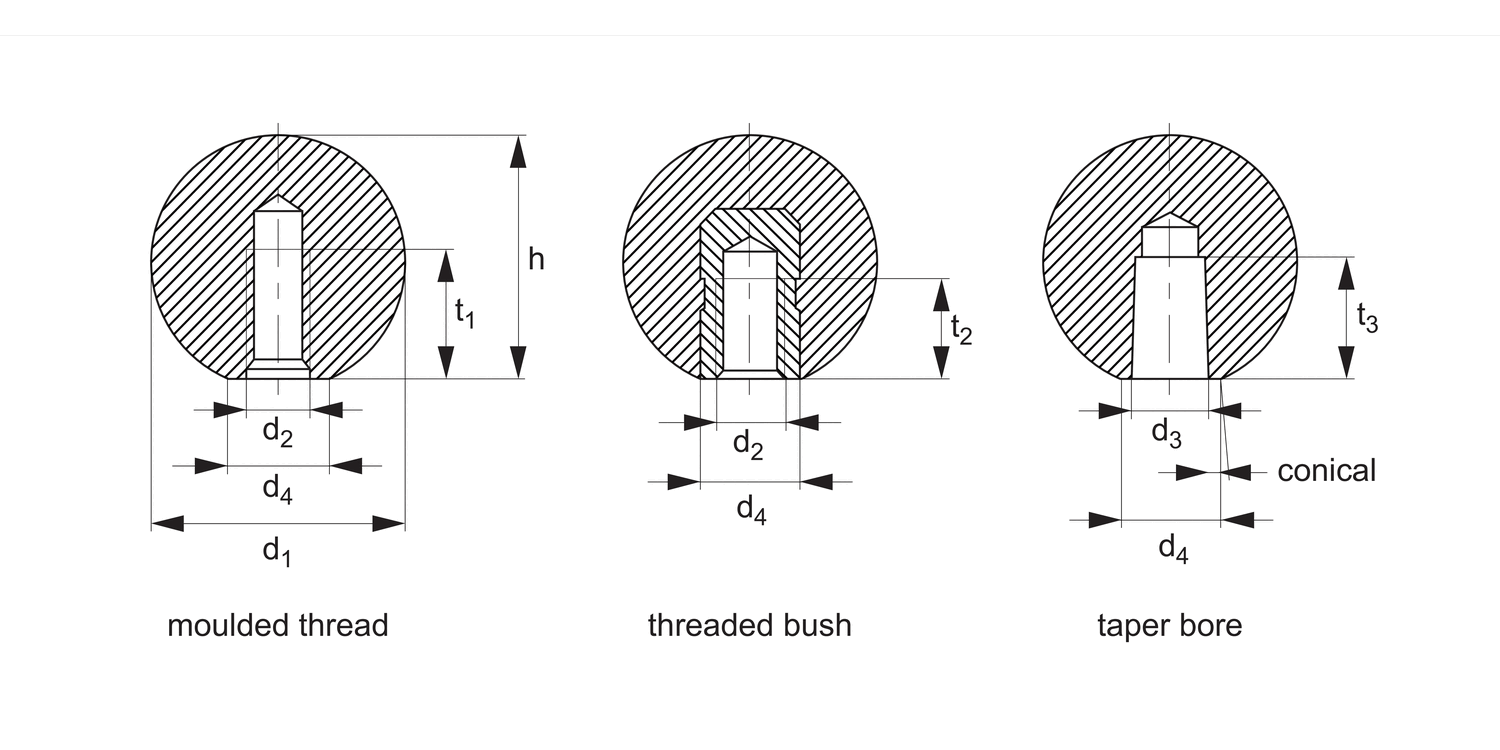

Finish

Threaded Bush

d₁

d₂

M10

d₃

d₄ ≈

h ≈

37.0

t₁ min.

t₂ min.

15.0

t₃ min.

Weight g

56.0

See full product selection

£ 3.41 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 3.41	0%
20-49	£ 3.07	10%
50-99	£ 2.90	15%
100-499	£ 2.56	25%
500+	£ 2.22	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Duroplast PF 31 DIN 7708, black.
Bush: steel, zinc-plated. 73000.W0116 has bush of brass.
Finish: polished, jointless.
Threaded bush type also available in red, subject to minimum quantity.

Technical Notes

Temperature range max. 110°C. Assembly of taper bush model is through lightly tapping with a hammer, the knob will hold in position without need for cementing. Counter bore requires an h9 fit.
