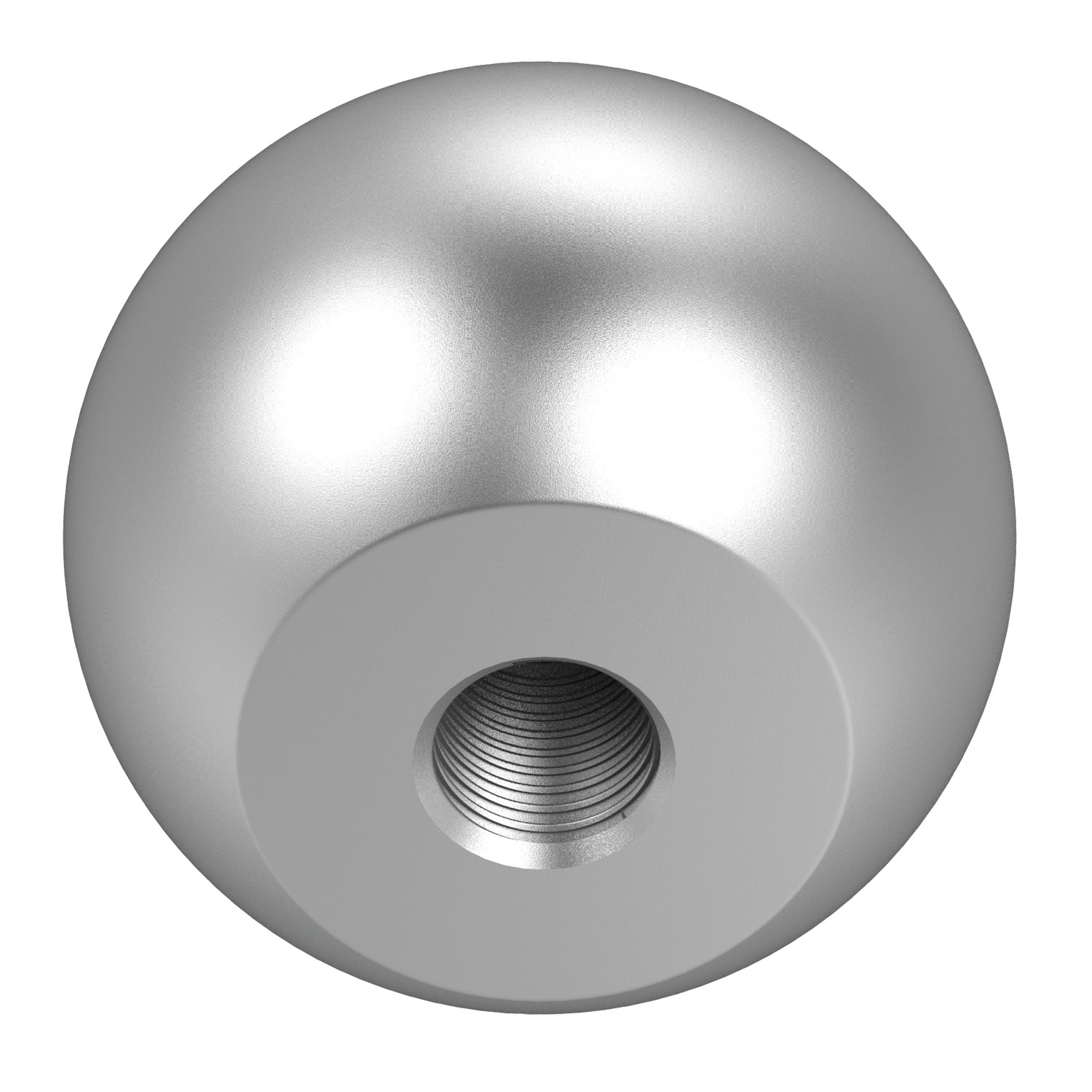

73006 Ball Knobs - aluminium

similar to DIN 319, material: Aluminium

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Ball Knobs
Duroplast

Ball Knobs - Steel
similar to DIN 319

Ball Knob - S/S
similar to DIN 319

Ball Knobs - aluminium
similar to DIN 319

Revolving Ball Knobs

Gear Shift Knobs

Oval Handles

T-Handles

T-Handles

Conical Handles

Push-Pull Knobs

Mushroom Knobs

Tapered Knobs

Mushroom Knobs

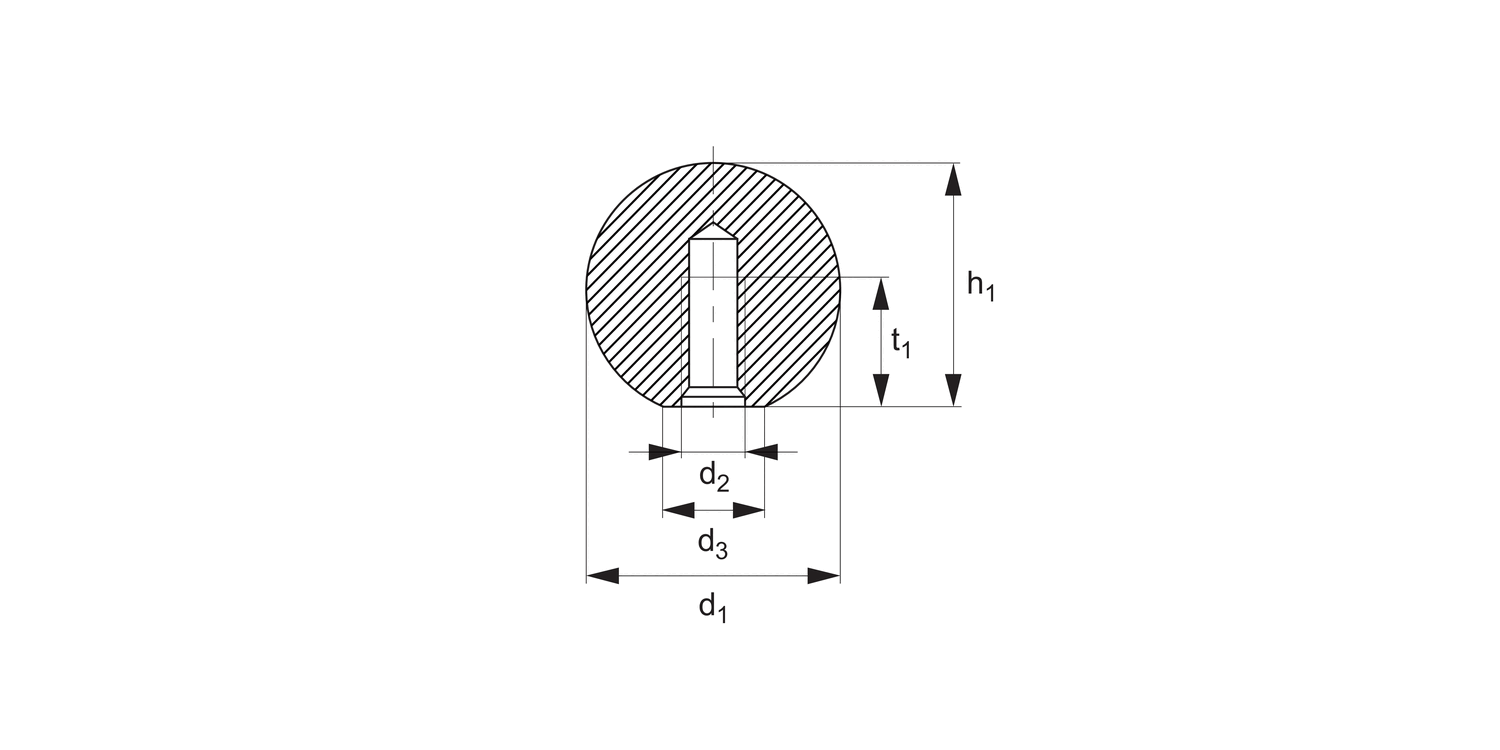

Ball Knobs - Aluminium. 16 - M 4 - 8 - 15,0

73006.W0116

d₁

16

d₂

M 4

d₃ ≈

8

h₁ ≈

15.0

t₁ min.

7.0

Weight g

7

£ 7.75 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 20 - M 5 - 12 - 18,0

73006.W0120

d₁

20

d₂

M 5

d₃ ≈

12

h₁ ≈

18.0

t₁ min.

9.0

Weight g

12

£ 8.14 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 25 - M 6 - 15 - 22,5

73006.W0125

d₁

25

d₂

M 6

d₃ ≈

15

h₁ ≈

22.5

t₁ min.

11.0

Weight g

22

£ 10.48 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 32 - M 8 - 18 - 29,0

73006.W0132

d₁

32

d₂

M 8

d₃ ≈

18

h₁ ≈

29.0

t₁ min.

14.5

Weight g

44

£ 16.46 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 40 - M10 - 22 - 37,0

73006.W0140

d₁

40

d₂

M 10

d₃ ≈

22

h₁ ≈

37.0

t₁ min.

18.0

Weight g

87

£ 22.82 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 50 - M12 - 27 - 46,0

73006.W0150

d₁

50

d₂

M 12

d₃ ≈

27

h₁ ≈

46.0

t₁ min.

21.0

Weight g

173

£ 33.81 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 16 - M 4 - 8 - 15,0

73006.W0116

d₁

16

d₂

M 4

d₃ ≈

8

h₁ ≈

15.0

t₁ min.

7.0

Weight g

7

£ 7.75 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 20 - M 5 - 12 - 18,0

73006.W0120

d₁

20

d₂

M 5

d₃ ≈

12

h₁ ≈

18.0

t₁ min.

9.0

Weight g

12

£ 8.14 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 25 - M 6 - 15 - 22,5

73006.W0125

d₁

25

d₂

M 6

d₃ ≈

15

h₁ ≈

22.5

t₁ min.

11.0

Weight g

22

£ 10.48 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 32 - M 8 - 18 - 29,0

73006.W0132

d₁

32

d₂

M 8

d₃ ≈

18

h₁ ≈

29.0

t₁ min.

14.5

Weight g

44

£ 16.46 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 40 - M10 - 22 - 37,0

73006.W0140

d₁

40

d₂

M 10

d₃ ≈

22

h₁ ≈

37.0

t₁ min.

18.0

Weight g

87

£ 22.82 per unit (click for quantity discounts)

Ball Knobs - Aluminium. 50 - M12 - 27 - 46,0

73006.W0150

d₁

50

d₂

M 12

d₃ ≈

27

h₁ ≈

46.0

t₁ min.

21.0

Weight g

173

£ 33.81 per unit (click for quantity discounts)



Select all

d₁

d₂

d₃ ≈

h₁ ≈

t₁ min.

Weight g

Price & Availability	Article	d1	d2	d3 ≈	h1 ≈	t1 min.	Weight g
	73006.W0116	16	M 4	8	15.0	7.0	7
£ 7.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 7.75 0% 20-49 £ 6.98 10% 50-99 £ 6.59 15% 100-499 £ 5.81 25% 500+ £ 5.04 35% d1 16 d2 M 4 d3 ≈ 8 h1 ≈ 15.0 t1 min. 7.0 Weight g 7 more info »
	73006.W0120	20	M 5	12	18.0	9.0	12
£ 8.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 8.14 0% 20-49 £ 7.33 10% 50-99 £ 6.92 15% 100-499 £ 6.11 25% 500+ £ 5.29 35% d1 20 d2 M 5 d3 ≈ 12 h1 ≈ 18.0 t1 min. 9.0 Weight g 12 more info »
	73006.W0125	25	M 6	15	22.5	11.0	22
£ 10.48 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 10.48 0% 20-49 £ 9.43 10% 50-99 £ 8.91 15% 100-499 £ 7.86 25% 500+ £ 6.81 35% d1 25 d2 M 6 d3 ≈ 15 h1 ≈ 22.5 t1 min. 11.0 Weight g 22 more info »
	73006.W0132	32	M 8	18	29.0	14.5	44
£ 16.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 16.46 0% 20-49 £ 14.81 10% 50-99 £ 13.99 15% 100-499 £ 12.35 25% 500+ £ 10.70 35% d1 32 d2 M 8 d3 ≈ 18 h1 ≈ 29.0 t1 min. 14.5 Weight g 44 more info »
	73006.W0140	40	M 10	22	37.0	18.0	87
£ 22.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 22.82 0% 20-49 £ 20.54 10% 50-99 £ 19.40 15% 100-499 £ 17.12 25% 500+ £ 14.83 35% d1 40 d2 M 10 d3 ≈ 22 h1 ≈ 37.0 t1 min. 18.0 Weight g 87 more info »
	73006.W0150	50	M 12	27	46.0	21.0	173
£ 33.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 33.81 0% 20-49 £ 30.43 10% 50-99 £ 28.74 15% 100-499 £ 25.36 25% 500+ £ 21.98 35% d1 50 d2 M 12 d3 ≈ 27 h1 ≈ 46.0 t1 min. 21.0 Weight g 173 more info »
