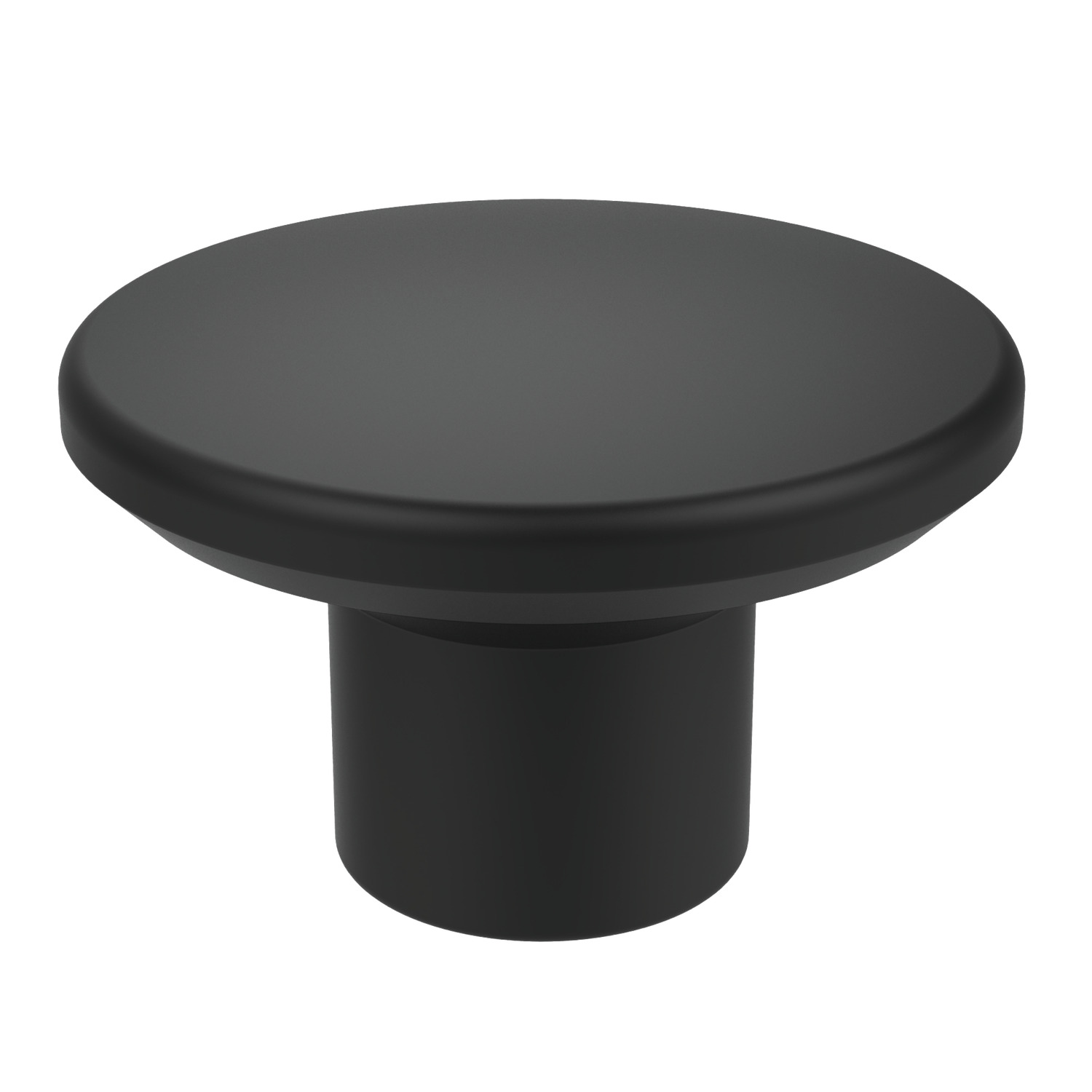

73160 Push-pull Knobs

material: Thermoplastic

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Ball Knobs
Duroplast

Ball Knobs - Steel
similar to DIN 319

Ball Knob - S/S
similar to DIN 319

Ball Knobs - aluminium
similar to DIN 319

Revolving Ball Knobs

Gear Shift Knobs

Oval Handles

T-Handles

T-Handles

Conical Handles

Push-Pull Knobs

Mushroom Knobs

Tapered Knobs

Mushroom Knobs

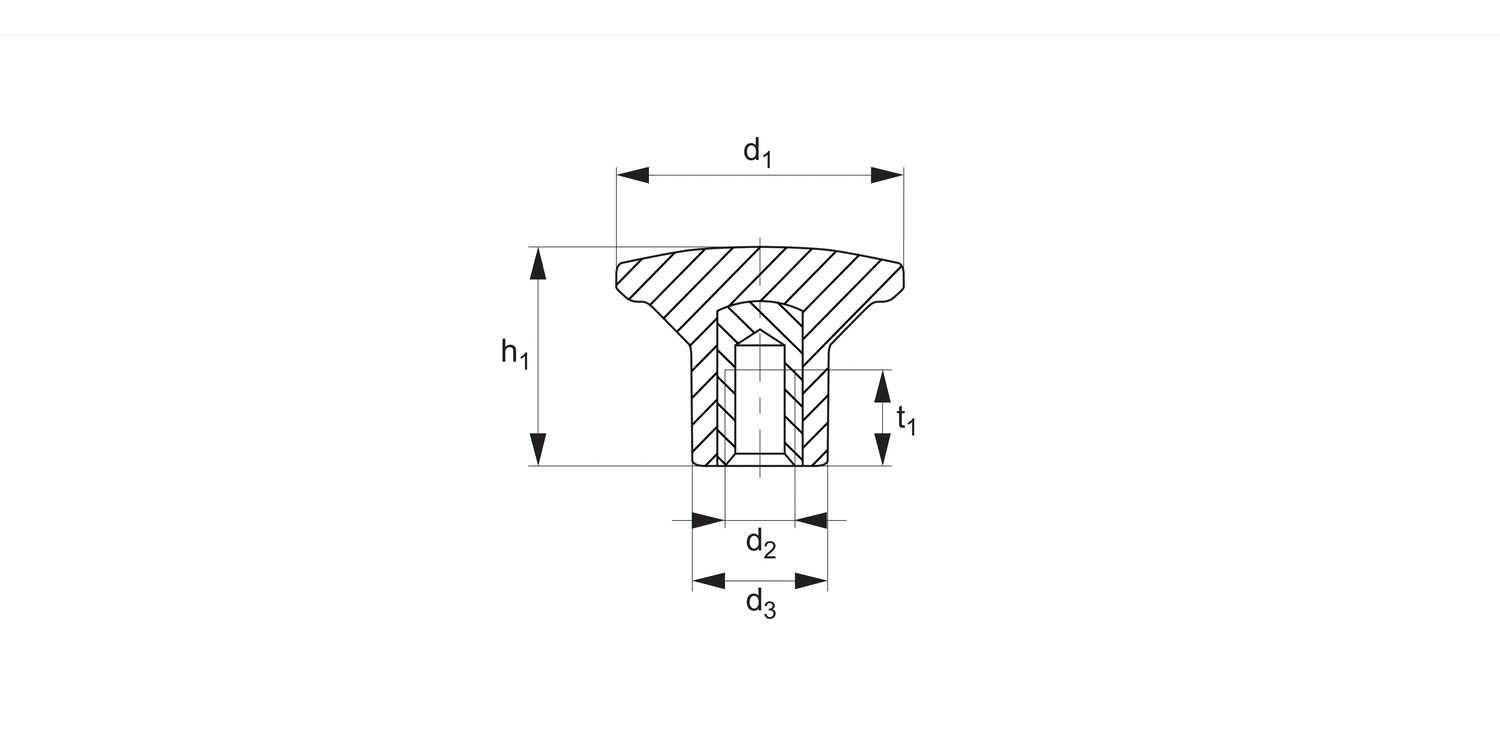

Push-pull Knobs - Thermoplastic. 26 - M 4 - 12 - 17

73160.W0021

d₁

26

d₂

M 4

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 26 - M 5 - 12 - 17

73160.W0022

d₁

26

d₂

M 5

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 26 - M 6 - 12 - 17

73160.W0023

d₁

26

d₂

M 6

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 32 - M 6 - 15 - 24

73160.W0031

d₁

32

d₂

M 6

d₃

15

h₁

24

t₁

13

Weight g

13

£ 0.97 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 32 - M 8 - 15 - 24

73160.W0032

d₁

32

d₂

M 8

d₃

15

h₁

24

t₁

13

Weight g

13

£ 1.00 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 26 - M 4 - 12 - 17

73160.W0021

d₁

26

d₂

M 4

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 26 - M 5 - 12 - 17

73160.W0022

d₁

26

d₂

M 5

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 26 - M 6 - 12 - 17

73160.W0023

d₁

26

d₂

M 6

d₃

12

h₁

17

t₁

8

Weight g

8

£ 0.72 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 32 - M 6 - 15 - 24

73160.W0031

d₁

32

d₂

M 6

d₃

15

h₁

24

t₁

13

Weight g

13

£ 0.97 per unit (click for quantity discounts)

Push-pull Knobs - Thermoplastic. 32 - M 8 - 15 - 24

73160.W0032

d₁

32

d₂

M 8

d₃

15

h₁

24

t₁

13

Weight g

13

£ 1.00 per unit (click for quantity discounts)



Select all

d₁

d₂

d₃

h₁

t₁

Weight g

Price & Availability	Article	d1	d2	d3	h1	t1	Weight g
	73160.W0021	26	M 4	12	17	8	8
£ 0.72 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 0.72 0% 50-99 £ 0.65 10% 100-249 £ 0.61 15% 250-499 £ 0.58 20% 500+ £ 0.54 25% d1 26 d2 M 4 d3 12 h1 17 t1 8 Weight g 8 more info »
	73160.W0022	26	M 5	12	17	8	8
£ 0.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 0.72 0% 50-99 £ 0.65 10% 100-249 £ 0.61 15% 250-499 £ 0.58 20% 500+ £ 0.54 25% d1 26 d2 M 5 d3 12 h1 17 t1 8 Weight g 8 more info »
	73160.W0023	26	M 6	12	17	8	8
£ 0.72 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 0.72 0% 50-99 £ 0.65 10% 100-249 £ 0.61 15% 250-499 £ 0.58 20% 500+ £ 0.54 25% d1 26 d2 M 6 d3 12 h1 17 t1 8 Weight g 8 more info »
	73160.W0031	32	M 6	15	24	13	13
£ 0.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 0.97 0% 50-99 £ 0.87 10% 100-249 £ 0.82 15% 250-499 £ 0.78 20% 500+ £ 0.73 25% d1 32 d2 M 6 d3 15 h1 24 t1 13 Weight g 13 more info »
	73160.W0032	32	M 8	15	24	13	13
£ 1.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 1.00 0% 50-99 £ 0.90 10% 100-249 £ 0.85 15% 250-499 £ 0.80 20% 500+ £ 0.75 25% d1 32 d2 M 8 d3 15 h1 24 t1 13 Weight g 13 more info »
