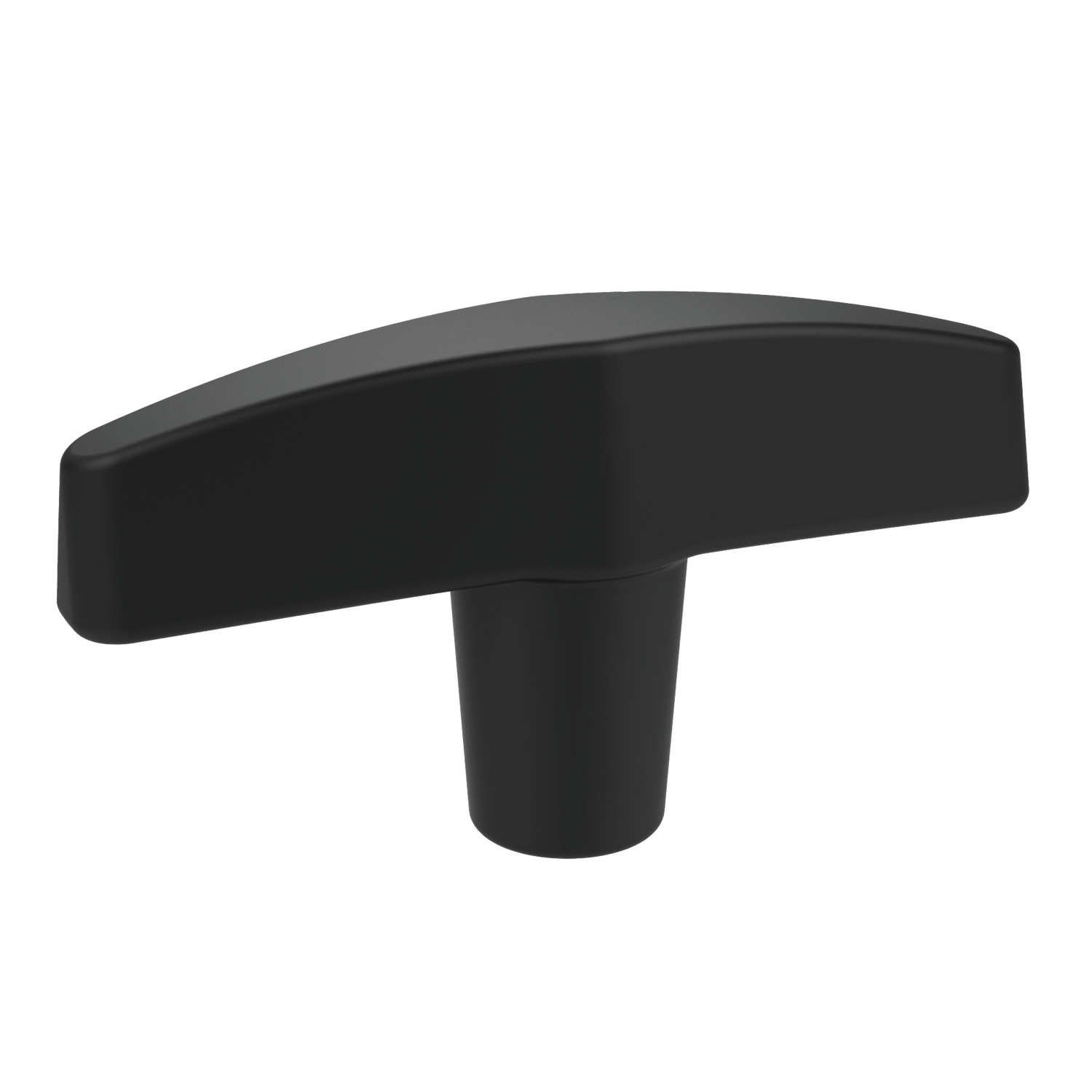

73130 T-Handle Grips

material: Thermoplastic

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Ball Knobs
Duroplast

Ball Knobs - Steel
similar to DIN 319

Ball Knob - S/S
similar to DIN 319

Ball Knobs - aluminium
similar to DIN 319

Revolving Ball Knobs

Gear Shift Knobs

Oval Handles

T-Handles

T-Handles

Conical Handles

Push-Pull Knobs

Mushroom Knobs

Tapered Knobs

Mushroom Knobs

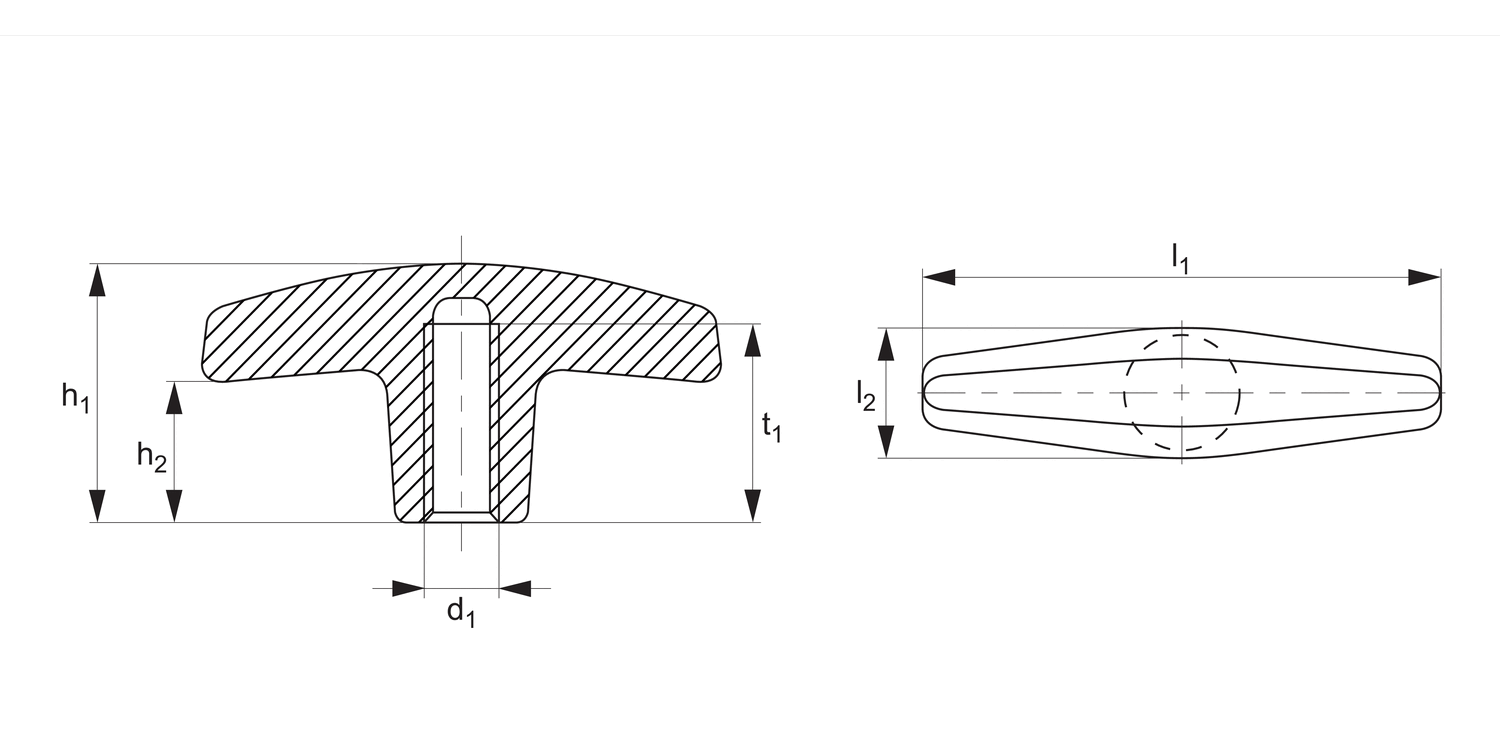

T-Handle Grips - Thermoplastic. 57 - M 6 - 30 - 15

73130.W0006

d₁

M 6

l₁

57

l₂

15

h₁

30

h₂

16

t₁

13

Weight g

9

£ 2.32 per unit (click for quantity discounts)

T-Handle Grips - Thermoplastic. 57 - M 8 - 30 - 15

73130.W0008

d₁

M 8

l₁

57

l₂

15

h₁

30

h₂

16

t₁

15

Weight g

8

£ 2.32 per unit (click for quantity discounts)

T-Handle Grips - Thermoplastic. 57 - M 6 - 30 - 15

73130.W0006

d₁

M 6

l₁

57

l₂

15

h₁

30

h₂

16

t₁

13

Weight g

9

£ 2.32 per unit (click for quantity discounts)

T-Handle Grips - Thermoplastic. 57 - M 8 - 30 - 15

73130.W0008

d₁

M 8

l₁

57

l₂

15

h₁

30

h₂

16

t₁

15

Weight g

8

£ 2.32 per unit (click for quantity discounts)



Select all

d₁

l₁

l₂

h₁

h₂

t₁

Weight g

Price & Availability	Article	d1	l1	l2	h1	h2	t1	Weight g
	73130.W0006	M 6	57	15	30	16	13	9
£ 2.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.32 0% 50-99 £ 2.09 10% 100-249 £ 1.97 15% 250-499 £ 1.86 20% 500+ £ 1.74 25% d1 M 6 l1 57 l2 15 h1 30 h2 16 t1 13 Weight g 9 more info »
	73130.W0008	M 8	57	15	30	16	15	8
£ 2.32 per unit (click for quantity discounts) Ready to despatch 893 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-49 £ 2.32 0% 50-99 £ 2.09 10% 100-249 £ 1.97 15% 250-499 £ 1.86 20% 500+ £ 1.74 25% d1 M 8 l1 57 l2 15 h1 30 h2 16 t1 15 Weight g 8 more info »
