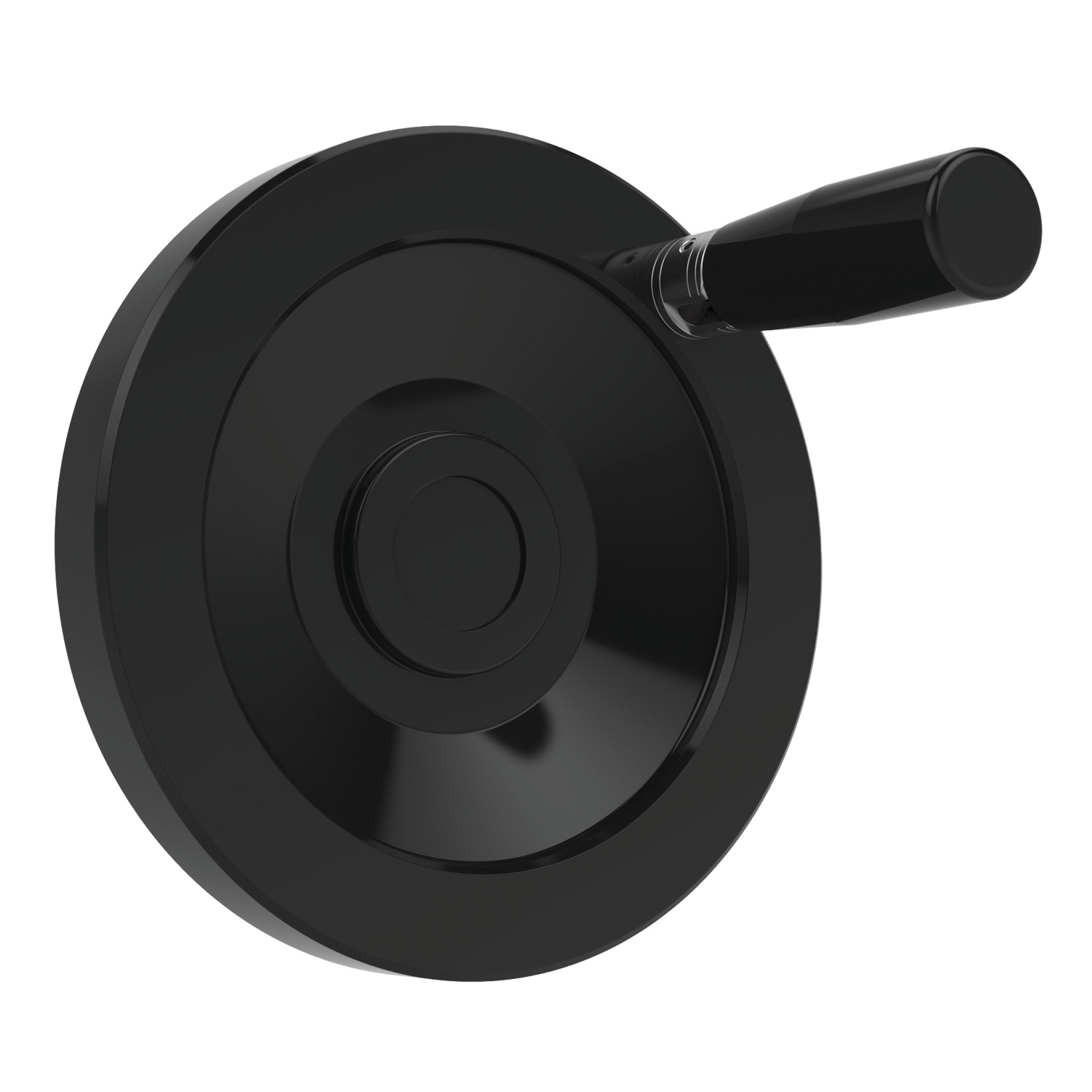

77640 Solid Disc Handwheels

with fold-away rotating grip, material: Duroplast

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Disc Type Handwheels
Aluminium

Disc Type Handwheels

Solid Disc Handwheels

Solid Disc Handwheels

Solid Disc Handwheels
with fold-away revolving grip.

Solid Disc Handwheels
with double fixed handle

Solid Disc Handwheels

Solid Disc Handwheels
with revolving grip

Solid Disc Handwheels
with fold-away revolving grip

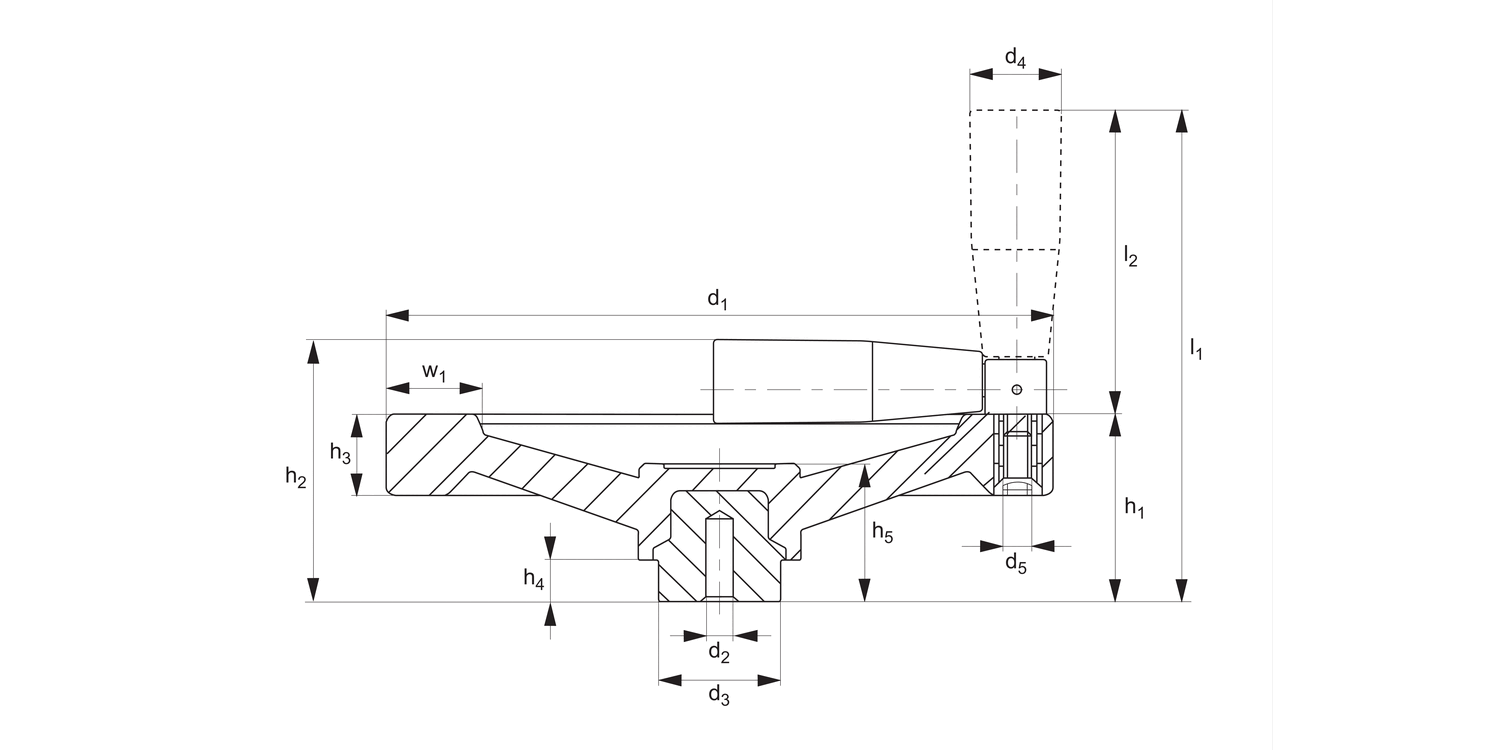

Solid Disc Handwheels - Duroplast. 100 - 4 - 35 - 102

77640.W0100

d₁

100

d₂

4

d₃

24

d₄

21

d₅

M 5

h₁

35

h₂

54

h₃

14

h₄

11

h₅

30

l₁

102

l₂

50

w₁

16

Weight g

251

£ 47.19 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 125 - 6 - 44 - 116

77640.W0125

d₁

125

d₂

6

d₃

32

d₄

23

d₅

M 5

h₁

44

h₂

64

h₃

16

h₄

13

h₅

36

l₁

116

l₂

55

w₁

18

Weight g

419

£ 45.98 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 150 - 6 - 48 - 130

77640.W0150

d₁

150

d₂

6

d₃

32

d₄

25

d₅

M 6

h₁

48

h₂

69

h₃

18

h₄

13

h₅

38

l₁

130

l₂

65

w₁

20

Weight g

539

£ 56.62 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 200 - 6 - 58 - 163

77640.W0200

d₁

200

d₂

6

d₃

40

d₄

28

d₅

M 6

h₁

58

h₂

82

h₃

21

h₄

16

h₅

45

l₁

163

l₂

85

w₁

24

Weight g

992

£ 71.59 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 250 - 8 - 66 - 171

77640.W0250

d₁

250

d₂

8

d₃

48

d₄

28

d₅

M 6

h₁

66

h₂

90

h₃

22

h₄

17

h₅

50

l₁

171

l₂

85

w₁

30

Weight g

1612

£ 96.16 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 300 - 8 - 76 - 181

77640.W0300

d₁

300

d₂

8

d₃

58

d₄

28

d₅

M 6

h₁

76

h₂

100

h₃

24

h₄

18

h₅

57

l₁

181

l₂

85

w₁

35

Weight g

2723

£ 136.14 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 100 - 4 - 35 - 102

77640.W0100

d₁

100

d₂

4

d₃

24

d₄

21

d₅

M 5

h₁

35

h₂

54

h₃

14

h₄

11

h₅

30

l₁

102

l₂

50

w₁

16

Weight g

251

£ 47.19 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 125 - 6 - 44 - 116

77640.W0125

d₁

125

d₂

6

d₃

32

d₄

23

d₅

M 5

h₁

44

h₂

64

h₃

16

h₄

13

h₅

36

l₁

116

l₂

55

w₁

18

Weight g

419

£ 45.98 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 150 - 6 - 48 - 130

77640.W0150

d₁

150

d₂

6

d₃

32

d₄

25

d₅

M 6

h₁

48

h₂

69

h₃

18

h₄

13

h₅

38

l₁

130

l₂

65

w₁

20

Weight g

539

£ 56.62 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 200 - 6 - 58 - 163

77640.W0200

d₁

200

d₂

6

d₃

40

d₄

28

d₅

M 6

h₁

58

h₂

82

h₃

21

h₄

16

h₅

45

l₁

163

l₂

85

w₁

24

Weight g

992

£ 71.59 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 250 - 8 - 66 - 171

77640.W0250

d₁

250

d₂

8

d₃

48

d₄

28

d₅

M 6

h₁

66

h₂

90

h₃

22

h₄

17

h₅

50

l₁

171

l₂

85

w₁

30

Weight g

1612

£ 96.16 per unit (click for quantity discounts)

Solid Disc Handwheels - Duroplast. 300 - 8 - 76 - 181

77640.W0300

d₁

300

d₂

8

d₃

58

d₄

28

d₅

M 6

h₁

76

h₂

100

h₃

24

h₄

18

h₅

57

l₁

181

l₂

85

w₁

35

Weight g

2723

£ 136.14 per unit (click for quantity discounts)



Select all

d₁

d₂

d₃

d₄

d₅

h₁

h₂

h₃

h₄

h₅

l₁

l₂

w₁

Weight g

Price & Availability	Article	d1	d2	d3	d4	d5	h1	h2	h3	h4	h5	l1	l2	w1	Weight g
	77640.W0100	100	4	24	21	M 5	35	54	14	11	30	102	50	16	251
£ 47.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 47.19 0% 5-9 £ 44.83 5% 10-19 £ 42.47 10% 20-49 £ 40.11 15% 50+ £ 35.39 25% d1 100 d2 4 d3 24 d4 21 d5 M 5 h1 35 h2 54 h3 14 h4 11 h5 30 l1 102 l2 50 w1 16 Weight g 251 more info »
	77640.W0125	125	6	32	23	M 5	44	64	16	13	36	116	55	18	419
£ 45.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.98 0% 5-9 £ 43.68 5% 10-19 £ 41.38 10% 20-49 £ 39.08 15% 50+ £ 34.49 25% d1 125 d2 6 d3 32 d4 23 d5 M 5 h1 44 h2 64 h3 16 h4 13 h5 36 l1 116 l2 55 w1 18 Weight g 419 more info »
	77640.W0150	150	6	32	25	M 6	48	69	18	13	38	130	65	20	539
£ 56.62 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 56.62 0% 5-9 £ 53.79 5% 10-19 £ 50.96 10% 20-49 £ 48.13 15% 50+ £ 42.47 25% d1 150 d2 6 d3 32 d4 25 d5 M 6 h1 48 h2 69 h3 18 h4 13 h5 38 l1 130 l2 65 w1 20 Weight g 539 more info »
	77640.W0200	200	6	40	28	M 6	58	82	21	16	45	163	85	24	992
£ 71.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.59 0% 5-9 £ 68.01 5% 10-19 £ 64.43 10% 20-49 £ 60.85 15% 50+ £ 53.69 25% d1 200 d2 6 d3 40 d4 28 d5 M 6 h1 58 h2 82 h3 21 h4 16 h5 45 l1 163 l2 85 w1 24 Weight g 992 more info »
	77640.W0250	250	8	48	28	M 6	66	90	22	17	50	171	85	30	1612
£ 96.16 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 96.16 0% 5-9 £ 91.35 5% 10-19 £ 86.54 10% 20-49 £ 81.74 15% 50+ £ 72.12 25% d1 250 d2 8 d3 48 d4 28 d5 M 6 h1 66 h2 90 h3 22 h4 17 h5 50 l1 171 l2 85 w1 30 Weight g 1612 more info »
	77640.W0300	300	8	58	28	M 6	76	100	24	18	57	181	85	35	2723
£ 136.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 136.14 0% 5-9 £ 129.33 5% 10-19 £ 122.53 10% 20-49 £ 115.72 15% 50+ £ 102.11 25% d1 300 d2 8 d3 58 d4 28 d5 M 6 h1 76 h2 100 h3 24 h4 18 h5 57 l1 181 l2 85 w1 35 Weight g 2723 more info »
