77400 Disc Type Handwheels

material: Aluminium

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Disc Type Handwheels
Aluminium

Disc Type Handwheels

Solid Disc Handwheels

Solid Disc Handwheels

Solid Disc Handwheels
with fold-away revolving grip.

Solid Disc Handwheels
with double fixed handle

Solid Disc Handwheels

Solid Disc Handwheels
with revolving grip

Solid Disc Handwheels
with fold-away revolving grip

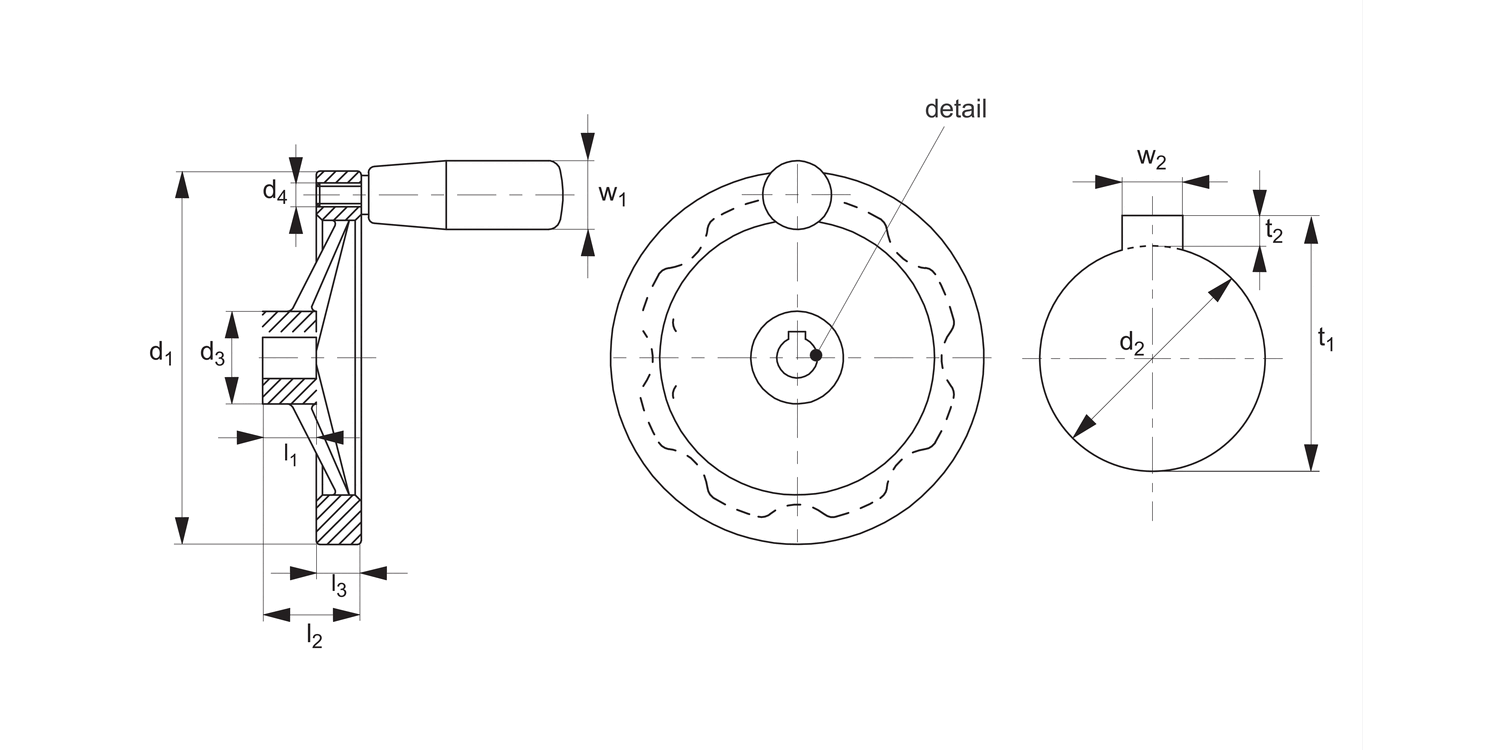

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 80 - 10

77400.W0008

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

130

£ 26.38 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 80 - 10

77400.W0009

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

130

£ 26.38 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 100 - 10

77400.W0010

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

203

£ 30.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 100 - 10

77400.W0011

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

203

£ 30.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77400.W0012

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

307

£ 35.15 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77400.W0013

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

307

£ 35.15 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77400.W0014

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

430

£ 42.12 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77400.W0015

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

430

£ 42.12 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77400.W0016

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

540

£ 48.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77400.W0017

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

540

£ 48.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77400.W0020

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

849

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77400.W0021

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

849

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77400.W0025

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.5

w₁

-

Weight g

1495

£ 94.34 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77400.W0026

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.5

w₁

-

Weight g

1495

£ 94.34 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 80 - 10

77400.W0108

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

139

£ 31.21 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 80 - 10

77400.W0109

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

139

£ 31.21 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 100 - 10

77400.W0110

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

190

£ 35.06 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 100 - 10

77400.W0111

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

190

£ 35.06 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 125 - 12

77400.W0112

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

291

£ 39.85 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 125 - 12

77400.W0113

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

291

£ 39.85 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 140 - 14

77400.W0114

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

413

£ 46.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 140 - 14

77400.W0115

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

413

£ 46.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 160 - 14

77400.W0116

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

529

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 160 - 14

77400.W0117

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

529

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 200 - 18

77400.W0120

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

880

£ 71.32 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 200 - 18

77400.W0121

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

880

£ 71.32 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 250 - 22

77400.W0125

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1515

£ 99.51 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 250 - 22

77400.W0126

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1515

£ 99.51 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 80 - 10

77400.W0508

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 42.86 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 80 - 10

77400.W0509

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 42.86 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 100 - 10

77400.W0510

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 48.45 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 100 - 10

77400.W0511

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 48.45 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 125 - 12

77400.W0512

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 125 - 12

77400.W0513

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 140 - 14

77400.W0514

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 62.68 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 140 - 14

77400.W0515

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 62.68 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 160 - 14

77400.W0516

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 71.81 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 160 - 14

77400.W0517

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 71.81 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 200 - 18

77400.W0520

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 94.50 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 200 - 18

77400.W0521

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 94.50 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 250 - 22

77400.W0525

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 124.88 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 250 - 22

77400.W0526

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 124.88 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 80 - 10

77400.W0608

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 47.95 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 80 - 10

77400.W0609

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 47.95 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 100 - 10

77400.W0610

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 100 - 10

77400.W0611

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 125 - 12

77400.W0612

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 58.01 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 125 - 12

77400.W0613

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 58.01 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 140 - 14

77400.W0614

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 140 - 14

77400.W0615

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 160 - 14

77400.W0616

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 76.91 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 160 - 14

77400.W0617

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 76.91 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 200 - 18

77400.W0620

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 98.67 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 200 - 18

77400.W0621

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 98.67 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 250 - 22

77400.W0625

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 129.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 250 - 22

77400.W0626

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 129.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 80 - 10

77400.W0008

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

130

£ 26.38 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 80 - 10

77400.W0009

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

130

£ 26.38 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 100 - 10

77400.W0010

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

203

£ 30.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 100 - 10

77400.W0011

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

203

£ 30.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77400.W0012

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

307

£ 35.15 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77400.W0013

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

307

£ 35.15 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77400.W0014

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

430

£ 42.12 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77400.W0015

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

430

£ 42.12 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77400.W0016

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

540

£ 48.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77400.W0017

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

540

£ 48.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77400.W0020

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

849

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77400.W0021

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

849

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77400.W0025

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.5

w₁

-

Weight g

1495

£ 94.34 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77400.W0026

Finish

W/o Keyway, W/o Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.5

w₁

-

Weight g

1495

£ 94.34 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 80 - 10

77400.W0108

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

139

£ 31.21 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 80 - 10

77400.W0109

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

-

l₁

16

l₂ ≈

26

l₃

13.0

w₁

-

Weight g

139

£ 31.21 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 100 - 10

77400.W0110

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

190

£ 35.06 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 100 - 10

77400.W0111

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

-

l₁

17

l₂ ≈

30

l₃

14.0

w₁

-

Weight g

190

£ 35.06 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 125 - 12

77400.W0112

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

291

£ 39.85 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 125 - 12

77400.W0113

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

-

l₁

18

l₂ ≈

33

l₃

15.0

w₁

-

Weight g

291

£ 39.85 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 140 - 14

77400.W0114

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

413

£ 46.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 140 - 14

77400.W0115

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

19

l₂ ≈

36

l₃

16.5

w₁

-

Weight g

413

£ 46.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 160 - 14

77400.W0116

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

529

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 160 - 14

77400.W0117

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

-

l₁

20

l₂ ≈

39

l₃

18.0

w₁

-

Weight g

529

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 200 - 18

77400.W0120

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

880

£ 71.32 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 200 - 18

77400.W0121

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

-

l₁

24

l₂ ≈

45

l₃

20.5

w₁

-

Weight g

880

£ 71.32 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, W/o Handle - 250 - 22

77400.W0125

Finish

With Keyway, W/o Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1515

£ 99.51 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, W/o Handle - 250 - 22

77400.W0126

Finish

With Keyway, W/o Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

-

l₁

28

l₂ ≈

51

l₃

23.0

w₁

-

Weight g

1515

£ 99.51 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 80 - 10

77400.W0508

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 42.86 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 80 - 10

77400.W0509

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 42.86 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 100 - 10

77400.W0510

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 48.45 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 100 - 10

77400.W0511

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 48.45 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 125 - 12

77400.W0512

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 125 - 12

77400.W0513

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 140 - 14

77400.W0514

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 62.68 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 140 - 14

77400.W0515

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 62.68 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 160 - 14

77400.W0516

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 71.81 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 160 - 14

77400.W0517

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 71.81 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 200 - 18

77400.W0520

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 94.50 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 200 - 18

77400.W0521

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 94.50 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - W/o Keyway, With Handle - 250 - 22

77400.W0525

Finish

W/o Keyway, With Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 124.88 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - W/o Keyway, With Handle - 250 - 22

77400.W0526

Finish

W/o Keyway, With Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 124.88 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 80 - 10

77400.W0608

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 47.95 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 80 - 10

77400.W0609

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

d₄

M 6

l₁

16

l₂ ≈

26

l₃

13.0

w₁

18

Weight g

160

£ 47.95 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 100 - 10

77400.W0610

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 100 - 10

77400.W0611

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

d₄

M 6

l₁

17

l₂ ≈

30

l₃

14.0

w₁

21

Weight g

255

£ 53.31 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 125 - 12

77400.W0612

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 58.01 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 125 - 12

77400.W0613

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

31

d₄

M 8

l₁

18

l₂ ≈

33

l₃

15.0

w₁

23

Weight g

390

£ 58.01 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 140 - 14

77400.W0614

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 140 - 14

77400.W0615

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 8

l₁

19

l₂ ≈

36

l₃

16.5

w₁

23

Weight g

510

£ 67.30 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 160 - 14

77400.W0616

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 76.91 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 160 - 14

77400.W0617

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

36

d₄

M 10

l₁

20

l₂ ≈

39

l₃

18.0

w₁

26

Weight g

675

£ 76.91 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 200 - 18

77400.W0620

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 98.67 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 200 - 18

77400.W0621

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

20

d₃

42

d₄

M 10

l₁

24

l₂ ≈

45

l₃

20.5

w₁

26

Weight g

995

£ 98.67 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Small - With Keyway, With Handle - 250 - 22

77400.W0625

Finish

With Keyway, With Handle

Bore dia.

d2 Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 129.63 per unit (click for quantity discounts)

Disc Type Handwheels - Al. d2 Large - With Keyway, With Handle - 250 - 22

77400.W0626

Finish

With Keyway, With Handle

Bore dia.

d2 Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

48

d₄

M 10

l₁

28

l₂ ≈

51

l₃

23.0

w₁

28

Weight g

1625

£ 129.63 per unit (click for quantity discounts)



Select all

Finish

Bore dia.

d₁

d₂ tol. H7 Small

d₂ tol. H7 Large

d₃

d₄

l₁

l₂ ≈

l₃

w₁

Weight g

Price & Availability	Article	Finish	Bore dia.	d1	d2 tol. H7 Small	d2 tol. H7 Large	d3	d4	l1	l2 ≈	l3	w1	Weight g
	77400.W0008	W/o Keyway, W/o Handle	d2 Small	80	10	12	26	-	16	26	13.0	-	130
£ 26.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 26.38 0% 5-9 £ 25.06 5% 10-19 £ 23.74 10% 20-49 £ 22.42 15% 50+ £ 19.79 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 - l1 16 l2 ≈ 26 l3 13.0 w1 - Weight g 130 more info »
	77400.W0009	W/o Keyway, W/o Handle	d2 Large	80	10	12	26	-	16	26	13.0	-	130
£ 26.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 26.38 0% 5-9 £ 25.06 5% 10-19 £ 23.74 10% 20-49 £ 22.42 15% 50+ £ 19.79 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 - l1 16 l2 ≈ 26 l3 13.0 w1 - Weight g 130 more info »
	77400.W0010	W/o Keyway, W/o Handle	d2 Small	100	10	12	28	-	17	30	14.0	-	203
£ 30.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 30.31 0% 5-9 £ 28.79 5% 10-19 £ 27.28 10% 20-49 £ 25.76 15% 50+ £ 22.73 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 - l1 17 l2 ≈ 30 l3 14.0 w1 - Weight g 203 more info »
	77400.W0011	W/o Keyway, W/o Handle	d2 Large	100	10	12	28	-	17	30	14.0	-	203
£ 30.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 30.31 0% 5-9 £ 28.79 5% 10-19 £ 27.28 10% 20-49 £ 25.76 15% 50+ £ 22.73 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 - l1 17 l2 ≈ 30 l3 14.0 w1 - Weight g 203 more info »
	77400.W0012	W/o Keyway, W/o Handle	d2 Small	125	12	14	31	-	18	33	15.0	-	307
£ 35.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.15 0% 5-9 £ 33.39 5% 10-19 £ 31.64 10% 20-49 £ 29.88 15% 50+ £ 26.36 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 307 more info »
	77400.W0013	W/o Keyway, W/o Handle	d2 Large	125	12	14	31	-	18	33	15.0	-	307
£ 35.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.15 0% 5-9 £ 33.39 5% 10-19 £ 31.64 10% 20-49 £ 29.88 15% 50+ £ 26.36 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 307 more info »
	77400.W0014	W/o Keyway, W/o Handle	d2 Small	140	14	16	36	-	19	36	16.5	-	430
£ 42.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 42.12 0% 5-9 £ 40.01 5% 10-19 £ 37.91 10% 20-49 £ 35.80 15% 50+ £ 31.59 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 430 more info »
	77400.W0015	W/o Keyway, W/o Handle	d2 Large	140	14	16	36	-	19	36	16.5	-	430
£ 42.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 42.12 0% 5-9 £ 40.01 5% 10-19 £ 37.91 10% 20-49 £ 35.80 15% 50+ £ 31.59 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 430 more info »
	77400.W0016	W/o Keyway, W/o Handle	d2 Small	160	14	16	36	-	20	39	18.0	-	540
£ 48.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.63 0% 5-9 £ 46.20 5% 10-19 £ 43.77 10% 20-49 £ 41.34 15% 50+ £ 36.47 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 540 more info »
	77400.W0017	W/o Keyway, W/o Handle	d2 Large	160	14	16	36	-	20	39	18.0	-	540
£ 48.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.63 0% 5-9 £ 46.20 5% 10-19 £ 43.77 10% 20-49 £ 41.34 15% 50+ £ 36.47 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 540 more info »
	77400.W0020	W/o Keyway, W/o Handle	d2 Small	200	18	20	42	-	24	45	20.5	-	849
£ 67.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.30 0% 5-9 £ 63.94 5% 10-19 £ 60.57 10% 20-49 £ 57.21 15% 50+ £ 50.48 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 849 more info »
	77400.W0021	W/o Keyway, W/o Handle	d2 Large	200	18	20	42	-	24	45	20.5	-	849
£ 67.30 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.30 0% 5-9 £ 63.94 5% 10-19 £ 60.57 10% 20-49 £ 57.21 15% 50+ £ 50.48 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 849 more info »
	77400.W0025	W/o Keyway, W/o Handle	d2 Small	250	22	26	48	-	28	51	23.5	-	1495
£ 94.34 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.34 0% 5-9 £ 89.62 5% 10-19 £ 84.91 10% 20-49 £ 80.19 15% 50+ £ 70.76 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.5 w1 - Weight g 1495 more info »
	77400.W0026	W/o Keyway, W/o Handle	d2 Large	250	22	26	48	-	28	51	23.5	-	1495
£ 94.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.34 0% 5-9 £ 89.62 5% 10-19 £ 84.91 10% 20-49 £ 80.19 15% 50+ £ 70.76 25% Finish W/o Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.5 w1 - Weight g 1495 more info »
	77400.W0108	With Keyway, W/o Handle	d2 Small	80	10	12	26	-	16	26	13.0	-	139
£ 31.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.21 0% 5-9 £ 29.65 5% 10-19 £ 28.09 10% 20-49 £ 26.53 15% 50+ £ 23.41 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 - l1 16 l2 ≈ 26 l3 13.0 w1 - Weight g 139 more info »
	77400.W0109	With Keyway, W/o Handle	d2 Large	80	10	12	26	-	16	26	13.0	-	139
£ 31.21 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.21 0% 5-9 £ 29.65 5% 10-19 £ 28.09 10% 20-49 £ 26.53 15% 50+ £ 23.41 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 - l1 16 l2 ≈ 26 l3 13.0 w1 - Weight g 139 more info »
	77400.W0110	With Keyway, W/o Handle	d2 Small	100	10	12	28	-	17	30	14.0	-	190
£ 35.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.06 0% 5-9 £ 33.31 5% 10-19 £ 31.55 10% 20-49 £ 29.80 15% 50+ £ 26.30 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 - l1 17 l2 ≈ 30 l3 14.0 w1 - Weight g 190 more info »
	77400.W0111	With Keyway, W/o Handle	d2 Large	100	10	12	28	-	17	30	14.0	-	190
£ 35.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 35.06 0% 5-9 £ 33.31 5% 10-19 £ 31.55 10% 20-49 £ 29.80 15% 50+ £ 26.30 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 - l1 17 l2 ≈ 30 l3 14.0 w1 - Weight g 190 more info »
	77400.W0112	With Keyway, W/o Handle	d2 Small	125	12	14	31	-	18	33	15.0	-	291
£ 39.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 39.85 0% 5-9 £ 37.86 5% 10-19 £ 35.87 10% 20-49 £ 33.87 15% 50+ £ 29.89 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 291 more info »
	77400.W0113	With Keyway, W/o Handle	d2 Large	125	12	14	31	-	18	33	15.0	-	291
£ 39.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 39.85 0% 5-9 £ 37.86 5% 10-19 £ 35.87 10% 20-49 £ 33.87 15% 50+ £ 29.89 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 - l1 18 l2 ≈ 33 l3 15.0 w1 - Weight g 291 more info »
	77400.W0114	With Keyway, W/o Handle	d2 Small	140	14	16	36	-	19	36	16.5	-	413
£ 46.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 46.63 0% 5-9 £ 44.30 5% 10-19 £ 41.97 10% 20-49 £ 39.64 15% 50+ £ 34.97 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 413 more info »
	77400.W0115	With Keyway, W/o Handle	d2 Large	140	14	16	36	-	19	36	16.5	-	413
£ 46.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 46.63 0% 5-9 £ 44.30 5% 10-19 £ 41.97 10% 20-49 £ 39.64 15% 50+ £ 34.97 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 19 l2 ≈ 36 l3 16.5 w1 - Weight g 413 more info »
	77400.W0116	With Keyway, W/o Handle	d2 Small	160	14	16	36	-	20	39	18.0	-	529
£ 53.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 529 more info »
	77400.W0117	With Keyway, W/o Handle	d2 Large	160	14	16	36	-	20	39	18.0	-	529
£ 53.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 - l1 20 l2 ≈ 39 l3 18.0 w1 - Weight g 529 more info »
	77400.W0120	With Keyway, W/o Handle	d2 Small	200	18	20	42	-	24	45	20.5	-	880
£ 71.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.32 0% 5-9 £ 67.75 5% 10-19 £ 64.19 10% 20-49 £ 60.62 15% 50+ £ 53.49 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 880 more info »
	77400.W0121	With Keyway, W/o Handle	d2 Large	200	18	20	42	-	24	45	20.5	-	880
£ 71.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.32 0% 5-9 £ 67.75 5% 10-19 £ 64.19 10% 20-49 £ 60.62 15% 50+ £ 53.49 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 - l1 24 l2 ≈ 45 l3 20.5 w1 - Weight g 880 more info »
	77400.W0125	With Keyway, W/o Handle	d2 Small	250	22	26	48	-	28	51	23.0	-	1515
£ 99.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 99.51 0% 5-9 £ 94.53 5% 10-19 £ 89.56 10% 20-49 £ 84.58 15% 50+ £ 74.63 25% Finish With Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1515 more info »
	77400.W0126	With Keyway, W/o Handle	d2 Large	250	22	26	48	-	28	51	23.0	-	1515
£ 99.51 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 99.51 0% 5-9 £ 94.53 5% 10-19 £ 89.56 10% 20-49 £ 84.58 15% 50+ £ 74.63 25% Finish With Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 - l1 28 l2 ≈ 51 l3 23.0 w1 - Weight g 1515 more info »
	77400.W0508	W/o Keyway, With Handle	d2 Small	80	10	12	26	M 6	16	26	13.0	18	160
£ 42.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 42.86 0% 5-9 £ 40.72 5% 10-19 £ 38.57 10% 20-49 £ 36.43 15% 50+ £ 32.15 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 M 6 l1 16 l2 ≈ 26 l3 13.0 w1 18 Weight g 160 more info »
	77400.W0509	W/o Keyway, With Handle	d2 Large	80	10	12	26	M 6	16	26	13.0	18	160
£ 42.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 42.86 0% 5-9 £ 40.72 5% 10-19 £ 38.57 10% 20-49 £ 36.43 15% 50+ £ 32.15 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 M 6 l1 16 l2 ≈ 26 l3 13.0 w1 18 Weight g 160 more info »
	77400.W0510	W/o Keyway, With Handle	d2 Small	100	10	12	28	M 6	17	30	14.0	21	255
£ 48.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.45 0% 5-9 £ 46.03 5% 10-19 £ 43.61 10% 20-49 £ 41.18 15% 50+ £ 36.34 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 M 6 l1 17 l2 ≈ 30 l3 14.0 w1 21 Weight g 255 more info »
	77400.W0511	W/o Keyway, With Handle	d2 Large	100	10	12	28	M 6	17	30	14.0	21	255
£ 48.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.45 0% 5-9 £ 46.03 5% 10-19 £ 43.61 10% 20-49 £ 41.18 15% 50+ £ 36.34 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 M 6 l1 17 l2 ≈ 30 l3 14.0 w1 21 Weight g 255 more info »
	77400.W0512	W/o Keyway, With Handle	d2 Small	125	12	14	31	M 8	18	33	15.0	23	390
£ 53.31 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77400.W0513	W/o Keyway, With Handle	d2 Large	125	12	14	31	M 8	18	33	15.0	23	390
£ 53.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77400.W0514	W/o Keyway, With Handle	d2 Small	140	14	16	36	M 8	19	36	16.5	23	510
£ 62.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.68 0% 5-9 £ 59.55 5% 10-19 £ 56.41 10% 20-49 £ 53.28 15% 50+ £ 47.01 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 510 more info »
	77400.W0515	W/o Keyway, With Handle	d2 Large	140	14	16	36	M 8	19	36	16.5	23	510
£ 62.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.68 0% 5-9 £ 59.55 5% 10-19 £ 56.41 10% 20-49 £ 53.28 15% 50+ £ 47.01 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 510 more info »
	77400.W0516	W/o Keyway, With Handle	d2 Small	160	14	16	36	M 10	20	39	18.0	26	675
£ 71.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.81 0% 5-9 £ 68.22 5% 10-19 £ 64.63 10% 20-49 £ 61.04 15% 50+ £ 53.86 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 675 more info »
	77400.W0517	W/o Keyway, With Handle	d2 Large	160	14	16	36	M 10	20	39	18.0	26	675
£ 71.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.81 0% 5-9 £ 68.22 5% 10-19 £ 64.63 10% 20-49 £ 61.04 15% 50+ £ 53.86 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 675 more info »
	77400.W0520	W/o Keyway, With Handle	d2 Small	200	18	20	42	M 10	24	45	20.5	26	995
£ 94.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.50 0% 5-9 £ 89.78 5% 10-19 £ 85.05 10% 20-49 £ 80.33 15% 50+ £ 70.88 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M 10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 995 more info »
	77400.W0521	W/o Keyway, With Handle	d2 Large	200	18	20	42	M 10	24	45	20.5	26	995
£ 94.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.50 0% 5-9 £ 89.78 5% 10-19 £ 85.05 10% 20-49 £ 80.33 15% 50+ £ 70.88 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M 10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 995 more info »
	77400.W0525	W/o Keyway, With Handle	d2 Small	250	22	26	48	M 10	28	51	23.0	28	1625
£ 124.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 124.88 0% 5-9 £ 118.64 5% 10-19 £ 112.39 10% 20-49 £ 106.15 15% 50+ £ 93.66 25% Finish W/o Keyway, With Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M 10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1625 more info »
	77400.W0526	W/o Keyway, With Handle	d2 Large	250	22	26	48	M 10	28	51	23.0	28	1625
£ 124.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 124.88 0% 5-9 £ 118.64 5% 10-19 £ 112.39 10% 20-49 £ 106.15 15% 50+ £ 93.66 25% Finish W/o Keyway, With Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M 10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1625 more info »
	77400.W0608	With Keyway, With Handle	d2 Small	80	10	12	26	M 6	16	26	13.0	18	160
£ 47.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 47.95 0% 5-9 £ 45.55 5% 10-19 £ 43.16 10% 20-49 £ 40.76 15% 50+ £ 35.96 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 M 6 l1 16 l2 ≈ 26 l3 13.0 w1 18 Weight g 160 more info »
	77400.W0609	With Keyway, With Handle	d2 Large	80	10	12	26	M 6	16	26	13.0	18	160
£ 47.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 47.95 0% 5-9 £ 45.55 5% 10-19 £ 43.16 10% 20-49 £ 40.76 15% 50+ £ 35.96 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 d4 M 6 l1 16 l2 ≈ 26 l3 13.0 w1 18 Weight g 160 more info »
	77400.W0610	With Keyway, With Handle	d2 Small	100	10	12	28	M 6	17	30	14.0	21	255
£ 53.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 M 6 l1 17 l2 ≈ 30 l3 14.0 w1 21 Weight g 255 more info »
	77400.W0611	With Keyway, With Handle	d2 Large	100	10	12	28	M 6	17	30	14.0	21	255
£ 53.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.31 0% 5-9 £ 50.64 5% 10-19 £ 47.98 10% 20-49 £ 45.31 15% 50+ £ 39.98 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 d4 M 6 l1 17 l2 ≈ 30 l3 14.0 w1 21 Weight g 255 more info »
	77400.W0612	With Keyway, With Handle	d2 Small	125	12	14	31	M 8	18	33	15.0	23	390
£ 58.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 58.01 0% 5-9 £ 55.11 5% 10-19 £ 52.21 10% 20-49 £ 49.31 15% 50+ £ 43.51 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77400.W0613	With Keyway, With Handle	d2 Large	125	12	14	31	M 8	18	33	15.0	23	390
£ 58.01 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 58.01 0% 5-9 £ 55.11 5% 10-19 £ 52.21 10% 20-49 £ 49.31 15% 50+ £ 43.51 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 31 d4 M 8 l1 18 l2 ≈ 33 l3 15.0 w1 23 Weight g 390 more info »
	77400.W0614	With Keyway, With Handle	d2 Small	140	14	16	36	M 8	19	36	16.5	23	510
£ 67.30 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.30 0% 5-9 £ 63.94 5% 10-19 £ 60.57 10% 20-49 £ 57.21 15% 50+ £ 50.48 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 510 more info »
	77400.W0615	With Keyway, With Handle	d2 Large	140	14	16	36	M 8	19	36	16.5	23	510
£ 67.30 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.30 0% 5-9 £ 63.94 5% 10-19 £ 60.57 10% 20-49 £ 57.21 15% 50+ £ 50.48 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 8 l1 19 l2 ≈ 36 l3 16.5 w1 23 Weight g 510 more info »
	77400.W0616	With Keyway, With Handle	d2 Small	160	14	16	36	M 10	20	39	18.0	26	675
£ 76.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.91 0% 5-9 £ 73.06 5% 10-19 £ 69.22 10% 20-49 £ 65.37 15% 50+ £ 57.68 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 675 more info »
	77400.W0617	With Keyway, With Handle	d2 Large	160	14	16	36	M 10	20	39	18.0	26	675
£ 76.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.91 0% 5-9 £ 73.06 5% 10-19 £ 69.22 10% 20-49 £ 65.37 15% 50+ £ 57.68 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 36 d4 M 10 l1 20 l2 ≈ 39 l3 18.0 w1 26 Weight g 675 more info »
	77400.W0620	With Keyway, With Handle	d2 Small	200	18	20	42	M 10	24	45	20.5	26	995
£ 98.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 98.67 0% 5-9 £ 93.74 5% 10-19 £ 88.80 10% 20-49 £ 83.87 15% 50+ £ 74.00 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M 10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 995 more info »
	77400.W0621	With Keyway, With Handle	d2 Large	200	18	20	42	M 10	24	45	20.5	26	995
£ 98.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 98.67 0% 5-9 £ 93.74 5% 10-19 £ 88.80 10% 20-49 £ 83.87 15% 50+ £ 74.00 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 20 d3 42 d4 M 10 l1 24 l2 ≈ 45 l3 20.5 w1 26 Weight g 995 more info »
	77400.W0625	With Keyway, With Handle	d2 Small	250	22	26	48	M 10	28	51	23.0	28	1625
£ 129.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 129.63 0% 5-9 £ 123.15 5% 10-19 £ 116.67 10% 20-49 £ 110.19 15% 50+ £ 97.22 25% Finish With Keyway, With Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M 10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1625 more info »
	77400.W0626	With Keyway, With Handle	d2 Large	250	22	26	48	M 10	28	51	23.0	28	1625
£ 129.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 129.63 0% 5-9 £ 123.15 5% 10-19 £ 116.67 10% 20-49 £ 110.19 15% 50+ £ 97.22 25% Finish With Keyway, With Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 48 d4 M 10 l1 28 l2 ≈ 51 l3 23.0 w1 28 Weight g 1625 more info »
