Mono Bloc Clamps

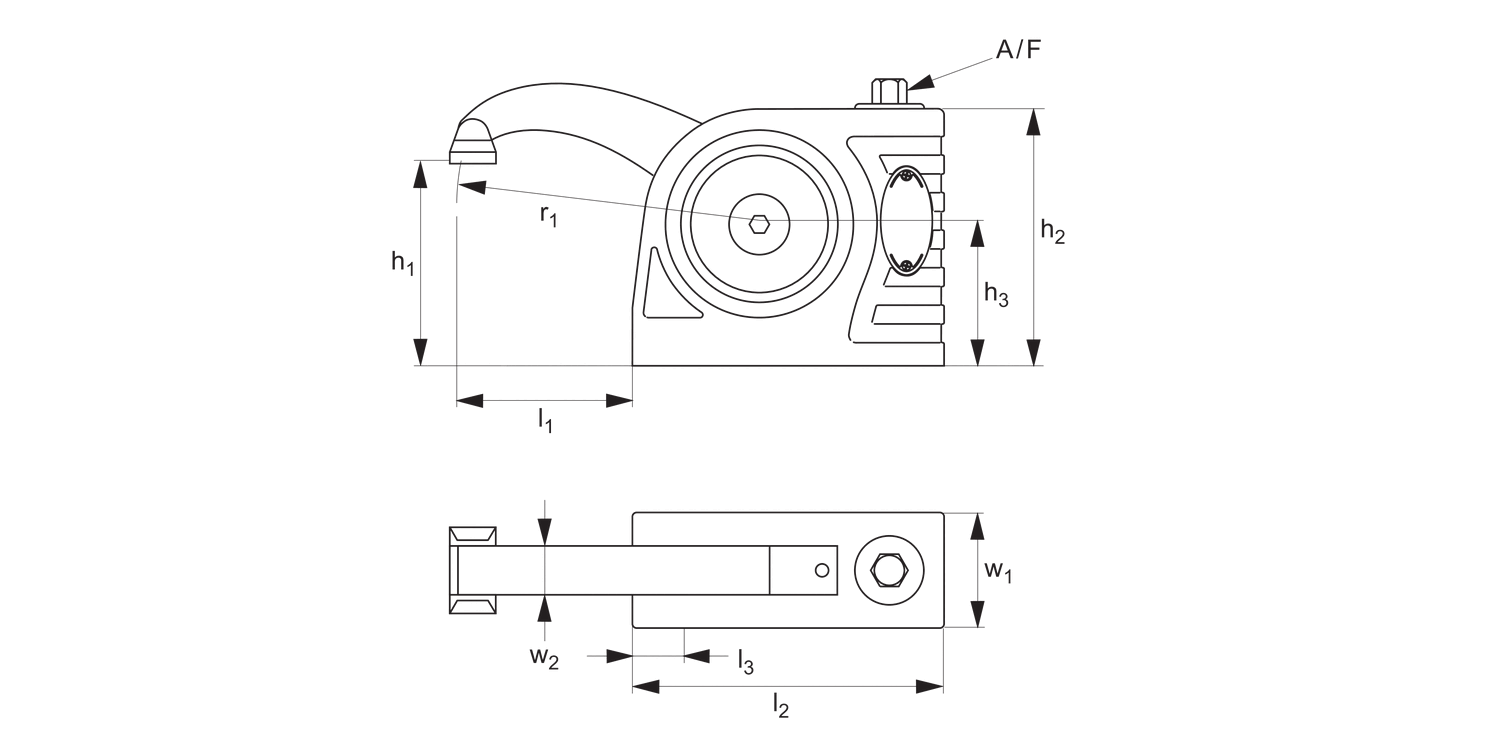

10650 Monobloc Clamps
material: Aluminium
Order No.
10650.W0030
Arm type
Long
Clamp reach l1
61
Clamping force
max.
kN
12
Clamping height h1
-8 to 102
h2
89
h3
49
l2
108
l3
12.5
r1
r105
w1
40
w2
16
A/F
11
Torque to
max.
Nm
80
£ 510.39 per unit (click for quantity discounts)
Ready to despatch 2
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 510.39 | 0% |
| 5-9 | £ 484.87 | 5% |
| 10-19 | £ 459.35 | 10% |
| 20+ | £ 433.83 | 15% |
Technical & Application
Material
Aluminium body, steel arm and screw.
Aluminium clamping pad.
Technical Notes
Can be used with our stackable riser elements to increase the clamping height if required (see part 10651).
Supplied with clamping key (10651.W1140). Clamping screws for mounting to machine bed etc. supplied separately, see part no. 10654.
Tips
Can be used on T-slot tables or tapped holes.
Important Notes
Available as a box set, see part 10653.
Product Datasheets

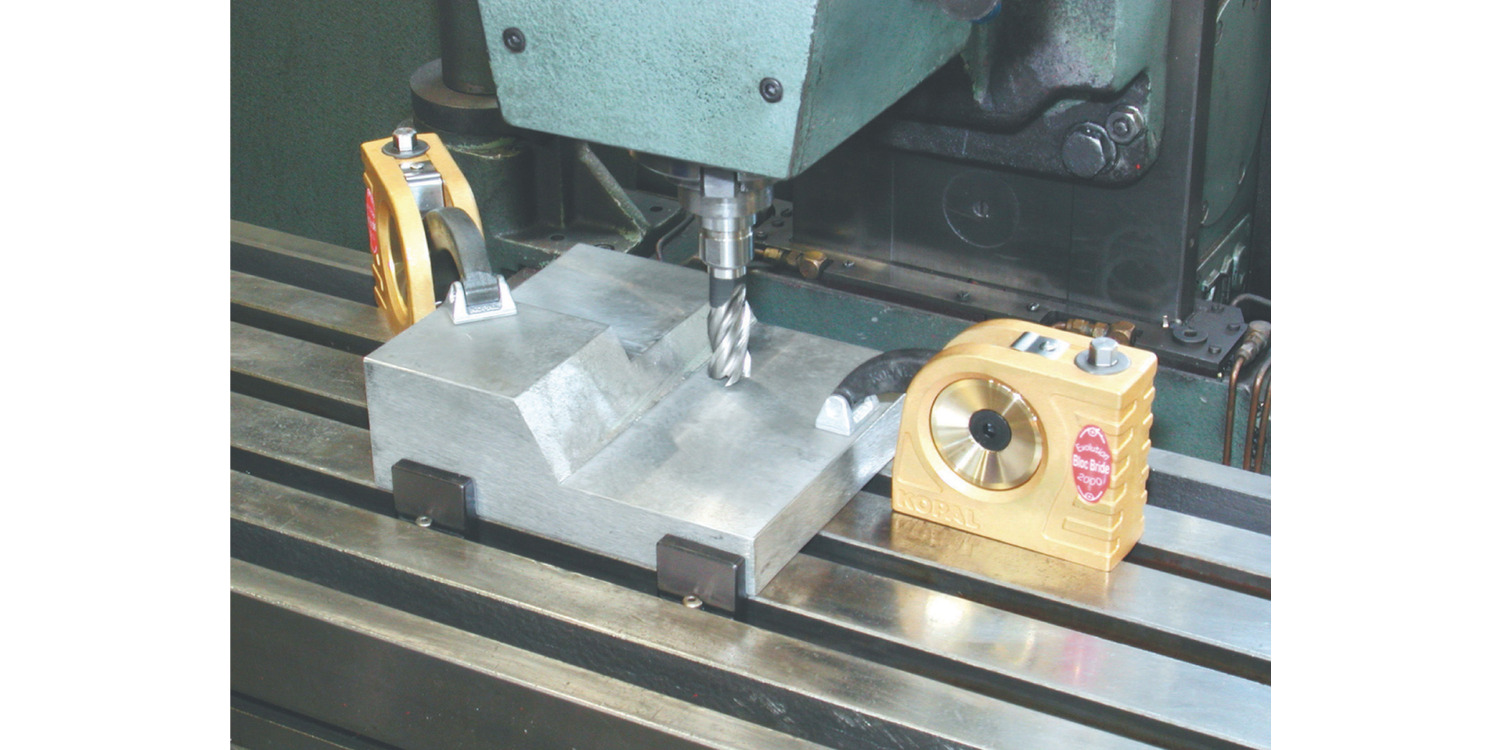

Application images
