Mono Bloc Clamps
10657 Piccolo Clamp Sets
material: Aluminium
Order No.
10657.W0100
Description
Piccolo Clamp Set
Clamp reach
54
Clamping force
max.
kN
6.5
Clamping height
min.|max.
0 to 118
£ 1,338.54 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 1,338.54 | 0% |
| 5-9 | £ 1,271.61 | 5% |
| 10-19 | £ 1,204.69 | 10% |
| 20+ | £ 1,137.76 | 15% |
Technical & Application
Technical Notes

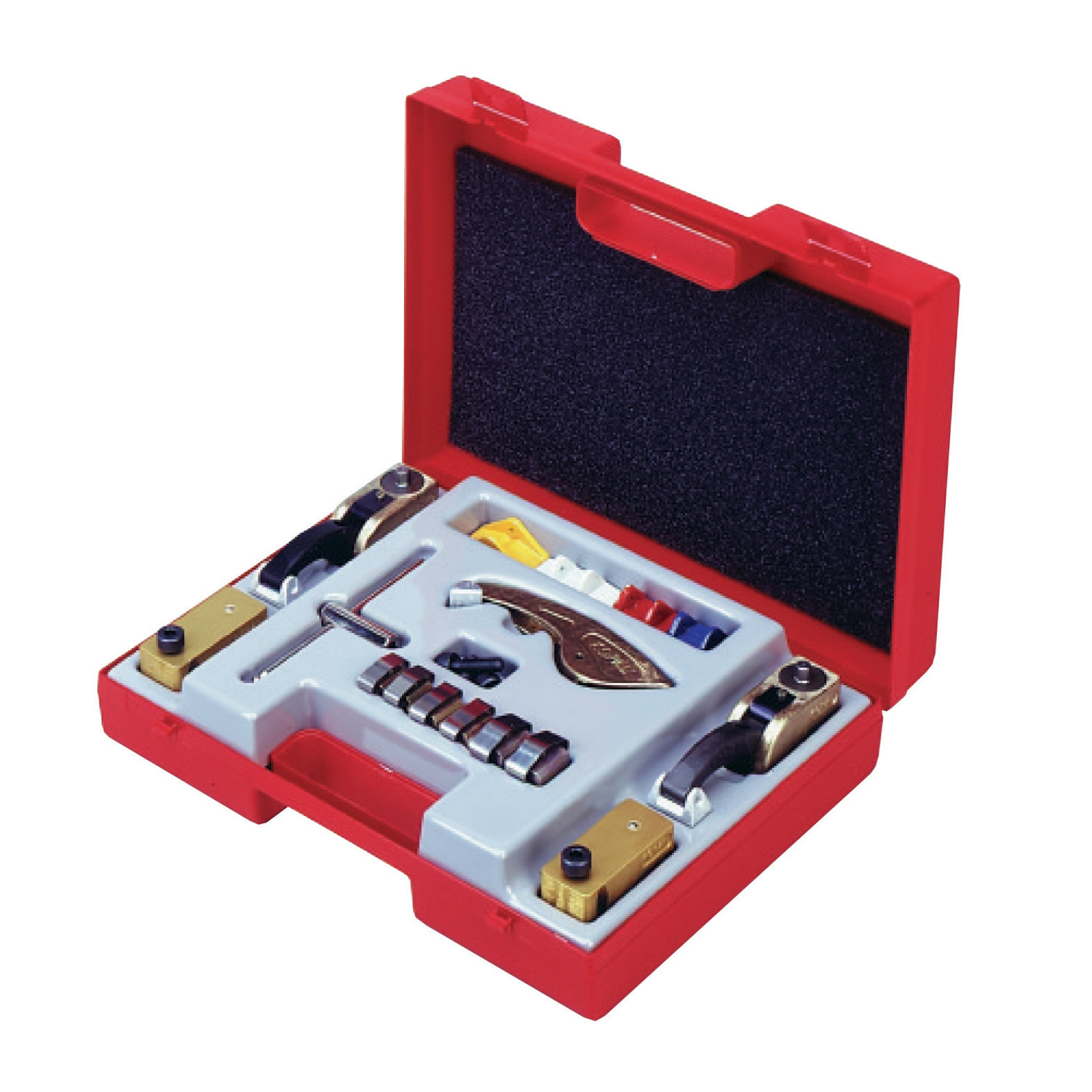

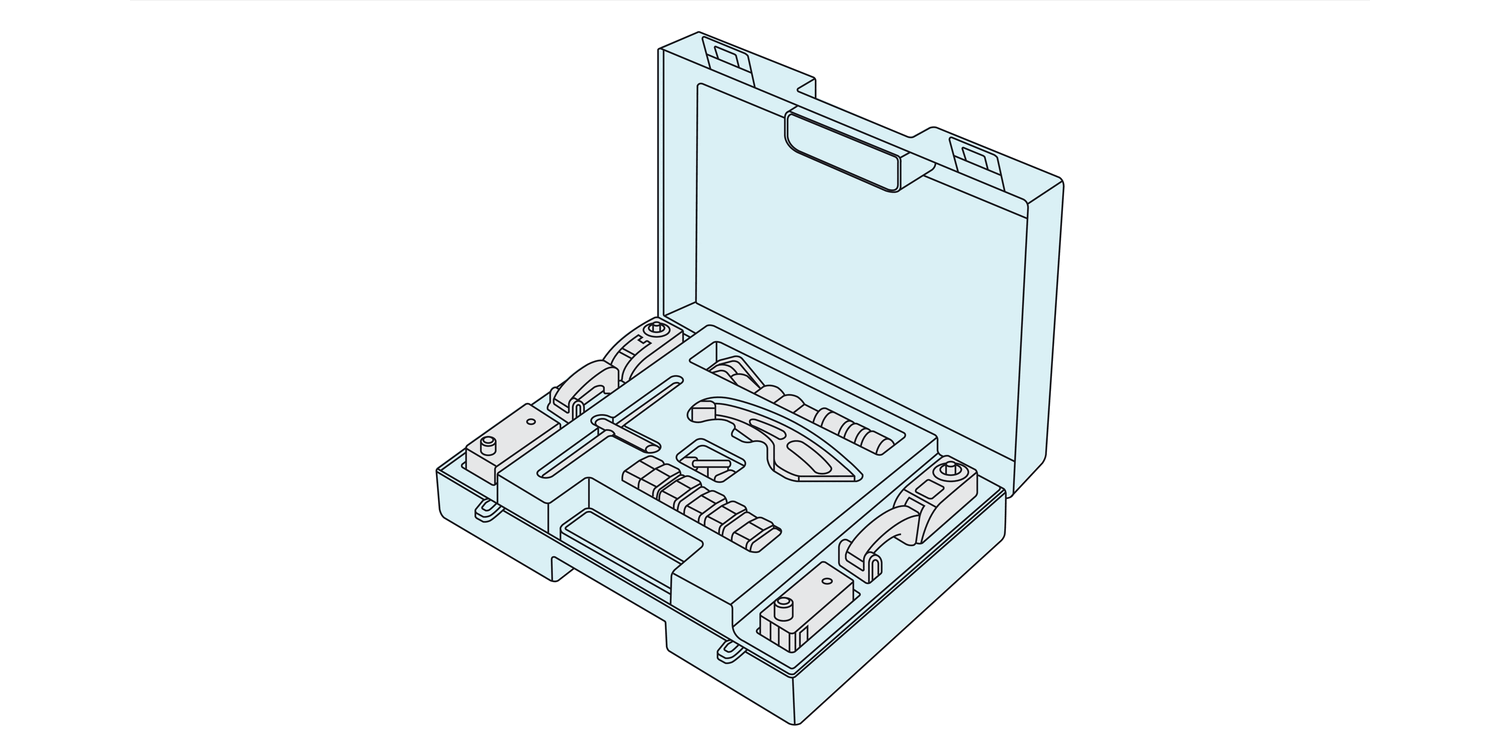

Comprises of two piccolo clamping elements (short 10655.W0020 and long 10655.W0025), two spacer elements (2 x 10656.W0030), one clamping key (10656.W0180), one extra long arm, four M10 screws and six M10 T-nuts (with spring) for 14, 16 and 18mm slots.
