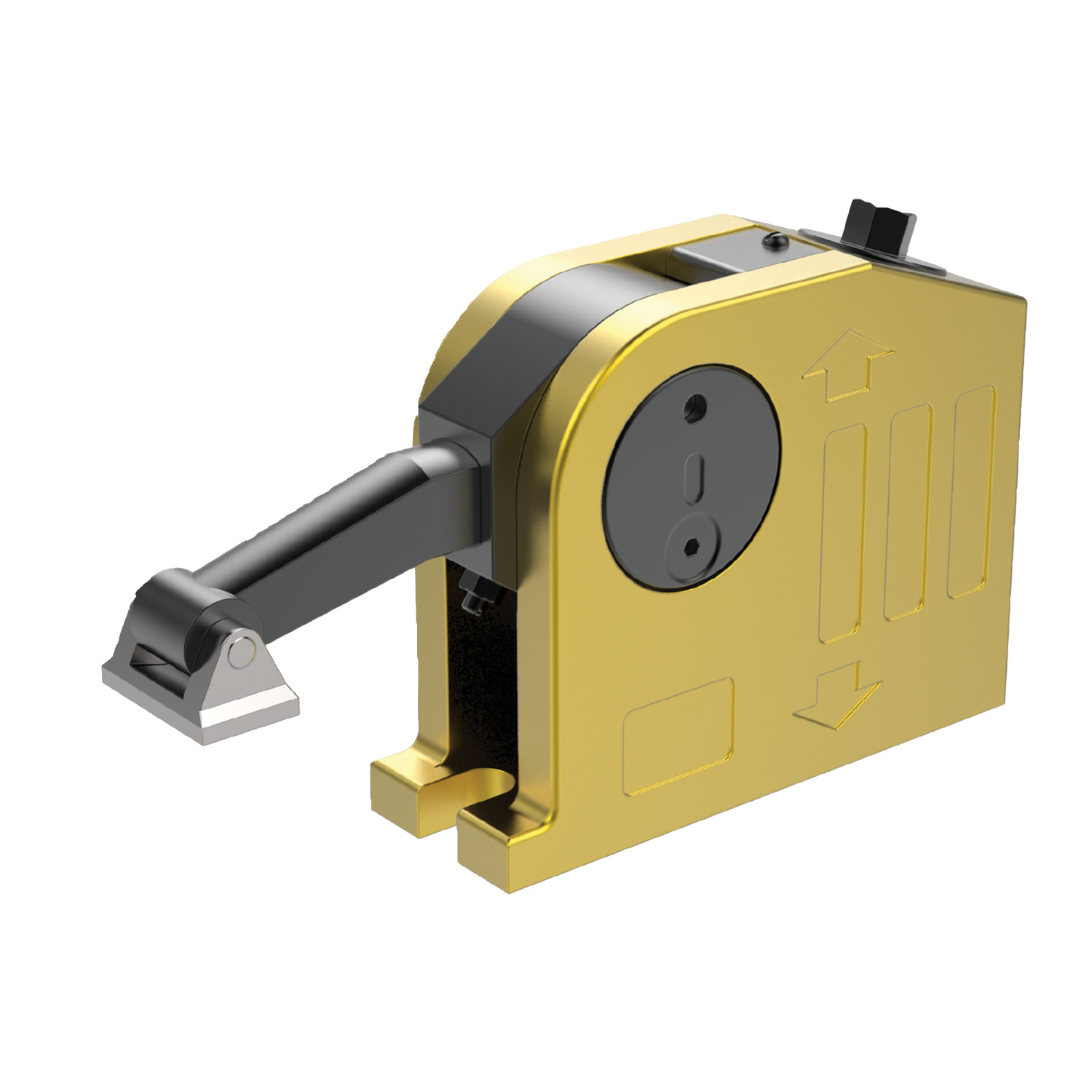

10660 Duo Retractable Arm Clamps
material: Aluminium
Order No.
10660.W0020
Clamp reach l1-l2
46-88
Clamp reach l3-l4
48-91
Clamping force
max.
kN
11
Clamping height h1
min.|max.
0-129
Lifting height h2
min.|max.
4-142
h1
min.|max.
0-80
h2
min.|max.
52-142
h3
95
h3
min.|max.
38-125
h4
65
h4
min.|max.
4-94
l5
120
l6
10
w1
40
w2
14
Clamping arm
Straight
£ 766.24 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £14.37. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £14.37. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 766.24 | 0% |
| 5-9 | £ 727.93 | 5% |
| 10-19 | £ 689.62 | 10% |
| 20+ | £ 651.30 | 15% |
Technical & Application
Material
Aluminium body, steel arm and screw. Aluminium clamp thrust product.
Technical Notes
Fully adjustable clamping range that can be used with our standard stackable riser elements (see part no. 10651).
Has both clamping and lifting capability, aided by two different interchangeable arms.
Supplied with operating key.
Tips

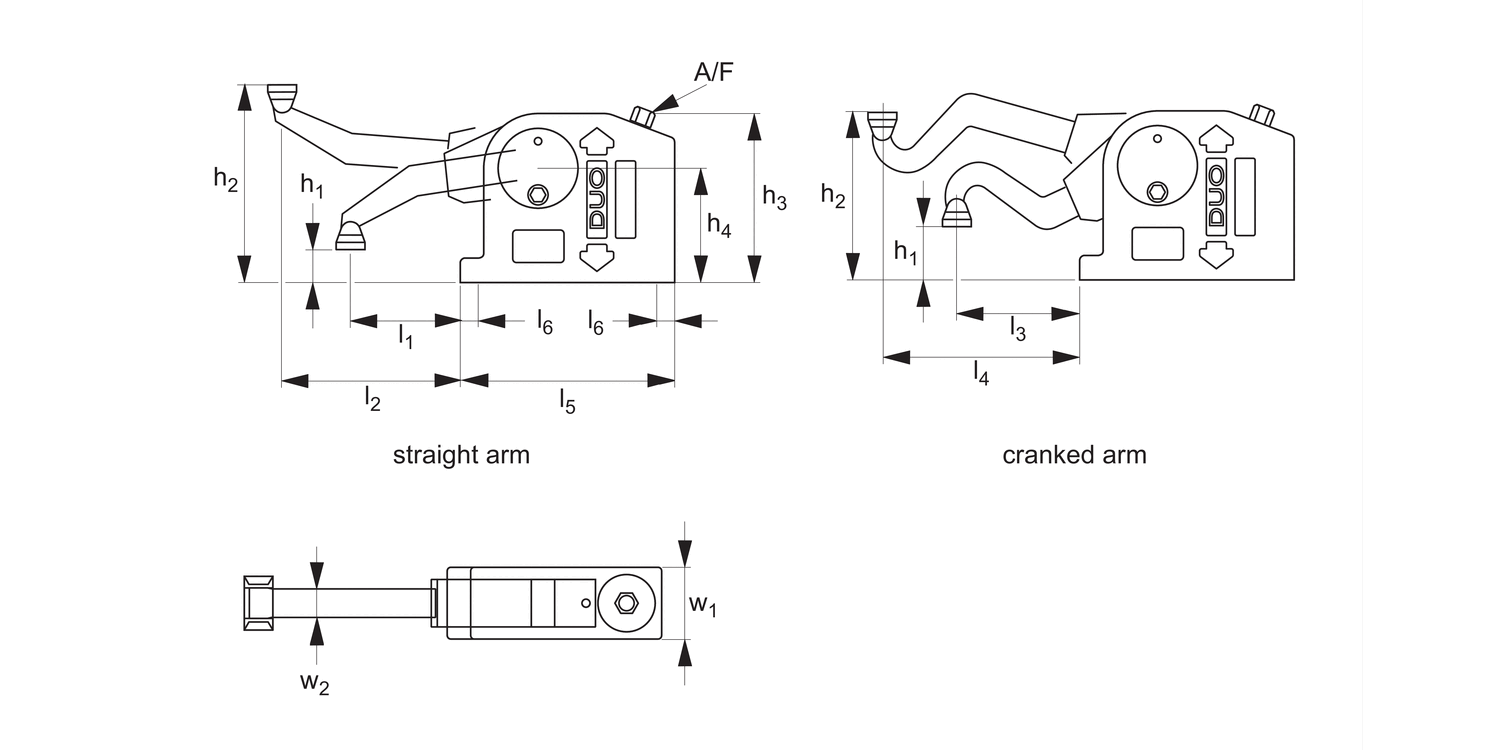

Two different clamping arm shapes provided: straight and cranked.See table below for clamping and lifting heights of each arm.
Product Datasheets

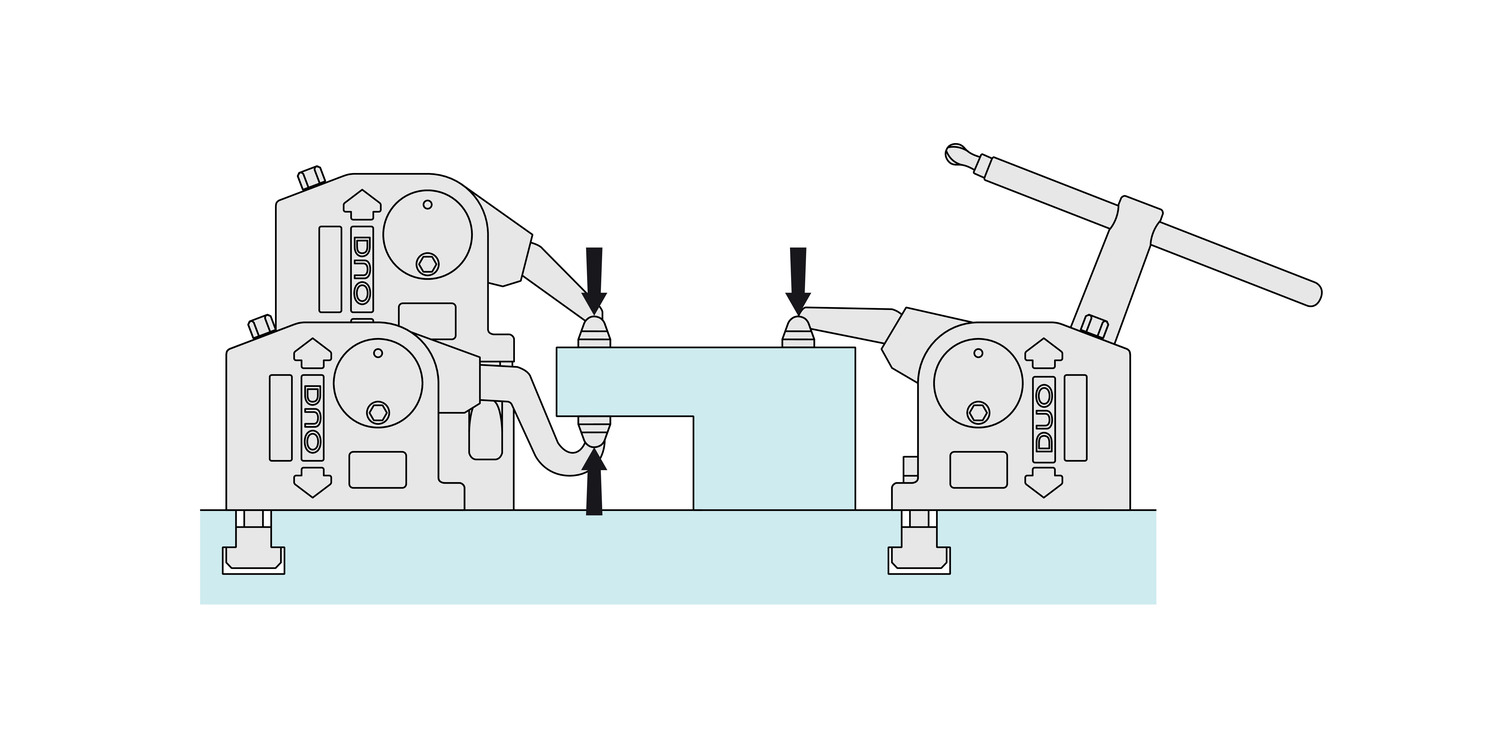

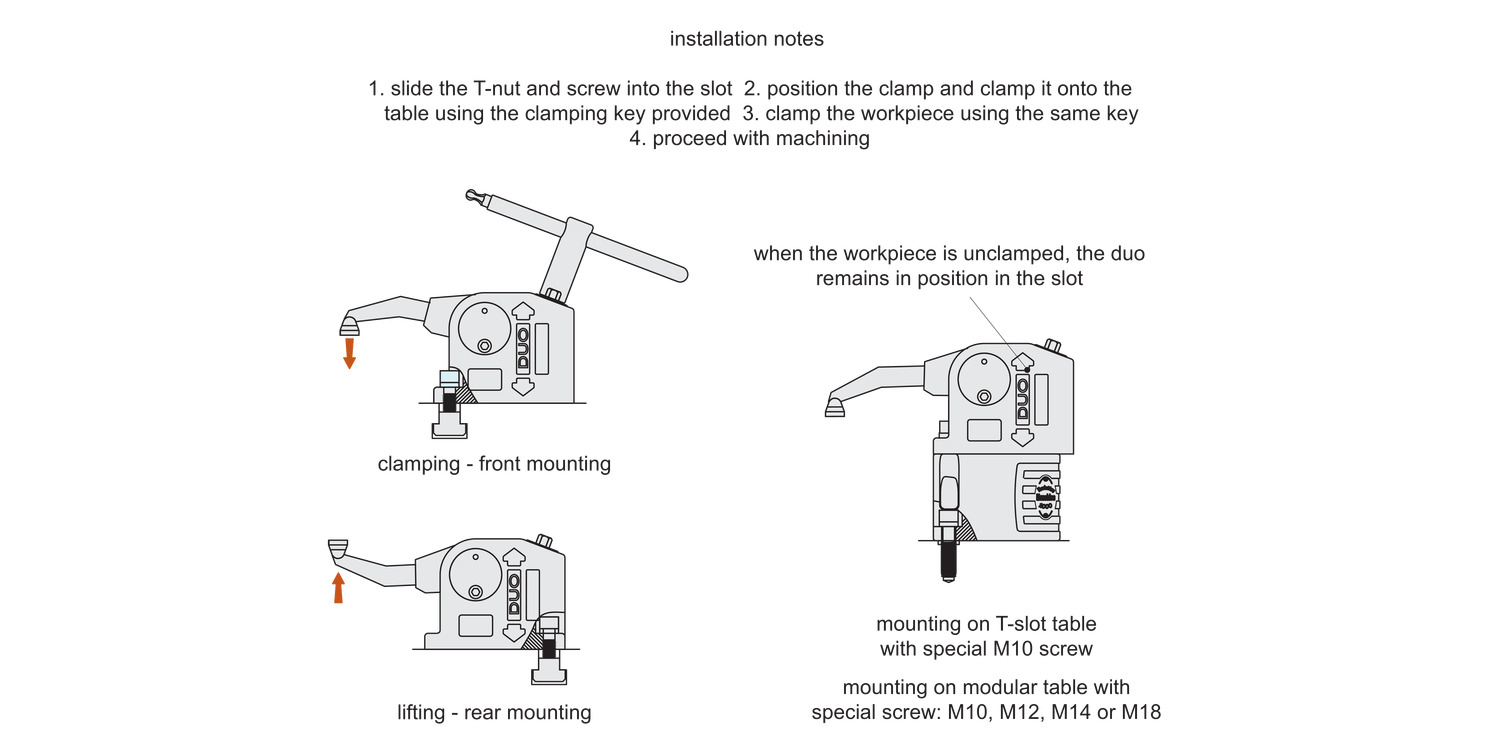

Application images
