Mono Bloc Clamps

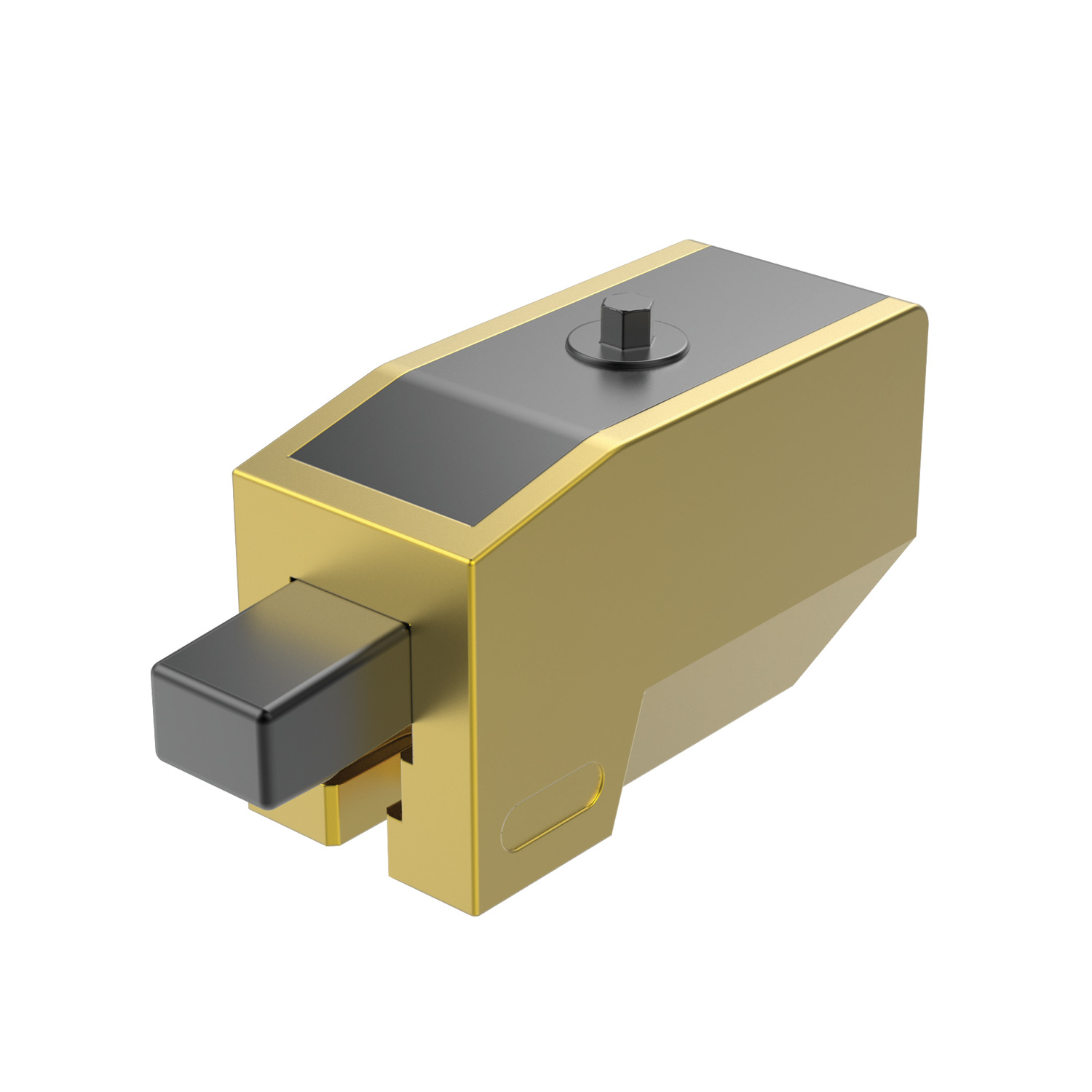

10670 Retractable Arm Clamps
material: Aluminium
Order No.
10670.W0020
Clamping force
max.
kN
11
Clamping height h1
min.|max.
22 to 26
Clamping reach l1
30
h2
67
h3
16.5
l2
115
l3
65
l4
18
w1
50
w2
25
A/F
8
Torque to
max.
Nm
20
£ 388.93 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 388.93 | 0% |
| 5-9 | £ 369.48 | 5% |
| 10-19 | £ 350.04 | 10% |
| 20+ | £ 330.59 | 15% |
Technical & Application
Material
Body: aluminium.
Clamping piece: steel.
Technical Notes
Unique double action, moves forward and downward simply with a turn of the hex key.
Very compact, powerful and quick acting.
Tips
Clamping height can be easily adjusted by using on a spacer element or using our standard spacers (see part no. 10671). Supplied with clamping key and clamping screw (M10 x 35mm).
Product Datasheets
Application images
