10675 Maxi Bloc Clamps

Name: 10675.W0310
Brand: WC
SKU: 10675.W0310
Price: 304.74 EUR
Availability: OutOfStock

material: Steel

Article properties

Order No.

10675.W0310

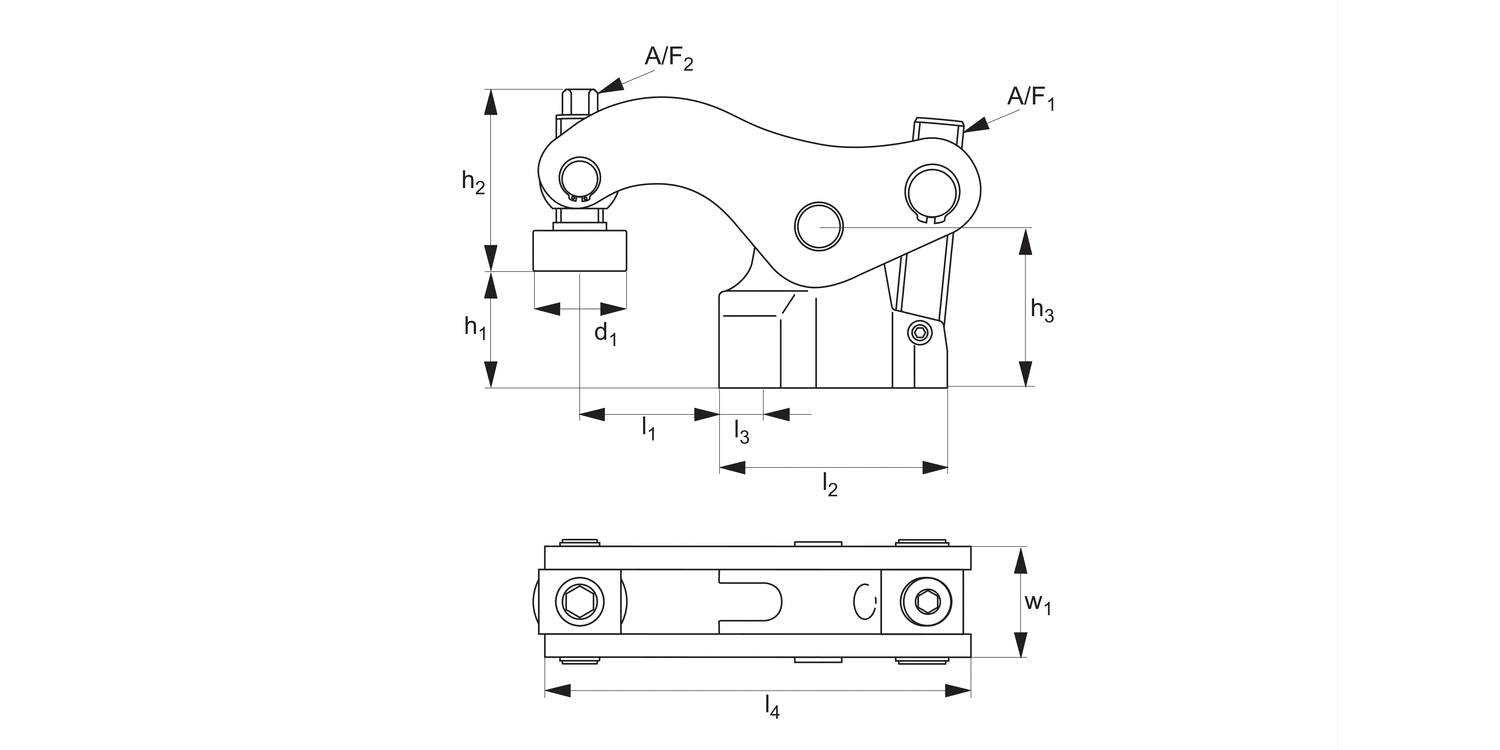

Clamping force max. kN

Clamping height h₁ min.|max.

0 to 86

Clamping reach l₁

h₂

62.5

h₃

d₁

l₂

l₃

l₄

152

w₁

A/F₁

A/F₂

Torque to max. Nm

See full product selection

£ 304.74 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 304.74	0%
5-9	£ 289.50	5%
10-19	£ 274.27	10%
20+	£ 259.03	15%

Download product datasheet

Technical & Application

Material

Steel body and clamping arm, with special clamping screw.

Technical Notes

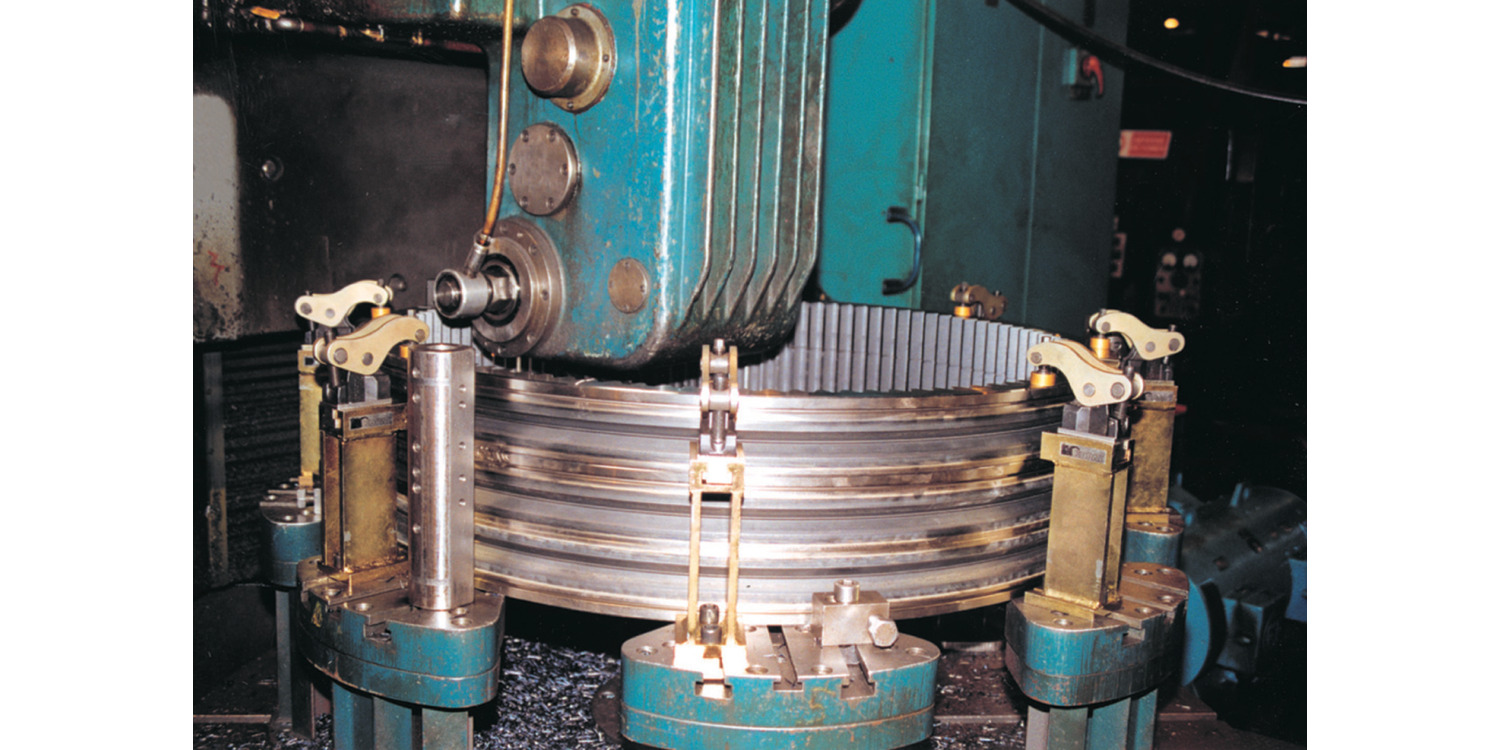

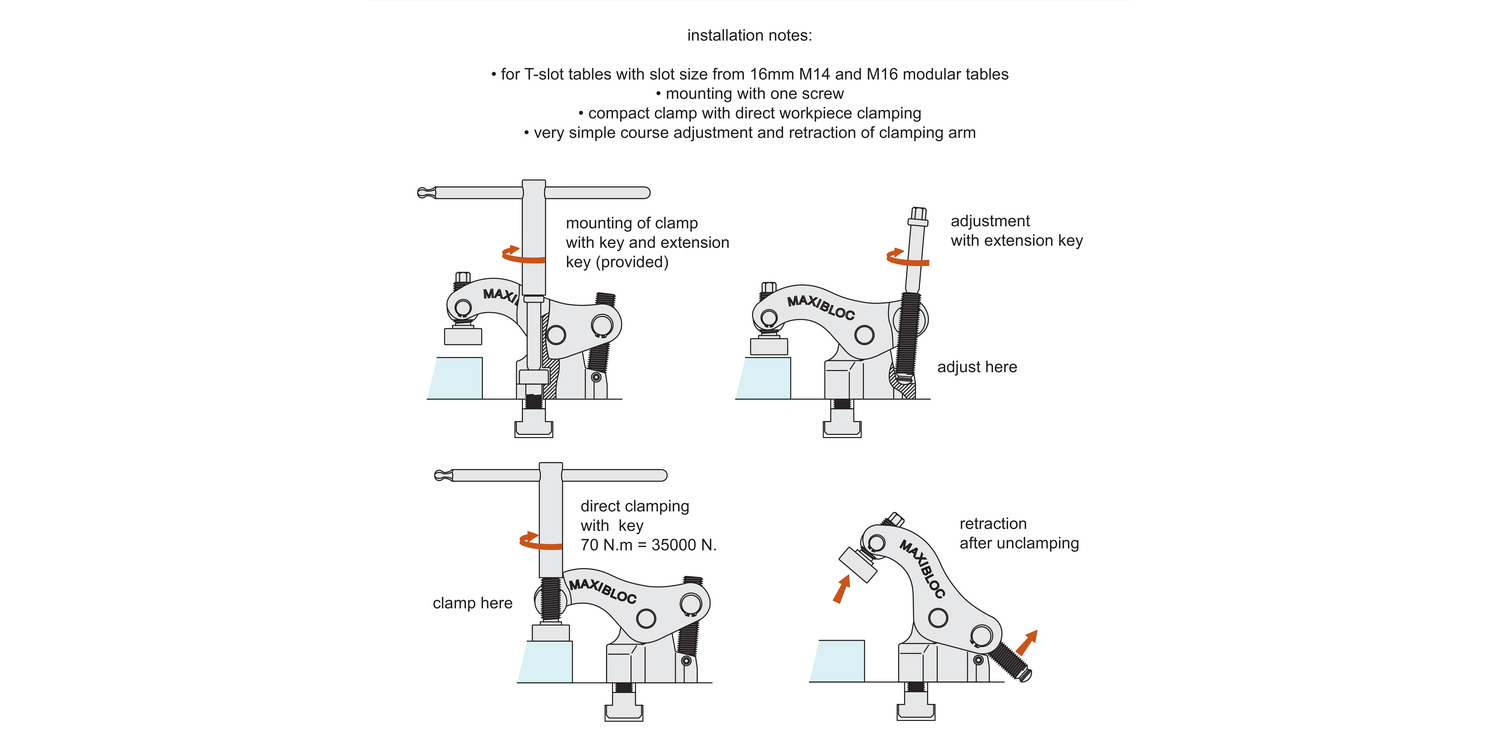

For very heavy machining. Arm retracts. Supplied with clamping key, extension key and clamping screw (M14 x 40mm). Please order suitable T-nuts separately, see part no. 24000.

Tips

Clamping height can be raised using our stackable elements (part no. 10676).
