Downhold Clamps
cranked clamping lever
12400 Downhold Clamps
with cranked clamping lever, material: Case Hardened steel

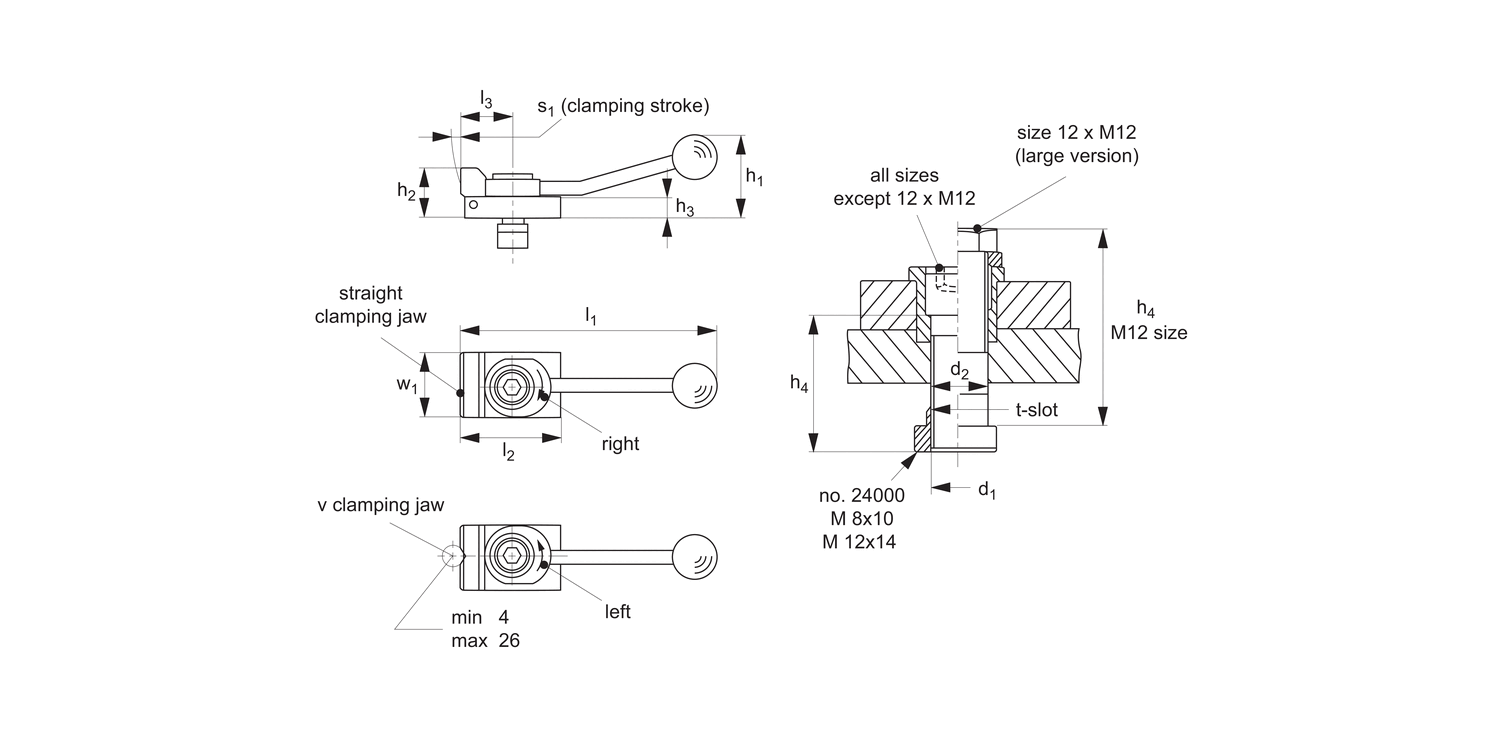

Order No.
12400.W0102
For T-slot
10
Type
V-Jaw, Clamps Right
h1
20
h2
30
h3
8
h4
40
l1
132
l2
50
l3
32
d1
M 8
d2
8.4
Stroke s1
3
w1
32
Clamping force horizontal
max.
kN
3.5
Weight
g
263
£ 233.15 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 233.15 | 0% |
| 3-4 | £ 209.84 | 10% |
| 5-9 | £ 198.18 | 15% |
| 10-19 | £ 186.52 | 20% |
| 20+ | £ 174.86 | 25% |
Technical & Application
Material
Steel, case-hardened, blackened.
Technical Notes

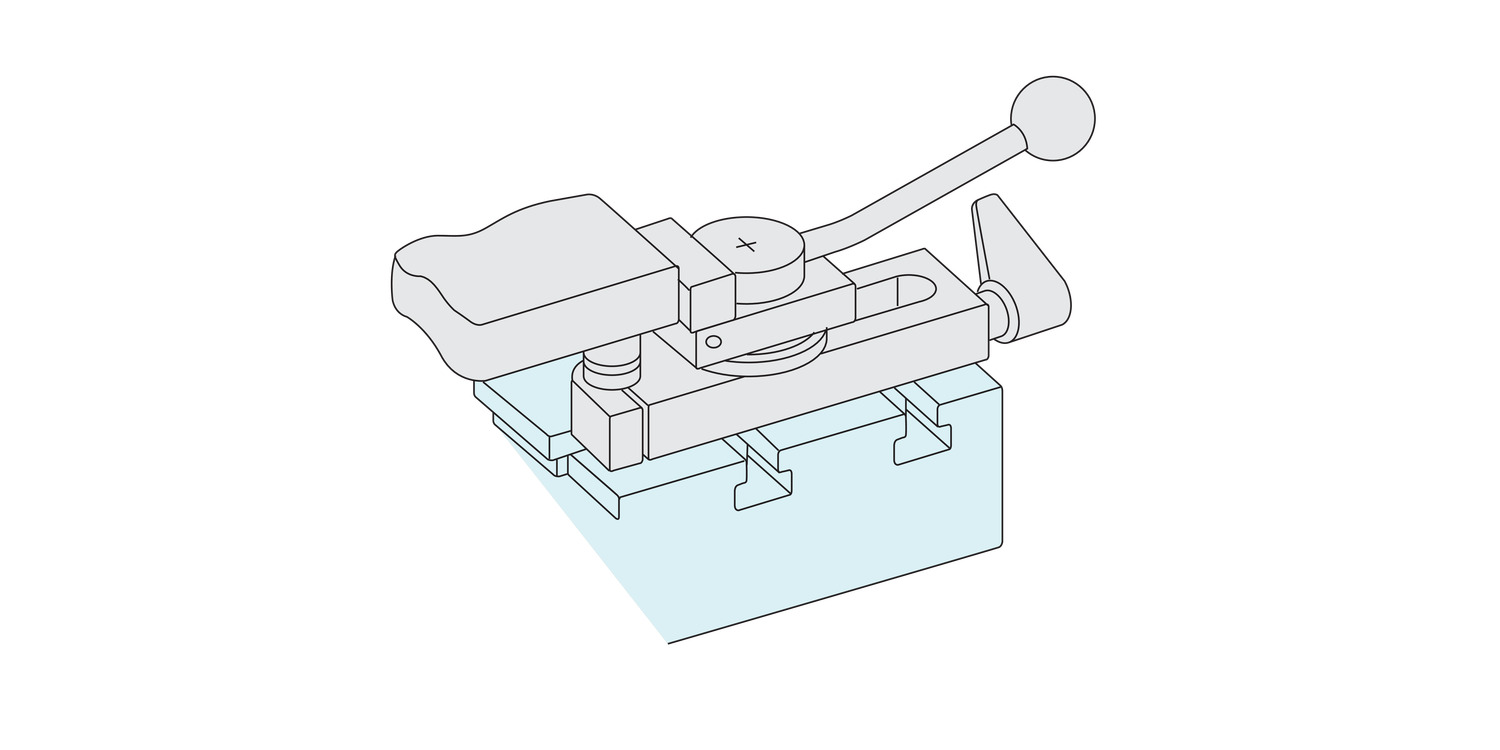

For quick clamping from the side. The clamps give forwards and downwards clamping forces.
Tips

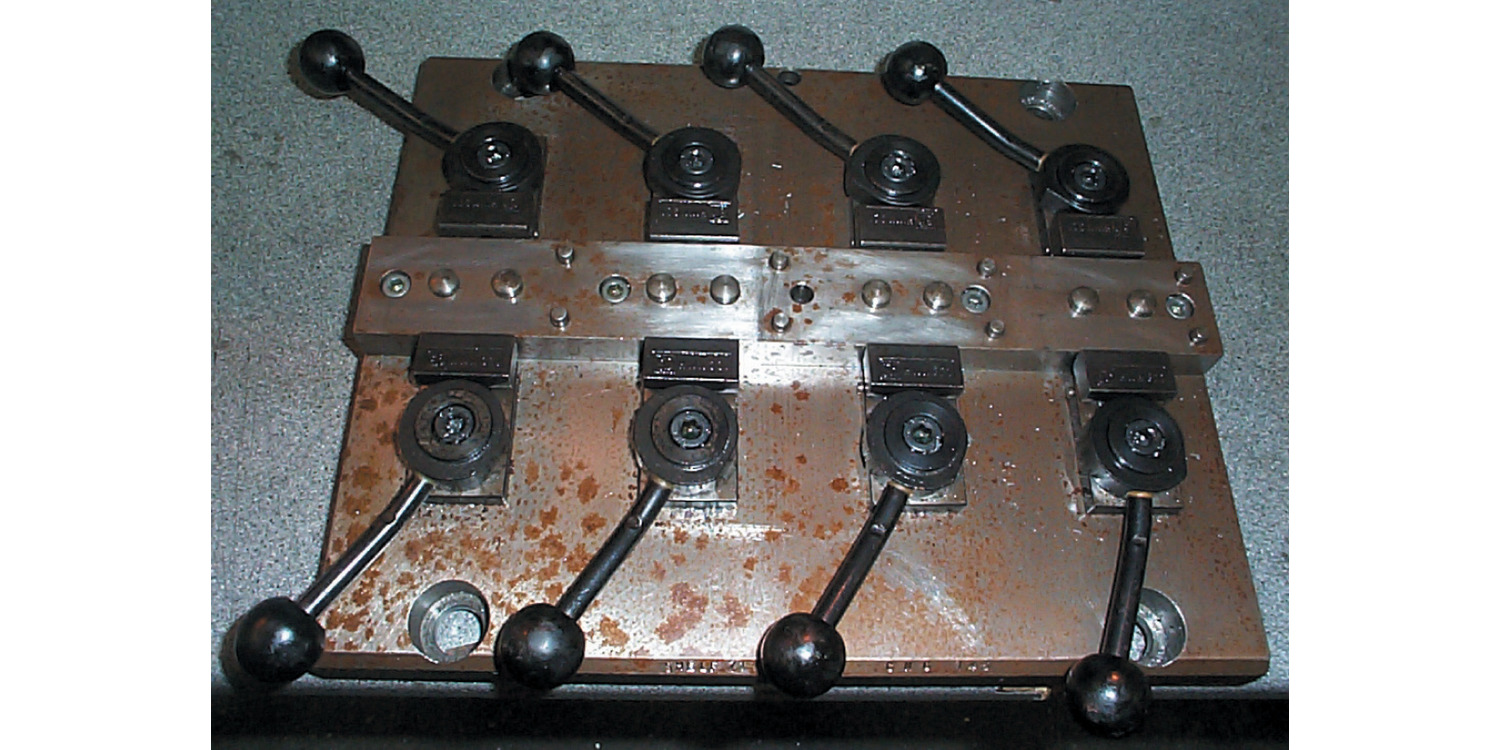

Can bridge T-slots when used with holding plate no. 12410. The clamps low profile enables full-face machining. Often used in conjunction with cylindrical stops and bedding supports.
Supplied with standard T-nut. Clamps can be used in other T-slot sizes by selecting T-nuts no. 24000 as required, e.g. M 8x12, M 8x14, M12x16, M12x18.
Product Datasheets
CAD files
Application images
