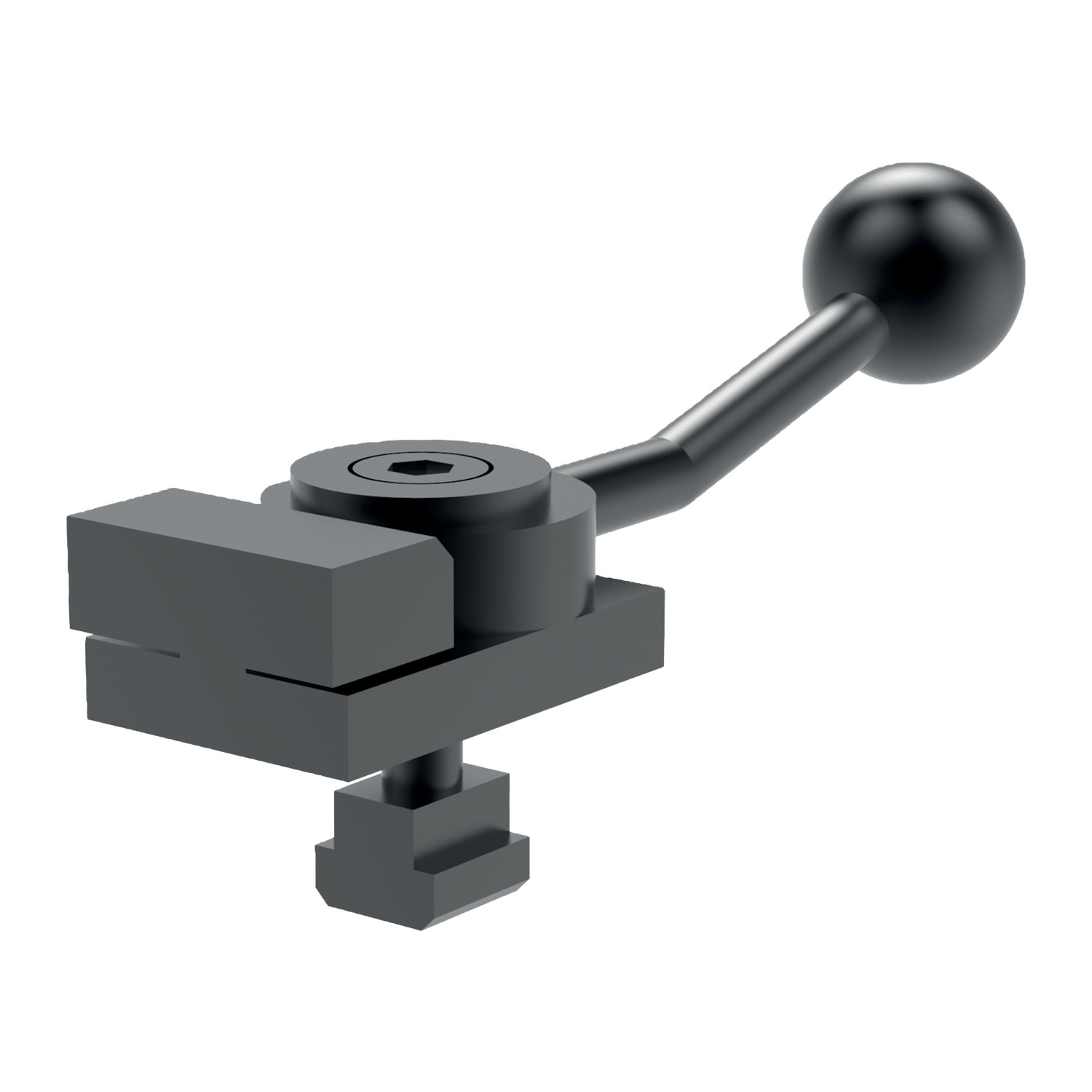

Downhold Clamps
cranked clamping lever
12400 Downhold Clamps
with cranked clamping lever, material: Case Hardened steel
Order No.
12400.W0106
For T-slot
10

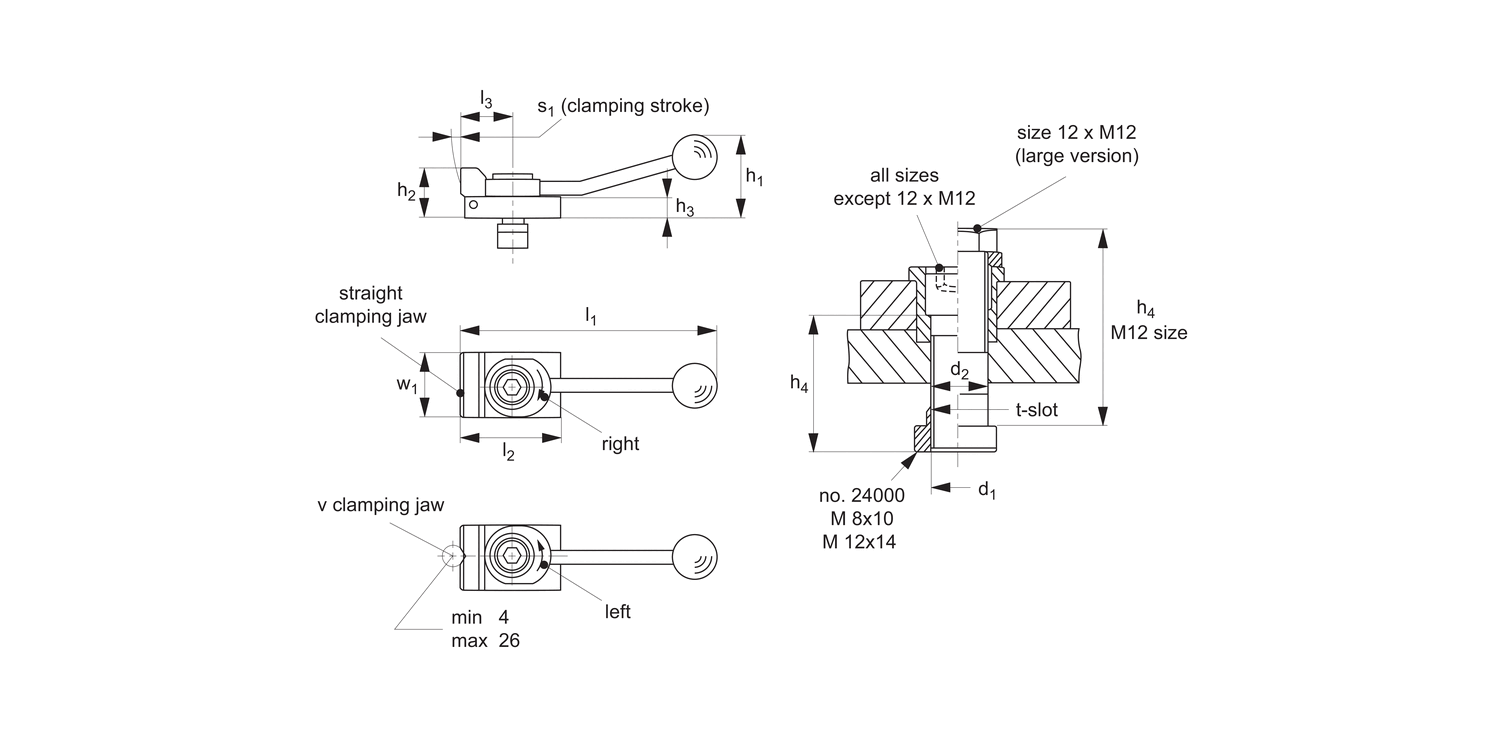

Type
V-Jaw, Clamps Left
h1
20
h2
30
h3
8
h4
40
l1
132
l2
50
l3
32
d1
M 8
d2
8.4
Stroke s1
3
w1
32
Clamping force horizontal
max.
kN
3.5
Weight
g
264
£ 242.48 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 242.48 | 0% |
| 3-4 | £ 218.23 | 10% |
| 5-9 | £ 206.11 | 15% |
| 10-19 | £ 193.98 | 20% |
| 20+ | £ 181.86 | 25% |
Technical & Application
Material
Steel, case-hardened, blackened.
Technical Notes
For quick clamping from the side. The clamps give forwards and downwards clamping forces.
Tips
Can bridge T-slots when used with holding plate no. 12410. The clamps low profile enables full-face machining. Often used in conjunction with cylindrical stops and bedding supports.
Supplied with standard T-nut. Clamps can be used in other T-slot sizes by selecting T-nuts no. 24000 as required, e.g. M 8x12, M 8x14, M12x16, M12x18.
