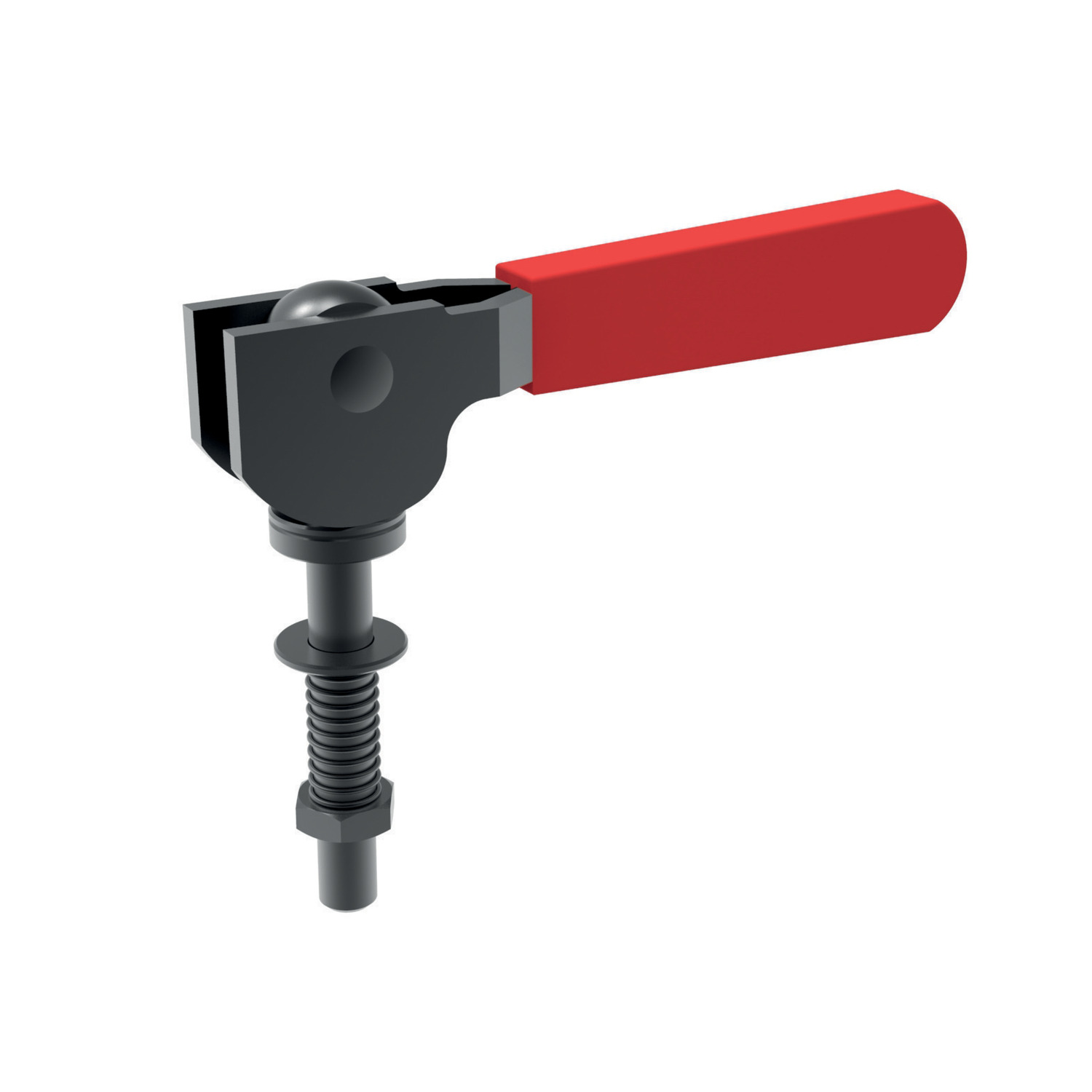

18080 Cam Levers - Double Surface

Name: 18080.W0100
Brand: WC
SKU: 18080.W0100
Price: 39.19 EUR
Availability: OutOfStock

with bolt, material: Heat treated steel

Article properties

Order No.

18080.W0100

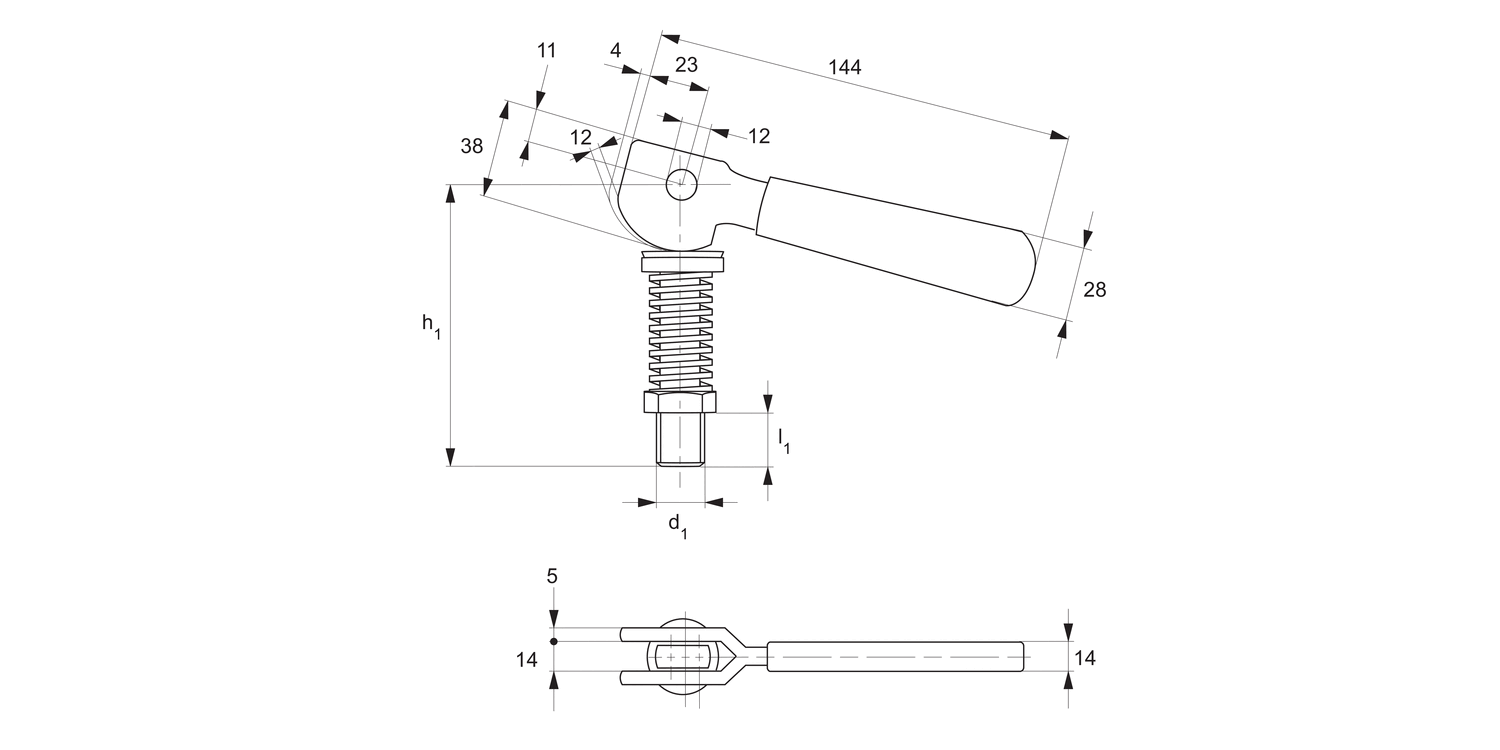

l₁

d₁

h₁

Type

Without Bolt

Weight g

310

See full product selection

£ 39.19 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 39.19	0%
3-4	£ 37.23	5%
5-9	£ 35.27	10%
10+	£ 33.31	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Lever: steel, heat-treated.
Handle: plastic, coated.

Technical Notes

Cam lever for centre clamping.

Product Datasheets

18080 Cam Levers - Double SurfaceJanuary 3, 2025, 2:57 PM / 75.72 kB

Eccentric & Cam ClampsJanuary 3, 2025, 3:47 PM / 881.32 kB

Standard Manual ClampingJanuary 3, 2025, 3:47 PM / 4.00 MB

Manual Clamping & Height SettingJanuary 3, 2025, 3:47 PM / 30.87 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

18080 IGESApril 17, 2024, 9:05 AM / 428.34 kB

18080 ParasolidApril 17, 2024, 9:05 AM / 125.09 kB

18080 ProEApril 17, 2024, 9:05 AM / 736.05 kB

18080 StepApril 17, 2024, 9:05 AM / 221.72 kB
