Eccentric & Cam Clamps
HomeProductsWork HoldingManual Clamping & Height SettingStandard Manual ClampingEccentric & Cam Clamps18600

18600 Eccentric Levers - Double Surface

with fulcrum pin 18640, material: Steel
18600 Eccentric Levers - Double Surface
18600 Eccentric Levers - Double Surface
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

12500 - Eccentric Clamps - Side Action
Eccentric Clamps
side action
12505 - Eccentric Side Clamps
Eccentric Side Clamps
Steel
12520 - Eccentric Clamps
Eccentric Clamps
top/bottom surface
17440 - Locating Clamps
Locating Clamps
18000 - Cam Clamps
Cam Clamps - Rear Acting
with clamp and bolt
18020 - Cam Levers - Single Surface
Cam Levers
single surface
18040 - Cam Clamps - Centre Acting
Cam Clamps
centre acting
18080 - Cam Levers - Double Surface
Cam Levers
with bolt
18580.1 - Cam Levers - Female
Cam Levers Female
fixed
18580.2 - Eccentric Levers - with Threaded Bush
Eccentric Levers
female thread
18582.1 - Eccentric Levers - Male
Eccentric Levers
quick clamping
18582.2 - Eccentric Levers - Male
Eccentric Levers
quick clamping
18600 - Eccentric Levers - Double Surface
Eccentric Levers
double surface
18620 - Cam Levers - Double Surface
Eccentric Levers
double surface
18640 - Fulcrum Pins - Stainless Steel
Fulcrum Pins
for eccentric levers 18620

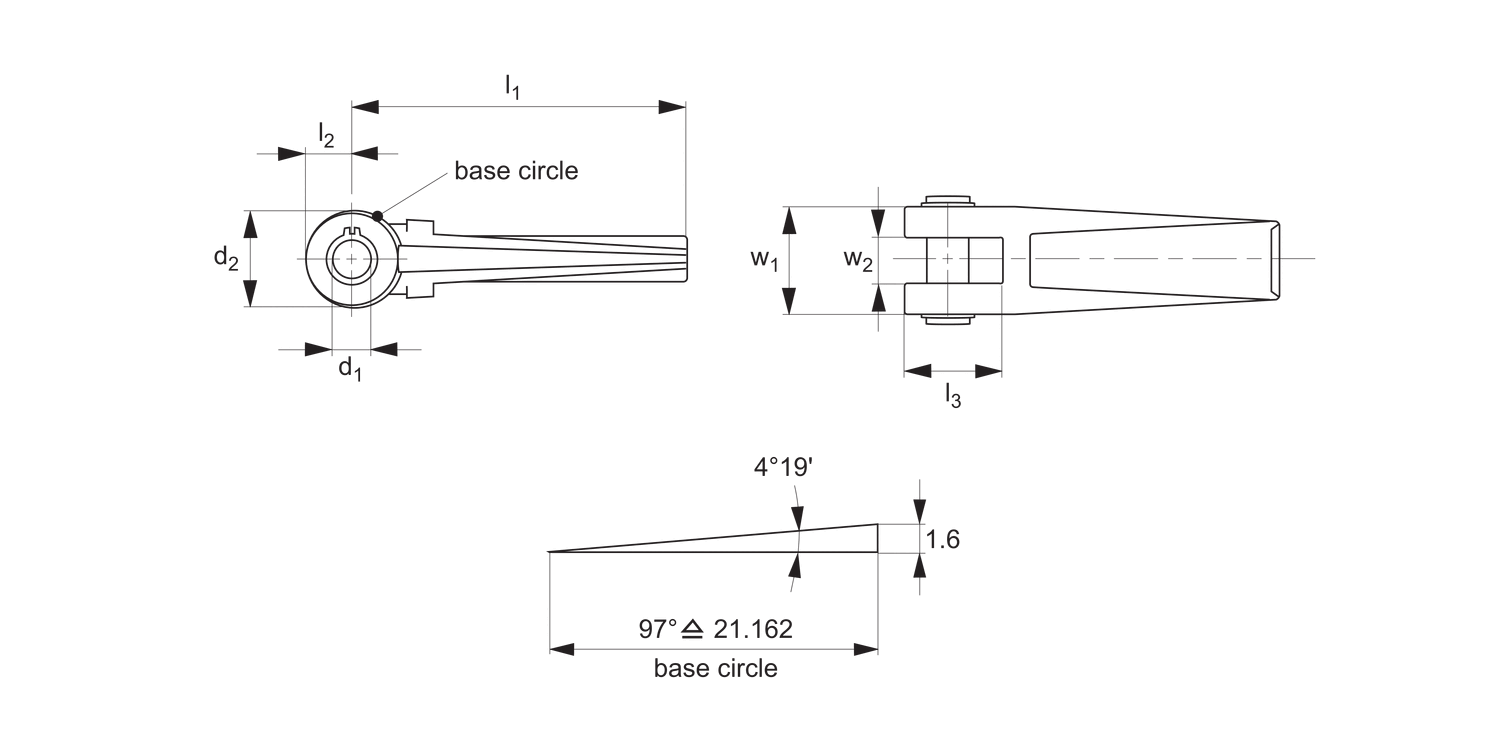

18600.W0012 Eccentric Levers - Double Surface Steel - 12 - As Drawing - 334
Eccentric Levers - Double Surface Steel - 12 - As Drawing - 334

18600.W0012

w1
32
w2
14.1
l1
100
d1
12
d2
28
l2
12.5
l3
28.5
Weight g
334
£ 109.86 per unit (click for quantity discounts)
18600.W0012 Eccentric Levers - Double Surface Steel - 12 - As Drawing - 334
Eccentric Levers - Double Surface Steel - 12 - As Drawing - 334

18600.W0012

w1
32
w2
14.1
l1
100
d1
12
d2
28
l2
12.5
l3
28.5
Weight g
334
£ 109.86 per unit (click for quantity discounts)

w1
w2
l1
d1
d2
l2
l3
Weight g
Price & AvailabilityArticlew1w2l1d1d2l2l3Weight g
18600.W00123214.1100122812.528.5334

Technical & Application

Material

Lever: steel, alloyed, case-hardened and blackened.
Fulcrum pin: steel, case-hardened and ground. Complete with circlips.

Technical Notes

Eccentric clamping cams on both sides.

Tips

Can be used with swing bolts.

Product Datasheets

18600 Eccentric Levers - Double SurfaceJanuary 3, 2025, 2:58 PM / 76.49 kB
Eccentric & Cam ClampsJanuary 3, 2025, 3:47 PM / 881.32 kB
Standard Manual ClampingJanuary 3, 2025, 3:47 PM / 4.00 MB
Manual Clamping & Height SettingJanuary 3, 2025, 3:47 PM / 30.87 MB
Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

18600 IGESApril 17, 2024, 9:06 AM / 118.10 kB
18600 ParasolidApril 17, 2024, 9:06 AM / 46.58 kB
18600 ProEApril 17, 2024, 9:06 AM / 158.60 kB
18600 StepApril 17, 2024, 9:06 AM / 85.66 kB
