18600 Eccentric Levers - Double Surface

Name: 18600.W0012
Brand: WC
SKU: 18600.W0012
Price: 109.86 EUR
Availability: InStock

with fulcrum pin 18640, material: Steel

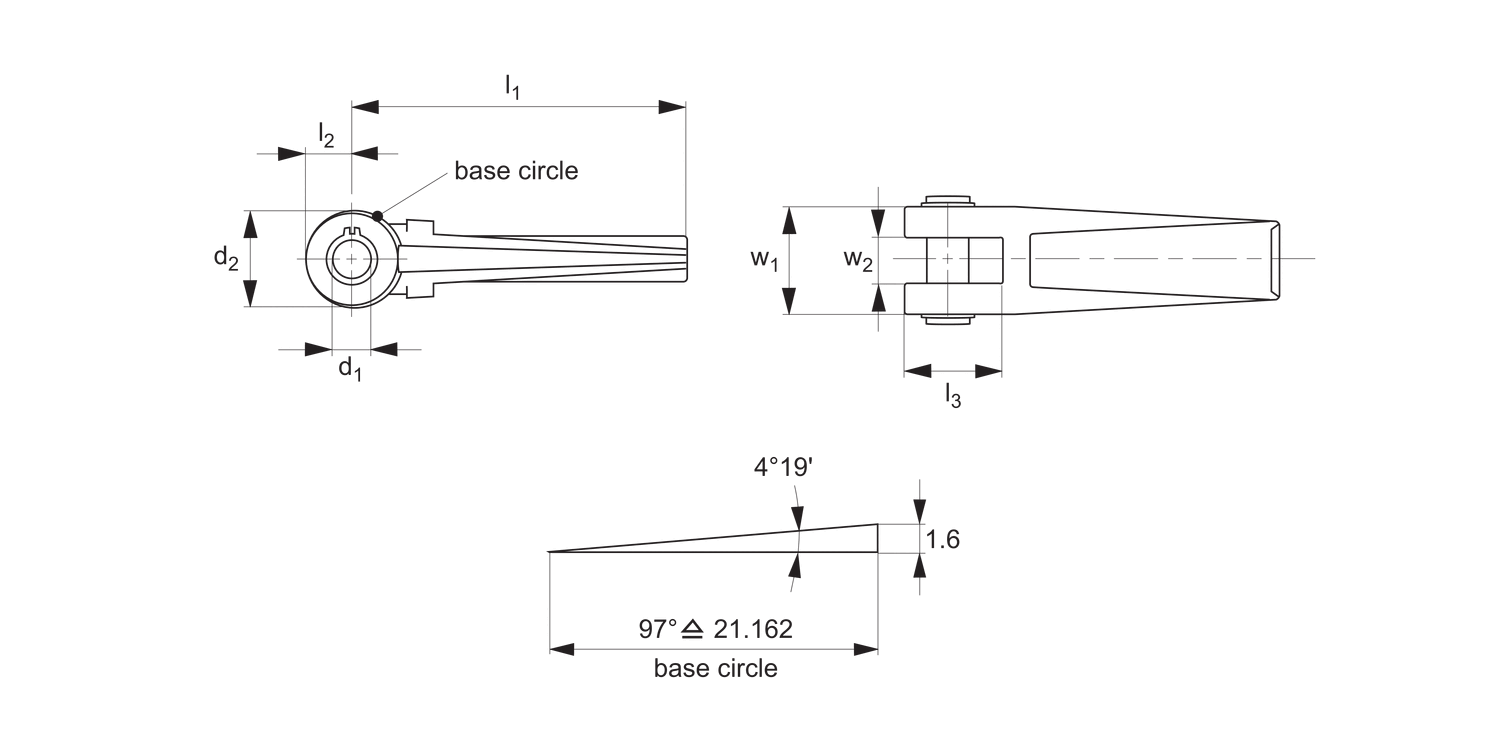

Article properties

Order No.

18600.W0012

w₁

w₂

14.1

l₁

100

d₁

d₂

l₂

12.5

l₃

28.5

Weight g

334

See full product selection

£ 109.86 per unit (click for quantity discounts)

Ready to despatch 8
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 109.86	0%
3-4	£ 98.87	10%
5-9	£ 93.38	15%
10-19	£ 87.89	20%
20+	£ 82.40	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Lever: steel, alloyed, case-hardened and blackened.
Fulcrum pin: steel, case-hardened and ground. Complete with circlips.

Technical Notes

Eccentric clamping cams on both sides.

Tips

Can be used with swing bolts.

Product Datasheets

18600 Eccentric Levers - Double SurfaceJanuary 3, 2025, 2:58 PM / 76.49 kB

Eccentric & Cam ClampsJanuary 3, 2025, 3:47 PM / 881.32 kB

Standard Manual ClampingJanuary 3, 2025, 3:47 PM / 4.00 MB

Manual Clamping & Height SettingJanuary 3, 2025, 3:47 PM / 30.87 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

CAD files

18600 IGESApril 17, 2024, 9:06 AM / 118.10 kB

18600 ParasolidApril 17, 2024, 9:06 AM / 46.58 kB

18600 ProEApril 17, 2024, 9:06 AM / 158.60 kB

18600 StepApril 17, 2024, 9:06 AM / 85.66 kB
