Adj. Clamping Levers
female, inner parts s/s
74460 Adjustable Clamping Levers
with grub screw, inner parts stainless steel, material: Die cast zinc
Order No.
74460.W0381
Colour
Orange

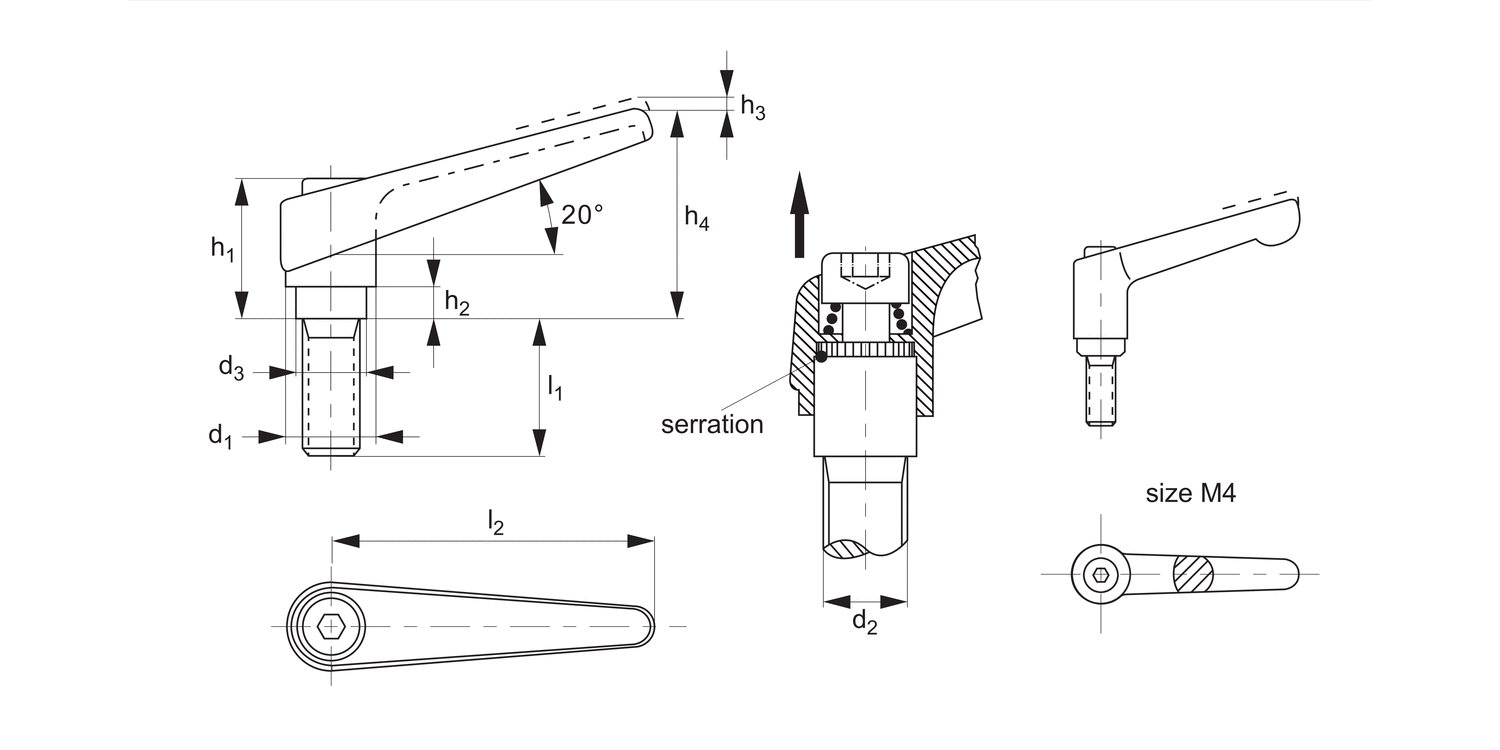

l1
50
d1
18
d2
M 8
d3
13.5
h1
31.0
h2
6.5
h3
3.0
h4
45.0
l2
62
Weight
g
84
£ 19.01 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 19.01 | 0% |
| 10-19 | £ 17.11 | 10% |
| 20-49 | £ 16.16 | 15% |
| 50-99 | £ 15.21 | 20% |
| 100+ | £ 14.26 | 25% |
Technical & Application
Material
Handle: die-cast zinc,
- Orange RAL 2004
- Black RAL 9005.
Inner parts: stainless steel 1.4305 (AISI 303).
Screw: stainless steel 1.4305. (AISI 303).
Technical Notes
By lifting the lever, the serrations are disengaged. The handle can be positioned by the serrations, and the threaded insert can be exchanged. Upon releasing the handle, the serrations are automatically re-engaged.
Tips
Suitable for medical and chemical industry applications.
