Paddle Latches
push to close - slam
B4800 Twist-to-Close Paddle Latches - Snap-on
recessed handle - standard cylinder lock - polyamide, material: Polyamide
Order No.
B4800.AW0010
Lock type
Std. Cylinder
Key type
Keyed Alike
l
88.5
w
88.5
£ 6.01 per unit (click for quantity discounts)
Ready to despatch 3
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 6.01 | 0% |
| 20-49 | £ 5.41 | 10% |
| 50-99 | £ 5.11 | 15% |
| 100-499 | £ 4.51 | 25% |
| 500+ | £ 3.91 | 35% |
Technical & Application
Material
Body and Handle: Polyamide plastic (PA), black.
Cylinder lock: die cast zinc, chrome plated.
Supplied with: Keys: two per lock.
Technical Notes

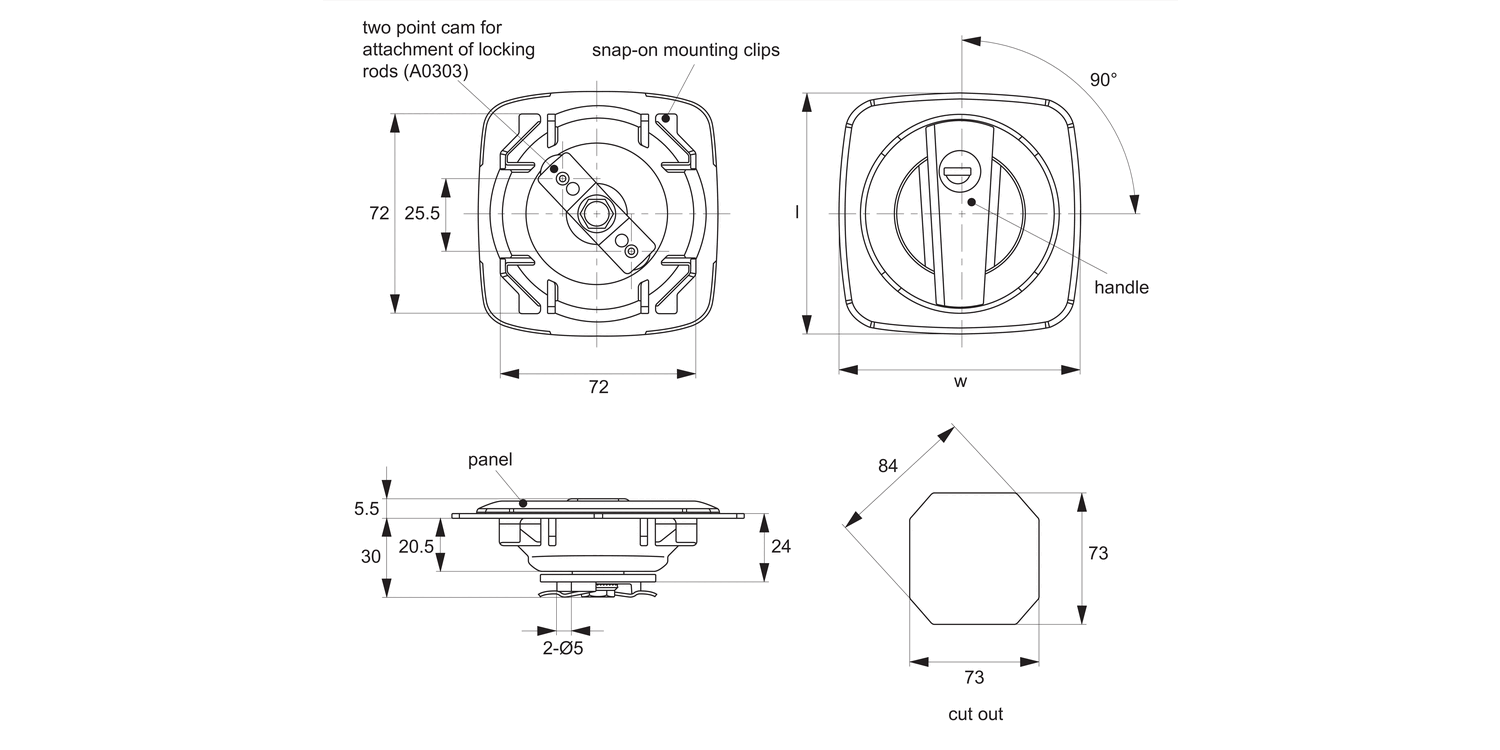

Easy snap on fix mounting. Make cut out in panel as shown, and simply push in handle, snap on clips will spring back to securely mount handle.
Attach multi-point latching rods (A0303) to achieve two-point latching of cupboards, cabinets or enclosures.
Suitable for panel thickness 1 - 1.5mm.
