Friction Torque Hinges
screw mount - s/s

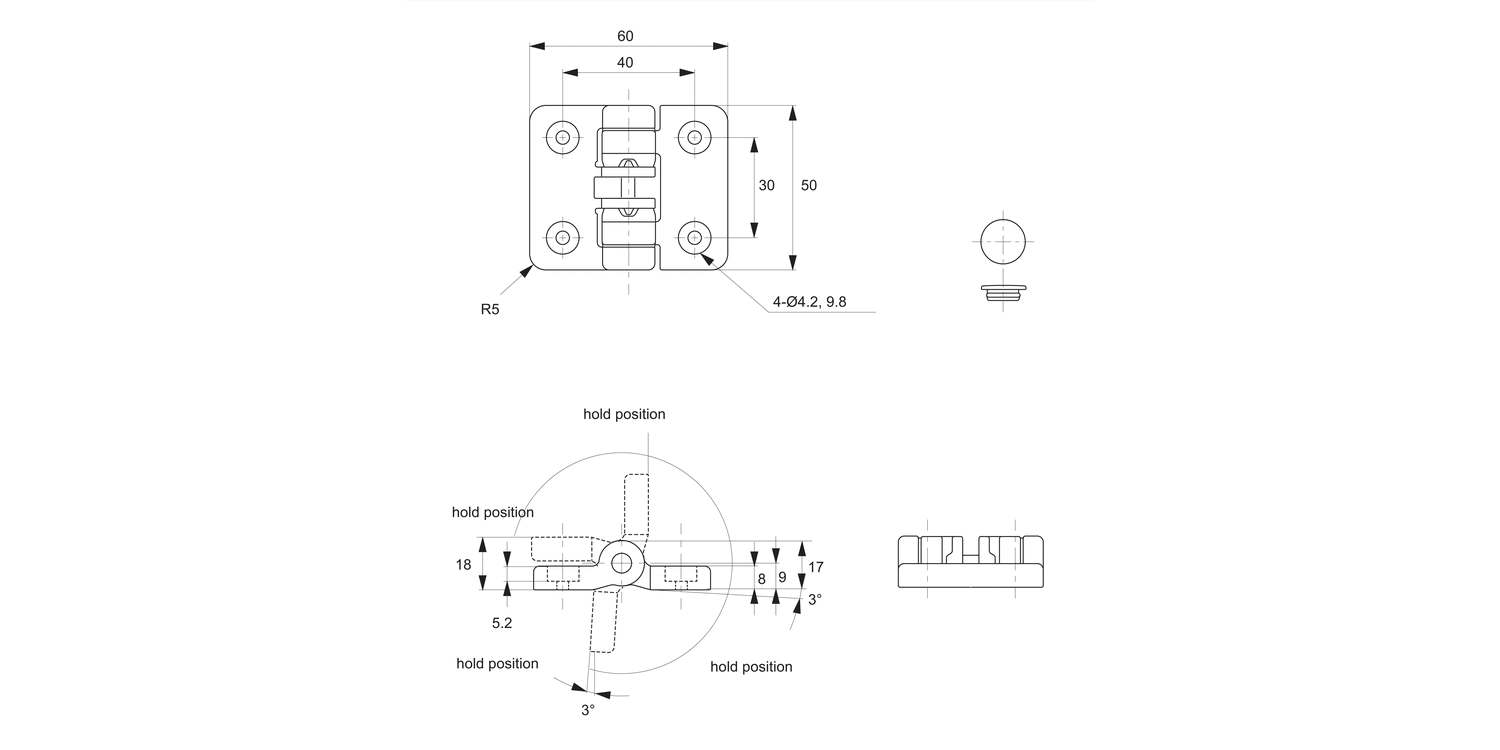

S4100 Detent Positioning Hinges
screw mount - plastic, material: Polyacetal
£ 6.57 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 6.57 | 0% |
| 10-19 | £ 5.91 | 10% |
| 20-49 | £ 5.58 | 15% |
| 50-99 | £ 5.26 | 20% |
| 100+ | £ 4.93 | 25% |
Technical & Application
Material
Body: polyacetal.
Caps: polypropylene.
Pin: AISI 304 stainless steel.
Technical Notes
Holds doors open at 4x90° positions without secondary mechanical support.
Holding force approx. 5Kgf.cm.
Tips
Suitable for medical, food processing and factory automation machines.
