Keys - Flexi-Sys
for cam latches & locks
A0215 Single Point Cams - Flexi-System - 7 x 7 Sq.
for cam latches and locks - steel, material: Steel
Alternative products you may wish to consider
Type
ch
cl
ts
| Price & Availability | Article | Type | ch | cl | ts | |||||||||||||||||||||
| A0215.AW5412 | W/o Projection | 12 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 12 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5414 | W/o Projection | 14 | 45 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 14 cl 45 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5417 | W/o Projection | 17 | 45 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 17 cl 45 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5416 | W/o Projection | 16 | 45 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 16 cl 45 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5418 | W/o Projection | 18 | 45 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 18 cl 45 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5420 | W/o Projection | 20 | 45 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 20 cl 45 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5305 | W/o Projection | 5 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 5 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5306 | W/o Projection | 6 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 6 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5310 | W/o Projection | 10 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 10 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5312 | W/o Projection | 12 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 12 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5315 | W/o Projection | 15 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 15 cl 35 ts 3 | ||||||||||||||||||||||||||
| A0215.AW5320 | W/o Projection | 20 | 35 | 3 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Type W/o Projection ch 20 cl 35 ts 3 | ||||||||||||||||||||||||||
Where lh = 18 h =
Where lh = 18,5 h =
Where lh = 20 h =
Where lh = 24 h =
Where lh = 30 h =
Where lh = 40 h =
Where lh = 50 h =
Where lh = 60 h =
| Price & Availability | Article | Where lh = 18 h = | Where lh = 18,5 h = | Where lh = 20 h = | Where lh = 24 h = | Where lh = 30 h = | Where lh = 40 h = | Where lh = 50 h = | Where lh = 60 h = | |||||||||||||||||||||
| A0215.AW5412 | 30 | 30.5 | 32 | 36 | 42 | 52 | 62 | 72 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 30 Where lh = 18,5 h = 30.5 Where lh = 20 h = 32 Where lh = 24 h = 36 Where lh = 30 h = 42 Where lh = 40 h = 52 Where lh = 50 h = 62 Where lh = 60 h = 72 | ||||||||||||||||||||||||||||||
| A0215.AW5414 | 32 | 32.5 | 34 | 38 | 44 | 54 | 64 | 74 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 32 Where lh = 18,5 h = 32.5 Where lh = 20 h = 34 Where lh = 24 h = 38 Where lh = 30 h = 44 Where lh = 40 h = 54 Where lh = 50 h = 64 Where lh = 60 h = 74 | ||||||||||||||||||||||||||||||
| A0215.AW5417 | 35 | 35.5 | 37 | 41 | 47 | 57 | 67 | 77 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 35 Where lh = 18,5 h = 35.5 Where lh = 20 h = 37 Where lh = 24 h = 41 Where lh = 30 h = 47 Where lh = 40 h = 57 Where lh = 50 h = 67 Where lh = 60 h = 77 | ||||||||||||||||||||||||||||||
| A0215.AW5416 | 34 | 34.5 | 36 | 40 | 46 | 56 | 66 | 76 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 34 Where lh = 18,5 h = 34.5 Where lh = 20 h = 36 Where lh = 24 h = 40 Where lh = 30 h = 46 Where lh = 40 h = 56 Where lh = 50 h = 66 Where lh = 60 h = 76 | ||||||||||||||||||||||||||||||
| A0215.AW5418 | 36 | 36.5 | 38 | 42 | 48 | 58 | 68 | 78 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 36 Where lh = 18,5 h = 36.5 Where lh = 20 h = 38 Where lh = 24 h = 42 Where lh = 30 h = 48 Where lh = 40 h = 58 Where lh = 50 h = 68 Where lh = 60 h = 78 | ||||||||||||||||||||||||||||||
| A0215.AW5420 | 38 | 38.5 | 40 | 44 | 50 | 60 | 70 | 80 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 38 Where lh = 18,5 h = 38.5 Where lh = 20 h = 40 Where lh = 24 h = 44 Where lh = 30 h = 50 Where lh = 40 h = 60 Where lh = 50 h = 70 Where lh = 60 h = 80 | ||||||||||||||||||||||||||||||
| A0215.AW5305 | 23 | 23.5 | 25 | 29 | 35 | 45 | 55 | 65 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 23 Where lh = 18,5 h = 23.5 Where lh = 20 h = 25 Where lh = 24 h = 29 Where lh = 30 h = 35 Where lh = 40 h = 45 Where lh = 50 h = 55 Where lh = 60 h = 65 | ||||||||||||||||||||||||||||||
| A0215.AW5306 | 24 | 24.5 | 26 | 30 | 36 | 46 | 56 | 66 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 24 Where lh = 18,5 h = 24.5 Where lh = 20 h = 26 Where lh = 24 h = 30 Where lh = 30 h = 36 Where lh = 40 h = 46 Where lh = 50 h = 56 Where lh = 60 h = 66 | ||||||||||||||||||||||||||||||
| A0215.AW5310 | 28 | 28.5 | 30 | 34 | 40 | 50 | 60 | 70 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 28 Where lh = 18,5 h = 28.5 Where lh = 20 h = 30 Where lh = 24 h = 34 Where lh = 30 h = 40 Where lh = 40 h = 50 Where lh = 50 h = 60 Where lh = 60 h = 70 | ||||||||||||||||||||||||||||||
| A0215.AW5312 | 30 | 30.5 | 32 | 36 | 42 | 52 | 62 | 72 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 30 Where lh = 18,5 h = 30.5 Where lh = 20 h = 32 Where lh = 24 h = 36 Where lh = 30 h = 42 Where lh = 40 h = 52 Where lh = 50 h = 62 Where lh = 60 h = 72 | ||||||||||||||||||||||||||||||
| A0215.AW5315 | 33 | 33.5 | 35 | 39 | 45 | 55 | 65 | 75 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 33 Where lh = 18,5 h = 33.5 Where lh = 20 h = 35 Where lh = 24 h = 39 Where lh = 30 h = 45 Where lh = 40 h = 55 Where lh = 50 h = 65 Where lh = 60 h = 75 | ||||||||||||||||||||||||||||||
| A0215.AW5320 | 38 | 38.5 | 40 | 44 | 50 | 60 | 70 | 80 | ||||||||||||||||||||||
£ 0.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Where lh = 18 h = 38 Where lh = 18,5 h = 38.5 Where lh = 20 h = 40 Where lh = 24 h = 44 Where lh = 30 h = 50 Where lh = 40 h = 60 Where lh = 50 h = 70 Where lh = 60 h = 80 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated.
Technical Notes

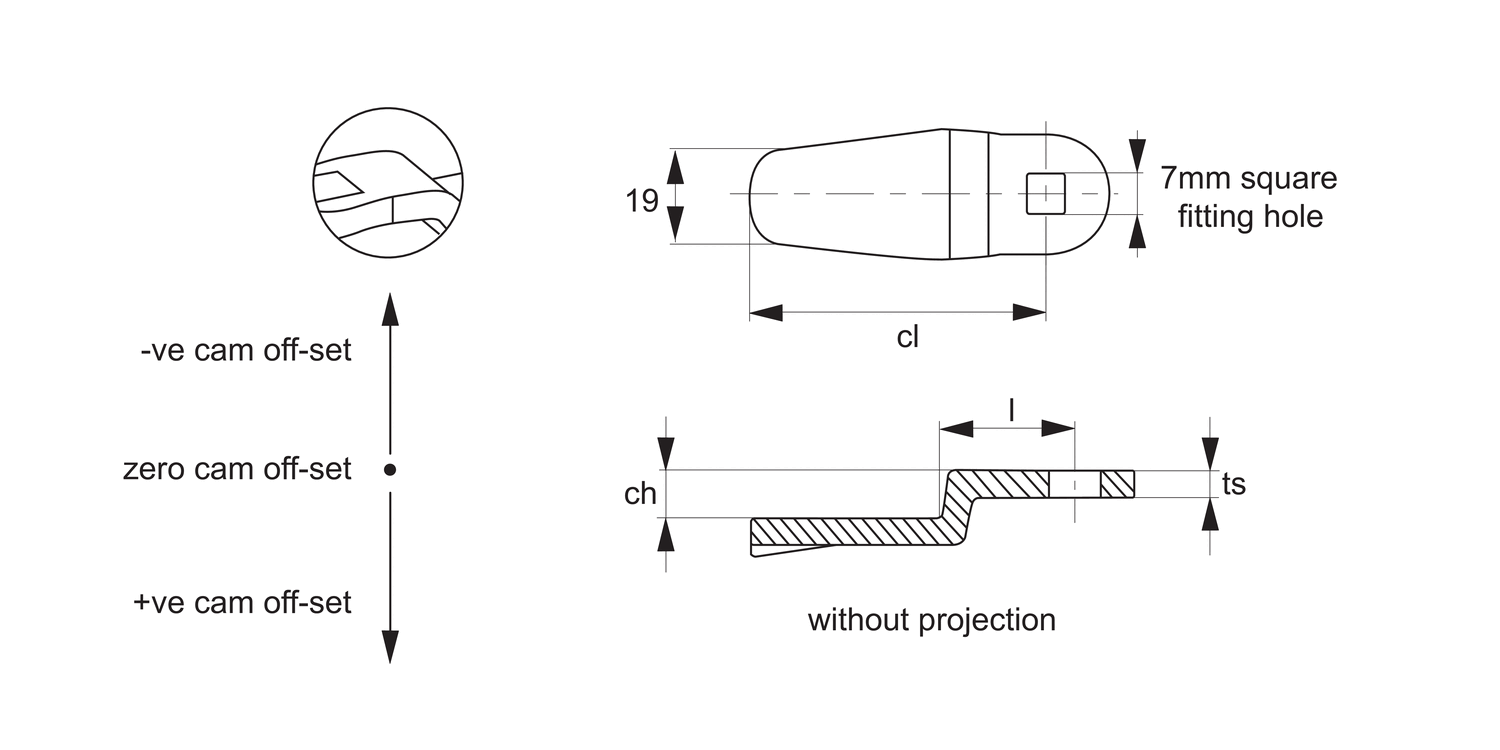

Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).
Refer to installation drawing below.
Important Notes
See cam selection chart for specific latch/lock suitability.
Sold subject to pack quantity.
