A0231 Single Point Cams - Steel
for adjustable grip compression cam latches, material: Steel
Alternative products you may wish to consider
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
£ 1.02 per unit (click for quantity discounts)
ch
cl
Where lh = 32
| Price & Availability | Article | ch | cl | Where lh = 32 | |||||||||||||||||||||
| A0231.AW0305 | 5 | 33 | 37 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 5 cl 33 Where lh = 32 37 | |||||||||||||||||||||||||
| A0231.AW0308 | 8 | 33 | 40 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 8 cl 33 Where lh = 32 40 | |||||||||||||||||||||||||
| A0231.AW0310 | 10 | 33 | 42 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 10 cl 33 Where lh = 32 42 | |||||||||||||||||||||||||
| A0231.AW0312 | 12 | 33 | 44 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 12 cl 33 Where lh = 32 44 | |||||||||||||||||||||||||
| A0231.AW0316 | 16 | 33 | 48 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 16 cl 33 Where lh = 32 48 | |||||||||||||||||||||||||
| A0231.AW0318 | 18 | 33 | 50 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 18 cl 33 Where lh = 32 50 | |||||||||||||||||||||||||
| A0231.AW0322 | 22 | 33 | 54 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 22 cl 33 Where lh = 32 54 | |||||||||||||||||||||||||
| A0231.AW0324 | 24 | 33 | 56 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 24 cl 33 Where lh = 32 56 | |||||||||||||||||||||||||
| A0231.AW0328 | 28 | 33 | 60 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 28 cl 33 Where lh = 32 60 | |||||||||||||||||||||||||
| A0231.AW0330 | 30 | 33 | 62 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch 30 cl 33 Where lh = 32 62 | |||||||||||||||||||||||||
| A0231.AW1304 | -4 | 33 | 28 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -4 cl 33 Where lh = 32 28 | |||||||||||||||||||||||||
| A0231.AW1308 | -7 | 33 | 25 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -7 cl 33 Where lh = 32 25 | |||||||||||||||||||||||||
| A0231.AW1314 | -14 | 33 | 18 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -14 cl 33 Where lh = 32 18 | |||||||||||||||||||||||||
| A0231.AW1316 | -16 | 33 | 16 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -16 cl 33 Where lh = 32 16 | |||||||||||||||||||||||||
| A0231.AW1318 | -18 | 33 | 14 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -18 cl 33 Where lh = 32 14 | |||||||||||||||||||||||||
| A0231.AW1410 | -10 | 45 | 22 | ||||||||||||||||||||||
£ 1.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
ch -10 cl 45 Where lh = 32 22 | |||||||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated.
Technical Notes
Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).

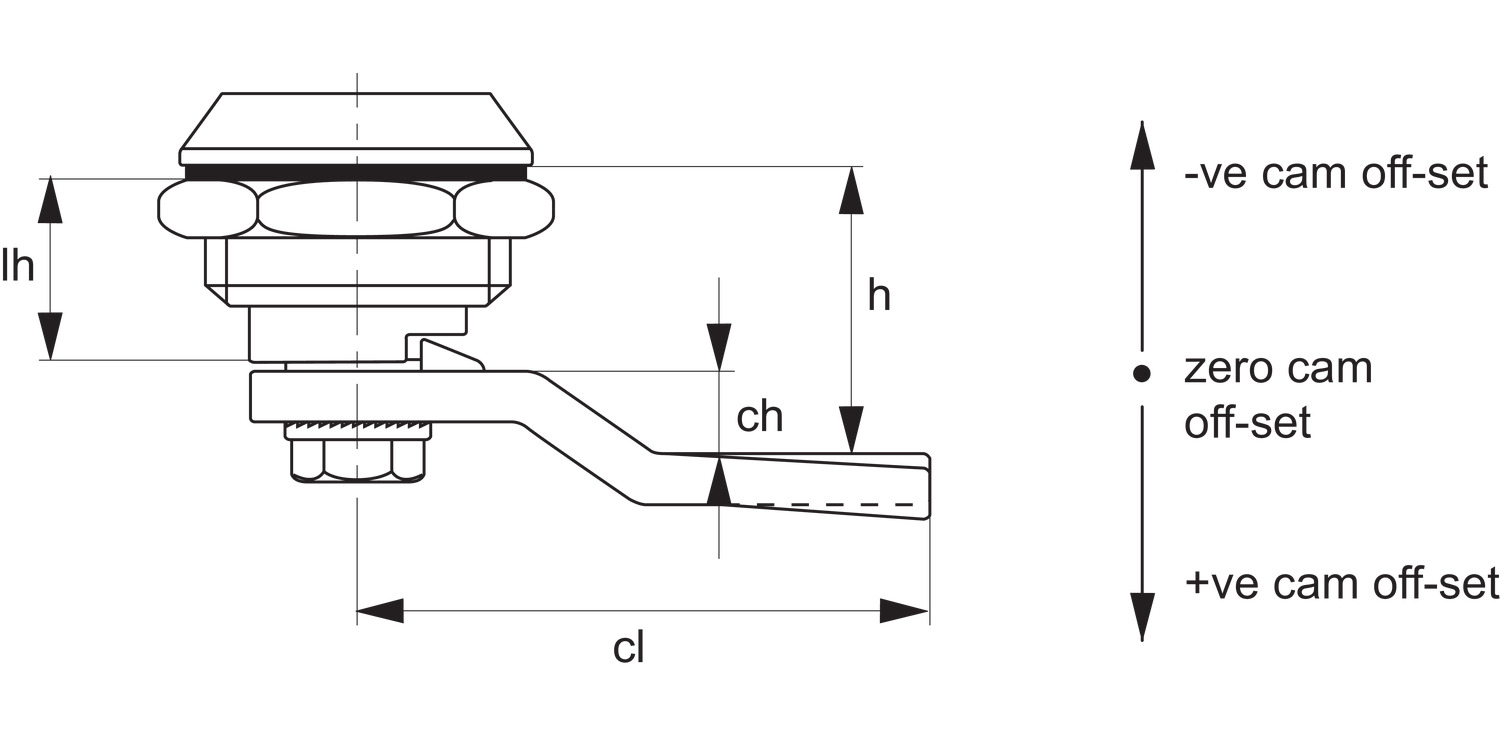

Refer to installation drawing below.
Important Notes
Suitable for adjustable grip compression cam latches A1603, A1611, A1630, A1810.
See cam selection chart for specific latch/lock suitability.

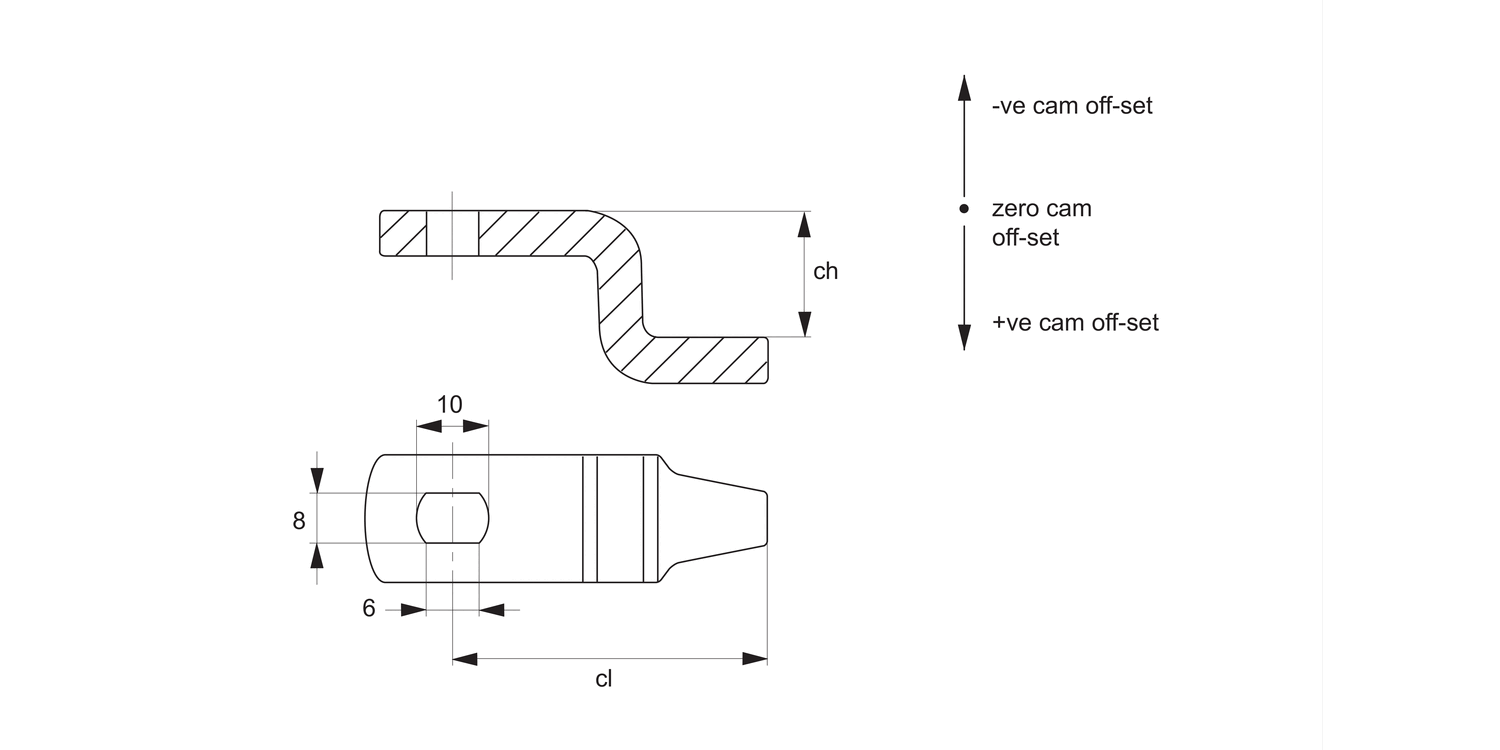

Installation hole is rectangular 6mmx4mm.
Please note due to design of the single point cam, it is not possible to use +ve offset cam in reverse/upside down as it results in a clash with the body of the cam latch- making it inoperable.
Product Datasheets
Application images
