A0240 Two Point Cams - Flexi-System
for 3-point latching of cam latches and locks - zinc, material: Steel
Alternative products you may wish to consider
Type
ch
cl
l
ts
w1
| Price & Availability | Article | Type | ch | cl | l | ts | w1 | |||||||||||||||||||||
| A0240.AW0000 | With Projection | 0 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 136 Need more? Please call us.
Type With Projection ch 0 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0010 | With Projection | 10 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 659 Need more? Please call us.
Type With Projection ch 10 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0012 | With Projection | 12 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 631 Need more? Please call us.
Type With Projection ch 12 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0016 | With Projection | 16 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us.
Type With Projection ch 16 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0020 | With Projection | 20 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us.
Type With Projection ch 20 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0022 | With Projection | 22 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 40 Need more? Please call us.
Type With Projection ch 22 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0100 | W/o Projection | 0 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 91 Need more? Please call us.
Type W/o Projection ch 0 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0104 | W/o Projection | 4 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 1015 Need more? Please call us.
Type W/o Projection ch 4 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0108 | W/o Projection | 8 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 124 Need more? Please call us.
Type W/o Projection ch 8 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0110 | W/o Projection | 10 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 217 Need more? Please call us.
Type W/o Projection ch 10 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0120 | W/o Projection | 12 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 347 Need more? Please call us.
Type W/o Projection ch 12 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0160 | W/o Projection | 16 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 197 Need more? Please call us.
Type W/o Projection ch 16 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
| A0240.AW0200 | W/o Projection | 20 | 45 | 20 | 4 | 36 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 196 Need more? Please call us.
Type W/o Projection ch 20 cl 45 l 20 ts 4 w1 36 | ||||||||||||||||||||||||||||
w2
Where lh = 18 h =
Where lh = 18,5 h =
Where lh = 20 h =
Where lh = 25 h =
Where lh = 30 h =
Where lh = 40 h =
Where lh = 50 h =
Where lh = 60 h =
| Price & Availability | Article | w2 | Where lh = 18 h = | Where lh = 18,5 h = | Where lh = 20 h = | Where lh = 25 h = | Where lh = 30 h = | Where lh = 40 h = | Where lh = 50 h = | Where lh = 60 h = | |||||||||||||||||||||
| A0240.AW0000 | 20 | 18 | 18.5 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 136 Need more? Please call us.
w2 20 Where lh = 18 h = 18 Where lh = 18,5 h = 18.5 Where lh = 20 h = 20 Where lh = 25 h = 25 Where lh = 30 h = 30 Where lh = 40 h = 40 Where lh = 50 h = 50 Where lh = 60 h = 60 | |||||||||||||||||||||||||||||||
| A0240.AW0010 | 20 | 28 | 28.5 | 30 | 35 | 40 | 50 | 60 | 70 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 659 Need more? Please call us.
w2 20 Where lh = 18 h = 28 Where lh = 18,5 h = 28.5 Where lh = 20 h = 30 Where lh = 25 h = 35 Where lh = 30 h = 40 Where lh = 40 h = 50 Where lh = 50 h = 60 Where lh = 60 h = 70 | |||||||||||||||||||||||||||||||
| A0240.AW0012 | 20 | 30 | 30.5 | 32 | 37 | 42 | 52 | 62 | 72 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 631 Need more? Please call us.
w2 20 Where lh = 18 h = 30 Where lh = 18,5 h = 30.5 Where lh = 20 h = 32 Where lh = 25 h = 37 Where lh = 30 h = 42 Where lh = 40 h = 52 Where lh = 50 h = 62 Where lh = 60 h = 72 | |||||||||||||||||||||||||||||||
| A0240.AW0016 | 20 | 34 | 34.5 | 36 | 41 | 46 | 56 | 66 | 76 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us.
w2 20 Where lh = 18 h = 34 Where lh = 18,5 h = 34.5 Where lh = 20 h = 36 Where lh = 25 h = 41 Where lh = 30 h = 46 Where lh = 40 h = 56 Where lh = 50 h = 66 Where lh = 60 h = 76 | |||||||||||||||||||||||||||||||
| A0240.AW0020 | 20 | 38 | 38.5 | 40 | 45 | 50 | 60 | 70 | 80 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 200 Need more? Please call us.
w2 20 Where lh = 18 h = 38 Where lh = 18,5 h = 38.5 Where lh = 20 h = 40 Where lh = 25 h = 45 Where lh = 30 h = 50 Where lh = 40 h = 60 Where lh = 50 h = 70 Where lh = 60 h = 80 | |||||||||||||||||||||||||||||||
| A0240.AW0022 | 20 | 40 | 40.5 | 42 | 47 | 52 | 62 | 72 | 82 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 40 Need more? Please call us.
w2 20 Where lh = 18 h = 40 Where lh = 18,5 h = 40.5 Where lh = 20 h = 42 Where lh = 25 h = 47 Where lh = 30 h = 52 Where lh = 40 h = 62 Where lh = 50 h = 72 Where lh = 60 h = 82 | |||||||||||||||||||||||||||||||
| A0240.AW0100 | 20 | 18 | 18.5 | 20 | 25 | 30 | 40 | 50 | 60 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 91 Need more? Please call us.
w2 20 Where lh = 18 h = 18 Where lh = 18,5 h = 18.5 Where lh = 20 h = 20 Where lh = 25 h = 25 Where lh = 30 h = 30 Where lh = 40 h = 40 Where lh = 50 h = 50 Where lh = 60 h = 60 | |||||||||||||||||||||||||||||||
| A0240.AW0104 | 20 | 22 | 22.5 | 24 | 29 | 34 | 44 | 54 | 64 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 1015 Need more? Please call us.
w2 20 Where lh = 18 h = 22 Where lh = 18,5 h = 22.5 Where lh = 20 h = 24 Where lh = 25 h = 29 Where lh = 30 h = 34 Where lh = 40 h = 44 Where lh = 50 h = 54 Where lh = 60 h = 64 | |||||||||||||||||||||||||||||||
| A0240.AW0108 | 20 | 26 | 26.5 | 28 | 33 | 38 | 48 | 58 | 68 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 124 Need more? Please call us.
w2 20 Where lh = 18 h = 26 Where lh = 18,5 h = 26.5 Where lh = 20 h = 28 Where lh = 25 h = 33 Where lh = 30 h = 38 Where lh = 40 h = 48 Where lh = 50 h = 58 Where lh = 60 h = 68 | |||||||||||||||||||||||||||||||
| A0240.AW0110 | 20 | 28 | 28.5 | 30 | 35 | 40 | 50 | 60 | 70 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 217 Need more? Please call us.
w2 20 Where lh = 18 h = 28 Where lh = 18,5 h = 28.5 Where lh = 20 h = 30 Where lh = 25 h = 35 Where lh = 30 h = 40 Where lh = 40 h = 50 Where lh = 50 h = 60 Where lh = 60 h = 70 | |||||||||||||||||||||||||||||||
| A0240.AW0120 | 20 | 30 | 30.5 | 32 | 37 | 42 | 52 | 62 | 72 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 347 Need more? Please call us.
w2 20 Where lh = 18 h = 30 Where lh = 18,5 h = 30.5 Where lh = 20 h = 32 Where lh = 25 h = 37 Where lh = 30 h = 42 Where lh = 40 h = 52 Where lh = 50 h = 62 Where lh = 60 h = 72 | |||||||||||||||||||||||||||||||
| A0240.AW0160 | 20 | 34 | 34.5 | 36 | 41 | 46 | 56 | 66 | 76 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 197 Need more? Please call us.
w2 20 Where lh = 18 h = 34 Where lh = 18,5 h = 34.5 Where lh = 20 h = 36 Where lh = 25 h = 41 Where lh = 30 h = 46 Where lh = 40 h = 56 Where lh = 50 h = 66 Where lh = 60 h = 76 | |||||||||||||||||||||||||||||||
| A0240.AW0200 | 20 | 38 | 38.5 | 40 | 45 | 50 | 60 | 70 | 80 | ||||||||||||||||||||||
£ 1.69 per unit (click for quantity discounts) Ready to despatch 196 Need more? Please call us.
w2 20 Where lh = 18 h = 38 Where lh = 18,5 h = 38.5 Where lh = 20 h = 40 Where lh = 25 h = 45 Where lh = 30 h = 50 Where lh = 40 h = 60 Where lh = 50 h = 70 Where lh = 60 h = 80 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, zinc plated.
Size: 8 x 8 Sq.
Technical Notes

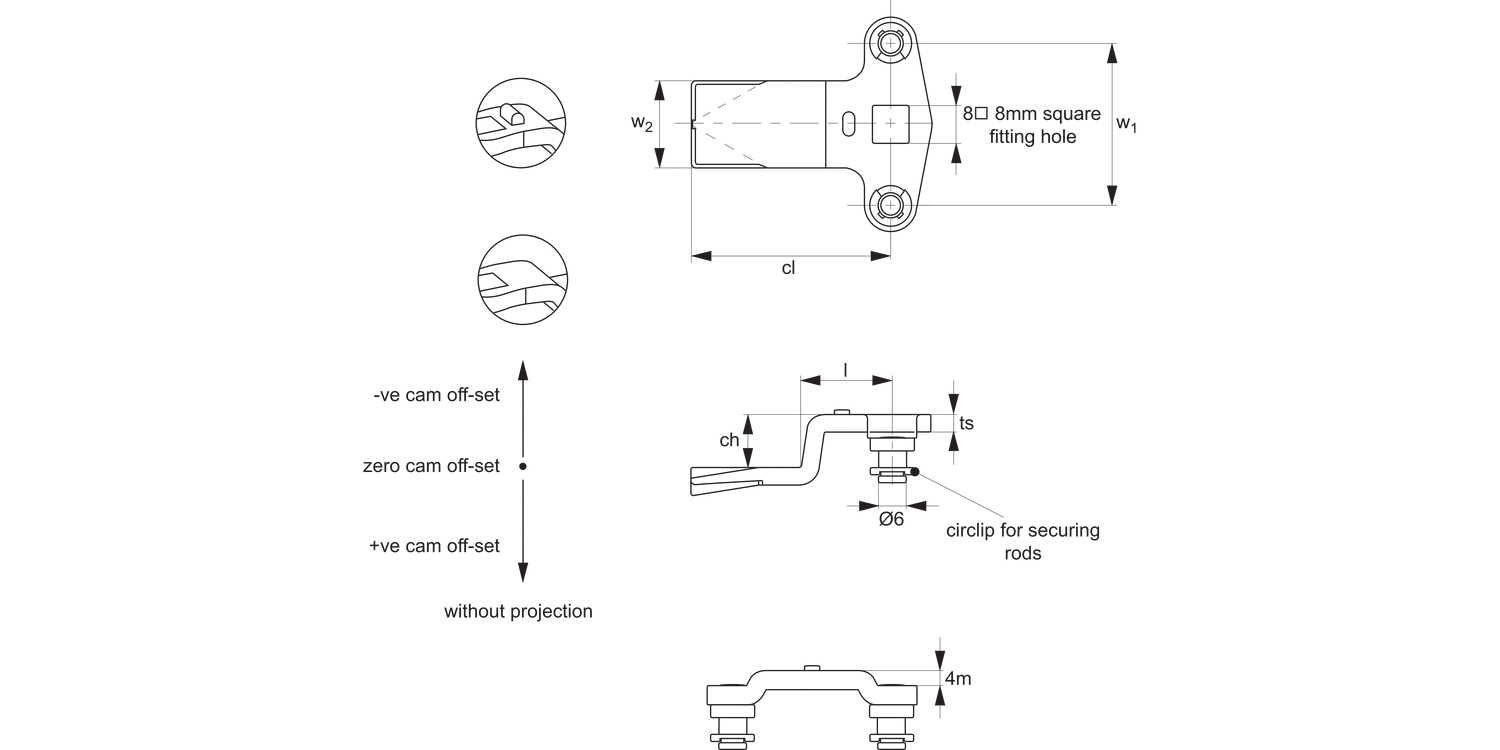

Use formula to calculate ch (required cam off-set), and select from product table below;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see individual latch/lock product table).
Important Notes
Suitable for Flexi-System latches. "With projection" type ensures correct location and prevents cam rotating over 45°. See cam selection chart for specific latch/lock suitability.
Sold subject to pack quantity.
