Handwheels, 3-Spoke
77030 Three Spoked Handwheels
with rotating grip, material: Duroplast
Alternative products you may wish to consider

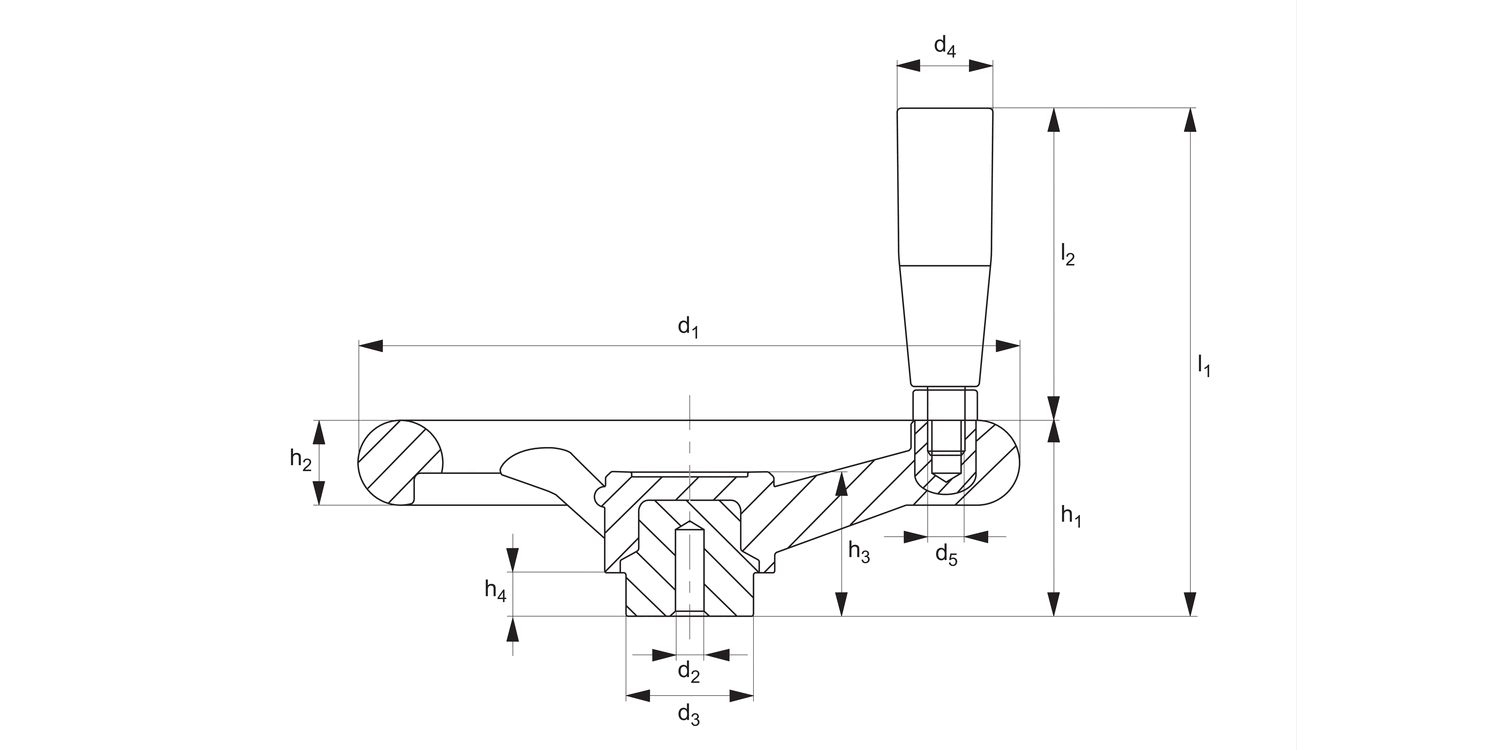

Type
Reinforced
d1
150
d2
6
d3
32
l1
120
l2
65
h1
49
h2
20
h3
38
h4
13
d4
25
d5
M10
Weight
g
484
£ 30.93 per unit (click for quantity discounts)
Type
Reinforced
d1
175
d2
6
d3
40
l1
127
l2
65
h1
56
h2
22
h3
42
h4
16
d4
25
d5
M10
Weight
g
694
£ 41.50 per unit (click for quantity discounts)
Type
Reinforced
d1
300
d2
10
d3
58
l1
170
l2
85
h1
78
h2
34
h3
56
h4
18
d4
28
d5
M10
Weight
g
2130
£ 86.97 per unit (click for quantity discounts)
Type
d1
d2
d3
l1
l2
h1
h2
h3
h4
d4
d5
Weight
g
| Price & Availability | Article | Type | d1 | d2 | d3 | l1 | l2 | h1 | h2 | h3 | h4 | d4 | d5 | Weight g | ||||||||||||||||||
| 77030.W0550 | Reinforced | 150 | 6 | 32 | 120 | 65 | 49 | 20 | 38 | 13 | 25 | M10 | 484 | |||||||||||||||||||
£ 30.93 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 150 d2 6 d3 32 l1 120 l2 65 h1 49 h2 20 h3 38 h4 13 d4 25 d5 M10 Weight
g 484 | ||||||||||||||||||||||||||||||||
| 77030.W0575 | Reinforced | 175 | 6 | 40 | 127 | 65 | 56 | 22 | 42 | 16 | 25 | M10 | 694 | |||||||||||||||||||
£ 41.50 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 175 d2 6 d3 40 l1 127 l2 65 h1 56 h2 22 h3 42 h4 16 d4 25 d5 M10 Weight
g 694 | ||||||||||||||||||||||||||||||||
| 77030.W0800 | Reinforced | 300 | 10 | 58 | 170 | 85 | 78 | 34 | 56 | 18 | 28 | M10 | 2130 | |||||||||||||||||||
£ 86.97 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Reinforced d1 300 d2 10 d3 58 l1 170 l2 85 h1 78 h2 34 h3 56 h4 18 d4 28 d5 M10 Weight
g 2130 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Standard: Duroplast, black. Zinc plated steel hub. Revolving handle.
Reinforced: Duroplast with glass fibre beads for increased strength, black zinc plated steel auto-revolving handle.
Technical Notes
The pilot hole allows various sizes of holes, keyways etc. to be machined into the hub.
Corresponding rotating handle 75100.
