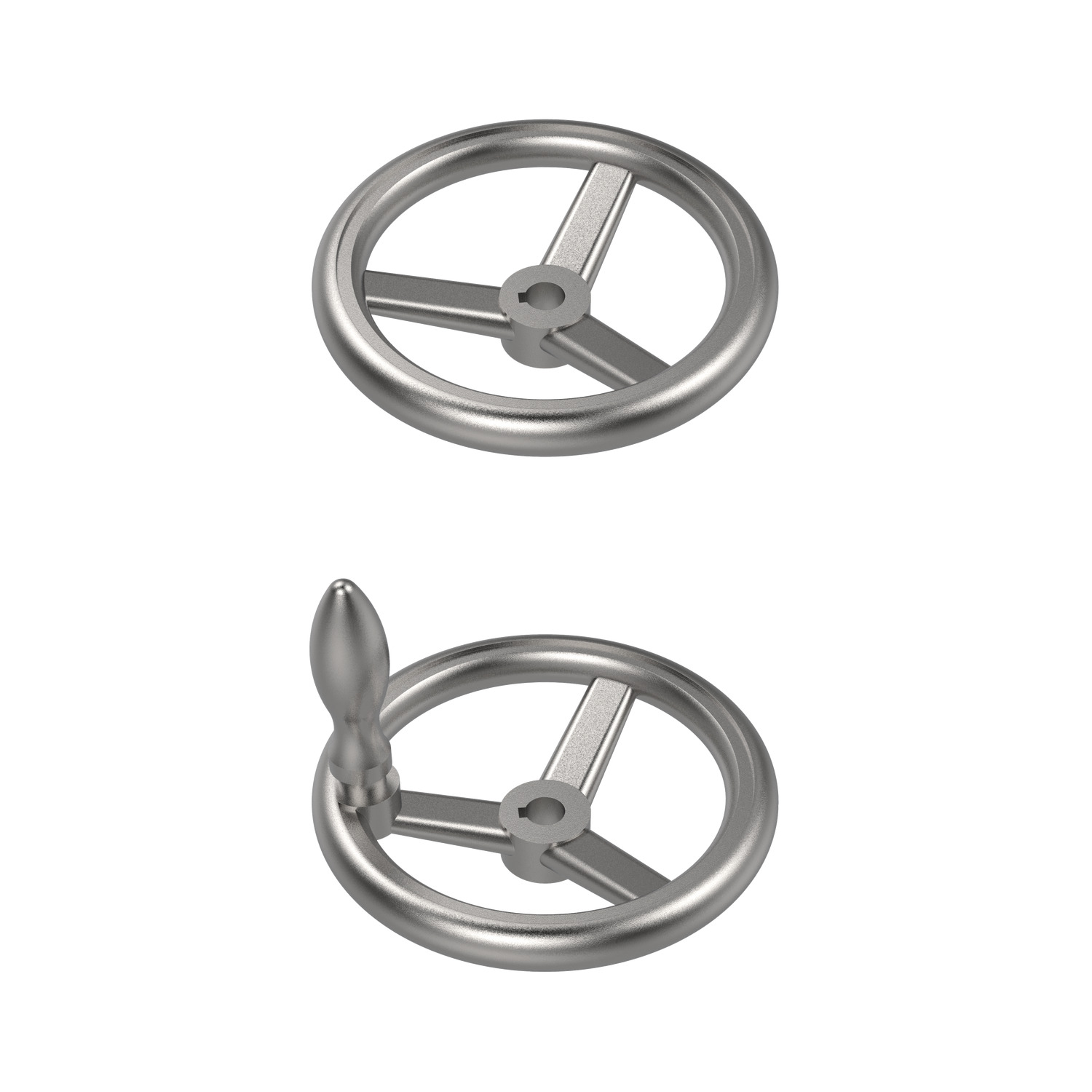

77100 Cast Iron Handwheels

material: Cast iron

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Handwheels, 3-Spoke

Handwheels 3-Spoke
with revolving handle

Three Spoked Handwheel
with fold-away rotating grip

Handwheels, 3-Spoke

Handwheels, 3-Spoke
Thermoplastic

Handwheels, 3-Spoke
with fold-away revolving grip

Cast Iron Handwheels

Aluminium Handwheels

Handwheels
Stainless steel

Handwheels
pressed steel

Handwheels
pressed s/s

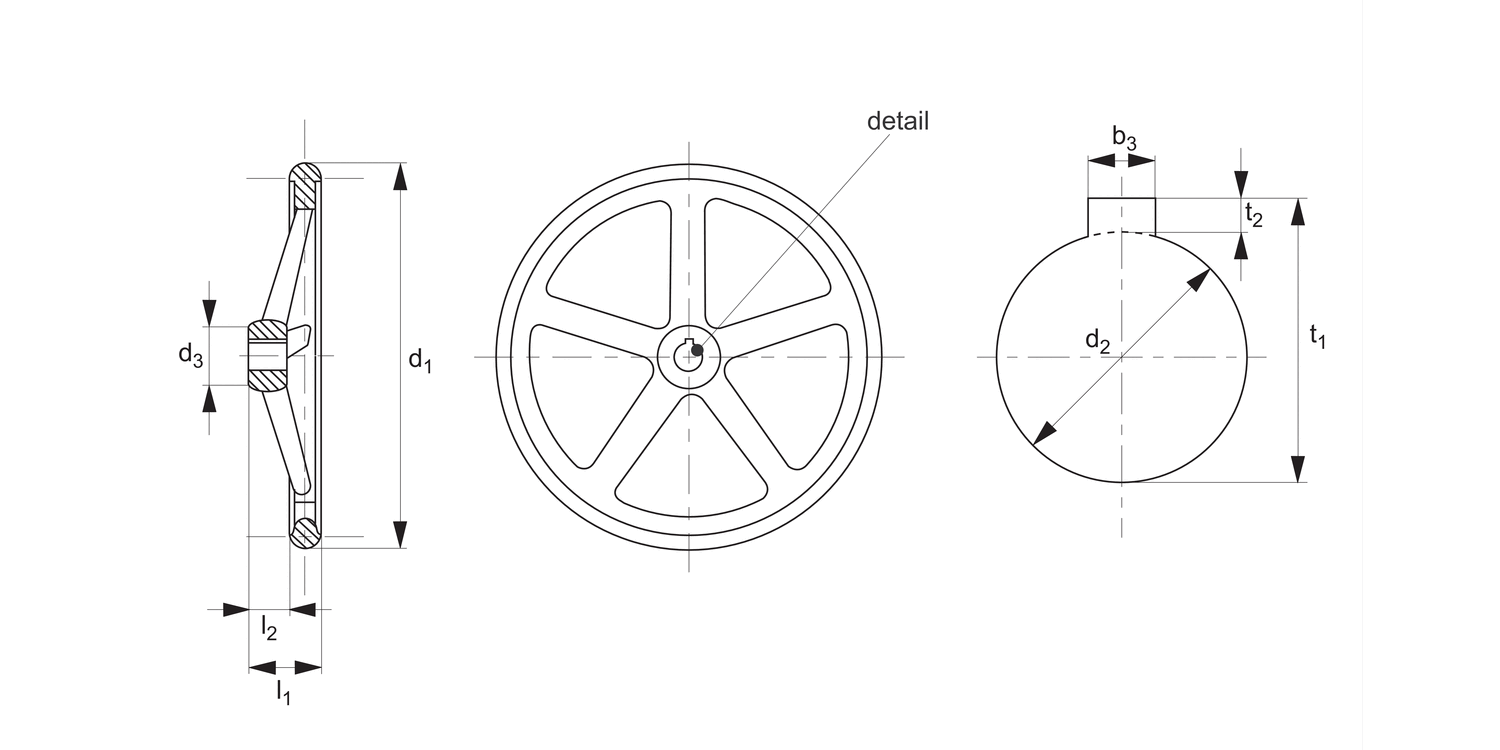

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 80 - 10

77100.W0000

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

311

£ 27.08 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 80 - 10

77100.W0001

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

311

£ 27.08 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 100 - 10

77100.W0005

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

486

£ 32.55 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 100 - 10

77100.W0006

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

486

£ 32.55 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77100.W0010

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

720

£ 38.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77100.W0011

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

720

£ 38.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77100.W0015

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

879

£ 46.22 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77100.W0016

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

879

£ 46.22 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77100.W0020

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1151

£ 48.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77100.W0021

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1151

£ 48.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77100.W0030

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2218

£ 70.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77100.W0031

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2218

£ 70.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77100.W0040

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3735

£ 116.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77100.W0041

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3735

£ 116.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 315 - 26

77100.W0045

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

6180

£ 171.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 315 - 26

77100.W0046

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

6180

£ 171.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 400 - 30

77100.W0050

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 327.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 400 - 30

77100.W0051

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 327.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 80 - 10

77100.W0100

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

360

£ 30.99 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 80 - 10

77100.W0101

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

360

£ 31.59 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 100 - 10

77100.W0105

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

500

£ 37.04 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 100 - 10

77100.W0106

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

500

£ 37.04 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 125 - 12

77100.W0110

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

750

£ 43.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 125 - 12

77100.W0111

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

750

£ 43.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 140 - 14

77100.W0115

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

902

£ 50.69 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 140 - 14

77100.W0116

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

902

£ 50.69 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 160 - 14

77100.W0120

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1139

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 160 - 14

77100.W0121

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1139

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 200 - 18

77100.W0130

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2142

£ 74.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 200 - 18

77100.W0131

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2142

£ 74.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 250 - 22

77100.W0140

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3652

£ 120.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 250 - 22

77100.W0141

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3652

£ 120.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 315 - 26

77100.W0145

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

5800

£ 175.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 315 - 26

77100.W0146

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

5800

£ 175.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 400 - 30

77100.W0150

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 331.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 400 - 30

77100.W0151

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 331.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 80 - 10

77100.W0200

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 50.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 80 - 10

77100.W0201

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 50.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 100 - 10

77100.W0205

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 57.13 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 100 - 10

77100.W0206

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 57.13 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 125 - 12

77100.W0210

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 62.91 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 125 - 14

77100.W0211

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 62.91 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 140 - 14

77100.W0215

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 71.98 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 140 - 14

77100.W0216

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 70.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 160 - 14

77100.W0220

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 79.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 160 - 14

77100.W0221

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 79.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 200 - 18

77100.W0230

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 102.45 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 200 - 18

77100.W0231

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 102.45 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 250 - 22

77100.W0240

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 160.21 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 250 - 22

77100.W0241

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 160.21 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 315 - 26

77100.W0245

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 217.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 315 - 26

77100.W0246

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 217.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 400 - 30

77100.W0250

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 385.97 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 400 - 30

77100.W0251

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 385.97 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 80 - 10

77100.W0300

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 54.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 80 - 10

77100.W0301

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 54.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With keyway, rotating handle - 100 - 10

77100.W0305

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 61.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 100 - 10

77100.W0306

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 61.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 125 - 12

77100.W0310

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 67.42 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 125 - 12

77100.W0311

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 67.42 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 140 - 14

77100.W0315

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 76.09 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 140 - 14

77100.W0316

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 76.09 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 160 - 14

77100.W0320

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 83.49 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 160 - 14

77100.W0321

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 83.49 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 200 - 18

77100.W0330

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 106.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 200 - 18

77100.W0331

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 106.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 250 - 22

77100.W0340

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 164.54 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 250 - 22

77100.W0341

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 164.54 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 315 - 26

77100.W0345

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 221.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 315 - 26

77100.W0346

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 221.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 400 - 30

77100.W0350

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 389.67 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 400 - 30

77100.W0351

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 389.67 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 80 - 10

77100.W0400

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 41.47 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 80 - 10

77100.W0401

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 41.47 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 125 - 12

77100.W0410

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 55.36 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 125 - 12

77100.W0411

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 55.36 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 140 - 14

77100.W0415

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 63.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 140 - 14

77100.W0416

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 63.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 160 - 14

77100.W0420

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 71.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 160 - 14

77100.W0421

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 71.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 200 - 18

77100.W0430

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 94.57 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 200 - 18

77100.W0431

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 94.57 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 250 - 22

77100.W0440

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 150.25 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 250 - 22

77100.W0441

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 150.25 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 315 - 26

77100.W0445

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 206.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 315 - 26

77100.W0446

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 206.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 400 - 30

77100.W0450

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 374.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 400 - 30

77100.W0451

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 374.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 80 - 10

77100.W0500

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 45.80 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 80 - 10

77100.W0501

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 45.80 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 100 - 10

77100.W0505

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 100 - 10

77100.W0506

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 125 - 12

77100.W0510

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 60.03 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 125 - 12

77100.W0511

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 60.03 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 140 - 14

77100.W0515

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 71.38 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 140 - 14

77100.W0516

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 71.38 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 160 - 14

77100.W0520

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 75.61 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 160 - 14

77100.W0521

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 75.61 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 200 - 18

77100.W0530

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 98.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 200 - 18

77100.W0531

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 98.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 250 - 22

77100.W0540

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 154.35 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 250 - 22

77100.W0541

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 154.35 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 315 - 26

77100.W0545

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 209.71 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 315 - 26

77100.W0546

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 209.71 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 400 - 30

77100.W0550

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 378.90 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 400 - 30

77100.W0551

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 378.90 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 80 - 10

77100.W0000

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

311

£ 27.08 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 80 - 10

77100.W0001

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

311

£ 27.08 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 100 - 10

77100.W0005

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

486

£ 32.55 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 100 - 10

77100.W0006

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

486

£ 32.55 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 125 - 12

77100.W0010

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

720

£ 38.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 125 - 12

77100.W0011

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

720

£ 38.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 140 - 14

77100.W0015

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

879

£ 46.22 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 140 - 14

77100.W0016

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

879

£ 46.22 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 160 - 14

77100.W0020

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1151

£ 48.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 160 - 14

77100.W0021

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1151

£ 48.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 200 - 18

77100.W0030

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2218

£ 70.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 200 - 18

77100.W0031

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2218

£ 70.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 250 - 22

77100.W0040

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3735

£ 116.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 250 - 22

77100.W0041

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3735

£ 116.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 315 - 26

77100.W0045

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

6180

£ 171.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 315 - 26

77100.W0046

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

6180

£ 171.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, W/o Handle - 400 - 30

77100.W0050

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 327.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, W/o Handle - 400 - 30

77100.W0051

Type

W/o Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 327.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 80 - 10

77100.W0100

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

360

£ 30.99 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 80 - 10

77100.W0101

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

-

Weight g

360

£ 31.59 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 100 - 10

77100.W0105

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

500

£ 37.04 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 100 - 10

77100.W0106

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

-

Weight g

500

£ 37.04 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 125 - 12

77100.W0110

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

750

£ 43.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 125 - 12

77100.W0111

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

-

Weight g

750

£ 43.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 140 - 14

77100.W0115

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

902

£ 50.69 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 140 - 14

77100.W0116

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

-

Weight g

902

£ 50.69 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 160 - 14

77100.W0120

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1139

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 160 - 14

77100.W0121

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

-

Weight g

1139

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 200 - 18

77100.W0130

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2142

£ 74.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 200 - 18

77100.W0131

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

-

Weight g

2142

£ 74.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 250 - 22

77100.W0140

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3652

£ 120.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 250 - 22

77100.W0141

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

-

Weight g

3652

£ 120.37 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 315 - 26

77100.W0145

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

5800

£ 175.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 315 - 26

77100.W0146

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

-

Weight g

5800

£ 175.64 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, W/o Handle - 400 - 30

77100.W0150

Type

With Keyway, W/o Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 331.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, W/o Handle - 400 - 30

77100.W0151

Type

With Keyway, W/o Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

-

Weight g

9500

£ 331.00 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 80 - 10

77100.W0200

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 50.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 80 - 10

77100.W0201

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 50.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 100 - 10

77100.W0205

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 57.13 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 100 - 10

77100.W0206

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 57.13 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 125 - 12

77100.W0210

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 62.91 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 125 - 14

77100.W0211

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 62.91 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 140 - 14

77100.W0215

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 71.98 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 140 - 14

77100.W0216

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 70.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 160 - 14

77100.W0220

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 79.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 160 - 14

77100.W0221

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 79.06 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 200 - 18

77100.W0230

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 102.45 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 200 - 18

77100.W0231

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 102.45 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 250 - 22

77100.W0240

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 160.21 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 250 - 22

77100.W0241

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 160.21 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 315 - 26

77100.W0245

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 217.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 315 - 26

77100.W0246

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 217.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o keyway, Rotating Handle - 400 - 30

77100.W0250

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 385.97 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o keyway, Rotating Handle - 400 - 30

77100.W0251

Type

W/o Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 385.97 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 80 - 10

77100.W0300

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 54.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 80 - 10

77100.W0301

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 54.40 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With keyway, rotating handle - 100 - 10

77100.W0305

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 61.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 100 - 10

77100.W0306

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 61.62 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 125 - 12

77100.W0310

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 67.42 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 125 - 12

77100.W0311

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

850

£ 67.42 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 140 - 14

77100.W0315

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 76.09 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 140 - 14

77100.W0316

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1040

£ 76.09 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 160 - 14

77100.W0320

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 83.49 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 160 - 14

77100.W0321

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1390

£ 83.49 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 200 - 18

77100.W0330

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 106.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 200 - 18

77100.W0331

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2190

£ 106.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 250 - 22

77100.W0340

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 164.54 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 250 - 22

77100.W0341

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4185

£ 164.54 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 315 - 26

77100.W0345

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 221.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 315 - 26

77100.W0346

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6185

£ 221.74 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Rotating Handle - 400 - 30

77100.W0350

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 389.67 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Rotating Handle - 400 - 30

77100.W0351

Type

With Keyway, Rotating Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10500

£ 389.67 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 80 - 10

77100.W0400

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 41.47 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 80 - 10

77100.W0401

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 41.47 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 125 - 12

77100.W0410

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 55.36 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 125 - 12

77100.W0411

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 55.36 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 140 - 14

77100.W0415

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 63.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 140 - 14

77100.W0416

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 63.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 160 - 14

77100.W0420

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 71.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 160 - 14

77100.W0421

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 71.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 200 - 18

77100.W0430

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 94.57 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 200 - 18

77100.W0431

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 94.57 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 250 - 22

77100.W0440

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 150.25 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 250 - 22

77100.W0441

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 150.25 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 315 - 26

77100.W0445

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 206.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 315 - 26

77100.W0446

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 206.01 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - W/o Keyway, Fixed Handle - 400 - 30

77100.W0450

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 374.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - W/o Keyway, Fixed Handle - 400 - 30

77100.W0451

Type

W/o Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 374.87 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 80 - 10

77100.W0500

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

80

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 45.80 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 80 - 10

77100.W0501

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

80

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

24

l₁ ≈

29

l₂

16

No. of spokes

3

Corresp. handle dia.

16

Weight g

410

£ 45.80 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 100 - 10

77100.W0505

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 100 - 10

77100.W0506

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

100

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

26

l₁ ≈

33

l₂

17

No. of spokes

3

Corresp. handle dia.

16

Weight g

550

£ 52.63 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 125 - 12

77100.W0510

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 60.03 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 125 - 12

77100.W0511

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

125

d₂ tol. H7 Small

10

d₂ tol. H7 Large

12

d₃

28

l₁ ≈

36

l₂

18

No. of spokes

3

Corresp. handle dia.

20

Weight g

835

£ 60.03 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 140 - 14

77100.W0515

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 71.38 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 140 - 14

77100.W0516

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

140

d₂ tol. H7 Small

12

d₂ tol. H7 Large

14

d₃

30

l₁ ≈

39

l₂

19

No. of spokes

3

Corresp. handle dia.

20

Weight g

1025

£ 71.38 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 160 - 14

77100.W0520

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 75.61 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 160 - 14

77100.W0521

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

160

d₂ tol. H7 Small

14

d₂ tol. H7 Large

16

d₃

32

l₁ ≈

40

l₂

20

No. of spokes

3

Corresp. handle dia.

25

Weight g

1380

£ 75.61 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 200 - 18

77100.W0530

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 98.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 200 - 18

77100.W0531

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

200

d₂ tol. H7 Small

18

d₂ tol. H7 Large

22

d₃

38

l₁ ≈

45

l₂

24

No. of spokes

3

Corresp. handle dia.

25

Weight g

2180

£ 98.27 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 250 - 22

77100.W0540

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 154.35 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 250 - 22

77100.W0541

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

250

d₂ tol. H7 Small

22

d₂ tol. H7 Large

26

d₃

45

l₁ ≈

50

l₂

28

No. of spokes

5

Corresp. handle dia.

32

Weight g

4160

£ 154.35 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 315 - 26

77100.W0545

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 209.71 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 315 - 26

77100.W0546

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

315

d₂ tol. H7 Small

26

d₂ tol. H7 Large

30

d₃

53

l₁ ≈

56

l₂

33

No. of spokes

5

Corresp. handle dia.

32

Weight g

6160

£ 209.71 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Small - With Keyway, Fixed Handle - 400 - 30

77100.W0550

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Small

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 378.90 per unit (click for quantity discounts)

Handwheels - Cast iron. d2 Large - With Keyway, Fixed Handle - 400 - 30

77100.W0551

Type

With Keyway, Fixed Handle

Bore dia.

d₂ Large

d₁

400

d₂ tol. H7 Small

30

d₂ tol. H7 Large

34

d₃

65

l₁ ≈

63

l₂

38

No. of spokes

5

Corresp. handle dia.

36

Weight g

10460

£ 378.90 per unit (click for quantity discounts)



Select all

Type

Bore dia.

d₁

d₂ tol. H7 Small

d₂ tol. H7 Large

d₃

l₁ ≈

l₂

No. of spokes

Corresp. handle dia.

Weight g

Price & Availability	Article	Type	Bore dia.	d1	d2 tol. H7 Small	d2 tol. H7 Large	d3	l1 ≈	l2	No. of spokes	Corresp. handle dia.	Weight g
	77100.W0000	W/o Keyway, W/o Handle	d2 Small	80	10	12	24	29	16	3	-	311
£ 27.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 27.08 0% 5-9 £ 25.73 5% 10-19 £ 24.37 10% 20-49 £ 23.02 15% 50+ £ 20.31 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. - Weight g 311 more info »
	77100.W0001	W/o Keyway, W/o Handle	d2 Large	80	10	12	24	29	16	3	-	311
£ 27.08 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 27.08 0% 5-9 £ 25.73 5% 10-19 £ 24.37 10% 20-49 £ 23.02 15% 50+ £ 20.31 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. - Weight g 311 more info »
	77100.W0005	W/o Keyway, W/o Handle	d2 Small	100	10	12	26	33	17	3	-	486
£ 32.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 32.55 0% 5-9 £ 30.92 5% 10-19 £ 29.30 10% 20-49 £ 27.67 15% 50+ £ 24.41 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. - Weight g 486 more info »
	77100.W0006	W/o Keyway, W/o Handle	d2 Large	100	10	12	26	33	17	3	-	486
£ 32.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 32.55 0% 5-9 £ 30.92 5% 10-19 £ 29.30 10% 20-49 £ 27.67 15% 50+ £ 24.41 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. - Weight g 486 more info »
	77100.W0010	W/o Keyway, W/o Handle	d2 Small	125	12	14	28	36	18	3	-	720
£ 38.74 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 38.74 0% 5-9 £ 36.80 5% 10-19 £ 34.87 10% 20-49 £ 32.93 15% 50+ £ 29.06 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. - Weight g 720 more info »
	77100.W0011	W/o Keyway, W/o Handle	d2 Large	125	12	14	28	36	18	3	-	720
£ 38.74 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 38.74 0% 5-9 £ 36.80 5% 10-19 £ 34.87 10% 20-49 £ 32.93 15% 50+ £ 29.06 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. - Weight g 720 more info »
	77100.W0015	W/o Keyway, W/o Handle	d2 Small	140	14	16	30	39	19	3	-	879
£ 46.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 46.22 0% 5-9 £ 43.91 5% 10-19 £ 41.60 10% 20-49 £ 39.29 15% 50+ £ 34.67 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. - Weight g 879 more info »
	77100.W0016	W/o Keyway, W/o Handle	d2 Large	140	14	16	30	39	19	3	-	879
£ 46.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 46.22 0% 5-9 £ 43.91 5% 10-19 £ 41.60 10% 20-49 £ 39.29 15% 50+ £ 34.67 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. - Weight g 879 more info »
	77100.W0020	W/o Keyway, W/o Handle	d2 Small	160	14	16	32	40	20	3	-	1151
£ 48.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.37 0% 5-9 £ 45.95 5% 10-19 £ 43.53 10% 20-49 £ 41.11 15% 50+ £ 36.28 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. - Weight g 1151 more info »
	77100.W0021	W/o Keyway, W/o Handle	d2 Large	160	14	16	32	40	20	3	-	1151
£ 48.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 48.37 0% 5-9 £ 45.95 5% 10-19 £ 43.53 10% 20-49 £ 41.11 15% 50+ £ 36.28 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. - Weight g 1151 more info »
	77100.W0030	W/o Keyway, W/o Handle	d2 Small	200	18	22	38	45	24	3	-	2218
£ 70.62 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 70.62 0% 5-9 £ 67.09 5% 10-19 £ 63.56 10% 20-49 £ 60.03 15% 50+ £ 52.97 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. - Weight g 2218 more info »
	77100.W0031	W/o Keyway, W/o Handle	d2 Large	200	18	22	38	45	24	3	-	2218
£ 70.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 70.62 0% 5-9 £ 67.09 5% 10-19 £ 63.56 10% 20-49 £ 60.03 15% 50+ £ 52.97 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. - Weight g 2218 more info »
	77100.W0040	W/o Keyway, W/o Handle	d2 Small	250	22	26	45	50	28	5	-	3735
£ 116.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 116.01 0% 5-9 £ 110.21 5% 10-19 £ 104.41 10% 20-49 £ 98.61 15% 50+ £ 87.01 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. - Weight g 3735 more info »
	77100.W0041	W/o Keyway, W/o Handle	d2 Large	250	22	26	45	50	28	5	-	3735
£ 116.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 116.01 0% 5-9 £ 110.21 5% 10-19 £ 104.41 10% 20-49 £ 98.61 15% 50+ £ 87.01 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. - Weight g 3735 more info »
	77100.W0045	W/o Keyway, W/o Handle	d2 Small	315	26	30	53	56	33	5	-	6180
£ 171.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 171.62 0% 5-9 £ 163.04 5% 10-19 £ 154.46 10% 20-49 £ 145.88 15% 50+ £ 128.72 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. - Weight g 6180 more info »
	77100.W0046	W/o Keyway, W/o Handle	d2 Large	315	26	30	53	56	33	5	-	6180
£ 171.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 171.62 0% 5-9 £ 163.04 5% 10-19 £ 154.46 10% 20-49 £ 145.88 15% 50+ £ 128.72 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. - Weight g 6180 more info »
	77100.W0050	W/o Keyway, W/o Handle	d2 Small	400	30	34	65	63	38	5	-	9500
£ 327.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 327.00 0% 5-9 £ 310.65 5% 10-19 £ 294.30 10% 20-49 £ 277.95 15% 50+ £ 245.25 25% Type W/o Keyway, W/o Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. - Weight g 9500 more info »
	77100.W0051	W/o Keyway, W/o Handle	d2 Large	400	30	34	65	63	38	5	-	9500
£ 327.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 327.00 0% 5-9 £ 310.65 5% 10-19 £ 294.30 10% 20-49 £ 277.95 15% 50+ £ 245.25 25% Type W/o Keyway, W/o Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. - Weight g 9500 more info »
	77100.W0100	With Keyway, W/o Handle	d2 Small	80	10	12	24	29	16	3	-	360
£ 30.99 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 30.99 0% 5-9 £ 29.44 5% 10-19 £ 27.89 10% 20-49 £ 26.34 15% 50+ £ 23.24 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. - Weight g 360 more info »
	77100.W0101	With Keyway, W/o Handle	d2 Large	80	10	12	24	29	16	3	-	360
£ 31.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.59 0% 5-9 £ 30.01 5% 10-19 £ 28.43 10% 20-49 £ 26.85 15% 50+ £ 23.69 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. - Weight g 360 more info »
	77100.W0105	With Keyway, W/o Handle	d2 Small	100	10	12	26	33	17	3	-	500
£ 37.04 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 37.04 0% 5-9 £ 35.19 5% 10-19 £ 33.34 10% 20-49 £ 31.48 15% 50+ £ 27.78 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. - Weight g 500 more info »
	77100.W0106	With Keyway, W/o Handle	d2 Large	100	10	12	26	33	17	3	-	500
£ 37.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 37.04 0% 5-9 £ 35.19 5% 10-19 £ 33.34 10% 20-49 £ 31.48 15% 50+ £ 27.78 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. - Weight g 500 more info »
	77100.W0110	With Keyway, W/o Handle	d2 Small	125	12	14	28	36	18	3	-	750
£ 43.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 43.40 0% 5-9 £ 41.23 5% 10-19 £ 39.06 10% 20-49 £ 36.89 15% 50+ £ 32.55 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. - Weight g 750 more info »
	77100.W0111	With Keyway, W/o Handle	d2 Large	125	12	14	28	36	18	3	-	750
£ 43.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 43.40 0% 5-9 £ 41.23 5% 10-19 £ 39.06 10% 20-49 £ 36.89 15% 50+ £ 32.55 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. - Weight g 750 more info »
	77100.W0115	With Keyway, W/o Handle	d2 Small	140	14	16	30	39	19	3	-	902
£ 50.69 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.69 0% 5-9 £ 48.16 5% 10-19 £ 45.62 10% 20-49 £ 43.09 15% 50+ £ 38.02 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. - Weight g 902 more info »
	77100.W0116	With Keyway, W/o Handle	d2 Large	140	14	16	30	39	19	3	-	902
£ 50.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.69 0% 5-9 £ 48.16 5% 10-19 £ 45.62 10% 20-49 £ 43.09 15% 50+ £ 38.02 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. - Weight g 902 more info »
	77100.W0120	With Keyway, W/o Handle	d2 Small	160	14	16	32	40	20	3	-	1139
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.63 0% 5-9 £ 50.00 5% 10-19 £ 47.37 10% 20-49 £ 44.74 15% 50+ £ 39.47 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. - Weight g 1139 more info »
	77100.W0121	With Keyway, W/o Handle	d2 Large	160	14	16	32	40	20	3	-	1139
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.63 0% 5-9 £ 50.00 5% 10-19 £ 47.37 10% 20-49 £ 44.74 15% 50+ £ 39.47 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. - Weight g 1139 more info »
	77100.W0130	With Keyway, W/o Handle	d2 Small	200	18	22	38	45	24	3	-	2142
£ 74.64 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.64 0% 5-9 £ 70.91 5% 10-19 £ 67.18 10% 20-49 £ 63.44 15% 50+ £ 55.98 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. - Weight g 2142 more info »
	77100.W0131	With Keyway, W/o Handle	d2 Large	200	18	22	38	45	24	3	-	2142
£ 74.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 74.64 0% 5-9 £ 70.91 5% 10-19 £ 67.18 10% 20-49 £ 63.44 15% 50+ £ 55.98 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. - Weight g 2142 more info »
	77100.W0140	With Keyway, W/o Handle	d2 Small	250	22	26	45	50	28	5	-	3652
£ 120.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 120.37 0% 5-9 £ 114.35 5% 10-19 £ 108.33 10% 20-49 £ 102.31 15% 50+ £ 90.28 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. - Weight g 3652 more info »
	77100.W0141	With Keyway, W/o Handle	d2 Large	250	22	26	45	50	28	5	-	3652
£ 120.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 120.37 0% 5-9 £ 114.35 5% 10-19 £ 108.33 10% 20-49 £ 102.31 15% 50+ £ 90.28 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. - Weight g 3652 more info »
	77100.W0145	With Keyway, W/o Handle	d2 Small	315	26	30	53	56	33	5	-	5800
£ 175.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 175.64 0% 5-9 £ 166.86 5% 10-19 £ 158.08 10% 20-49 £ 149.29 15% 50+ £ 131.73 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. - Weight g 5800 more info »
	77100.W0146	With Keyway, W/o Handle	d2 Large	315	26	30	53	56	33	5	-	5800
£ 175.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 175.64 0% 5-9 £ 166.86 5% 10-19 £ 158.08 10% 20-49 £ 149.29 15% 50+ £ 131.73 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. - Weight g 5800 more info »
	77100.W0150	With Keyway, W/o Handle	d2 Small	400	30	34	65	63	38	5	-	9500
£ 331.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 331.00 0% 5-9 £ 314.45 5% 10-19 £ 297.90 10% 20-49 £ 281.35 15% 50+ £ 248.25 25% Type With Keyway, W/o Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. - Weight g 9500 more info »
	77100.W0151	With Keyway, W/o Handle	d2 Large	400	30	34	65	63	38	5	-	9500
£ 331.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 331.00 0% 5-9 £ 314.45 5% 10-19 £ 297.90 10% 20-49 £ 281.35 15% 50+ £ 248.25 25% Type With Keyway, W/o Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. - Weight g 9500 more info »
	77100.W0200	W/o Keyway, Rotating Handle	d2 Small	80	10	12	24	29	16	3	16	410
£ 50.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.06 0% 5-9 £ 47.56 5% 10-19 £ 45.05 10% 20-49 £ 42.55 15% 50+ £ 37.55 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0201	W/o Keyway, Rotating Handle	d2 Large	80	10	12	24	29	16	3	16	410
£ 50.06 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 50.06 0% 5-9 £ 47.56 5% 10-19 £ 45.05 10% 20-49 £ 42.55 15% 50+ £ 37.55 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0205	W/o Keyway, Rotating Handle	d2 Small	100	10	12	26	33	17	3	16	550
£ 57.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.13 0% 5-9 £ 54.27 5% 10-19 £ 51.42 10% 20-49 £ 48.56 15% 50+ £ 42.85 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0206	W/o Keyway, Rotating Handle	d2 Large	100	10	12	26	33	17	3	16	550
£ 57.13 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 57.13 0% 5-9 £ 54.27 5% 10-19 £ 51.42 10% 20-49 £ 48.56 15% 50+ £ 42.85 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0210	W/o Keyway, Rotating Handle	d2 Small	125	12	14	28	36	18	3	20	850
£ 62.91 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.91 0% 5-9 £ 59.76 5% 10-19 £ 56.62 10% 20-49 £ 53.47 15% 50+ £ 47.18 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 850 more info »
	77100.W0211	W/o Keyway, Rotating Handle	d2 Large	125	12	14	28	36	18	3	20	850
£ 62.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 62.91 0% 5-9 £ 59.76 5% 10-19 £ 56.62 10% 20-49 £ 53.47 15% 50+ £ 47.18 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 850 more info »
	77100.W0215	W/o Keyway, Rotating Handle	d2 Small	140	14	16	30	39	19	3	20	1040
£ 71.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.98 0% 5-9 £ 68.38 5% 10-19 £ 64.78 10% 20-49 £ 61.18 15% 50+ £ 53.99 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1040 more info »
	77100.W0216	W/o Keyway, Rotating Handle	d2 Large	140	14	16	30	39	19	3	20	1040
£ 70.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 70.06 0% 5-9 £ 66.56 5% 10-19 £ 63.05 10% 20-49 £ 59.55 15% 50+ £ 52.55 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1040 more info »
	77100.W0220	W/o Keyway, Rotating Handle	d2 Small	160	14	16	32	40	20	3	25	1390
£ 79.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 79.06 0% 5-9 £ 75.11 5% 10-19 £ 71.15 10% 20-49 £ 67.20 15% 50+ £ 59.30 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1390 more info »
	77100.W0221	W/o Keyway, Rotating Handle	d2 Large	160	14	16	32	40	20	3	25	1390
£ 79.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 79.06 0% 5-9 £ 75.11 5% 10-19 £ 71.15 10% 20-49 £ 67.20 15% 50+ £ 59.30 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1390 more info »
	77100.W0230	W/o Keyway, Rotating Handle	d2 Small	200	18	22	38	45	24	3	25	2190
£ 102.45 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 102.45 0% 5-9 £ 97.33 5% 10-19 £ 92.21 10% 20-49 £ 87.08 15% 50+ £ 76.84 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2190 more info »
	77100.W0231	W/o Keyway, Rotating Handle	d2 Large	200	18	22	38	45	24	3	25	2190
£ 102.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 102.45 0% 5-9 £ 97.33 5% 10-19 £ 92.21 10% 20-49 £ 87.08 15% 50+ £ 76.84 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2190 more info »
	77100.W0240	W/o Keyway, Rotating Handle	d2 Small	250	22	26	45	50	28	5	32	4185
£ 160.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 160.21 0% 5-9 £ 152.20 5% 10-19 £ 144.19 10% 20-49 £ 136.18 15% 50+ £ 120.16 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4185 more info »
	77100.W0241	W/o Keyway, Rotating Handle	d2 Large	250	22	26	45	50	28	5	32	4185
£ 160.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 160.21 0% 5-9 £ 152.20 5% 10-19 £ 144.19 10% 20-49 £ 136.18 15% 50+ £ 120.16 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4185 more info »
	77100.W0245	W/o Keyway, Rotating Handle	d2 Small	315	26	30	53	56	33	5	32	6185
£ 217.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 217.74 0% 5-9 £ 206.85 5% 10-19 £ 195.97 10% 20-49 £ 185.08 15% 50+ £ 163.31 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6185 more info »
	77100.W0246	W/o Keyway, Rotating Handle	d2 Large	315	26	30	53	56	33	5	32	6185
£ 217.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 217.74 0% 5-9 £ 206.85 5% 10-19 £ 195.97 10% 20-49 £ 185.08 15% 50+ £ 163.31 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6185 more info »
	77100.W0250	W/o Keyway, Rotating Handle	d2 Small	400	30	34	65	63	38	5	36	10500
£ 385.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 385.97 0% 5-9 £ 366.67 5% 10-19 £ 347.37 10% 20-49 £ 328.07 15% 50+ £ 289.48 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10500 more info »
	77100.W0251	W/o Keyway, Rotating Handle	d2 Large	400	30	34	65	63	38	5	36	10500
£ 385.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 385.97 0% 5-9 £ 366.67 5% 10-19 £ 347.37 10% 20-49 £ 328.07 15% 50+ £ 289.48 25% Type W/o Keyway, Rotating Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10500 more info »
	77100.W0300	With Keyway, Rotating Handle	d2 Small	80	10	12	24	29	16	3	16	410
£ 54.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.40 0% 5-9 £ 51.68 5% 10-19 £ 48.96 10% 20-49 £ 46.24 15% 50+ £ 40.80 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0301	With Keyway, Rotating Handle	d2 Large	80	10	12	24	29	16	3	16	410
£ 54.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 54.40 0% 5-9 £ 51.68 5% 10-19 £ 48.96 10% 20-49 £ 46.24 15% 50+ £ 40.80 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0305	With Keyway, Rotating Handle	d2 Small	100	10	12	26	33	17	3	16	550
£ 61.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 61.62 0% 5-9 £ 58.54 5% 10-19 £ 55.46 10% 20-49 £ 52.38 15% 50+ £ 46.22 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0306	With Keyway, Rotating Handle	d2 Large	100	10	12	26	33	17	3	16	550
£ 61.62 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 61.62 0% 5-9 £ 58.54 5% 10-19 £ 55.46 10% 20-49 £ 52.38 15% 50+ £ 46.22 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0310	With Keyway, Rotating Handle	d2 Small	125	12	14	28	36	18	3	20	850
£ 67.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.42 0% 5-9 £ 64.05 5% 10-19 £ 60.68 10% 20-49 £ 57.31 15% 50+ £ 50.57 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 850 more info »
	77100.W0311	With Keyway, Rotating Handle	d2 Large	125	12	14	28	36	18	3	20	850
£ 67.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 67.42 0% 5-9 £ 64.05 5% 10-19 £ 60.68 10% 20-49 £ 57.31 15% 50+ £ 50.57 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 850 more info »
	77100.W0315	With Keyway, Rotating Handle	d2 Small	140	14	16	30	39	19	3	20	1040
£ 76.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.09 0% 5-9 £ 72.29 5% 10-19 £ 68.48 10% 20-49 £ 64.68 15% 50+ £ 57.07 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1040 more info »
	77100.W0316	With Keyway, Rotating Handle	d2 Large	140	14	16	30	39	19	3	20	1040
£ 76.09 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 76.09 0% 5-9 £ 72.29 5% 10-19 £ 68.48 10% 20-49 £ 64.68 15% 50+ £ 57.07 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1040 more info »
	77100.W0320	With Keyway, Rotating Handle	d2 Small	160	14	16	32	40	20	3	25	1390
£ 83.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 83.49 0% 5-9 £ 79.32 5% 10-19 £ 75.14 10% 20-49 £ 70.97 15% 50+ £ 62.62 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1390 more info »
	77100.W0321	With Keyway, Rotating Handle	d2 Large	160	14	16	32	40	20	3	25	1390
£ 83.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 83.49 0% 5-9 £ 79.32 5% 10-19 £ 75.14 10% 20-49 £ 70.97 15% 50+ £ 62.62 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1390 more info »
	77100.W0330	With Keyway, Rotating Handle	d2 Small	200	18	22	38	45	24	3	25	2190
£ 106.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 106.63 0% 5-9 £ 101.30 5% 10-19 £ 95.97 10% 20-49 £ 90.64 15% 50+ £ 79.97 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2190 more info »
	77100.W0331	With Keyway, Rotating Handle	d2 Large	200	18	22	38	45	24	3	25	2190
£ 106.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 106.63 0% 5-9 £ 101.30 5% 10-19 £ 95.97 10% 20-49 £ 90.64 15% 50+ £ 79.97 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2190 more info »
	77100.W0340	With Keyway, Rotating Handle	d2 Small	250	22	26	45	50	28	5	32	4185
£ 164.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 164.54 0% 5-9 £ 156.31 5% 10-19 £ 148.09 10% 20-49 £ 139.86 15% 50+ £ 123.41 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4185 more info »
	77100.W0341	With Keyway, Rotating Handle	d2 Large	250	22	26	45	50	28	5	32	4185
£ 164.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 164.54 0% 5-9 £ 156.31 5% 10-19 £ 148.09 10% 20-49 £ 139.86 15% 50+ £ 123.41 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4185 more info »
	77100.W0345	With Keyway, Rotating Handle	d2 Small	315	26	30	53	56	33	5	32	6185
£ 221.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 221.74 0% 5-9 £ 210.65 5% 10-19 £ 199.57 10% 20-49 £ 188.48 15% 50+ £ 166.31 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6185 more info »
	77100.W0346	With Keyway, Rotating Handle	d2 Large	315	26	30	53	56	33	5	32	6185
£ 221.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 221.74 0% 5-9 £ 210.65 5% 10-19 £ 199.57 10% 20-49 £ 188.48 15% 50+ £ 166.31 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6185 more info »
	77100.W0350	With Keyway, Rotating Handle	d2 Small	400	30	34	65	63	38	5	36	10500
£ 389.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 389.67 0% 5-9 £ 370.19 5% 10-19 £ 350.70 10% 20-49 £ 331.22 15% 50+ £ 292.25 25% Type With Keyway, Rotating Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10500 more info »
	77100.W0351	With Keyway, Rotating Handle	d2 Large	400	30	34	65	63	38	5	36	10500
£ 389.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 389.67 0% 5-9 £ 370.19 5% 10-19 £ 350.70 10% 20-49 £ 331.22 15% 50+ £ 292.25 25% Type With Keyway, Rotating Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10500 more info »
	77100.W0400	W/o Keyway, Fixed Handle	d2 Small	80	10	12	24	29	16	3	16	410
£ 41.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 41.47 0% 5-9 £ 39.40 5% 10-19 £ 37.32 10% 20-49 £ 35.25 15% 50+ £ 31.10 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0401	W/o Keyway, Fixed Handle	d2 Large	80	10	12	24	29	16	3	16	410
£ 41.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 41.47 0% 5-9 £ 39.40 5% 10-19 £ 37.32 10% 20-49 £ 35.25 15% 50+ £ 31.10 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0410	W/o Keyway, Fixed Handle	d2 Small	125	10	12	28	36	18	3	20	835
£ 55.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 55.36 0% 5-9 £ 52.59 5% 10-19 £ 49.82 10% 20-49 £ 47.06 15% 50+ £ 41.52 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 835 more info »
	77100.W0411	W/o Keyway, Fixed Handle	d2 Large	125	10	12	28	36	18	3	20	835
£ 55.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 55.36 0% 5-9 £ 52.59 5% 10-19 £ 49.82 10% 20-49 £ 47.06 15% 50+ £ 41.52 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 835 more info »
	77100.W0415	W/o Keyway, Fixed Handle	d2 Small	140	12	14	30	39	19	3	20	1025
£ 63.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.87 0% 5-9 £ 60.68 5% 10-19 £ 57.48 10% 20-49 £ 54.29 15% 50+ £ 47.90 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1025 more info »
	77100.W0416	W/o Keyway, Fixed Handle	d2 Large	140	12	14	30	39	19	3	20	1025
£ 63.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.87 0% 5-9 £ 60.68 5% 10-19 £ 57.48 10% 20-49 £ 54.29 15% 50+ £ 47.90 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1025 more info »
	77100.W0420	W/o Keyway, Fixed Handle	d2 Small	160	14	16	32	40	20	3	25	1380
£ 71.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.27 0% 5-9 £ 67.71 5% 10-19 £ 64.14 10% 20-49 £ 60.58 15% 50+ £ 53.45 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1380 more info »
	77100.W0421	W/o Keyway, Fixed Handle	d2 Large	160	14	16	32	40	20	3	25	1380
£ 71.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.27 0% 5-9 £ 67.71 5% 10-19 £ 64.14 10% 20-49 £ 60.58 15% 50+ £ 53.45 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1380 more info »
	77100.W0430	W/o Keyway, Fixed Handle	d2 Small	200	14	16	38	45	24	3	25	2180
£ 94.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.57 0% 5-9 £ 89.84 5% 10-19 £ 85.11 10% 20-49 £ 80.38 15% 50+ £ 70.93 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2180 more info »
	77100.W0431	W/o Keyway, Fixed Handle	d2 Large	200	14	16	38	45	24	3	25	2180
£ 94.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 94.57 0% 5-9 £ 89.84 5% 10-19 £ 85.11 10% 20-49 £ 80.38 15% 50+ £ 70.93 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2180 more info »
	77100.W0440	W/o Keyway, Fixed Handle	d2 Small	250	18	22	45	50	28	5	32	4160
£ 150.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 150.25 0% 5-9 £ 142.74 5% 10-19 £ 135.23 10% 20-49 £ 127.71 15% 50+ £ 112.69 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4160 more info »
	77100.W0441	W/o Keyway, Fixed Handle	d2 Large	250	18	22	45	50	28	5	32	4160
£ 150.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 150.25 0% 5-9 £ 142.74 5% 10-19 £ 135.23 10% 20-49 £ 127.71 15% 50+ £ 112.69 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4160 more info »
	77100.W0445	W/o Keyway, Fixed Handle	d2 Small	315	22	26	53	56	33	5	32	6160
£ 206.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 206.01 0% 5-9 £ 195.71 5% 10-19 £ 185.41 10% 20-49 £ 175.11 15% 50+ £ 154.51 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6160 more info »
	77100.W0446	W/o Keyway, Fixed Handle	d2 Large	315	22	26	53	56	33	5	32	6160
£ 206.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 206.01 0% 5-9 £ 195.71 5% 10-19 £ 185.41 10% 20-49 £ 175.11 15% 50+ £ 154.51 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6160 more info »
	77100.W0450	W/o Keyway, Fixed Handle	d2 Small	400	26	30	65	63	38	5	36	10460
£ 374.87 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 374.87 0% 5-9 £ 356.13 5% 10-19 £ 337.38 10% 20-49 £ 318.64 15% 50+ £ 281.15 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10460 more info »
	77100.W0451	W/o Keyway, Fixed Handle	d2 Large	400	26	30	65	63	38	5	36	10460
£ 374.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 374.87 0% 5-9 £ 356.13 5% 10-19 £ 337.38 10% 20-49 £ 318.64 15% 50+ £ 281.15 25% Type W/o Keyway, Fixed Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10460 more info »
	77100.W0500	With Keyway, Fixed Handle	d2 Small	80	30	34	24	29	16	3	16	410
£ 45.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.80 0% 5-9 £ 43.51 5% 10-19 £ 41.22 10% 20-49 £ 38.93 15% 50+ £ 34.35 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 80 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0501	With Keyway, Fixed Handle	d2 Large	80	30	34	24	29	16	3	16	410
£ 45.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.80 0% 5-9 £ 43.51 5% 10-19 £ 41.22 10% 20-49 £ 38.93 15% 50+ £ 34.35 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 80 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 24 l1 ≈ 29 l2 16 No. of spokes 3 Corresp. handle dia. 16 Weight g 410 more info »
	77100.W0505	With Keyway, Fixed Handle	d2 Small	100	10	12	26	33	17	3	16	550
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.63 0% 5-9 £ 50.00 5% 10-19 £ 47.37 10% 20-49 £ 44.74 15% 50+ £ 39.47 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0506	With Keyway, Fixed Handle	d2 Large	100	10	12	26	33	17	3	16	550
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.63 0% 5-9 £ 50.00 5% 10-19 £ 47.37 10% 20-49 £ 44.74 15% 50+ £ 39.47 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 100 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 26 l1 ≈ 33 l2 17 No. of spokes 3 Corresp. handle dia. 16 Weight g 550 more info »
	77100.W0510	With Keyway, Fixed Handle	d2 Small	125	10	12	28	36	18	3	20	835
£ 60.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.03 0% 5-9 £ 57.03 5% 10-19 £ 54.03 10% 20-49 £ 51.03 15% 50+ £ 45.02 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 125 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 835 more info »
	77100.W0511	With Keyway, Fixed Handle	d2 Large	125	10	12	28	36	18	3	20	835
£ 60.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 60.03 0% 5-9 £ 57.03 5% 10-19 £ 54.03 10% 20-49 £ 51.03 15% 50+ £ 45.02 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 125 d2 tol. H7 Small 10 d2 tol. H7 Large 12 d3 28 l1 ≈ 36 l2 18 No. of spokes 3 Corresp. handle dia. 20 Weight g 835 more info »
	77100.W0515	With Keyway, Fixed Handle	d2 Small	140	12	14	30	39	19	3	20	1025
£ 71.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.38 0% 5-9 £ 67.81 5% 10-19 £ 64.24 10% 20-49 £ 60.67 15% 50+ £ 53.54 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 140 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1025 more info »
	77100.W0516	With Keyway, Fixed Handle	d2 Large	140	12	14	30	39	19	3	20	1025
£ 71.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 71.38 0% 5-9 £ 67.81 5% 10-19 £ 64.24 10% 20-49 £ 60.67 15% 50+ £ 53.54 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 140 d2 tol. H7 Small 12 d2 tol. H7 Large 14 d3 30 l1 ≈ 39 l2 19 No. of spokes 3 Corresp. handle dia. 20 Weight g 1025 more info »
	77100.W0520	With Keyway, Fixed Handle	d2 Small	160	14	16	32	40	20	3	25	1380
£ 75.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 75.61 0% 5-9 £ 71.83 5% 10-19 £ 68.05 10% 20-49 £ 64.27 15% 50+ £ 56.71 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1380 more info »
	77100.W0521	With Keyway, Fixed Handle	d2 Large	160	14	16	32	40	20	3	25	1380
£ 75.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 75.61 0% 5-9 £ 71.83 5% 10-19 £ 68.05 10% 20-49 £ 64.27 15% 50+ £ 56.71 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 160 d2 tol. H7 Small 14 d2 tol. H7 Large 16 d3 32 l1 ≈ 40 l2 20 No. of spokes 3 Corresp. handle dia. 25 Weight g 1380 more info »
	77100.W0530	With Keyway, Fixed Handle	d2 Small	200	18	22	38	45	24	3	25	2180
£ 98.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 98.27 0% 5-9 £ 93.36 5% 10-19 £ 88.44 10% 20-49 £ 83.53 15% 50+ £ 73.70 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2180 more info »
	77100.W0531	With Keyway, Fixed Handle	d2 Large	200	18	22	38	45	24	3	25	2180
£ 98.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 98.27 0% 5-9 £ 93.36 5% 10-19 £ 88.44 10% 20-49 £ 83.53 15% 50+ £ 73.70 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 200 d2 tol. H7 Small 18 d2 tol. H7 Large 22 d3 38 l1 ≈ 45 l2 24 No. of spokes 3 Corresp. handle dia. 25 Weight g 2180 more info »
	77100.W0540	With Keyway, Fixed Handle	d2 Small	250	22	26	45	50	28	5	32	4160
£ 154.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 154.35 0% 5-9 £ 146.63 5% 10-19 £ 138.92 10% 20-49 £ 131.20 15% 50+ £ 115.76 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4160 more info »
	77100.W0541	With Keyway, Fixed Handle	d2 Large	250	22	26	45	50	28	5	32	4160
£ 154.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 154.35 0% 5-9 £ 146.63 5% 10-19 £ 138.92 10% 20-49 £ 131.20 15% 50+ £ 115.76 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 250 d2 tol. H7 Small 22 d2 tol. H7 Large 26 d3 45 l1 ≈ 50 l2 28 No. of spokes 5 Corresp. handle dia. 32 Weight g 4160 more info »
	77100.W0545	With Keyway, Fixed Handle	d2 Small	315	26	30	53	56	33	5	32	6160
£ 209.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 209.71 0% 5-9 £ 199.22 5% 10-19 £ 188.74 10% 20-49 £ 178.25 15% 50+ £ 157.28 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6160 more info »
	77100.W0546	With Keyway, Fixed Handle	d2 Large	315	26	30	53	56	33	5	32	6160
£ 209.71 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 209.71 0% 5-9 £ 199.22 5% 10-19 £ 188.74 10% 20-49 £ 178.25 15% 50+ £ 157.28 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 315 d2 tol. H7 Small 26 d2 tol. H7 Large 30 d3 53 l1 ≈ 56 l2 33 No. of spokes 5 Corresp. handle dia. 32 Weight g 6160 more info »
	77100.W0550	With Keyway, Fixed Handle	d2 Small	400	30	34	65	63	38	5	36	10460
£ 378.90 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 378.90 0% 5-9 £ 359.96 5% 10-19 £ 341.01 10% 20-49 £ 322.07 15% 50+ £ 284.18 25% Type With Keyway, Fixed Handle Bore dia. d2 Small d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10460 more info »
	77100.W0551	With Keyway, Fixed Handle	d2 Large	400	30	34	65	63	38	5	36	10460
£ 378.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 378.90 0% 5-9 £ 359.96 5% 10-19 £ 341.01 10% 20-49 £ 322.07 15% 50+ £ 284.18 25% Type With Keyway, Fixed Handle Bore dia. d2 Large d1 400 d2 tol. H7 Small 30 d2 tol. H7 Large 34 d3 65 l1 ≈ 63 l2 38 No. of spokes 5 Corresp. handle dia. 36 Weight g 10460 more info »
