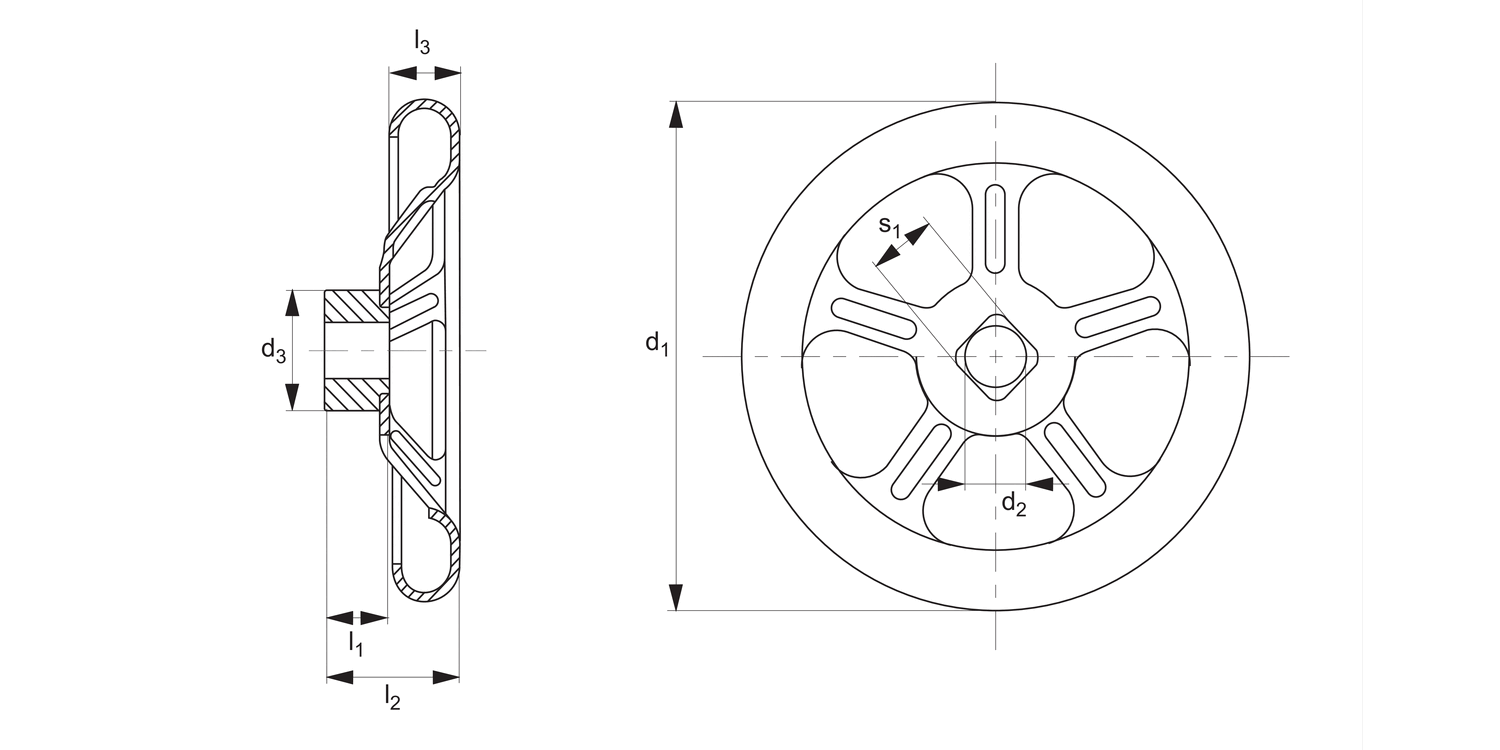

77430 Handwheels

pressed stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Handwheels, 3-Spoke

Handwheels 3-Spoke
with revolving handle

Three Spoked Handwheel
with fold-away rotating grip

Handwheels, 3-Spoke

Handwheels, 3-Spoke
Thermoplastic

Handwheels, 3-Spoke
with fold-away revolving grip

Cast Iron Handwheels

Aluminium Handwheels

Handwheels
Stainless steel

Handwheels
pressed steel

Handwheels
pressed s/s

Handwheels - SS. Round - 160 - B12 - V12

77430.W0012

Bore dia.

Round

d₁

160

d₂ round tol. H9

B12

d₃

30

l₁

20

l₂ ≈

39

l₃

22

No. of spokes

4

s₁ square tol. H11

V12

Weight g

430

£ 89.27 per unit (click for quantity discounts)

Handwheels - SS. Round - 200 - B14 - V14

77430.W0014

Bore dia.

Round

d₁

200

d₂ round tol. H9

B14

d₃

40

l₁

24

l₂ ≈

44

l₃

22

No. of spokes

4

s₁ square tol. H11

V14

Weight g

824

£ 136.10 per unit (click for quantity discounts)

Handwheels - SS. Round - 250 - B17 - V17

77430.W0017

Bore dia.

Round

d₁

250

d₂ round tol. H9

B17

d₃

45

l₁

28

l₂ ≈

52

l₃

30

No. of spokes

5

s₁ square tol. H11

V17

Weight g

1477

£ 224.25 per unit (click for quantity discounts)

Handwheels - SS. Square - 160 - B12 - V12

77430.W0112

Bore dia.

Square

d₁

160

d₂ round tol. H9

B12

d₃

30

l₁

20

l₂ ≈

39

l₃

22

No. of spokes

4

s₁ square tol. H11

V12

Weight g

430

£ 93.02 per unit (click for quantity discounts)

Handwheels - SS. Square - 200 - B14 - V14

77430.W0114

Bore dia.

Square

d₁

200

d₂ round tol. H9

B14

d₃

40

l₁

24

l₂ ≈

44

l₃

22

No. of spokes

4

s₁ square tol. H11

V14

Weight g

824

£ 139.87 per unit (click for quantity discounts)

Handwheels - SS. Square - 250 - B17 - V17

77430.W0117

Bore dia.

Square

d₁

250

d₂ round tol. H9

B17

d₃

45

l₁

28

l₂ ≈

52

l₃

30

No. of spokes

5

s₁ square tol. H11

V17

Weight g

1477

£ 179.02 per unit (click for quantity discounts)

Handwheels - SS. Round - 160 - B12 - V12

77430.W0012

Bore dia.

Round

d₁

160

d₂ round tol. H9

B12

d₃

30

l₁

20

l₂ ≈

39

l₃

22

No. of spokes

4

s₁ square tol. H11

V12

Weight g

430

£ 89.27 per unit (click for quantity discounts)

Handwheels - SS. Round - 200 - B14 - V14

77430.W0014

Bore dia.

Round

d₁

200

d₂ round tol. H9

B14

d₃

40

l₁

24

l₂ ≈

44

l₃

22

No. of spokes

4

s₁ square tol. H11

V14

Weight g

824

£ 136.10 per unit (click for quantity discounts)

Handwheels - SS. Round - 250 - B17 - V17

77430.W0017

Bore dia.

Round

d₁

250

d₂ round tol. H9

B17

d₃

45

l₁

28

l₂ ≈

52

l₃

30

No. of spokes

5

s₁ square tol. H11

V17

Weight g

1477

£ 224.25 per unit (click for quantity discounts)

Handwheels - SS. Square - 160 - B12 - V12

77430.W0112

Bore dia.

Square

d₁

160

d₂ round tol. H9

B12

d₃

30

l₁

20

l₂ ≈

39

l₃

22

No. of spokes

4

s₁ square tol. H11

V12

Weight g

430

£ 93.02 per unit (click for quantity discounts)

Handwheels - SS. Square - 200 - B14 - V14

77430.W0114

Bore dia.

Square

d₁

200

d₂ round tol. H9

B14

d₃

40

l₁

24

l₂ ≈

44

l₃

22

No. of spokes

4

s₁ square tol. H11

V14

Weight g

824

£ 139.87 per unit (click for quantity discounts)

Handwheels - SS. Square - 250 - B17 - V17

77430.W0117

Bore dia.

Square

d₁

250

d₂ round tol. H9

B17

d₃

45

l₁

28

l₂ ≈

52

l₃

30

No. of spokes

5

s₁ square tol. H11

V17

Weight g

1477

£ 179.02 per unit (click for quantity discounts)



Select all

Bore dia.

d₁

d₂ round tol. H9

d₃

l₁

l₂ ≈

l₃

No. of spokes

s₁ square tol. H11

Weight g

Price & Availability	Article	Bore dia.	d1	d2 round tol. H9	d3	l1	l2 ≈	l3	No. of spokes	s1 square tol. H11	Weight g
	77430.W0012	Round	160	B12	30	20	39	22	4	V12	430
£ 89.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 89.27 0% 5-9 £ 84.81 5% 10-19 £ 80.34 10% 20-49 £ 75.88 15% 50+ £ 66.95 25% Bore dia. Round d1 160 d2 round tol. H9 B12 d3 30 l1 20 l2 ≈ 39 l3 22 No. of spokes 4 s1 square tol. H11 V12 Weight g 430 more info »
	77430.W0014	Round	200	B14	40	24	44	22	4	V14	824
£ 136.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 136.10 0% 5-9 £ 129.30 5% 10-19 £ 122.49 10% 20-49 £ 115.69 15% 50+ £ 102.08 25% Bore dia. Round d1 200 d2 round tol. H9 B14 d3 40 l1 24 l2 ≈ 44 l3 22 No. of spokes 4 s1 square tol. H11 V14 Weight g 824 more info »
	77430.W0017	Round	250	B17	45	28	52	30	5	V17	1477
£ 224.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 224.25 0% 5-9 £ 213.04 5% 10-19 £ 201.83 10% 20-49 £ 190.61 15% 50+ £ 168.19 25% Bore dia. Round d1 250 d2 round tol. H9 B17 d3 45 l1 28 l2 ≈ 52 l3 30 No. of spokes 5 s1 square tol. H11 V17 Weight g 1477 more info »
	77430.W0112	Square	160	B12	30	20	39	22	4	V12	430
£ 93.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 93.02 0% 5-9 £ 88.37 5% 10-19 £ 83.72 10% 20-49 £ 79.07 15% 50+ £ 69.77 25% Bore dia. Square d1 160 d2 round tol. H9 B12 d3 30 l1 20 l2 ≈ 39 l3 22 No. of spokes 4 s1 square tol. H11 V12 Weight g 430 more info »
	77430.W0114	Square	200	B14	40	24	44	22	4	V14	824
£ 139.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 139.87 0% 5-9 £ 132.88 5% 10-19 £ 125.88 10% 20-49 £ 118.89 15% 50+ £ 104.90 25% Bore dia. Square d1 200 d2 round tol. H9 B14 d3 40 l1 24 l2 ≈ 44 l3 22 No. of spokes 4 s1 square tol. H11 V14 Weight g 824 more info »
	77430.W0117	Square	250	B17	45	28	52	30	5	V17	1477
£ 179.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 179.02 0% 5-9 £ 170.07 5% 10-19 £ 161.12 10% 20-49 £ 152.17 15% 50+ £ 134.27 25% Bore dia. Square d1 250 d2 round tol. H9 B17 d3 45 l1 28 l2 ≈ 52 l3 30 No. of spokes 5 s1 square tol. H11 V17 Weight g 1477 more info »
