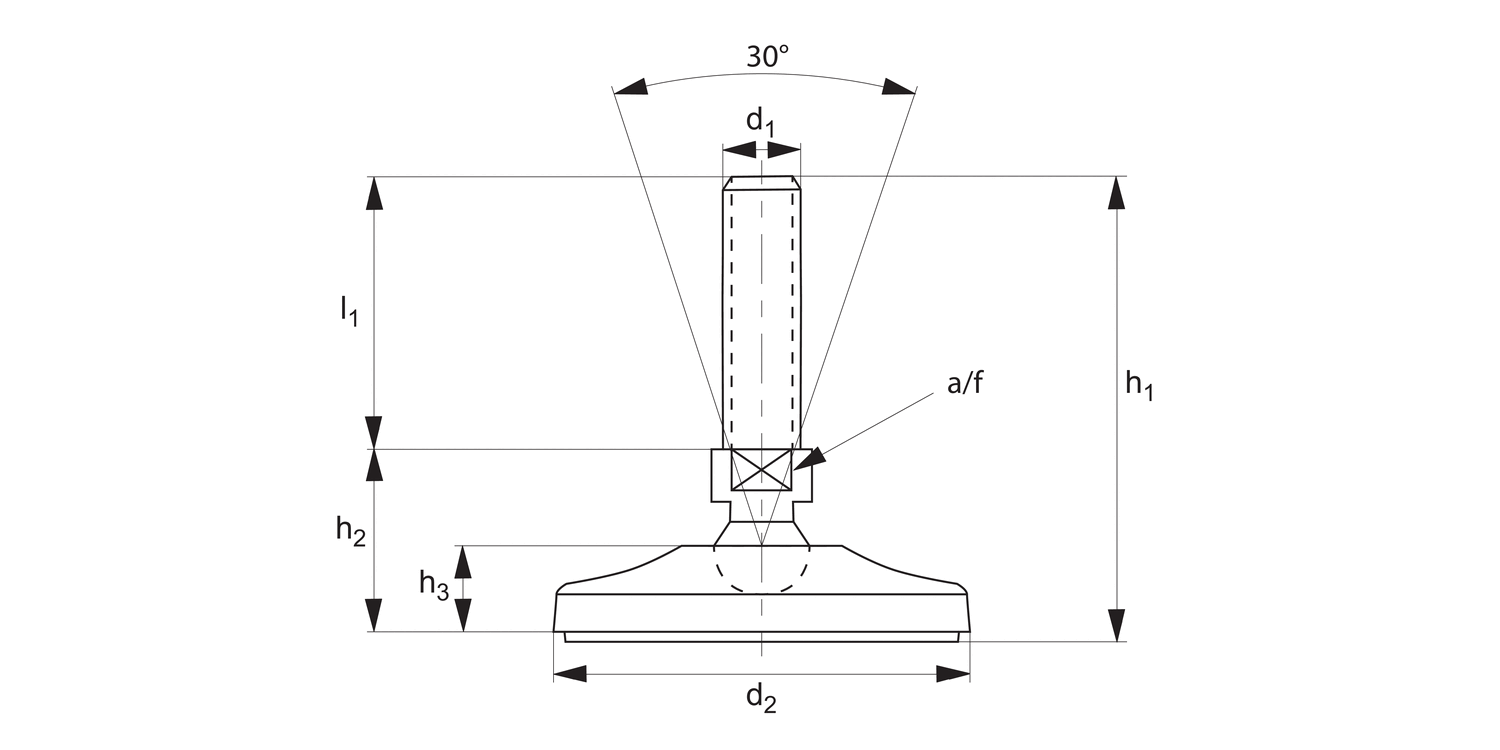

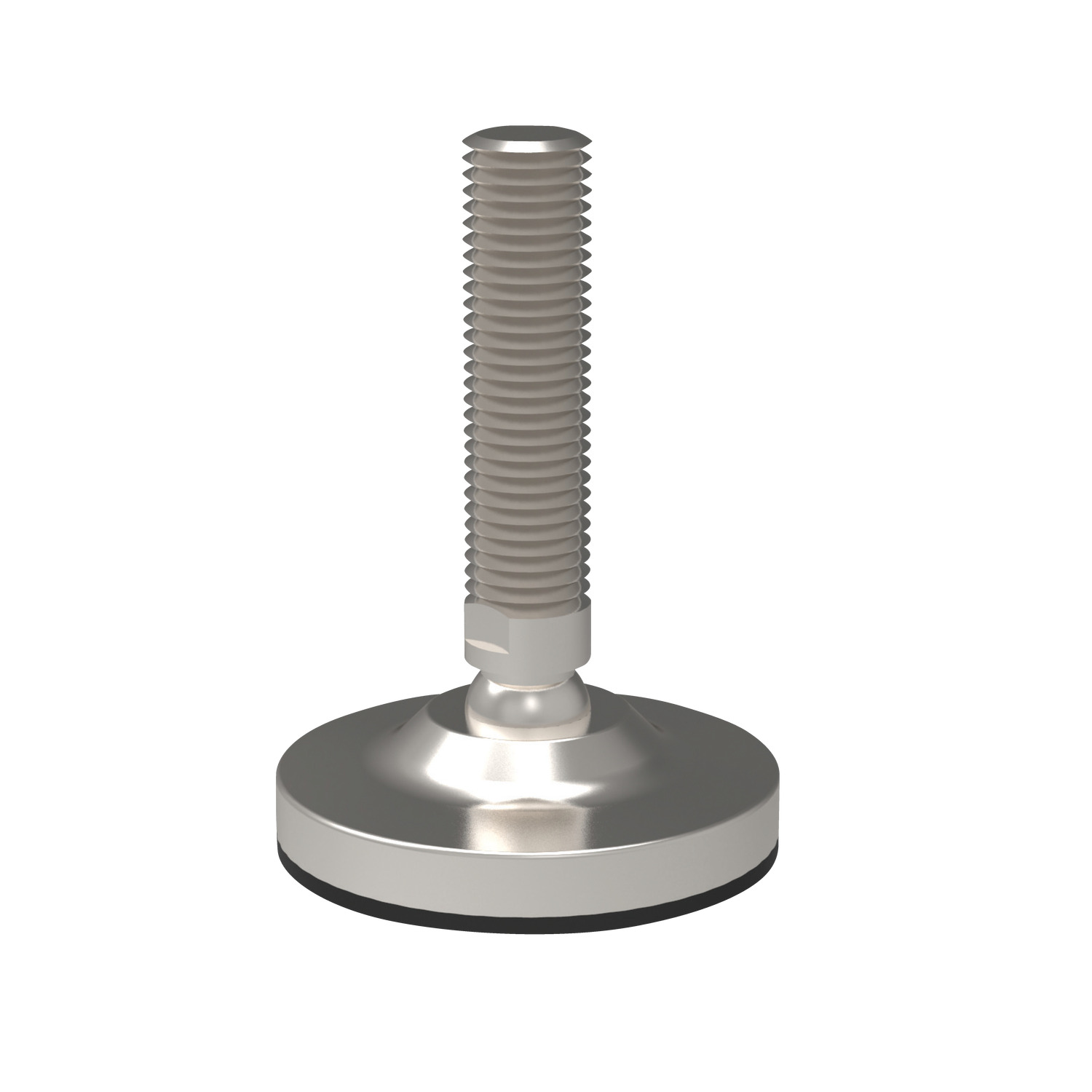

34714 Levelling Feet

stainless steel swivel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Levelling Feet nonslip
pad and bolt steel

Levelling Feet
pad and bolt steel

Levelling Feet
pad and bolt s/s

Levelling Feet, Swivel
stainless

Levelling Feet
heavy duty

Levelling Feet
bolt down, pad and bolt s/s

Levelling Feet
bolt down, pad and bolt s/s

Levelling Feet
bolt down

Levelling Feet
bolt down

Levelling Feet - Fully Stainless Foot M10 x 25mm - Pad 50mm

34714.W1000

d₁

M10

l₁

25

d₂

50

h₁

56

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 31.58 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M10 x 50mm - Pad 50mm

34714.W1001

d₁

M10

l₁

50

d₂

50

h₁

81

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 28.09 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X75

34714.W1002

d₁

M10

l₁

75

d₂

50

h₁

106

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 33.55 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X100

34714.W1003

d₁

M10

l₁

100

d₂

50

h₁

131

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 35.49 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X125

34714.W1004

d₁

M10

l₁

125

d₂

50

h₁

156

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 37.43 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X25

34714.W1200

d₁

M12

l₁

25

d₂

50

h₁

56

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 30.22 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X50

34714.W1201

d₁

M12

l₁

50

d₂

50

h₁

81

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 31.46 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X75

34714.W1202

d₁

M12

l₁

75

d₂

50

h₁

106

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 33.55 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M12 x 100mm - Pad 50mm

34714.W1203

d₁

M12

l₁

100

d₂

50

h₁

131

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 35.49 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X125

34714.W1204

d₁

M12

l₁

125

d₂

50

h₁

156

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 37.43 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X50

34714.W1400

d₁

M14

l₁

50

d₂

65

h₁

83

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 38.05 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X75

34714.W1401

d₁

M14

l₁

75

d₂

65

h₁

108

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 39.03 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X100

34714.W1402

d₁

M14

l₁

100

d₂

65

h₁

133

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 40.07 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X125

34714.W1403

d₁

M14

l₁

125

d₂

65

h₁

158

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 30.45 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X150

34714.W1404

d₁

M14

l₁

150

d₂

65

h₁

183

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 42.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16 x 50

34714.W1600

d₁

M16

l₁

50

d₂

100

h₁

96

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 78.30 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 75mm - Pad 100mm

34714.W1601

d₁

M16

l₁

75

d₂

100

h₁

121

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 84.44 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X100

34714.W1602

d₁

M16

l₁

100

d₂

100

h₁

146

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 87.48 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 125mm - Pad 100mm

34714.W1603

d₁

M16

l₁

125

d₂

100

h₁

171

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 89.85 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X150

34714.W1604

d₁

M16

l₁

150

d₂

100

h₁

196

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 88.55 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X175

34714.W1605

d₁

M16

l₁

175

d₂

100

h₁

221

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 90.19 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 200mm - Pad 100mm

34714.W1606

d₁

M16

l₁

200

d₂

100

h₁

246

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 99.31 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X75

34714.W2000

d₁

M20

l₁

75

d₂

100

h₁

121

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 80.80 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X100

34714.W2001

d₁

M20

l₁

100

d₂

100

h₁

146

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 78.15 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X125

34714.W2002

d₁

M20

l₁

125

d₂

100

h₁

171

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 85.98 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X150

34714.W2003

d₁

M20

l₁

150

d₂

100

h₁

196

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 88.55 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X175

34714.W2004

d₁

M20

l₁

175

d₂

100

h₁

221

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 90.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X200

34714.W2005

d₁

M20

l₁

200

d₂

100

h₁

246

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 95.03 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X225

34714.W2006

d₁

M20

l₁

225

d₂

100

h₁

271

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 97.81 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X250

34714.W2007

d₁

M20

l₁

250

d₂

100

h₁

296

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 101.26 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X75

34714.W2400

d₁

M24

l₁

75

d₂

100

h₁

122

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 80.80 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X100

34714.W2401

d₁

M24

l₁

100

d₂

100

h₁

147

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 83.71 per unit (click for quantity discounts)

Levelling Feet

34714.W2402

d₁

M24

l₁

125

d₂

100

h₁

172

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

Levelling Feet- Stud & Pad - S/S M24X150

34714.W2403

d₁

M24

l₁

150

d₂

100

h₁

202

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 92.54 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X175

34714.W2404

d₁

M24

l₁

175

d₂

100

h₁

222

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 90.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X200

34714.W2405

d₁

M24

l₁

200

d₂

100

h₁

247

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 95.03 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X225

34714.W2406

d₁

M24

l₁

225

d₂

100

h₁

272

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 97.81 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M24 x 250mm - Pad 100mm

34714.W2407

d₁

M24

l₁

250

d₂

100

h₁

297

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 101.26 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X100

34714.W3000

d₁

M30

l₁

100

d₂

120

h₁

150

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 121.81 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X125

34714.W3001

d₁

M30

l₁

125

d₂

120

h₁

175

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 119.59 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X150

34714.W3002

d₁

M30

l₁

150

d₂

120

h₁

200

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 123.76 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X175

34714.W3003

d₁

M30

l₁

175

d₂

120

h₁

225

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 126.74 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X200

34714.W3004

d₁

M30

l₁

200

d₂

120

h₁

250

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 129.63 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X225

34714.W3005

d₁

M30

l₁

225

d₂

120

h₁

275

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 132.61 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X250

34714.W3006

d₁

M30

l₁

250

d₂

120

h₁

300

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 136.44 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M10 x 25mm - Pad 50mm

34714.W1000

d₁

M10

l₁

25

d₂

50

h₁

56

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 31.58 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M10 x 50mm - Pad 50mm

34714.W1001

d₁

M10

l₁

50

d₂

50

h₁

81

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 28.09 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X75

34714.W1002

d₁

M10

l₁

75

d₂

50

h₁

106

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 33.55 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X100

34714.W1003

d₁

M10

l₁

100

d₂

50

h₁

131

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 35.49 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M10X125

34714.W1004

d₁

M10

l₁

125

d₂

50

h₁

156

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 37.43 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X25

34714.W1200

d₁

M12

l₁

25

d₂

50

h₁

56

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 30.22 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X50

34714.W1201

d₁

M12

l₁

50

d₂

50

h₁

81

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 31.46 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X75

34714.W1202

d₁

M12

l₁

75

d₂

50

h₁

106

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 33.55 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M12 x 100mm - Pad 50mm

34714.W1203

d₁

M12

l₁

100

d₂

50

h₁

131

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 35.49 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M12X125

34714.W1204

d₁

M12

l₁

125

d₂

50

h₁

156

h₂

28

h₃

16.0

A/F

14

Load max. kN

15

£ 37.43 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X50

34714.W1400

d₁

M14

l₁

50

d₂

65

h₁

83

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 38.05 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X75

34714.W1401

d₁

M14

l₁

75

d₂

65

h₁

108

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 39.03 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X100

34714.W1402

d₁

M14

l₁

100

d₂

65

h₁

133

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 40.07 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X125

34714.W1403

d₁

M14

l₁

125

d₂

65

h₁

158

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 30.45 per unit (click for quantity discounts)

Mini Levelling Feet - S/S M14X150

34714.W1404

d₁

M14

l₁

150

d₂

65

h₁

183

h₂

30

h₃

17.0

A/F

14

Load max. kN

20

£ 42.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16 x 50

34714.W1600

d₁

M16

l₁

50

d₂

100

h₁

96

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 78.30 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 75mm - Pad 100mm

34714.W1601

d₁

M16

l₁

75

d₂

100

h₁

121

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 84.44 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X100

34714.W1602

d₁

M16

l₁

100

d₂

100

h₁

146

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 87.48 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 125mm - Pad 100mm

34714.W1603

d₁

M16

l₁

125

d₂

100

h₁

171

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 89.85 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X150

34714.W1604

d₁

M16

l₁

150

d₂

100

h₁

196

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 88.55 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M16X175

34714.W1605

d₁

M16

l₁

175

d₂

100

h₁

221

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 90.19 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M16 x 200mm - Pad 100mm

34714.W1606

d₁

M16

l₁

200

d₂

100

h₁

246

h₂

43

h₃

20.0

A/F

20

Load max. kN

35

£ 99.31 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X75

34714.W2000

d₁

M20

l₁

75

d₂

100

h₁

121

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 80.80 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X100

34714.W2001

d₁

M20

l₁

100

d₂

100

h₁

146

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 78.15 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X125

34714.W2002

d₁

M20

l₁

125

d₂

100

h₁

171

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 85.98 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X150

34714.W2003

d₁

M20

l₁

150

d₂

100

h₁

196

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 88.55 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X175

34714.W2004

d₁

M20

l₁

175

d₂

100

h₁

221

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 90.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X200

34714.W2005

d₁

M20

l₁

200

d₂

100

h₁

246

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 95.03 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X225

34714.W2006

d₁

M20

l₁

225

d₂

100

h₁

271

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 97.81 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M20X250

34714.W2007

d₁

M20

l₁

250

d₂

100

h₁

296

h₂

43

h₃

20.0

A/F

20

Load max. kN

45

£ 101.26 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X75

34714.W2400

d₁

M24

l₁

75

d₂

100

h₁

122

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 80.80 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X100

34714.W2401

d₁

M24

l₁

100

d₂

100

h₁

147

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 83.71 per unit (click for quantity discounts)

Levelling Feet

34714.W2402

d₁

M24

l₁

125

d₂

100

h₁

172

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

Levelling Feet- Stud & Pad - S/S M24X150

34714.W2403

d₁

M24

l₁

150

d₂

100

h₁

202

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 92.54 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X175

34714.W2404

d₁

M24

l₁

175

d₂

100

h₁

222

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 90.19 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X200

34714.W2405

d₁

M24

l₁

200

d₂

100

h₁

247

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 95.03 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M24X225

34714.W2406

d₁

M24

l₁

225

d₂

100

h₁

272

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 97.81 per unit (click for quantity discounts)

Levelling Feet - Fully Stainless Foot M24 x 250mm - Pad 100mm

34714.W2407

d₁

M24

l₁

250

d₂

100

h₁

297

h₂

44

h₃

20.0

A/F

20

Load max. kN

55

£ 101.26 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X100

34714.W3000

d₁

M30

l₁

100

d₂

120

h₁

150

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 121.81 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X125

34714.W3001

d₁

M30

l₁

125

d₂

120

h₁

175

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 119.59 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X150

34714.W3002

d₁

M30

l₁

150

d₂

120

h₁

200

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 123.76 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X175

34714.W3003

d₁

M30

l₁

175

d₂

120

h₁

225

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 126.74 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X200

34714.W3004

d₁

M30

l₁

200

d₂

120

h₁

250

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 129.63 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X225

34714.W3005

d₁

M30

l₁

225

d₂

120

h₁

275

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 132.61 per unit (click for quantity discounts)

Levelling Feet- Stud & Pad - S/S M30X250

34714.W3006

d₁

M30

l₁

250

d₂

120

h₁

300

h₂

47

h₃

23.0

A/F

26

Load max. kN

65

£ 136.44 per unit (click for quantity discounts)



Select all

d₁

l₁

d₂

h₁

h₂

h₃

A/F

Load max. kN

Price & Availability	Article	d1	l1	d2	h1	h2	h3	A/F	Load max. kN
	34714.W1000	M10	25	50	56	28	16.0	14	15
£ 31.58 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 31.58 0% 20-49 £ 28.42 10% 50-99 £ 25.26 20% 100-499 £ 23.69 25% 500+ £ 20.53 35% d1 M10 l1 25 d2 50 h1 56 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1001	M10	50	50	81	28	16.0	14	15
£ 28.09 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 28.09 0% 20-49 £ 25.28 10% 50-99 £ 22.47 20% 100-499 £ 21.07 25% 500+ £ 18.26 35% d1 M10 l1 50 d2 50 h1 81 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1002	M10	75	50	106	28	16.0	14	15
£ 33.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 33.55 0% 20-49 £ 30.20 10% 50-99 £ 26.84 20% 100-499 £ 25.16 25% 500+ £ 21.81 35% d1 M10 l1 75 d2 50 h1 106 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1003	M10	100	50	131	28	16.0	14	15
£ 35.49 per unit (click for quantity discounts) Ready to despatch 32 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 35.49 0% 20-49 £ 31.94 10% 50-99 £ 28.39 20% 100-499 £ 26.62 25% 500+ £ 23.07 35% d1 M10 l1 100 d2 50 h1 131 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1004	M10	125	50	156	28	16.0	14	15
£ 37.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 37.43 0% 20-49 £ 33.69 10% 50-99 £ 29.94 20% 100-499 £ 28.07 25% 500+ £ 24.33 35% d1 M10 l1 125 d2 50 h1 156 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1200	M12	25	50	56	28	16.0	14	15
£ 30.22 per unit (click for quantity discounts) Ready to despatch 7 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 30.22 0% 20-49 £ 27.20 10% 50-99 £ 24.18 20% 100-499 £ 22.67 25% 500+ £ 19.64 35% d1 M12 l1 25 d2 50 h1 56 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1201	M12	50	50	81	28	16.0	14	15
£ 31.46 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 31.46 0% 20-49 £ 28.31 10% 50-99 £ 25.17 20% 100-499 £ 23.60 25% 500+ £ 20.45 35% d1 M12 l1 50 d2 50 h1 81 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1202	M12	75	50	106	28	16.0	14	15
£ 33.55 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 33.55 0% 20-49 £ 30.20 10% 50-99 £ 26.84 20% 100-499 £ 25.16 25% 500+ £ 21.81 35% d1 M12 l1 75 d2 50 h1 106 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1203	M12	100	50	131	28	16.0	14	15
£ 35.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 35.49 0% 20-49 £ 31.94 10% 50-99 £ 28.39 20% 100-499 £ 26.62 25% 500+ £ 23.07 35% d1 M12 l1 100 d2 50 h1 131 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1204	M12	125	50	156	28	16.0	14	15
£ 37.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 37.43 0% 20-49 £ 33.69 10% 50-99 £ 29.94 20% 100-499 £ 28.07 25% 500+ £ 24.33 35% d1 M12 l1 125 d2 50 h1 156 h2 28 h3 16.0 A/F 14 Load max. kN 15 more info »
	34714.W1400	M14	50	65	83	30	17.0	14	20
£ 38.05 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 38.05 0% 20-49 £ 34.25 10% 50-99 £ 30.44 20% 100-499 £ 28.54 25% 500+ £ 24.73 35% d1 M14 l1 50 d2 65 h1 83 h2 30 h3 17.0 A/F 14 Load max. kN 20 more info »
	34714.W1401	M14	75	65	108	30	17.0	14	20
£ 39.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 39.03 0% 20-49 £ 35.13 10% 50-99 £ 31.22 20% 100-499 £ 29.27 25% 500+ £ 25.37 35% d1 M14 l1 75 d2 65 h1 108 h2 30 h3 17.0 A/F 14 Load max. kN 20 more info »
	34714.W1402	M14	100	65	133	30	17.0	14	20
£ 40.07 per unit (click for quantity discounts) Ready to despatch 6 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 40.07 0% 20-49 £ 36.06 10% 50-99 £ 32.06 20% 100-499 £ 30.05 25% 500+ £ 26.05 35% d1 M14 l1 100 d2 65 h1 133 h2 30 h3 17.0 A/F 14 Load max. kN 20 more info »
	34714.W1403	M14	125	65	158	30	17.0	14	20
£ 30.45 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 30.45 0% 20-49 £ 27.41 10% 50-99 £ 24.36 20% 100-499 £ 22.84 25% 500+ £ 19.79 35% d1 M14 l1 125 d2 65 h1 158 h2 30 h3 17.0 A/F 14 Load max. kN 20 more info »
	34714.W1404	M14	150	65	183	30	17.0	14	20
£ 42.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 42.19 0% 20-49 £ 37.97 10% 50-99 £ 33.75 20% 100-499 £ 31.64 25% 500+ £ 27.42 35% d1 M14 l1 150 d2 65 h1 183 h2 30 h3 17.0 A/F 14 Load max. kN 20 more info »
	34714.W1600	M16	50	100	96	43	20.0	20	35
£ 78.30 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 78.30 0% 20-49 £ 70.47 10% 50-99 £ 62.64 20% 100-499 £ 58.73 25% 500+ £ 50.90 35% d1 M16 l1 50 d2 100 h1 96 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1601	M16	75	100	121	43	20.0	20	35
£ 84.44 per unit (click for quantity discounts) Ready to despatch 3 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 84.44 0% 20-49 £ 76.00 10% 50-99 £ 67.55 20% 100-499 £ 63.33 25% 500+ £ 54.89 35% d1 M16 l1 75 d2 100 h1 121 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1602	M16	100	100	146	43	20.0	20	35
£ 87.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 87.48 0% 20-49 £ 78.73 10% 50-99 £ 69.98 20% 100-499 £ 65.61 25% 500+ £ 56.86 35% d1 M16 l1 100 d2 100 h1 146 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1603	M16	125	100	171	43	20.0	20	35
£ 89.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 89.85 0% 20-49 £ 80.87 10% 50-99 £ 71.88 20% 100-499 £ 67.39 25% 500+ £ 58.40 35% d1 M16 l1 125 d2 100 h1 171 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1604	M16	150	100	196	43	20.0	20	35
£ 88.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 88.55 0% 20-49 £ 79.70 10% 50-99 £ 70.84 20% 100-499 £ 66.41 25% 500+ £ 57.56 35% d1 M16 l1 150 d2 100 h1 196 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1605	M16	175	100	221	43	20.0	20	35
£ 90.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 90.19 0% 20-49 £ 81.17 10% 50-99 £ 72.15 20% 100-499 £ 67.64 25% 500+ £ 58.62 35% d1 M16 l1 175 d2 100 h1 221 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W1606	M16	200	100	246	43	20.0	20	35
£ 99.31 per unit (click for quantity discounts) Ready to despatch 4 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 99.31 0% 20-49 £ 89.38 10% 50-99 £ 79.45 20% 100-499 £ 74.48 25% 500+ £ 64.55 35% d1 M16 l1 200 d2 100 h1 246 h2 43 h3 20.0 A/F 20 Load max. kN 35 more info »
	34714.W2000	M20	75	100	121	43	20.0	20	45
£ 80.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 80.80 0% 20-49 £ 72.72 10% 50-99 £ 64.64 20% 100-499 £ 60.60 25% 500+ £ 52.52 35% d1 M20 l1 75 d2 100 h1 121 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2001	M20	100	100	146	43	20.0	20	45
£ 78.15 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 78.15 0% 20-49 £ 70.34 10% 50-99 £ 62.52 20% 100-499 £ 58.61 25% 500+ £ 50.80 35% d1 M20 l1 100 d2 100 h1 146 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2002	M20	125	100	171	43	20.0	20	45
£ 85.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 85.98 0% 20-49 £ 77.38 10% 50-99 £ 68.78 20% 100-499 £ 64.49 25% 500+ £ 55.89 35% d1 M20 l1 125 d2 100 h1 171 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2003	M20	150	100	196	43	20.0	20	45
£ 88.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 88.55 0% 20-49 £ 79.70 10% 50-99 £ 70.84 20% 100-499 £ 66.41 25% 500+ £ 57.56 35% d1 M20 l1 150 d2 100 h1 196 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2004	M20	175	100	221	43	20.0	20	45
£ 90.19 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 90.19 0% 20-49 £ 81.17 10% 50-99 £ 72.15 20% 100-499 £ 67.64 25% 500+ £ 58.62 35% d1 M20 l1 175 d2 100 h1 221 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2005	M20	200	100	246	43	20.0	20	45
£ 95.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 95.03 0% 20-49 £ 85.53 10% 50-99 £ 76.02 20% 100-499 £ 71.27 25% 500+ £ 61.77 35% d1 M20 l1 200 d2 100 h1 246 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2006	M20	225	100	271	43	20.0	20	45
£ 97.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 97.81 0% 20-49 £ 88.03 10% 50-99 £ 78.25 20% 100-499 £ 73.36 25% 500+ £ 63.58 35% d1 M20 l1 225 d2 100 h1 271 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2007	M20	250	100	296	43	20.0	20	45
£ 101.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 101.26 0% 20-49 £ 91.13 10% 50-99 £ 81.01 20% 100-499 £ 75.95 25% 500+ £ 65.82 35% d1 M20 l1 250 d2 100 h1 296 h2 43 h3 20.0 A/F 20 Load max. kN 45 more info »
	34714.W2400	M24	75	100	122	44	20.0	20	55
£ 80.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 80.80 0% 20-49 £ 72.72 10% 50-99 £ 64.64 20% 100-499 £ 60.60 25% 500+ £ 52.52 35% d1 M24 l1 75 d2 100 h1 122 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2401	M24	100	100	147	44	20.0	20	55
£ 83.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 83.71 0% 20-49 £ 75.34 10% 50-99 £ 66.97 20% 100-499 £ 62.78 25% 500+ £ 54.41 35% d1 M24 l1 100 d2 100 h1 147 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2402	M24	125	100	172	44	20.0	20	55
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   d1 M24 l1 125 d2 100 h1 172 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2403	M24	150	100	202	44	20.0	20	55
£ 92.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 92.54 0% 20-49 £ 83.29 10% 50-99 £ 74.03 20% 100-499 £ 69.41 25% 500+ £ 60.15 35% d1 M24 l1 150 d2 100 h1 202 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2404	M24	175	100	222	44	20.0	20	55
£ 90.19 per unit (click for quantity discounts) Ready to despatch 131 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 90.19 0% 20-49 £ 81.17 10% 50-99 £ 72.15 20% 100-499 £ 67.64 25% 500+ £ 58.62 35% d1 M24 l1 175 d2 100 h1 222 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2405	M24	200	100	247	44	20.0	20	55
£ 95.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 95.03 0% 20-49 £ 85.53 10% 50-99 £ 76.02 20% 100-499 £ 71.27 25% 500+ £ 61.77 35% d1 M24 l1 200 d2 100 h1 247 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2406	M24	225	100	272	44	20.0	20	55
£ 97.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 97.81 0% 20-49 £ 88.03 10% 50-99 £ 78.25 20% 100-499 £ 73.36 25% 500+ £ 63.58 35% d1 M24 l1 225 d2 100 h1 272 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W2407	M24	250	100	297	44	20.0	20	55
£ 101.26 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 101.26 0% 20-49 £ 91.13 10% 50-99 £ 81.01 20% 100-499 £ 75.95 25% 500+ £ 65.82 35% d1 M24 l1 250 d2 100 h1 297 h2 44 h3 20.0 A/F 20 Load max. kN 55 more info »
	34714.W3000	M30	100	120	150	47	23.0	26	65
£ 121.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 121.81 0% 20-49 £ 109.63 10% 50-99 £ 97.45 20% 100-499 £ 91.36 25% 500+ £ 79.18 35% d1 M30 l1 100 d2 120 h1 150 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3001	M30	125	120	175	47	23.0	26	65
£ 119.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 119.59 0% 20-49 £ 107.63 10% 50-99 £ 95.67 20% 100-499 £ 89.69 25% 500+ £ 77.73 35% d1 M30 l1 125 d2 120 h1 175 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3002	M30	150	120	200	47	23.0	26	65
£ 123.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 123.76 0% 20-49 £ 111.38 10% 50-99 £ 99.01 20% 100-499 £ 92.82 25% 500+ £ 80.44 35% d1 M30 l1 150 d2 120 h1 200 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3003	M30	175	120	225	47	23.0	26	65
£ 126.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 126.74 0% 20-49 £ 114.07 10% 50-99 £ 101.39 20% 100-499 £ 95.06 25% 500+ £ 82.38 35% d1 M30 l1 175 d2 120 h1 225 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3004	M30	200	120	250	47	23.0	26	65
£ 129.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 129.63 0% 20-49 £ 116.67 10% 50-99 £ 103.70 20% 100-499 £ 97.22 25% 500+ £ 84.26 35% d1 M30 l1 200 d2 120 h1 250 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3005	M30	225	120	275	47	23.0	26	65
£ 132.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 132.61 0% 20-49 £ 119.35 10% 50-99 £ 106.09 20% 100-499 £ 99.46 25% 500+ £ 86.20 35% d1 M30 l1 225 d2 120 h1 275 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
	34714.W3006	M30	250	120	300	47	23.0	26	65
£ 136.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-19 £ 136.44 0% 20-49 £ 122.80 10% 50-99 £ 109.15 20% 100-499 £ 102.33 25% 500+ £ 88.69 35% d1 M30 l1 250 d2 120 h1 300 h2 47 h3 23.0 A/F 26 Load max. kN 65 more info »
