Coolant Nozzles
pressure max - angled
20101 Pressure Max - Coolant Nozzles
straight - max. 100 bar, material: Stainless steel
Alternative products you may wish to consider

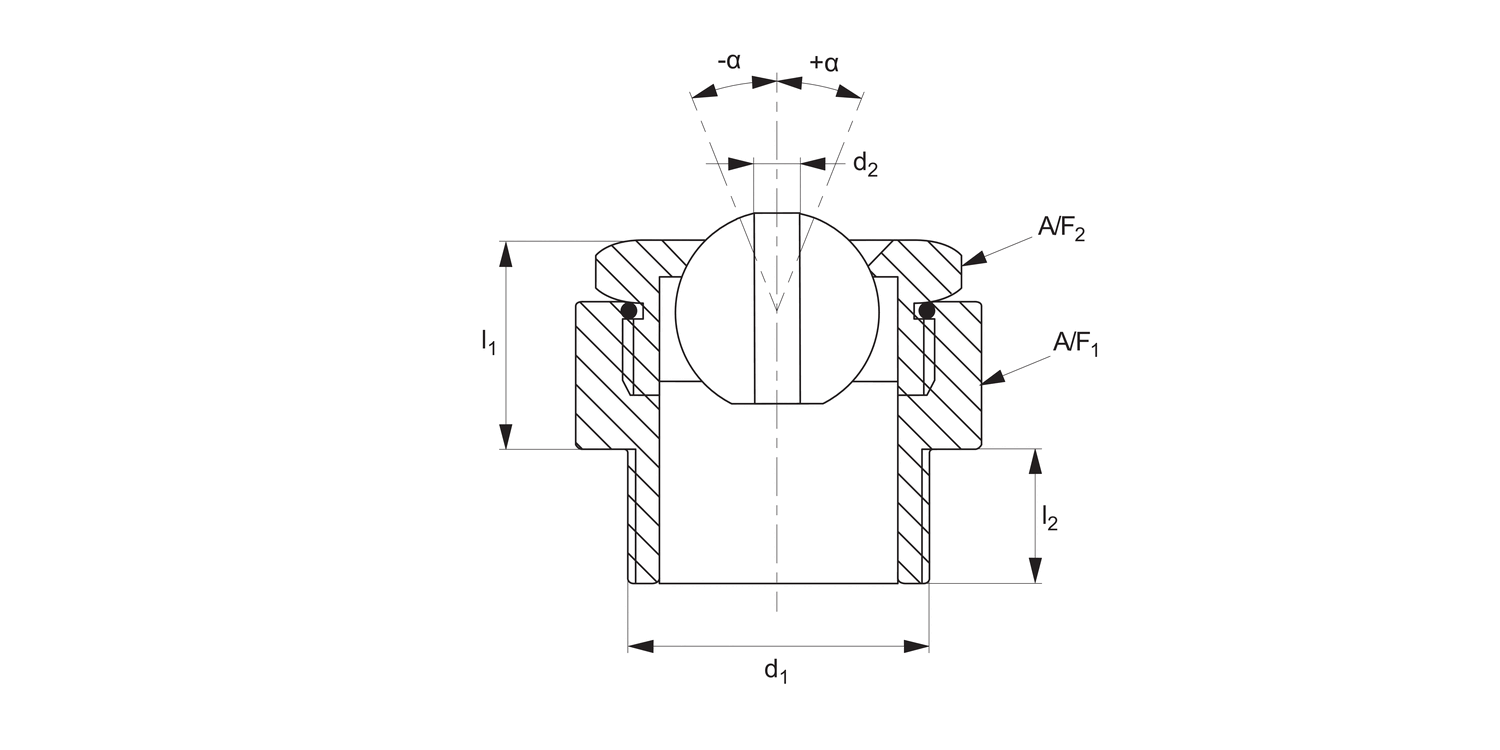

Type
Metric fine
A/F1
7/16"
d1
M10x1,25
d2
1.6
l1
9.5
l2
9.1
A/F2
3/8"
α
°
±40°
£ 69.83 per unit (click for quantity discounts)
Type
Metric fine
A/F1
7/16"
d1
M10x1,25
d2
2.2
l1
9.5
l2
9.1
A/F2
3/8"
α
°
±36°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M 6x1,00
d2
1.6
l1
9.5
l2
7.6
A/F2
3/8"
α
°
±40°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M 6x1,00
d2
2.2
l1
9.5
l2
7.6
A/F2
3/8"
α
°
±36°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M 8x1,25
d2
1.6
l1
9.5
l2
8.4
A/F2
3/8"
α
°
±40°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M 8x1,25
d2
2.2
l1
9.5
l2
8.4
A/F2
3/8"
α
°
±36°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M10x1,50
d2
1.6
l1
9.5
l2
9.1
A/F2
3/8"
α
°
±40°
£ 69.83 per unit (click for quantity discounts)
Type
Metric coarse
A/F1
7/16"
d1
M10x1,50
d2
2.2
l1
9.5
l2
9.1
A/F2
3/8"
α
°
±36°
£ 71.49 per unit (click for quantity discounts)
Type
A/F1
d1
d2
l1
l2
A/F2
α
°
| Price & Availability | Article | Type | A/F1 | d1 | d2 | l1 | l2 | A/F2 | α ° | ||||||||||||||||||
| 20101.W0100 | Metric fine | 7/16" | M10x1,25 | 1.6 | 9.5 | 9.1 | 3/8" | ±40° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric fine A/F1 7/16" d1 M10x1,25 d2 1.6 l1 9.5 l2 9.1 A/F2 3/8" α
° ±40° | |||||||||||||||||||||||||||
| 20101.W0101 | Metric fine | 7/16" | M10x1,25 | 2.2 | 9.5 | 9.1 | 3/8" | ±36° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric fine A/F1 7/16" d1 M10x1,25 d2 2.2 l1 9.5 l2 9.1 A/F2 3/8" α
° ±36° | |||||||||||||||||||||||||||
| 20101.W1060 | Metric coarse | 7/16" | M 6x1,00 | 1.6 | 9.5 | 7.6 | 3/8" | ±40° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M 6x1,00 d2 1.6 l1 9.5 l2 7.6 A/F2 3/8" α
° ±40° | |||||||||||||||||||||||||||
| 20101.W1061 | Metric coarse | 7/16" | M 6x1,00 | 2.2 | 9.5 | 7.6 | 3/8" | ±36° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M 6x1,00 d2 2.2 l1 9.5 l2 7.6 A/F2 3/8" α
° ±36° | |||||||||||||||||||||||||||
| 20101.W1080 | Metric coarse | 7/16" | M 8x1,25 | 1.6 | 9.5 | 8.4 | 3/8" | ±40° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M 8x1,25 d2 1.6 l1 9.5 l2 8.4 A/F2 3/8" α
° ±40° | |||||||||||||||||||||||||||
| 20101.W1081 | Metric coarse | 7/16" | M 8x1,25 | 2.2 | 9.5 | 8.4 | 3/8" | ±36° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M 8x1,25 d2 2.2 l1 9.5 l2 8.4 A/F2 3/8" α
° ±36° | |||||||||||||||||||||||||||
| 20101.W1100 | Metric coarse | 7/16" | M10x1,50 | 1.6 | 9.5 | 9.1 | 3/8" | ±40° | |||||||||||||||||||
£ 69.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M10x1,50 d2 1.6 l1 9.5 l2 9.1 A/F2 3/8" α
° ±40° | |||||||||||||||||||||||||||
| 20101.W1101 | Metric coarse | 7/16" | M10x1,50 | 2.2 | 9.5 | 9.1 | 3/8" | ±36° | |||||||||||||||||||
£ 71.49 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Metric coarse A/F1 7/16" d1 M10x1,50 d2 2.2 l1 9.5 l2 9.1 A/F2 3/8" α
° ±36° | |||||||||||||||||||||||||||
Technical & Application
Material
Body: stainless steel.
Ball: stainless steel.
Technical Notes
Max. temperature: 70ºC.
Max. pressure: 100 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Choose the stainless steel body version when using cutting oils not compatible with brass (such as oils containing active sulphur).
Tips
Interchangeable spray tips available allowing the orifice diameter and extension length to be easily changed to suit the application.
A high velocity coolant stream increases productivity and tool life.
Also useful for low pressure applications where abrasive swarf can be a problem.
