Eccentric Clamps
side action

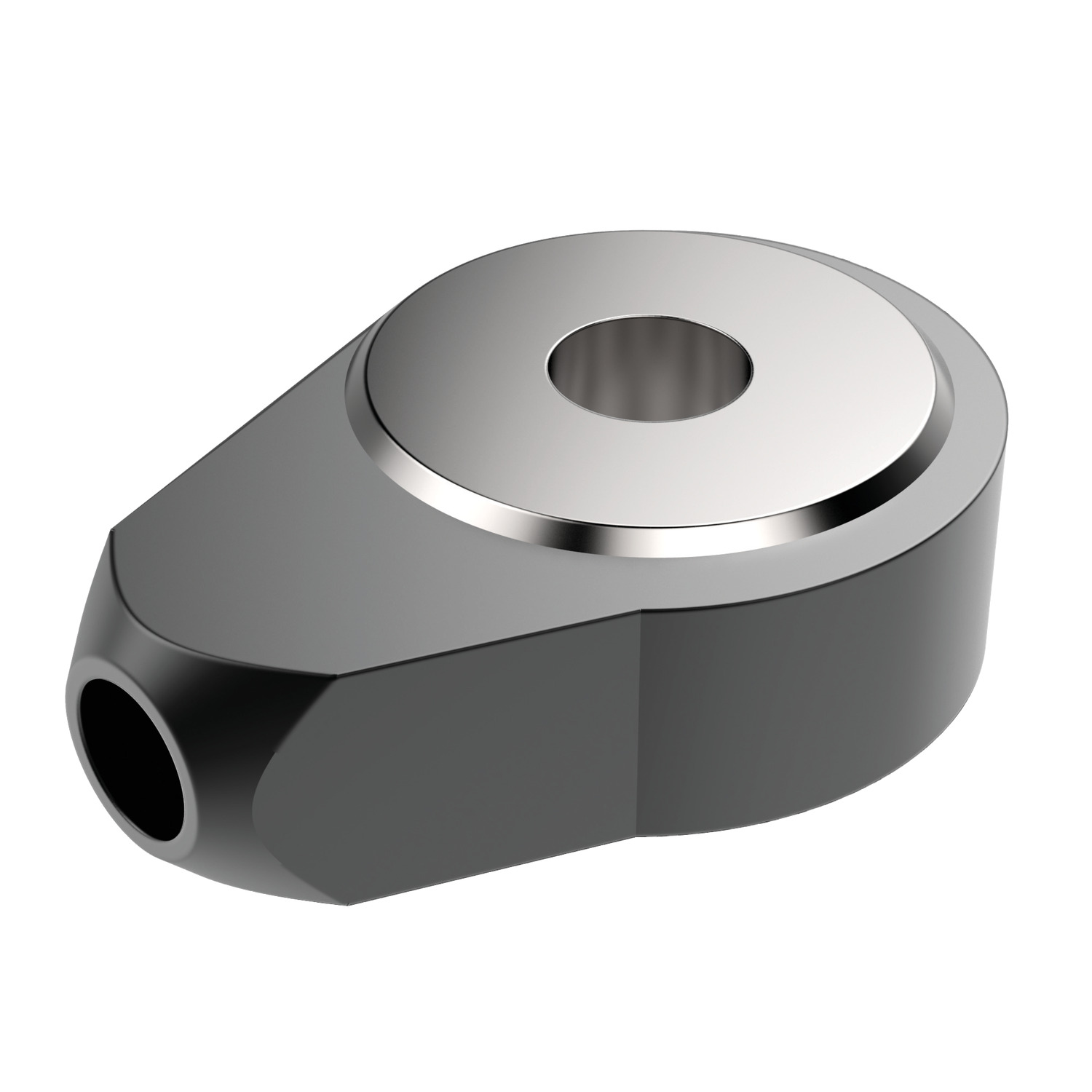

12505 Eccentric Side Clamps
with shaft location, material: Steel
Order No.
12505.W0220

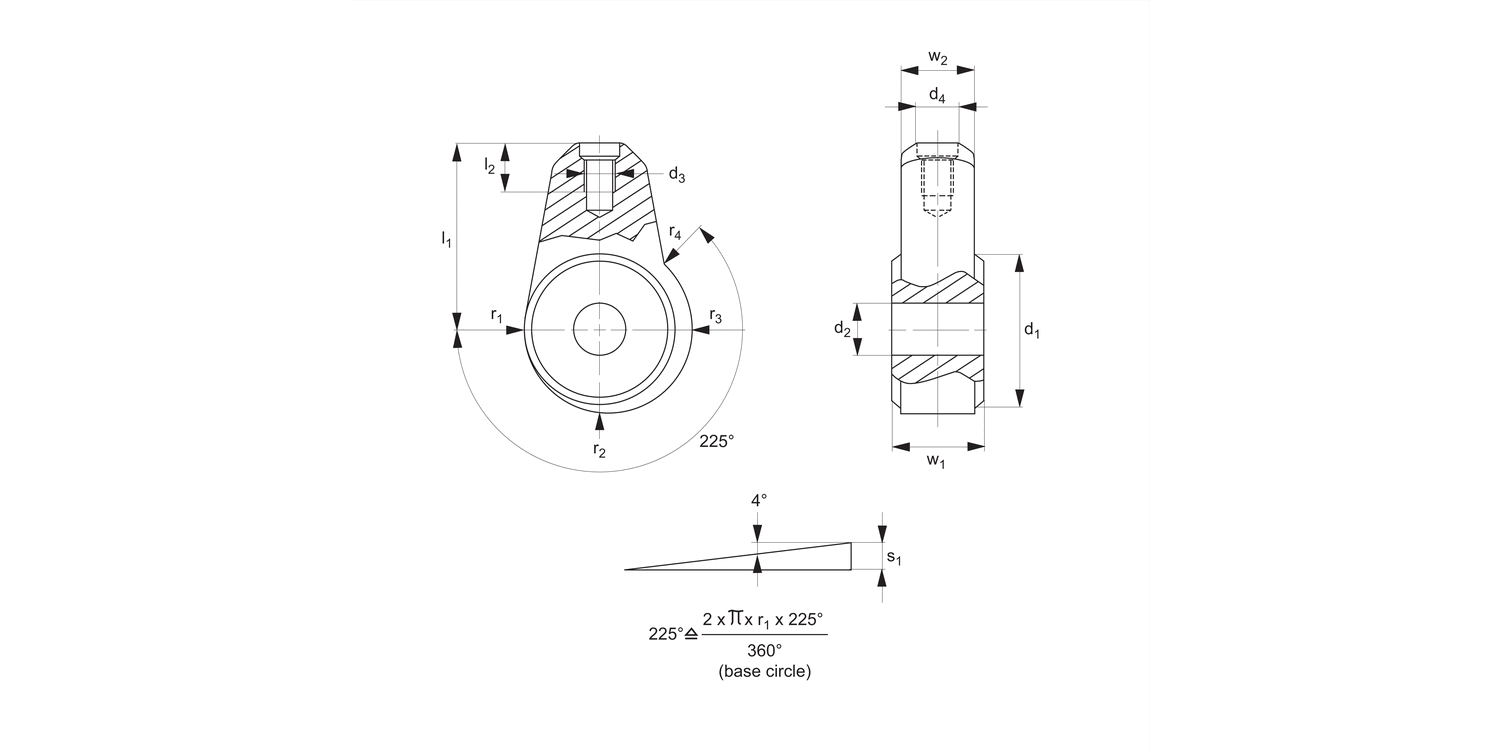

w1
-0.05|-0.15
15
w2
13
l1
32
d1
30
d2
tol. h9
10
d3
M 8
d4 Corres. handle dia. 74600
10
l2
12
r1
15.0
r2
16.7
R3
18.3
r4
19.1
Stroke s1
4.1
Weight
g
100
£ 20.33 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 20.33 | 0% |
| 10-19 | £ 18.30 | 10% |
| 20-49 | £ 17.28 | 15% |
| 50-99 | £ 16.26 | 20% |
| 100+ | £ 15.25 | 25% |
Technical & Application
Material
Body: sintered steel, case hardened.
Technical Notes
These eccentric clamps provide constant clamping force and are self-locking in any position. Use in conjunction with gear lever handle part 74600.
