Adj. Plain Clamps
with adjusting screw
10592.2 Height Adapters
for compact clamp 10592.W0012 and .W0016, material: Steel, heat-treated
Order No.
10592.W0112
d1
M12
h1
20
l1
134
l2
+1
70
l3
50
l4
13
w1
45
w2
tol. H12
14
Weight
g
874
£ 167.28 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 167.28 | 0% |
| 10-19 | £ 150.55 | 10% |
| 20-49 | £ 142.19 | 15% |
| 50-99 | £ 133.82 | 20% |
| 100+ | £ 117.10 | 30% |
Technical & Application
Material
Steel, heat-treated, black coated.
Technical Notes
The height adapter for compact clamps allows a clamping height increase.
Tips
When using multiple height adapters, the screws ISO 10642 or DIN 7984 have to be replaced by screws extended by the dimension h1.
Product Datasheets

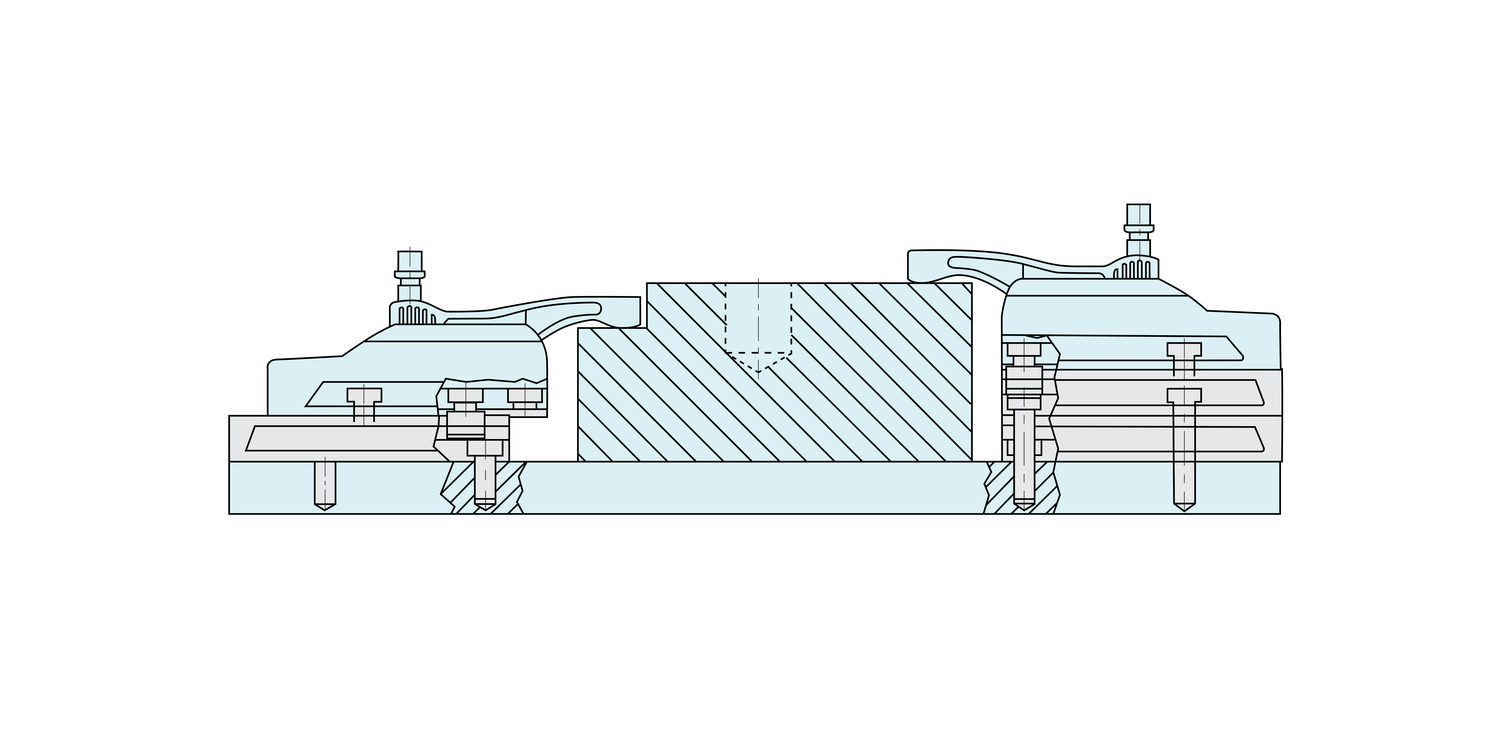

Application images
