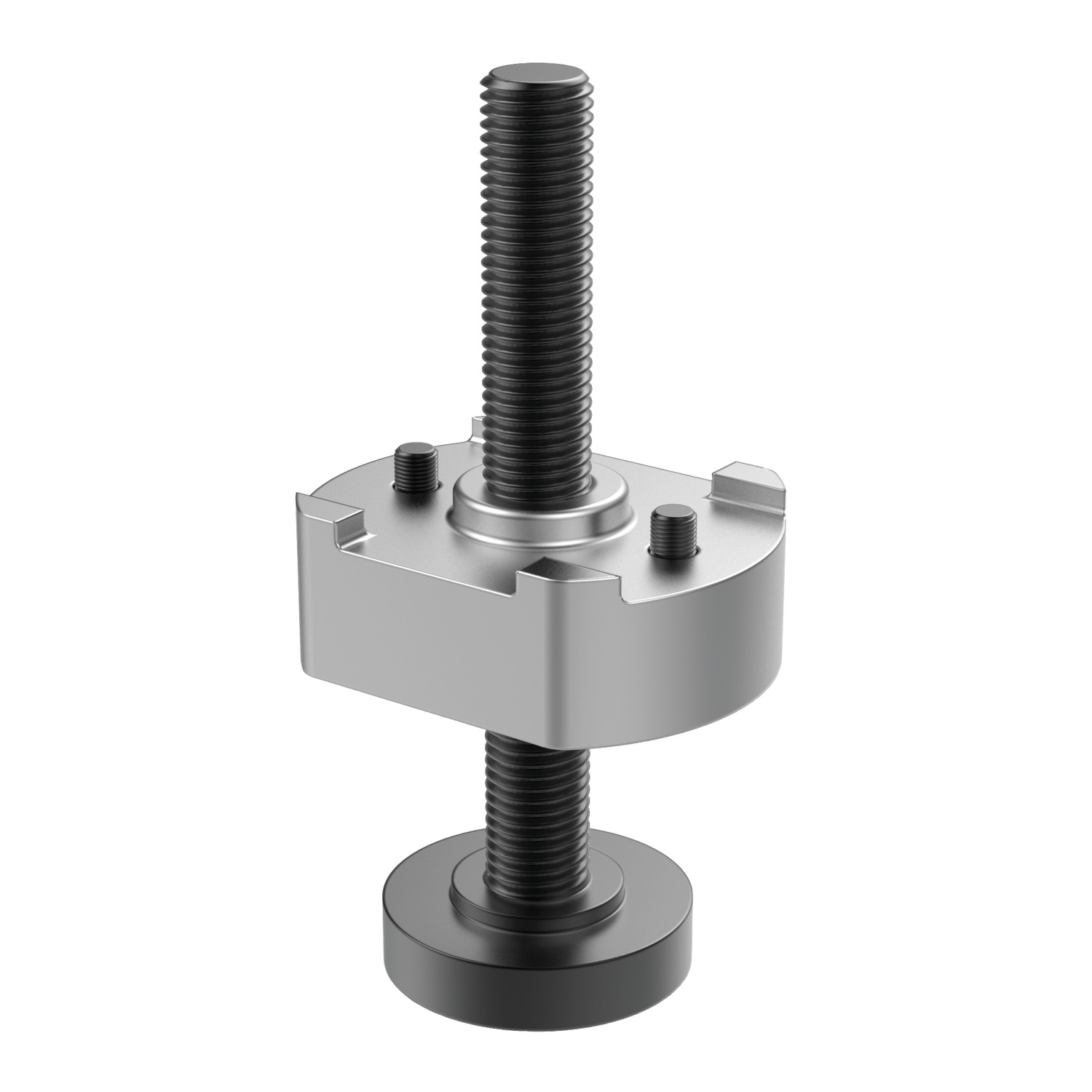

10604 Support Extension
for crocodile clamp 10603, material: Steel
Alternative products you may wish to consider
£ 28.63 per unit (click for quantity discounts)
£ 44.71 per unit (click for quantity discounts)
£ 54.80 per unit (click for quantity discounts)
£ 55.88 per unit (click for quantity discounts)
£ 65.84 per unit (click for quantity discounts)
£ 80.37 per unit (click for quantity discounts)

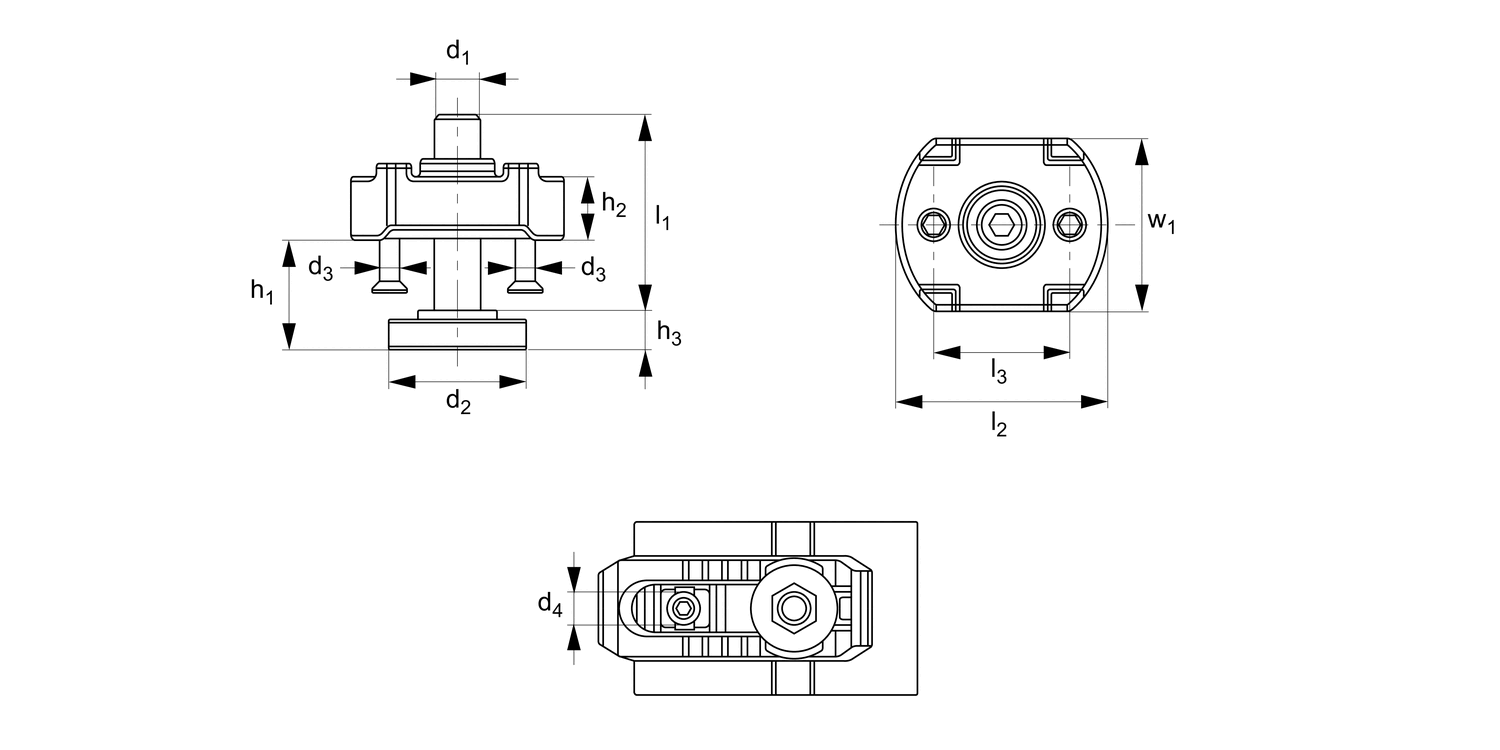

d1 x l1
M20x109
d2
50
d3
M 6
d4
25
h1
min.|max.
16-91
h2
25
h3
16
l2
70
l3
50
w1
50
Weight
g
1396
£ 100.26 per unit (click for quantity discounts)
d1 x l1
d2
d3
d4
h1
min.|max.
h2
h3
l2
l3
w1
Weight
g
| Price & Availability | Article | d1 x l1 | d2 | d3 | d4 | h1 min.|max. | h2 | h3 | l2 | l3 | w1 | Weight g | |||||||||||||||
| 10604.W0010 | M10x39 | 30 | M 5 | 13 | 8-30 | 10 | 8 | 44 | 30 | 30 | 197 | ||||||||||||||||
£ 28.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M10x39 d2 30 d3 M 5 d4 13 h1
min.|max. 8-30 h2 10 h3 8 l2 44 l3 30 w1 30 Weight
g 197 | |||||||||||||||||||||||||||
| 10604.W0016 | M12x49 | 36 | M 5 | 17 | 10-37 | 16 | 10 | 54 | 35 | 42 | 433 | ||||||||||||||||
£ 44.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x49 d2 36 d3 M 5 d4 17 h1
min.|max. 10-37 h2 16 h3 10 l2 54 l3 35 w1 42 Weight
g 433 | |||||||||||||||||||||||||||
| 10604.W0018 | M12x94 | 36 | M 5 | 17 | 10-80 | 16 | 10 | 54 | 35 | 42 | 473 | ||||||||||||||||
£ 54.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M12x94 d2 36 d3 M 5 d4 17 h1
min.|max. 10-80 h2 16 h3 10 l2 54 l3 35 w1 42 Weight
g 473 | |||||||||||||||||||||||||||
| 10604.W0020 | M16x55 | 42 | M 5 | 21 | 13-41 | 20 | 13 | 60 | 40 | 50 | 608 | ||||||||||||||||
£ 55.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x55 d2 42 d3 M 5 d4 21 h1
min.|max. 13-41 h2 20 h3 13 l2 60 l3 40 w1 50 Weight
g 608 | |||||||||||||||||||||||||||
| 10604.W0022 | M16x90 | 42 | M 5 | 21 | 13-73 | 20 | 13 | 60 | 40 | 50 | 640 | ||||||||||||||||
£ 65.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M16x90 d2 42 d3 M 5 d4 21 h1
min.|max. 13-73 h2 20 h3 13 l2 60 l3 40 w1 50 Weight
g 640 | |||||||||||||||||||||||||||
| 10604.W0025 | M20x69 | 50 | M 6 | 25 | 16-52 | 25 | 16 | 70 | 50 | 50 | 1136 | ||||||||||||||||
£ 80.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x69 d2 50 d3 M 6 d4 25 h1
min.|max. 16-52 h2 25 h3 16 l2 70 l3 50 w1 50 Weight
g 1136 | |||||||||||||||||||||||||||
| 10604.W0027 | M20x109 | 50 | M 6 | 25 | 16-91 | 25 | 16 | 70 | 50 | 50 | 1396 | ||||||||||||||||
£ 100.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 x l1 M20x109 d2 50 d3 M 6 d4 25 h1
min.|max. 16-91 h2 25 h3 16 l2 70 l3 50 w1 50 Weight
g 1396 | |||||||||||||||||||||||||||
Technical & Application
Material
Body and support screw: steel, zinc plated and hardened. Strength class 8.8.
Technical Notes
The support extension is screwed to the counterhold of the crocodile clamp to increase the clamping height.
Tips
Allows continuous adjustment of clamping heights.
