10604 Support Extension

Name: 10604.W0022
Brand: WC
SKU: 10604.W0022
Price: 65.84 EUR
Availability: OutOfStock

for crocodile clamp 10603, material: Steel

Article properties

Order No.

10604.W0022

d₁ x l₁

M16x90

d₂

d₃

M 5

d₄

h₁ min.|max.

13-73

h₂

h₃

l₂

l₃

w₁

Weight g

640

See full product selection

£ 65.84 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 65.84	0%
5-14	£ 59.26	10%
15-24	£ 55.96	15%
25+	£ 52.67	20%

Download product datasheet

Technical & Application

Material

Body and support screw: steel, zinc plated and hardened. Strength class 8.8.

Technical Notes

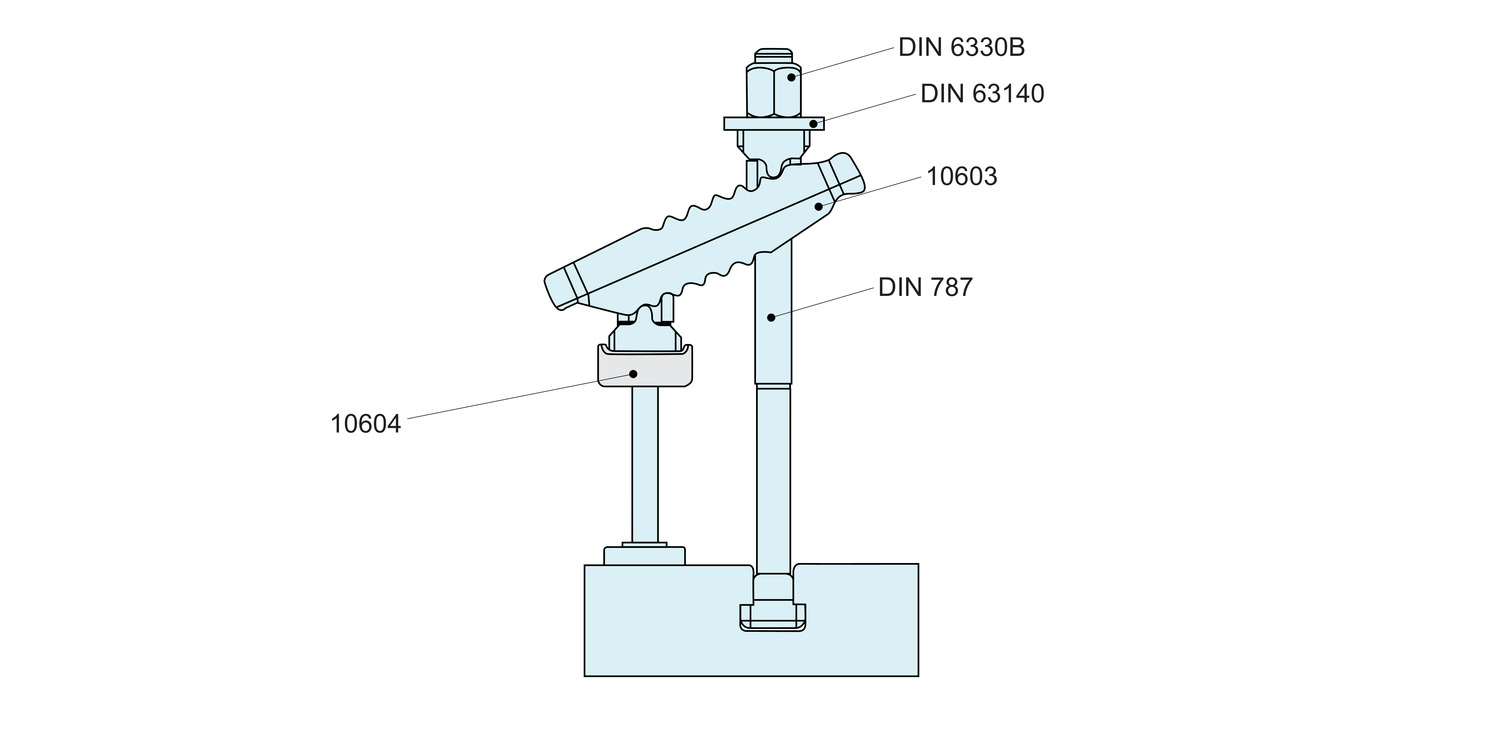

The support extension is screwed to the counterhold of the crocodile clamp to increase the clamping height.

Tips

Allows continuous adjustment of clamping heights.

Product Datasheets

10604 Support ExtensionJanuary 3, 2025, 2:55 PM / 95.76 kB

Standard Over Clamps - AdjustableJanuary 3, 2025, 3:47 PM / 1.31 MB

Standard Manual ClampingJanuary 3, 2025, 3:47 PM / 4.00 MB

Manual Clamping & Height SettingJanuary 3, 2025, 3:47 PM / 30.87 MB

Work HoldingJanuary 3, 2025, 3:46 PM / 61.72 MB

Application images
