Adj. Plain Clamps
with adjusting screw

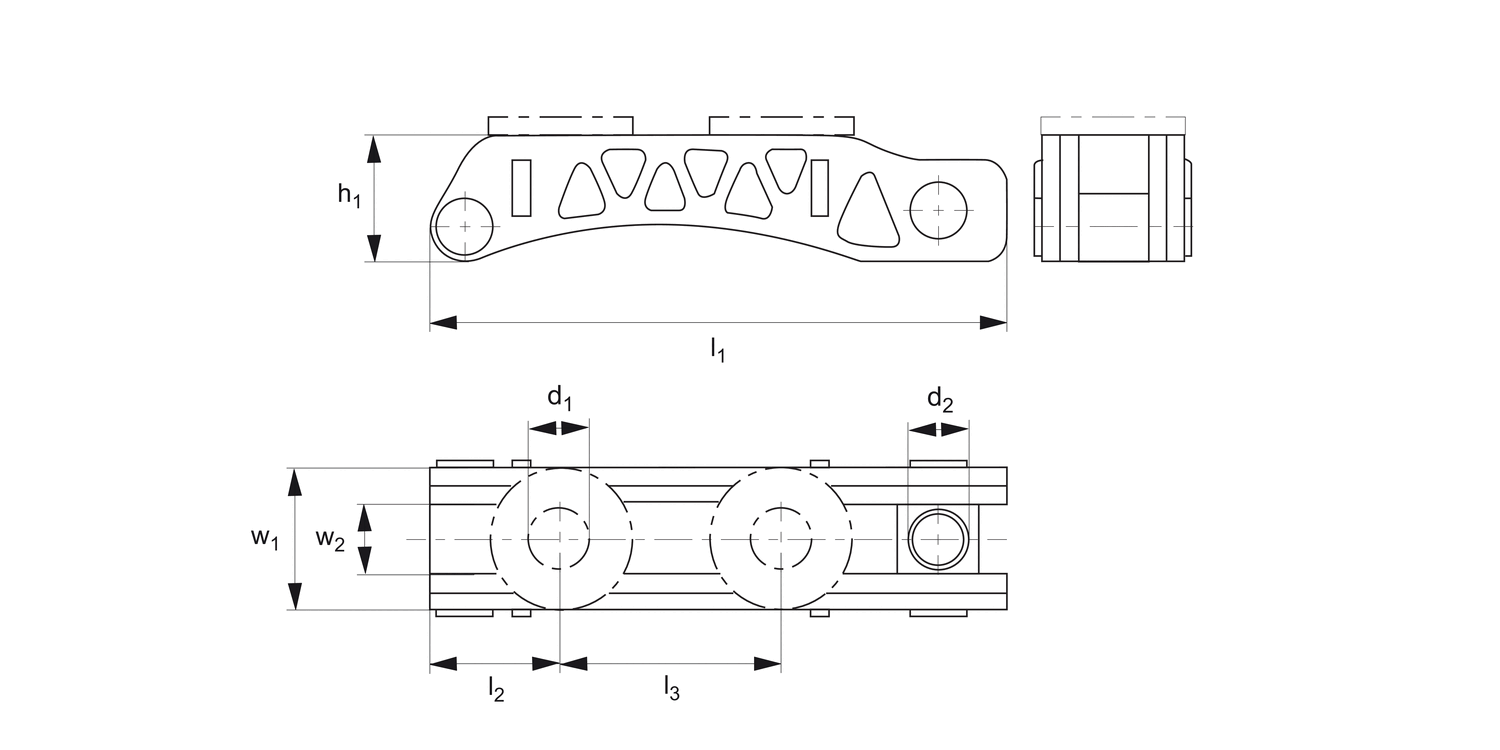

10610.1 Scalloped Clamp
light design, material: Steel
Alternative products you may wish to consider
Size
22
For clamping screw
M20, M22
d1
22
d2
M20
h1
44
l1
200
l2
45
l3
77
w1
49
w2
25
Weight
g
1289
£ 114.05 per unit (click for quantity discounts)
Size
26
For clamping screw
M24
d1
26
d2
M24
h1
44
l1
250
l2
46
l3
116
w1
54
w2
30
Weight
g
1630
£ 121.70 per unit (click for quantity discounts)
Size
33
For clamping screw
M30
d1
33
d2
M30
h1
71
l1
315
l2
59
l3
152
w1
72
w2
40
Weight
g
4522
£ 176.03 per unit (click for quantity discounts)
Size
43
For clamping screw
M36, M42
d1
43
d2
M30
h1
80
l1
400
l2
74
l3
209
w1
102
w2
54
Weight
g
9709
£ 304.60 per unit (click for quantity discounts)
Size
For clamping screw
d1
d2
h1
l1
l2
l3
w1
w2
Weight
g
| Price & Availability | Article | Size | For clamping screw | d1 | d2 | h1 | l1 | l2 | l3 | w1 | w2 | Weight g | ||||||||||||||||||
| 10610.W0022 | 22 | M20, M22 | 22 | M20 | 44 | 200 | 45 | 77 | 49 | 25 | 1289 | |||||||||||||||||||
£ 114.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 22 For clamping screw M20, M22 d1 22 d2 M20 h1 44 l1 200 l2 45 l3 77 w1 49 w2 25 Weight
g 1289 | ||||||||||||||||||||||||||||||
| 10610.W0026 | 26 | M24 | 26 | M24 | 44 | 250 | 46 | 116 | 54 | 30 | 1630 | |||||||||||||||||||
£ 121.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 26 For clamping screw M24 d1 26 d2 M24 h1 44 l1 250 l2 46 l3 116 w1 54 w2 30 Weight
g 1630 | ||||||||||||||||||||||||||||||
| 10610.W0033 | 33 | M30 | 33 | M30 | 71 | 315 | 59 | 152 | 72 | 40 | 4522 | |||||||||||||||||||
£ 176.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 33 For clamping screw M30 d1 33 d2 M30 h1 71 l1 315 l2 59 l3 152 w1 72 w2 40 Weight
g 4522 | ||||||||||||||||||||||||||||||
| 10610.W0043 | 43 | M36, M42 | 43 | M30 | 80 | 400 | 74 | 209 | 102 | 54 | 9709 | |||||||||||||||||||
£ 304.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 43 For clamping screw M36, M42 d1 43 d2 M30 h1 80 l1 400 l2 74 l3 209 w1 102 w2 54 Weight
g 9709 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, tempered and burnished.
Technical Notes
The weight saving device allows a 50% reduction in weight with no effect on clamping force that can be applied. Useful for rotating applications.
Tips
For clamping, T-bolts no. 21000 (DIN 787), studs no. 21100 (DIN 6379) and cheese head screws (ISO 4762) can be used.
