Adj. Plain Clamps
with adjusting screw

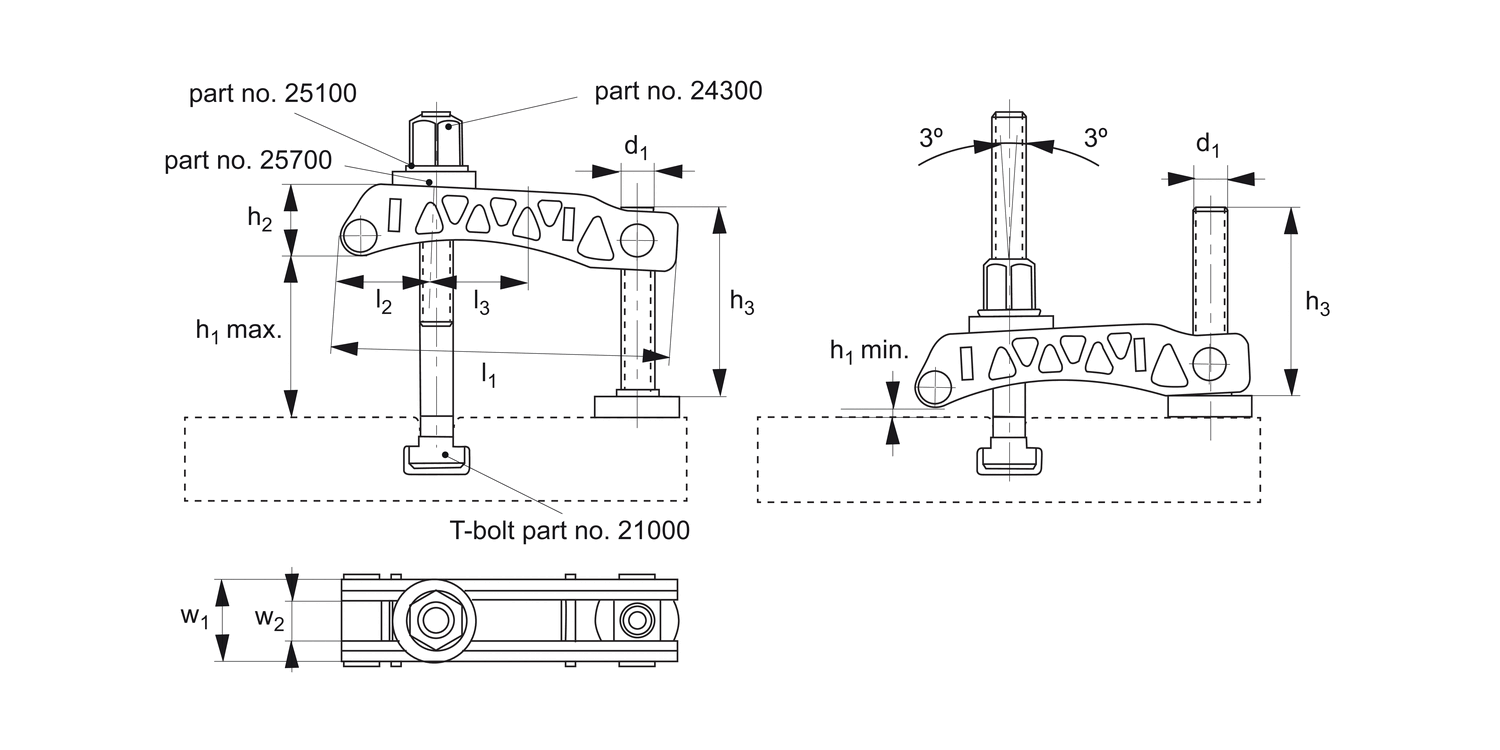

10610.2 Scalloped Clamp
with adjustable support screw, material: Steel
Alternative products you may wish to consider
Size
22
For T-slot
20
With T-bolt
M20x20x160
d1 x h2
M20x69
h1
min.|max.
8-58
h3
44
l1
200
l2
45
l3
77
w1
49
w2
25
Weight
g
2434
£ 188.28 per unit (click for quantity discounts)
Size
22
For T-slot
20
With T-bolt
M20x20x200
d1 x h2
M20x109
h1
min.|max.
8-98
h3
44
l1
200
l2
45
l3
77
w1
49
w2
25
Weight
g
2531
£ 192.86 per unit (click for quantity discounts)
Size
26
For T-slot
24
With T-bolt
M24x28x200
d1 x h2
M24x87
h1
min.|max.
10-81
h3
44
l1
250
l2
46
l3
116
w1
54
w2
30
Weight
g
3779
£ 211.26 per unit (click for quantity discounts)
Size
26
For T-slot
24
With T-bolt
M24x28x250
d1 x h2
M24x137
h1
min.|max.
10-130
h3
44
l1
250
l2
59
l3
116
w1
54
w2
30
Weight
g
3884
£ 240.31 per unit (click for quantity discounts)
Size
33
For T-slot
36
With T-bolt
M30x36x315
d1 x h2
M30x180
h1
min.|max.
7-214
h3
71
l1
315
l2
59
l3
152
w1
72
w2
40
Weight
g
9044
£ 417.87 per unit (click for quantity discounts)
Size
43
For T-slot
48
With T-bolt
M36x42x400
d1 x h2
M30x180
h1
min.|max.
7-153
h3
80
l1
400
l2
74
l3
209
w1
102
w2
54
Weight
g
17560
£ 788.29 per unit (click for quantity discounts)
Size
For T-slot
With T-bolt
d1 x h2
h1
min.|max.
h3
l1
l2
l3
w1
w2
Weight
g
| Price & Availability | Article | Size | For T-slot | With T-bolt | d1 x h2 | h1 min.|max. | h3 | l1 | l2 | l3 | w1 | w2 | Weight g | ||||||||||||||||||
| 10610.W0122 | 22 | 20 | M20x20x160 | M20x69 | 8-58 | 44 | 200 | 45 | 77 | 49 | 25 | 2434 | |||||||||||||||||||
£ 188.28 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 22 For T-slot 20 With T-bolt M20x20x160 d1 x h2 M20x69 h1
min.|max. 8-58 h3 44 l1 200 l2 45 l3 77 w1 49 w2 25 Weight
g 2434 | |||||||||||||||||||||||||||||||
| 10610.W0123 | 22 | 20 | M20x20x200 | M20x109 | 8-98 | 44 | 200 | 45 | 77 | 49 | 25 | 2531 | |||||||||||||||||||
£ 192.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 22 For T-slot 20 With T-bolt M20x20x200 d1 x h2 M20x109 h1
min.|max. 8-98 h3 44 l1 200 l2 45 l3 77 w1 49 w2 25 Weight
g 2531 | |||||||||||||||||||||||||||||||
| 10610.W0126 | 26 | 24 | M24x28x200 | M24x87 | 10-81 | 44 | 250 | 46 | 116 | 54 | 30 | 3779 | |||||||||||||||||||
£ 211.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 26 For T-slot 24 With T-bolt M24x28x200 d1 x h2 M24x87 h1
min.|max. 10-81 h3 44 l1 250 l2 46 l3 116 w1 54 w2 30 Weight
g 3779 | |||||||||||||||||||||||||||||||
| 10610.W0127 | 26 | 24 | M24x28x250 | M24x137 | 10-130 | 44 | 250 | 59 | 116 | 54 | 30 | 3884 | |||||||||||||||||||
£ 240.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 26 For T-slot 24 With T-bolt M24x28x250 d1 x h2 M24x137 h1
min.|max. 10-130 h3 44 l1 250 l2 59 l3 116 w1 54 w2 30 Weight
g 3884 | |||||||||||||||||||||||||||||||
| 10610.W0133 | 33 | 36 | M30x36x315 | M30x180 | 7-214 | 71 | 315 | 59 | 152 | 72 | 40 | 9044 | |||||||||||||||||||
£ 417.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 33 For T-slot 36 With T-bolt M30x36x315 d1 x h2 M30x180 h1
min.|max. 7-214 h3 71 l1 315 l2 59 l3 152 w1 72 w2 40 Weight
g 9044 | |||||||||||||||||||||||||||||||
| 10610.W0143 | 43 | 48 | M36x42x400 | M30x180 | 7-153 | 80 | 400 | 74 | 209 | 102 | 54 | 17560 | |||||||||||||||||||
£ 788.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 43 For T-slot 48 With T-bolt M36x42x400 d1 x h2 M30x180 h1
min.|max. 7-153 h3 80 l1 400 l2 74 l3 209 w1 102 w2 54 Weight
g 17560 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, tempered and burnished.
Technical Notes
The weight saving device allows a 50% reduction in weight with no effect on clamping force that can be applied. Useful for rotating applications.
Tips
For clamping, clamping screws (DIN 21000), stud bolts (DIN 21100) and cheese head screws (ISO 4762) can be used.
h1 is dependent on the depth of the slot and position of the fixture nut.
