Adj. Plain Clamps
with adjusting screw

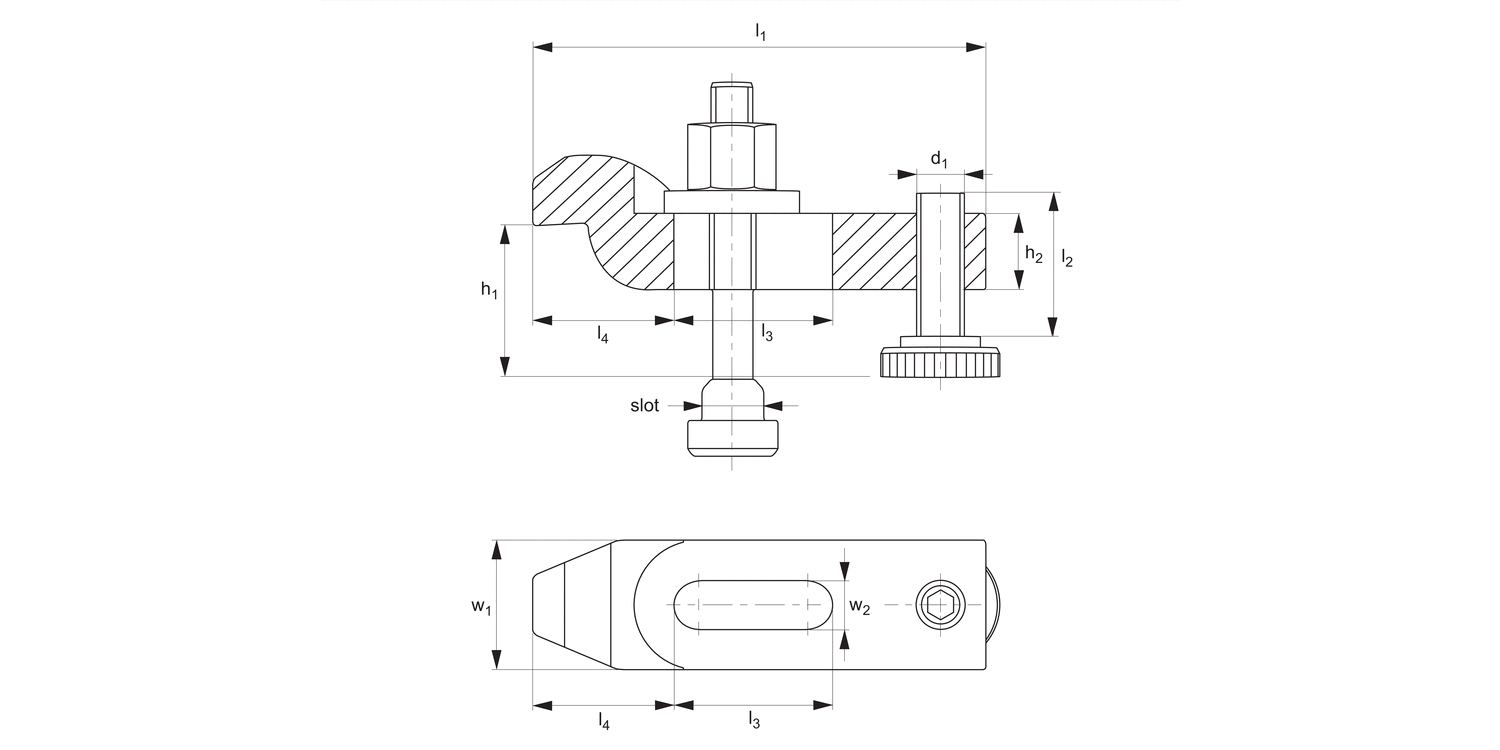

10500 Adjustable Goose Neck Clamps
with height adjusting screw, material: Heat treated steel
Order No.
10500.W0120
Type
W/o bolt
For bolt
M20
For T-slot
-
T-bolt
-
d1 x l2
M20x69
h1
43-92
h2
30
l3
70
l4
59.0
w1
60
w2 x l1
22x200
Weight
g
2669
£ 138.46 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 138.46 | 0% |
| 5-14 | £ 124.61 | 10% |
| 15-24 | £ 117.69 | 15% |
| 25+ | £ 110.77 | 20% |
Technical & Application
Material
Steel, heat-treated and enamelled.
Technical Notes
Type one: clamp, support screw and T-bolt set.
Type two: clamp and support screw only.
Dimension h1 is dependent on depth of slot and position of fixture nut.
Tips
Often used for clamping press tools.
Used with:
10680 ratchet clamp lever, 21000 T-slot bolt, 24400 collar nut, 25000 plain washer.
Replacement parts:
Replacement support screw see part no. 10410.
Important Notes
Particularly suited to clamping low workpieces. The clamping height can be adjusted by means of the support screw.
