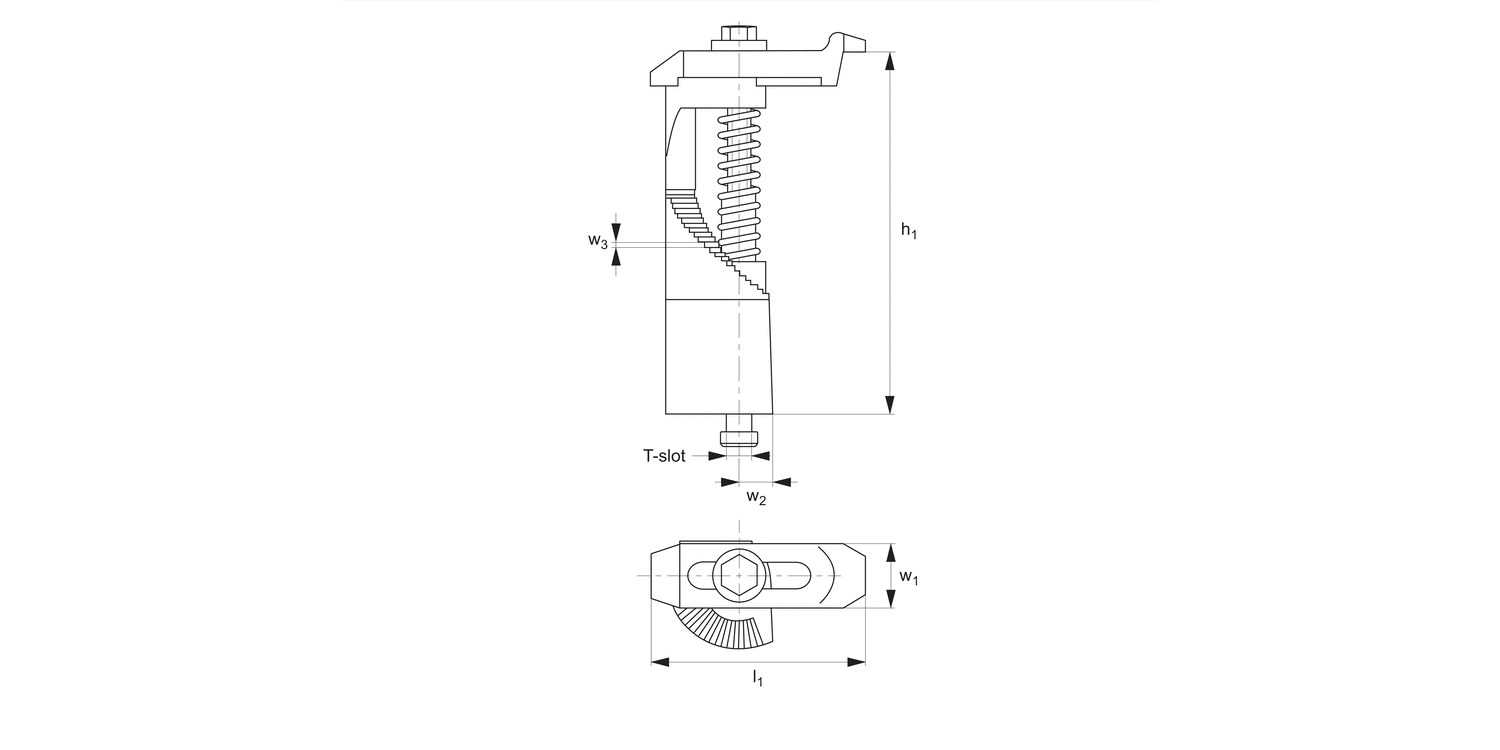

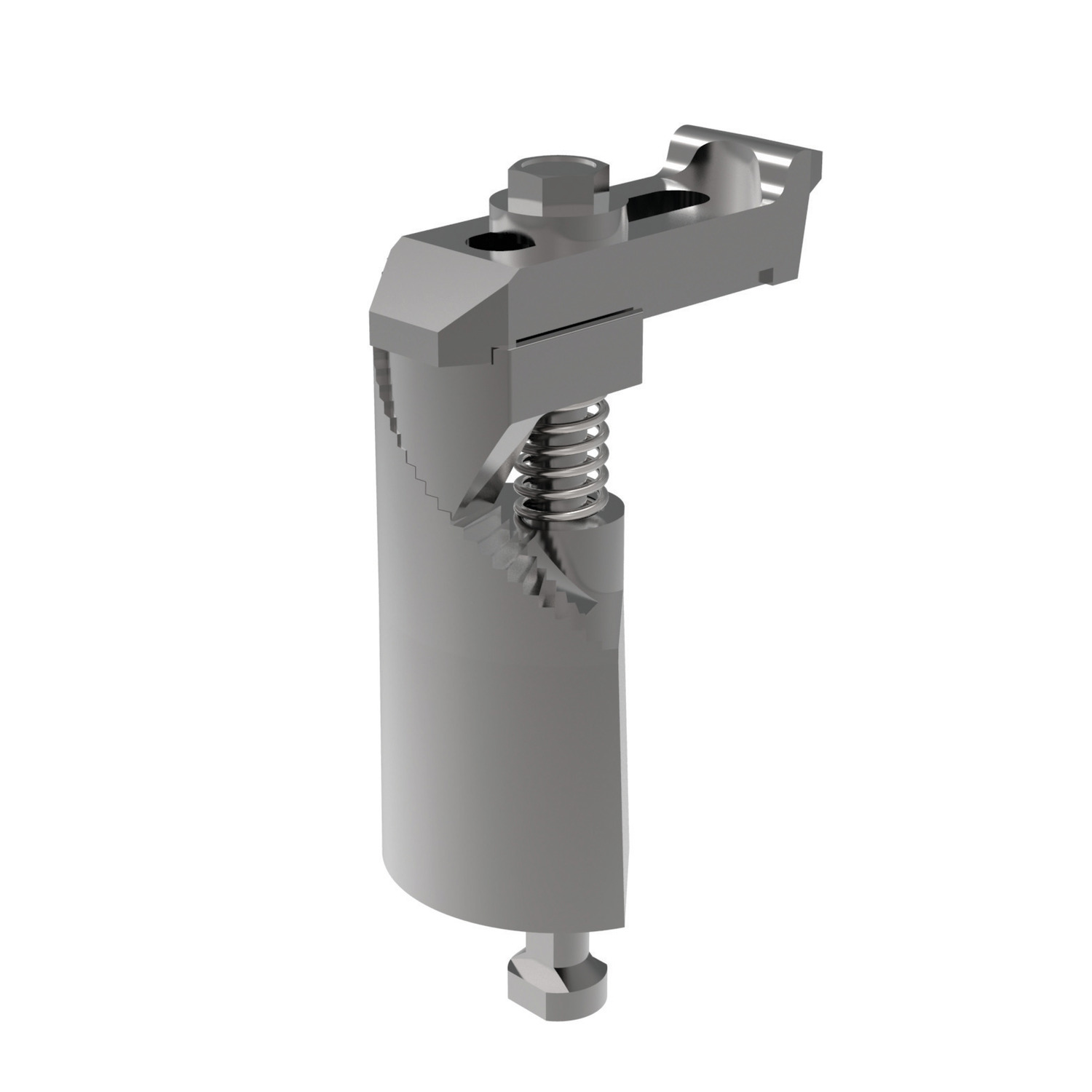

10550 Adjustable Step Pillar Clamps
with goose neck, material: Forged steel
Order No.
10550.W0123
Size
12-3
T-slot size
12
h1
60-135
l1
112
Tightening torque
Nm
50
w1
34
w2
16
w3
2.5
Clamping force
max.
kN
11.4
Weight
g
1200
£ 311.51 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 311.51 | 0% |
| 3-4 | £ 295.93 | 5% |
| 5-9 | £ 280.36 | 10% |
| 10+ | £ 264.78 | 15% |
Technical & Application
Material
Steel forged, thread quality 8.8.
Technical Notes
Clamping unit for quick action. The compact construction ensures a small footprint on the machine table. Allows clamping over a wide height range with minimum fuss.
* Clamping forces stated for minimum h1 dimension.
Tips
Used with:
24000 T-nuts.
Product Datasheets

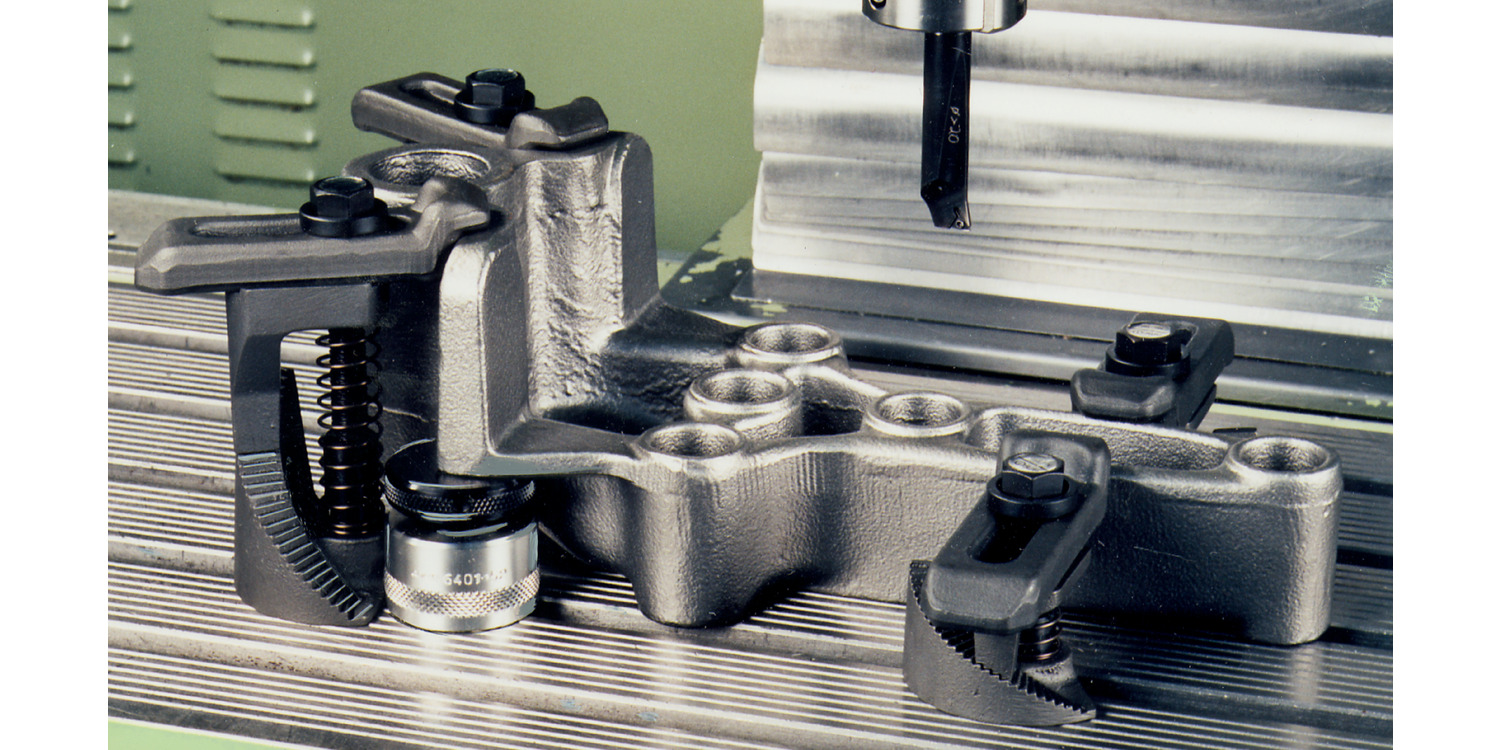

Application images
